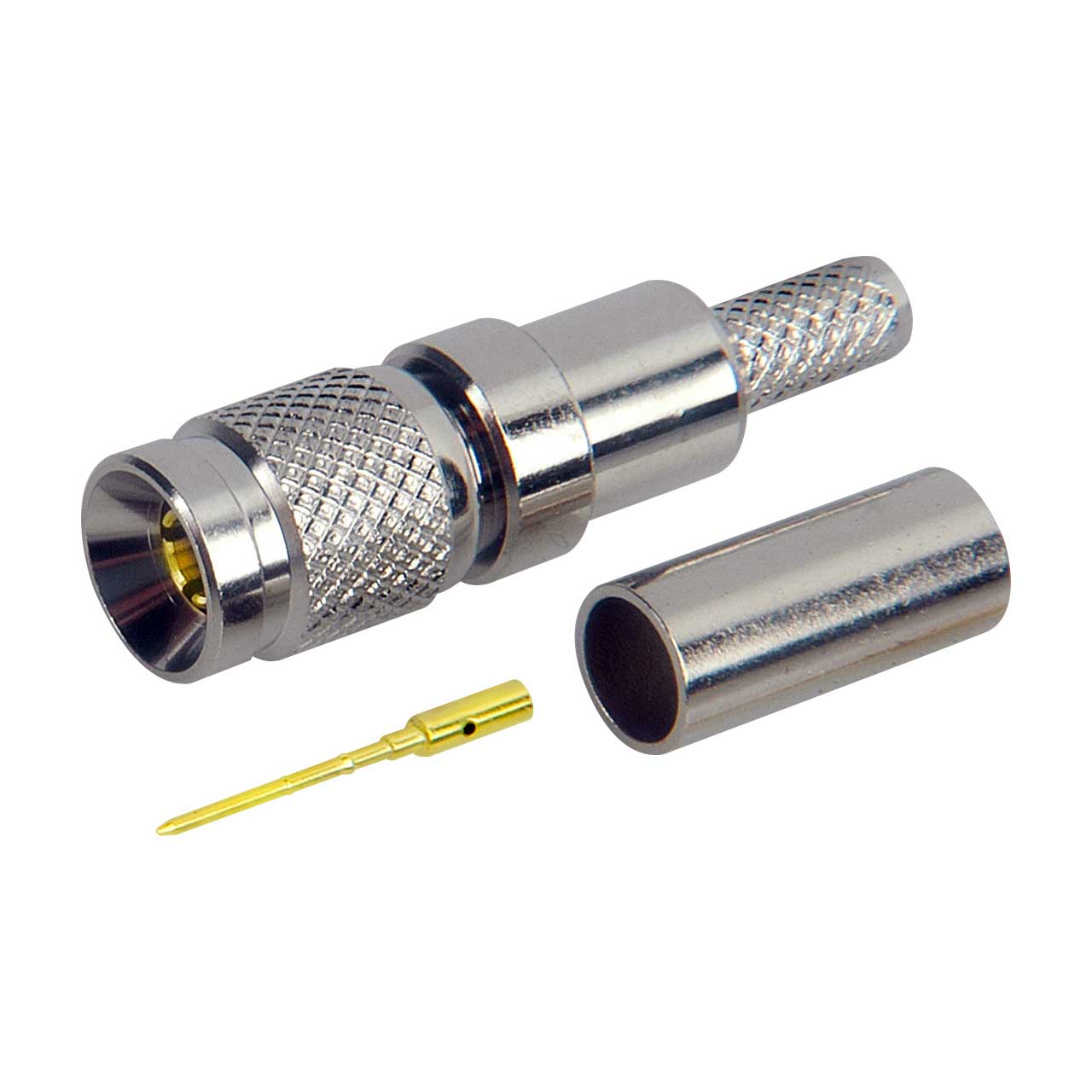

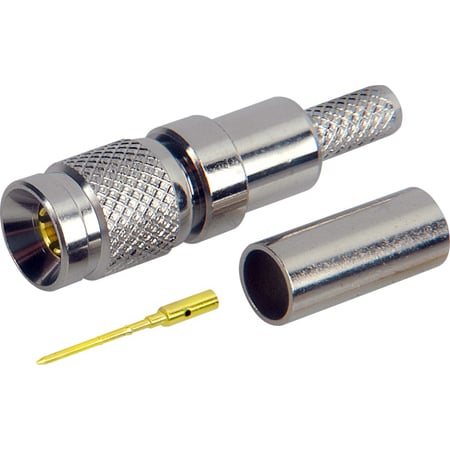

    Connectronics DIN 1.0/2.3 Connector for Belden 1855A/Mini RG59 3-Piece

    Manufacturer: Connectronics

    Item #: DIN-1023-1855   •   MFG #: DIN-1023-1855



    List Price:$5.95
    Our Price:$4.49
    Quantity Pricing

    free ship


    Availability: Usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.




      Share!





      The new Connectronics DIN 1.0/2.3 RF coaxial connector for Belden 1855A, Gepco VDM230, or equivalent mini RG59 Digital SDI coaxial cable. Our newest connector has upgraded performance to meet future needs with a return loss of >10dB out to 4.5 GHz. It is designed to mate securely with a broad range of compact jackfields and high density broadcast router panels such as Harris, Miranda and Evertz.

      These high performance connectors feature a Nickel Shell & Gold Plated Center Contact/Pin and are capable of operating up to 10 GHz and a mating life of 500 cycles. The compact design allows for dense packaging, ideally suited for applications where space is limited. This series complies with CCCE 22230, DIN 41626, and DIN 47297 specifications.


      • Features

        • Mates with DIN Connectors used on Harris X50, Evertz, NVision, Miranda and similar routers
        • Quick connect Push/Pull system.
        • Locking mechanism that will not vibrate loose as threaded connectors are prone to do.
        • When mated, the connectors can rotate 360°.
        • Allows for connectors to be 2-3 times more densely packed than BNC's.
        • Operation up to 10 GHz.
        • Supports 3Gbps HD SDI SMPTE 424M applications.
        • Uses existing tooling.
        • Crimp center contact.
        • Equivalent to Amphenol Connex 282138-75 & Kings 0345-E00-C7202N
        • Compatible with Kings KTH-5000 Crimp Tool and KTH-5001 Crimp Die
        • Compatible with Paladin PAL-1366 Crimp & Die Tool
