Connectronics 12GHz Rated DIN 1.0/2.3 Connector for Belden 4855R

ITEM #: DIN-1023-4855 MFG #: DIN-1023-4855

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

List Price:

$7.65

Our Price:

$6.95

Availability: Temporarily Out of Stock
iAvailability Description Popup


    DIN-1023-4855 - Overview

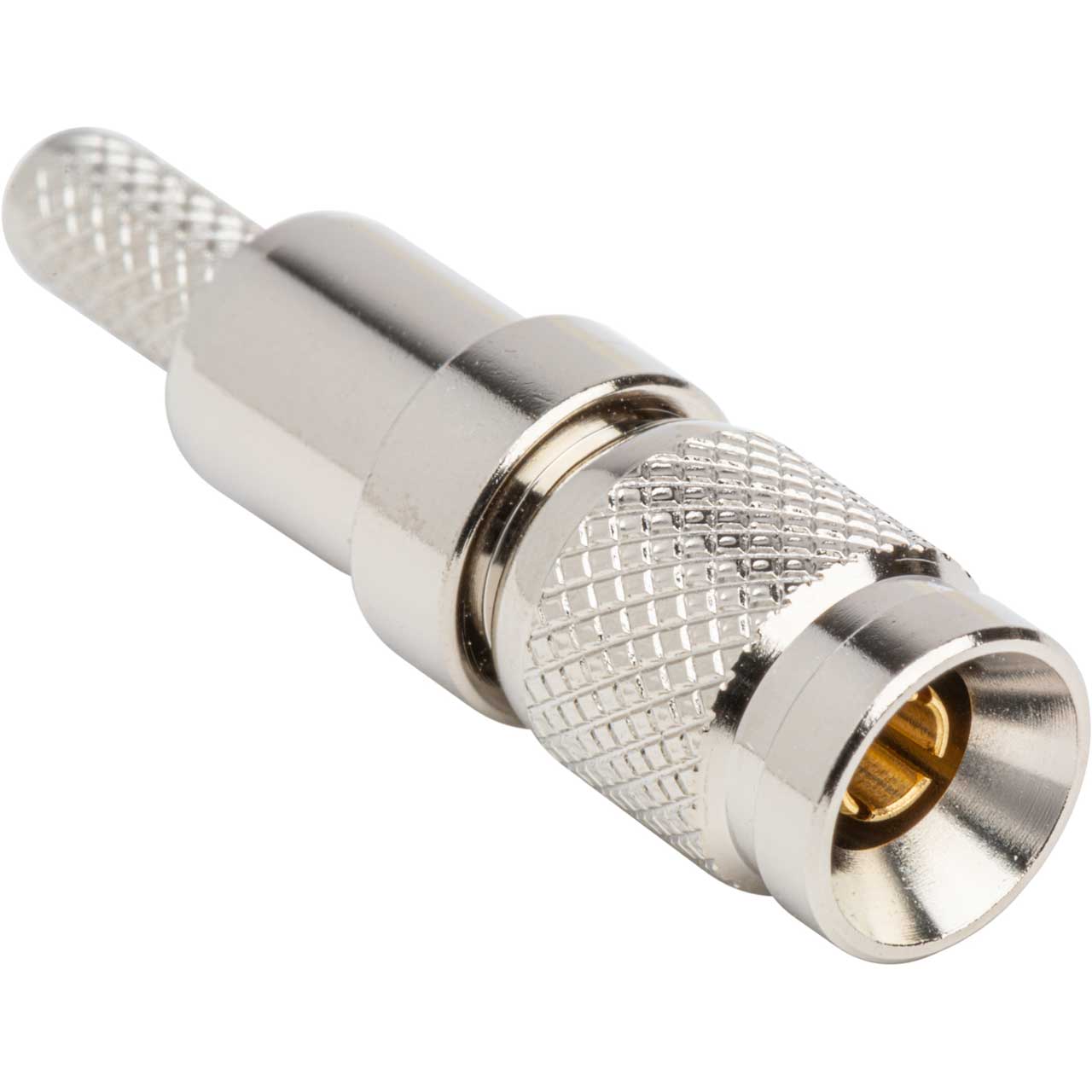

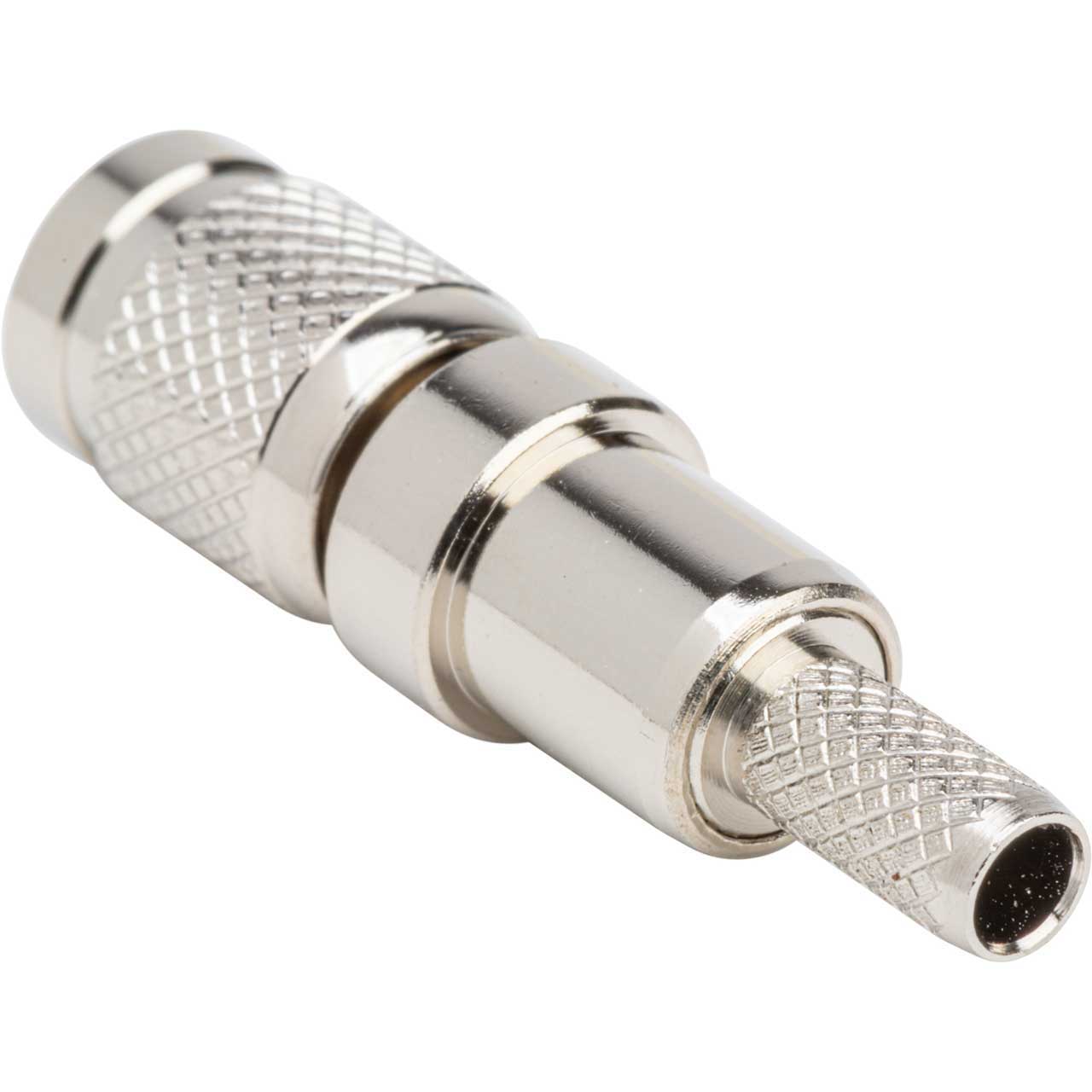

    The new Connectronics DIN 1.0/2.3 RF coaxial connector for Belden 4855R, Gepco VDM230, or equivalent mini RG59 Digital SDI coaxial cable. Our newest connector has upgraded performance to meet future needs with a return loss of >10dB out to 12GHz. It is designed to mate securely with a broad range of compact jackfields and high density broadcast router panels such as Harris, Miranda and Evertz.

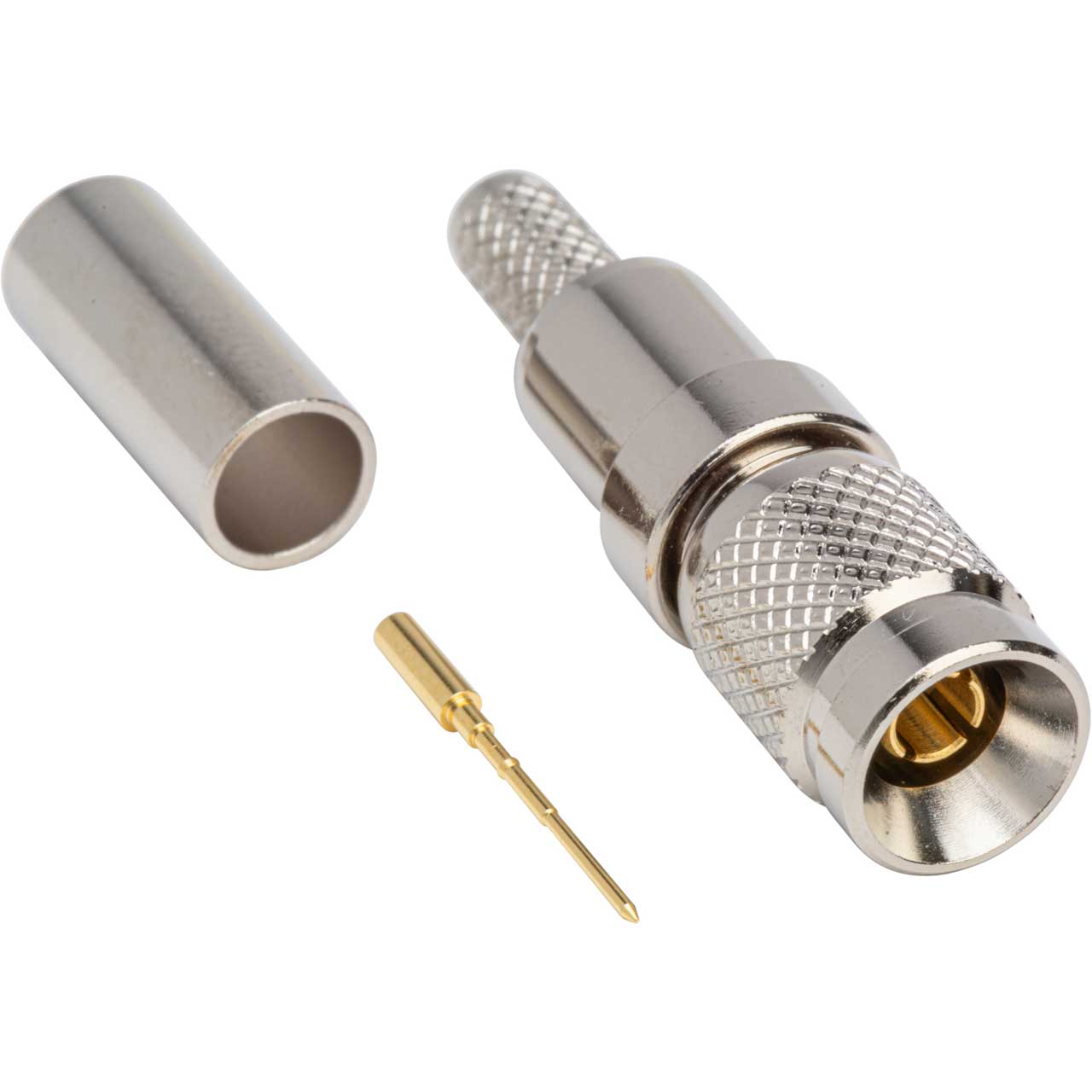

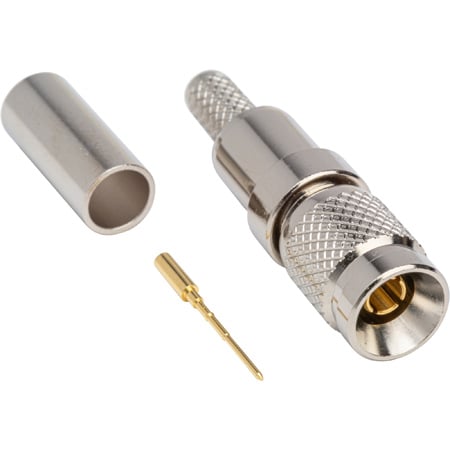

    These high performance connectors feature a Nickel Shell & Gold Plated Center Contact/Pin and are capable of operating up to 12 GHz and a mating life of 500 cycles. The compact design allows for dense packaging, ideally suited for applications where space is limited. This series complies with CCCE 22230, DIN 41626, and DIN 47297 specifications.
