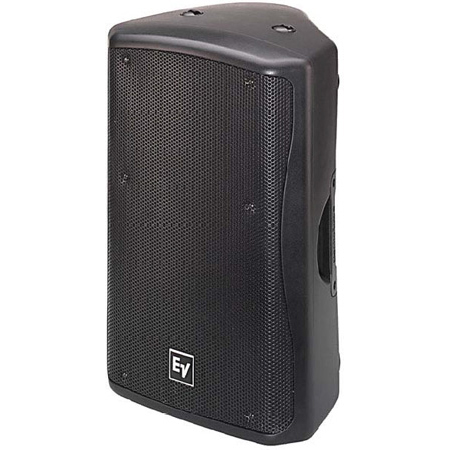

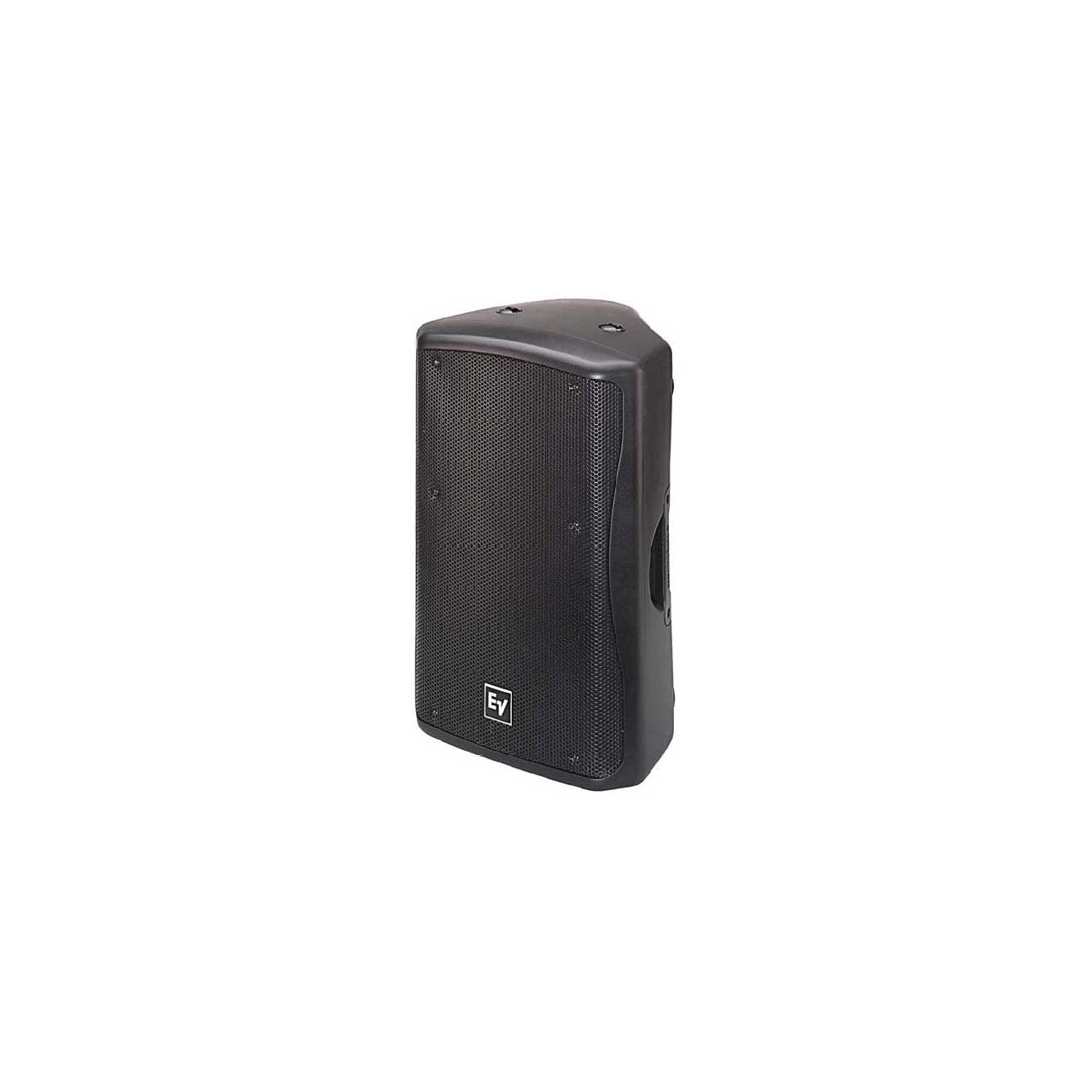

Electro-Voice ZX5-90B 15-Inch Two-Way Passive 600W Outdoor Loudspeaker - Black

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Electro-Voice ZX5-90B 15-Inch Two-Way Passive 600W Outdoor Loudspeaker - Black

    Manufacturer: Electro-Voice

    Item #: EV-ZX5-90B   •   MFG #: EV-ZX5-90B








    Colors:





    Share!





    The Electro-Voice Zx5-90PI features a molded polymer enclosurethat is inherently water resistant. The addition of a multilayer grillewith hydrophobic cloth and a gland nut input connection completes itfor a highly weather resistant system. The Zx5 is the new standardof no compromise audio performance and versatility in a simple touse, compact package.

    At its heart are the transducers. First is the DVX3150 high performance low frequency transducer. EV used advancedcomputer aided design techniques to create forced air, directionalvoice coil cooling for high power and efficiency. Finite elementanalysis was used to optimize the suspension and magnetic structurefor long, linear travel to provide low distortion and greater LFextension. These features and details, such as forged magneticcomponents and special materials, provide reliability with a 500Wpower rating in a lightweight transducer. Next is the ND2, a 2-inchvoice coil compression driver based on neodymium motor structure to allow for maximum output while reducing size and weight to a minimum. Its precision phasing plug and titanium diaphragm provide better HF performance, while the integral heatsink provides cooling for high power output.

    The high tech enclosure uses injection-molded high-impactpolypropylene structural foam to make the Zx5 incredibly durable.The enclosure geometry elements have been carefully designed toprovide maximum rigidity and bass response.
    Two coverage patterns are available; 60° x 60° coverage for long throw and cluster applications, 90° x 50° coverage for wider coverage or shorter distances.

    The Zx5 is equipped with three anchor plates for rigging with singlestud-fittings, along with two more possible anchor plate attachment points on the bottom. For permanent suspension or attachingbrackets, the Zx5 also has two M8 inserts on the top and bottom,two under the handle, and four on the back of the enclosure, for atotal of 10.


    • Features

      • Versatile performance for mains, fills, or monitors
      • DVX3150A woofer with forced-air cooling
      • 2-inch ND2 titanium/neodymium HF driver
      • Switchable bi-amp or passive crossover operation
      • Choice of 90§ x 50§ or 60§ x 60§ coverage horn
      • High sensitivity, 132 dB maximum SPL
      • Power handling: 600 W continuous, 2400 W peak
      • High impact polypropylene enclosure
      • Wedge shape for monitors at 45§ or 55§
      • Up to five anchor-plate attachments
      • M8 mounting inserts (10)
      • Integrated handle
      • Available in black or white

    • Specifications

      • Chassis Size 381 mm (15")
      • Color Black, white
      • Input Connections Parallel Neutrikr NL4
      • Speaker Type Full-range, Mid-High, Two-Way, Wedges
      • Frequency Response (-3 dB) 58 - 18000 Hz
      • Frequency Response (-10 dB) 39 - 20000 Hz
      • Internal Crossover Switchable biamp or passive crossover
      • Recommended High-Pass Frequency 36 Hz
      • Sensitivity 1 W/1 m 98 dB
      • Max. SPL/1m (calc) 132 dB
      • Coverage (Nominal -6 dB) H 90/60 °
      • Coverage (Nominal -6 dB) V 50/60 °
      • System Power Handling (Continuous/Program/Peak) 600//2400 Watts
      • LF Transducer 15-inch DVX3150A
      • LF Power Handling 500 Watts
      • HF Power Handling 40 Watts
      • LF Nominal Impedance 8 O
      • HF Transducer 2-inch ND2
      • HF Nominal Impedance 8 O
      • Crossover Frequency 1500 Hz
      • Nominal Impedance (Passive) 8 O
      • Minimum Impedance 6.5 O
      • Enclosure Material High Impact Polystyrene
      • Flying Yes
      • Outdoor Yes
      • Grill Polyester Powder Coated, 18GA Galvanized Steel
      • Height 692 mm (27.24")
      • Width 446 mm (17.56")
      • Depth 411 mm (16.18")
      • Weight Net 22.2 kg (48.94 lbs)
