Electro-Voice EVF-1152D 15 Inch 2-Way Full-Range Loudspeaker with 90 Deg x 40 Deg Coverage - White

ITEM #: EV-EVF1152D94WT MFG #: EVF-1152D/94-WHT

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$3,512.00

Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup


    EVF-1152D/94-WHT - Overview

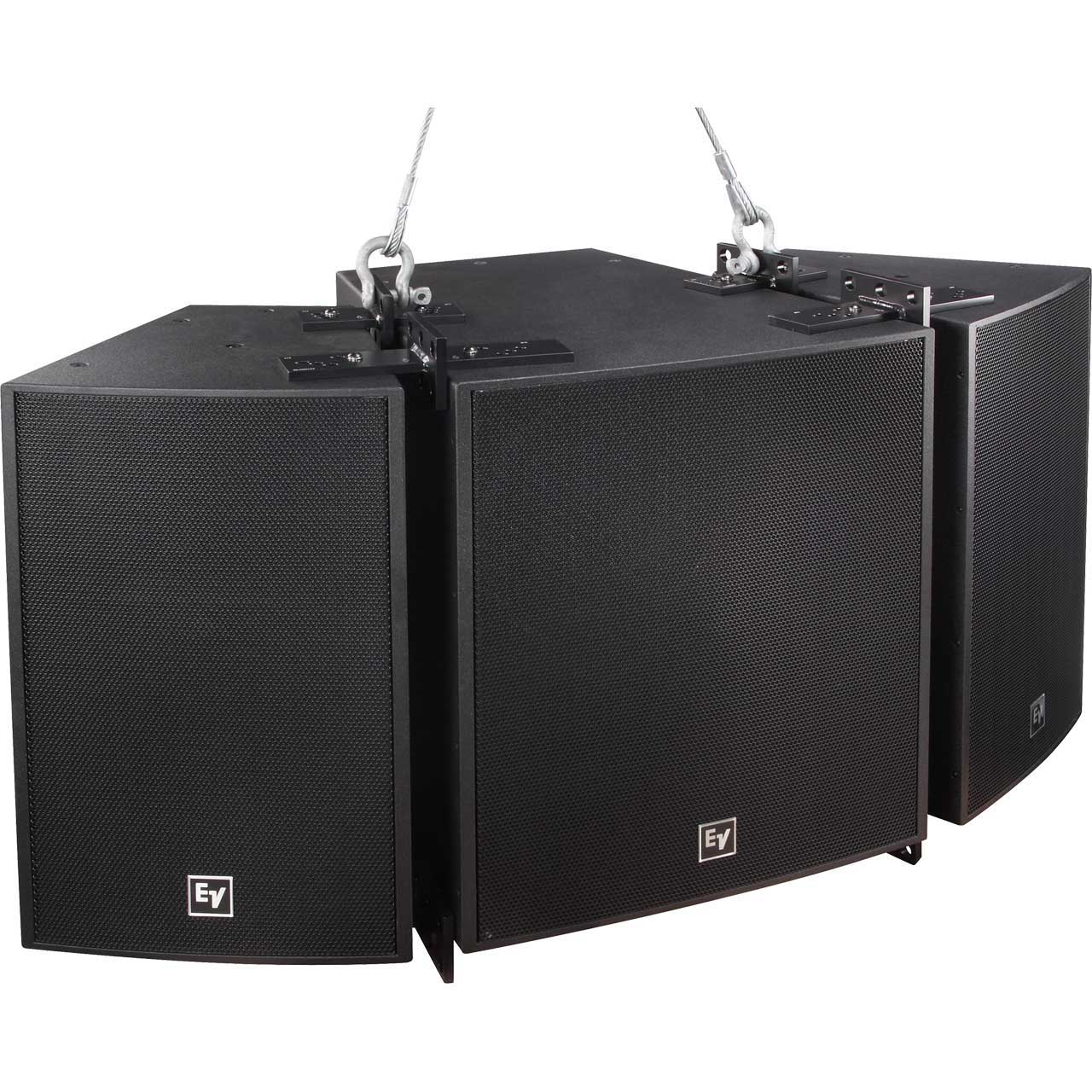

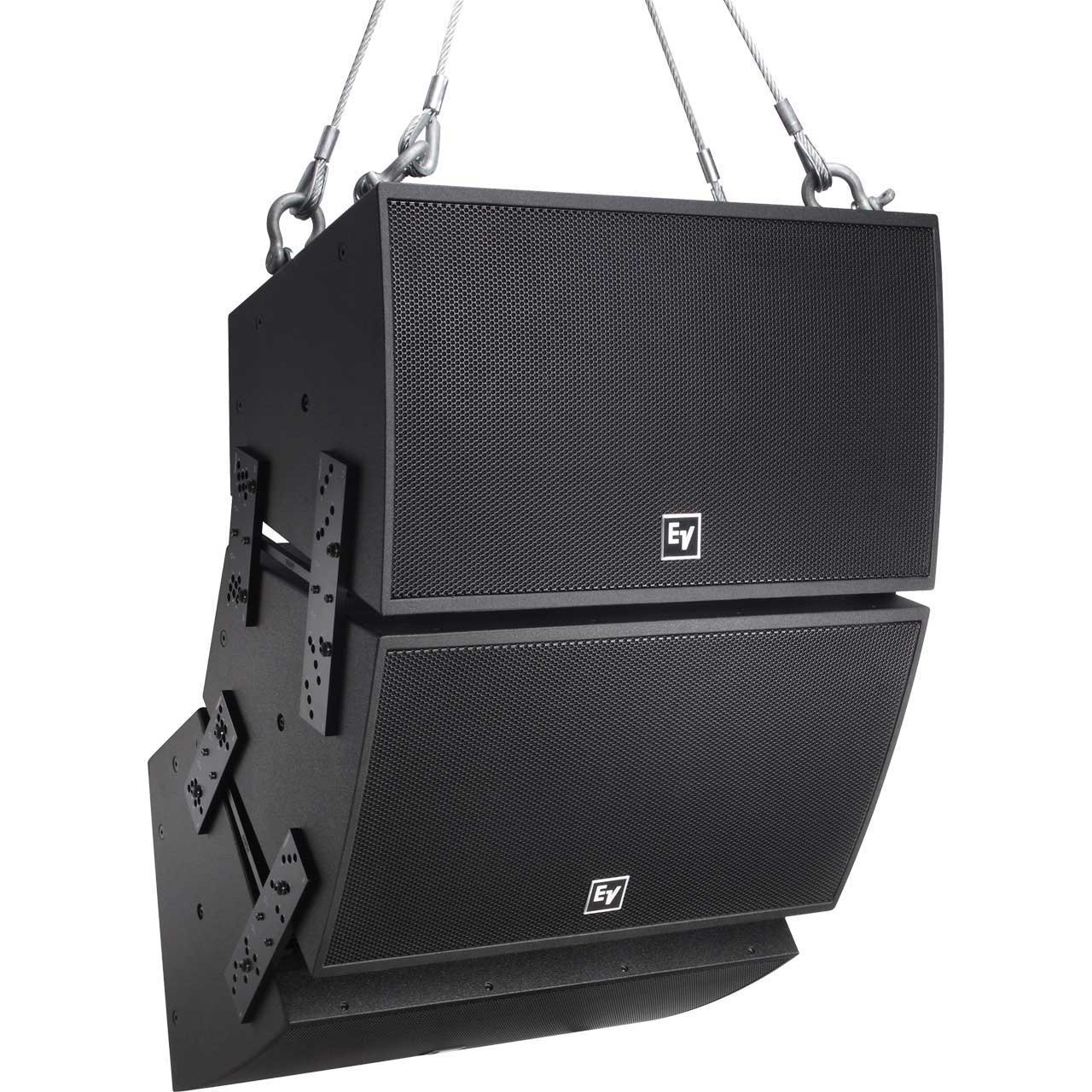

    The Electro-Voice EVF-1152D is a high-power, two-way loud-speaker system that can be used in a variety of applications where high-quality sound reinforcement is required in a compact, light-weight package. The EVF-1152D utilizes the DH7N, a high-output 3" titanium compression driver, coupled to a Constant Directivity™ waveguide. The DVX3151A 15" woofer was developed using FEA optimization for motor, suspension, and electrical design to ensure very low distortion, high efficiency, and maximum intelligibility at high SPL. The crossover uses steep, 24-dB-per-octave slopes with equalization for very smooth response in the vocal range, linear off-axis response, and a protection circuit for long-term reliability. The EVF-1152D's features make it ideal for many fixed-install applications. The trapezoidal enclosure is constructed of weather-resistant birch, and coated with EVCoatTM for maximum protection from the elements. The unique acoustic and rigging design allows for vertical and horizontal clusters to be built using any combination of loudspeakers from the entire EVF and EVH series. With seven horn patterns to choose from, along with an assortment of low-frequency and subwoofer loudspeakers, you have the tools to maximize flexibility of system design, no matter what the application and budget. The innovative input panel provides a choice of Phoenix-style connector (included in all standard models) or the ability to add a dual NL4-type connector cover plate or gland-nut cover plate (for weatherizing applications). An externally accessible jumper selects passive or active operation. An available 70.7/100-V transformer kit may be easily mounted to the input panel for use in distributed systems. All these features give you the flexibility to address a large range of venues, quickly and precisely supporting customer requirements with fewer items in inventory.

    Please Note: Images are for reference only. Product is white in color.

    • Features:

      • 15" Low Frequency transducer using FEA optimized woofer.
      • 3" titanium compression driver with 1.4"-throat diameter.
      • Rotatable 12" x 12" CD horn.
      • Very linear frequency response from 49 Hz to 21 kHz, max. deviation from linearity: +/- 2 dB
      • Advanced 4th Order Crossover 24 db octave Slope with HF protection
      • Integrated crossover with an acoustic crossover frequency of 1,300 Hz
      • Dynamic protection circuit for independent protection of both ways against thermal overload
      • Switchable bi-amp or passive operation: compact, trapezoidal-shaped, 13-ply birch plywood, optional flying hardware

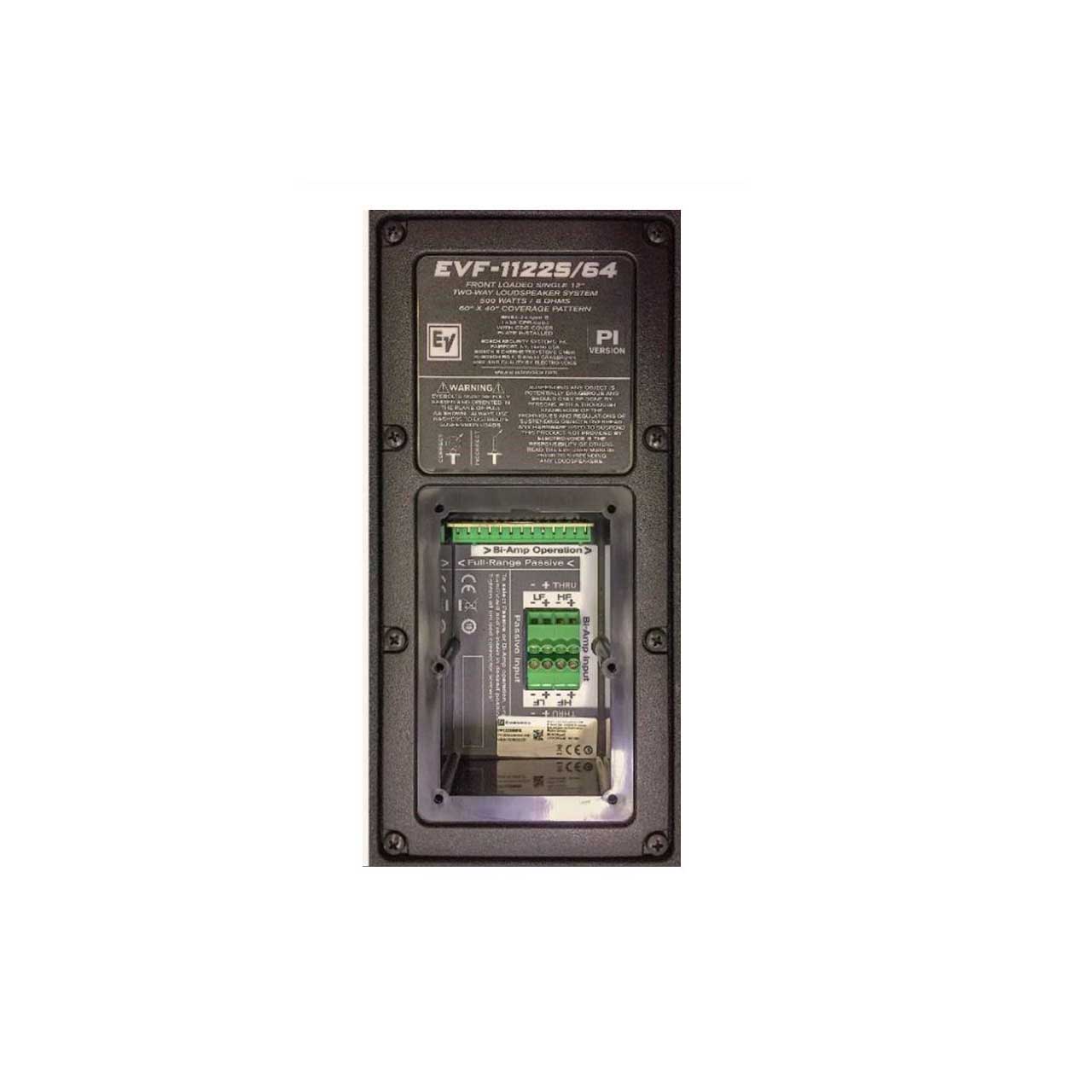

      • Input phoenix panel to handle up to 10AWG connector
      • Easy external operation mode selection switch
      • ANSI /IEC 60529 - IP44
      • Maximum sustained humidity <80%
      • Salt content of normal air <20%
      • Galvanneal grill with vinyl coated acoustic screen and stainless steel Fasteners
      • Black

    • Specifications:

      • Frequency response: (-3dB): 70 Hz - 18Khz
      • Frequency response: (-10dB): 40 Hz - 21Khz
      • Nominal coverage H: 90° - rotatable
      • Nominal coverage V: 40° - rotatable
      • Crossover Frequency: 1300 Hz
      • Axial Sensitivity (1W/1Mtr): 100 dB
      • Maximum Calc. SPL: 134 dB
      • Power Handling: 600 W Cont / 2400W Peak
      • Nominal impedance: 8 Ohms
      • Minimum impedance: 6 Ohms
      • Connectors: Phoenix 10 AWG terminals
      • Dimensions: 30.3 x 18.5 x 18.3 Inches
      • Weight max.: 75.83 lbs
      • Enclosure Material: 13-ply weather-resistant birch
      • HF Transducer: 3" DH7N diaphragm compression driver
      • LF Transducer: 15" DVX3151A woofer

    • Item Includes:

      • 1x EVF-1152D Loudspeaker
      • 1x EVI-M10K eyebolt kit (4 eyebolts)

    • Warranty:

      • 5 Year Warranty
