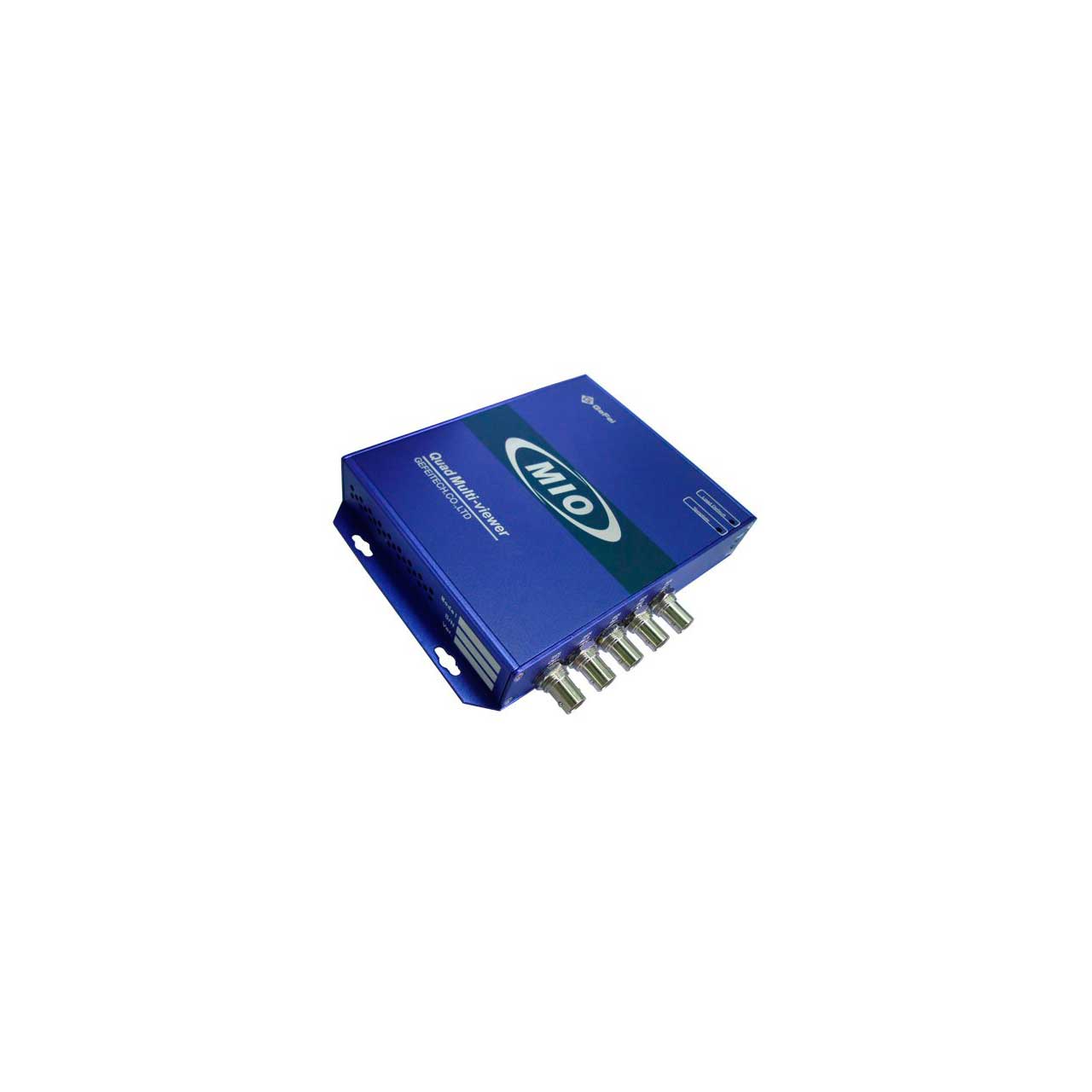

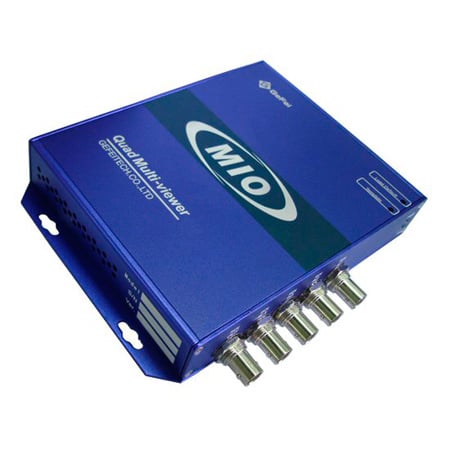

Gra-Vue MIO MVS-4HD Multiviewer Mini Box Quad HD/SD-SDI Multiviewer

Manufacturer: Gra-Vue Co., Ltd.

Item #: GFE-MVS-4HD   •   MFG #: MIO MVS-4HD


List Price:$1,519.00
Our Price:$1,423.95

free ship
Availability: In Stock
Item is Available for immediate shipping from our warehouse.



    The MIO MVS-4HD is a low-cost mini quad multi-viewer system. The MIO MVS-4HD supports 4ch. 3G/HD/SD auto adaptive inputs and a DVI/HDMI (up to 1920x1080) with a duplicated HDSDI outputs. It is a true multi-view display system with rich features, such as configurable display layout, display template restore & recall, real time audio & video probe and on screen alarm, built-in router, Tally, AFD, clock and logo display, dynamic UMD, audio UV meter, Portrait display, etc.
    The compact and maintenance-free MIO MVS is perfect for mission critical and live applications. With a built-in WEB server, users can easily remote control the unit with a WEB browser. No special software is needed.
    The MIO MVS-4HD is the most cost-effective solution for many broadcasting and professional A/V applications, such as control room, production, mobile truck, post-production, and play-out system.
    The only mini multiviewer system in the market has the 90°, 180°, 270° screen rotation display function.

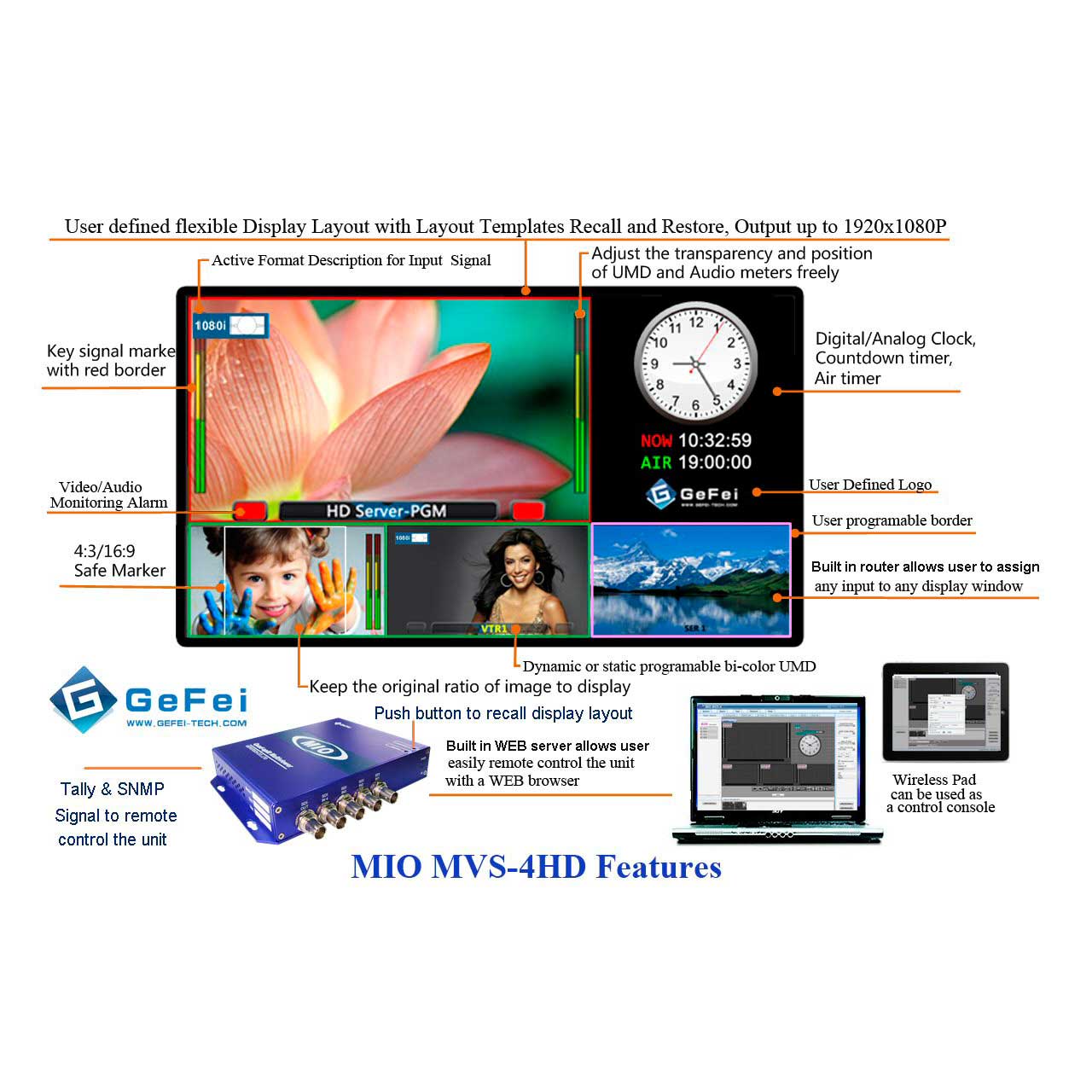

    • Features

      • 3G/HD/SD auto sensing to 1080P
      • DVI+SDI output up to 1920x1080P
      • Configurable display layout
      • 90°, 180°, 270° screen rotation
      • Display template restore/recall
      • Video and audio signal auto survey
      • Alarm for video/audio lost, frozen, black video, EDH error
      • A/D Clock + count down timer
      • User defined LOGO display
      • Active Format Description (AFD)
      • Dynamic & programmable UMD
      • Four channel audio VU meters
      • Built-in Web server supports
      • Support SNMP & Tally protocol
      • 4:3,16:9 and full screen display
      • Quick key to recall display layout
      • Selectable embedded audio output
      • HDMI V1.3 compatible
      • SDI loopthrough for power failure
      • Input sigal status LED
    • Specifications

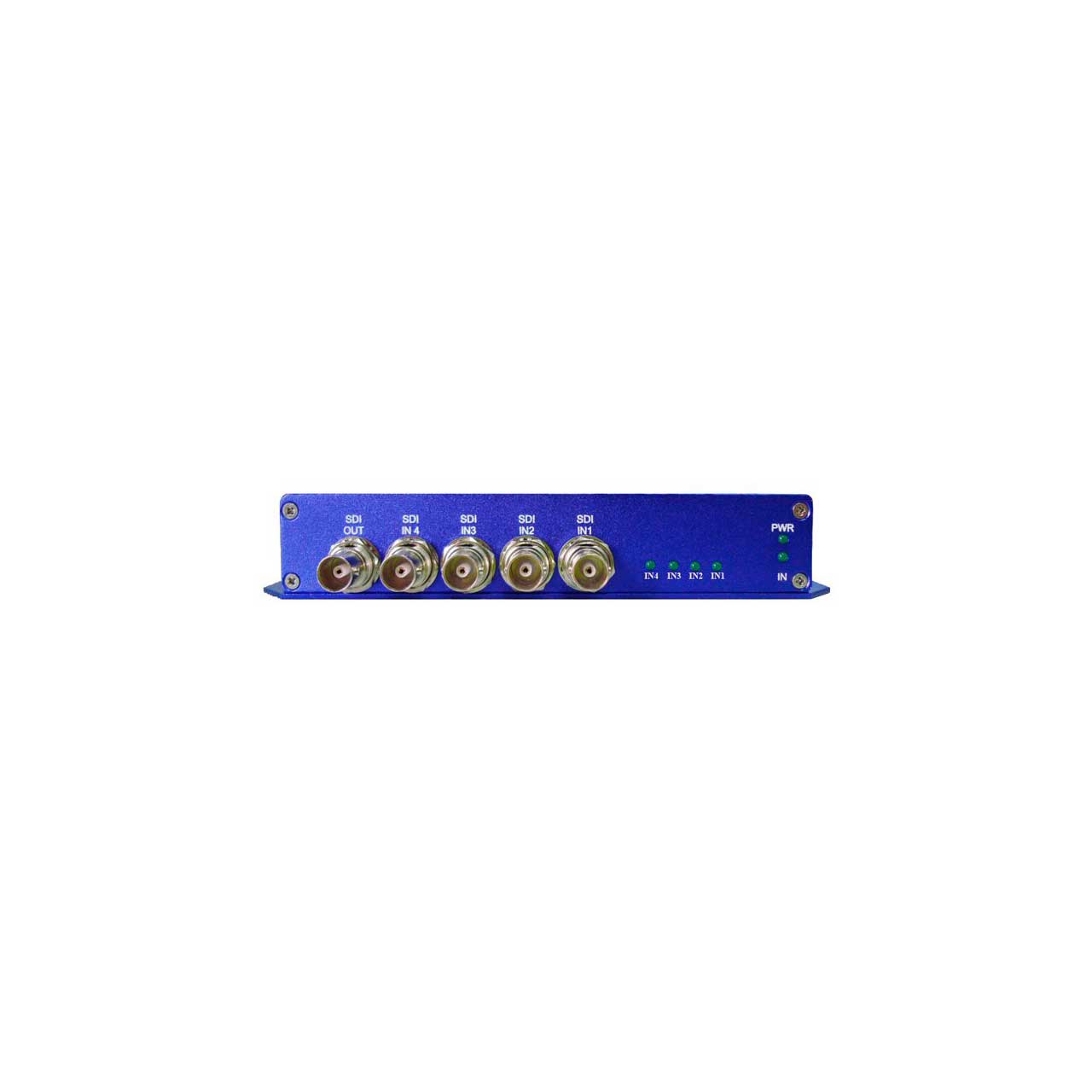

      • Video Input: 4 x HD(3G)/SD
      • Video Format: 480i, 576i, 720P, 1080i, 1080P

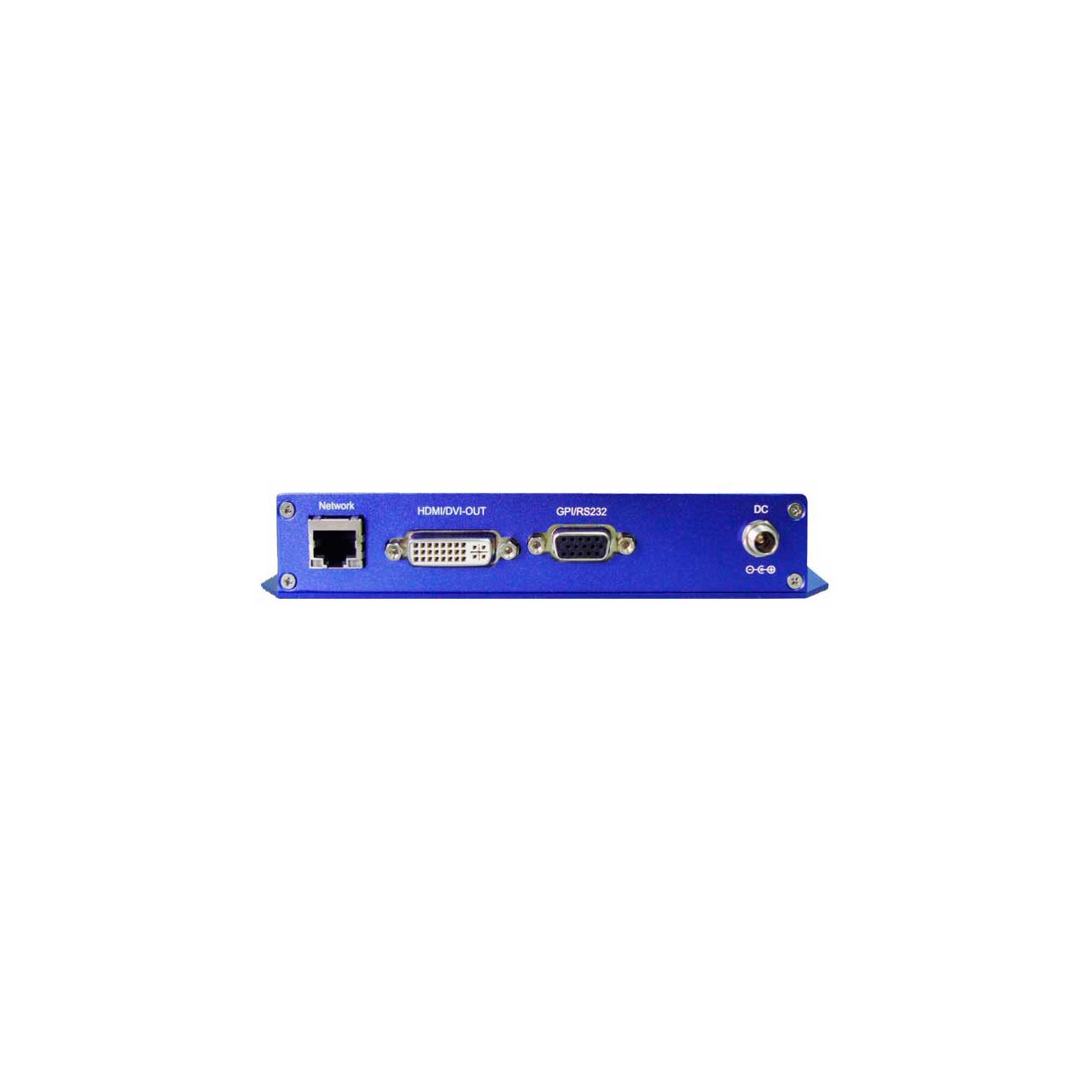

      • Video Output: DVI-I x 1 ( female, support HDMI protocol), SDSDI x 1 (BNC)
      • Output format: 1024x768, 1280x720, 1280x1024, 1366x768, 1400x1050, 1600x900, 1680x1050, 1600x1200, 1920x1080
      • Control: RJ 45 Ethernet for buildin in WEB Server, TSL SMNP protocol DB15 - RS-232 for TSL protocol, GPI for Tally and danymic UMD
      • Power: 12 VDC, 1.0A
      • Physical: 152mm x122mm x 30mm
