Decimator Design MD-QUAD Miniature 3G/HD/SD-SDI Quad Split Multiviewer with HDMI - Version 3

ITEM #: DEC-MD-QUAD MFG #: MD-QUAD

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$1,295.00

Availability: In Stock
iAvailability Description Popup


    MD-QUAD - Overview

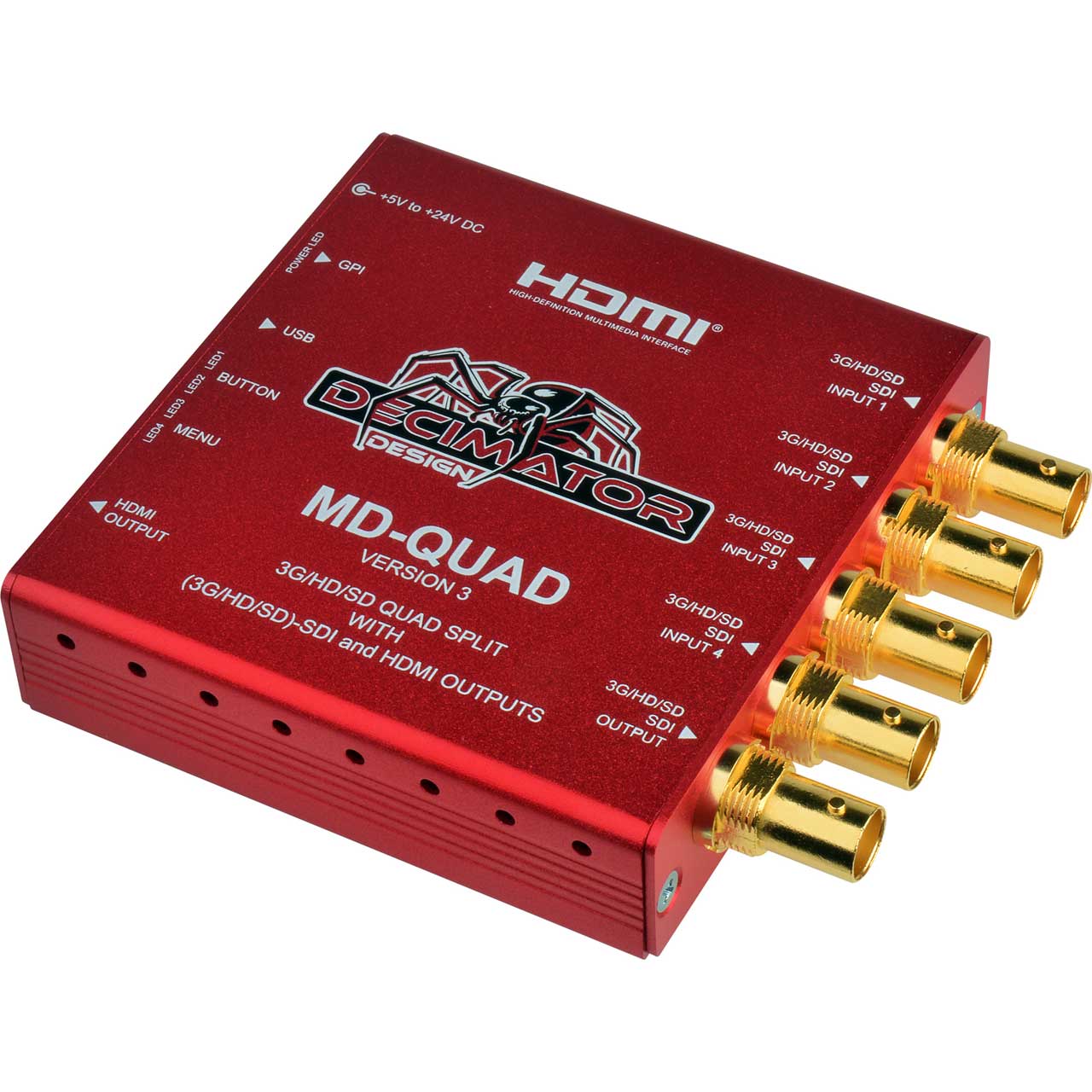

    The Decimator MD-QUAD V3 is a low-cost miniature (3G/HD/SD)-SDI, 4 to 1 Quad Split Multiviewer or 4 to 1 input multiplexer. It features a selectable output format in Quad-Split mode and low latency buffering for each input allowing for non-synchronous inputs. The MD-QUAD is also a professional 3G/HD/SD Test Pattern Generator featuring 26 Selectable Output Formats and 54 Test Patterns including Luma and Chroma Zone-plates and an Audio Tone Generator.

    Featuring an extensive selection of user controllable functions utilizing the easy to use rotary encoder for menu selection, the LEDs and push button can then be used for status and control. The MD-QUAD V3 supports both 3G level A and B on the input and output to allow conversion between 3G level A and B. Each quadrant is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously! You also get variable aspect ratios per quadrant and all 4 inputs can be displayed simultaneously on a single output.

    • Features:

      • Support both 3G level A and B on the input and output. Allowing conversion between 3G level A and B.
      • Professional 3G/HD/SD Test Pattern Generator featuring: 26 Selectable Output Formats/54 Test Patterns including Luma and Chroma Zone-plates/Audio Tone Generator
      • Horizontal and/or Vertical image flipping per window
      • Low cost miniature (3G/HD/SD)-SDI 1 to 4 channel Multi-Viewer or 4 to 1 input multiplexer
      • Custom Layouts with various standard layouts
      • 16 Character UMD overlay per window with individual enables, custom positioning and size
      • 8 Channel Audio Metering overlay per window with individual enables, custom positioning and size
      • Tallies can be applied to either Tally Boxes (Default) or Border
      • Tally boxes allows for up to 4 Tallies per window (Green, Red, Blue and Yellow)
      • Load and restore Custom Layouts
      • Fast switching between inputs using Full-Screen scaling
      • Selectable output format in both Full-Screen and Multi-Viewer mode
      • Low latency buffering for each input allowing non-synchronous inputs
      • Linked (3G/HD/SD)-SDI and HDMI outputs

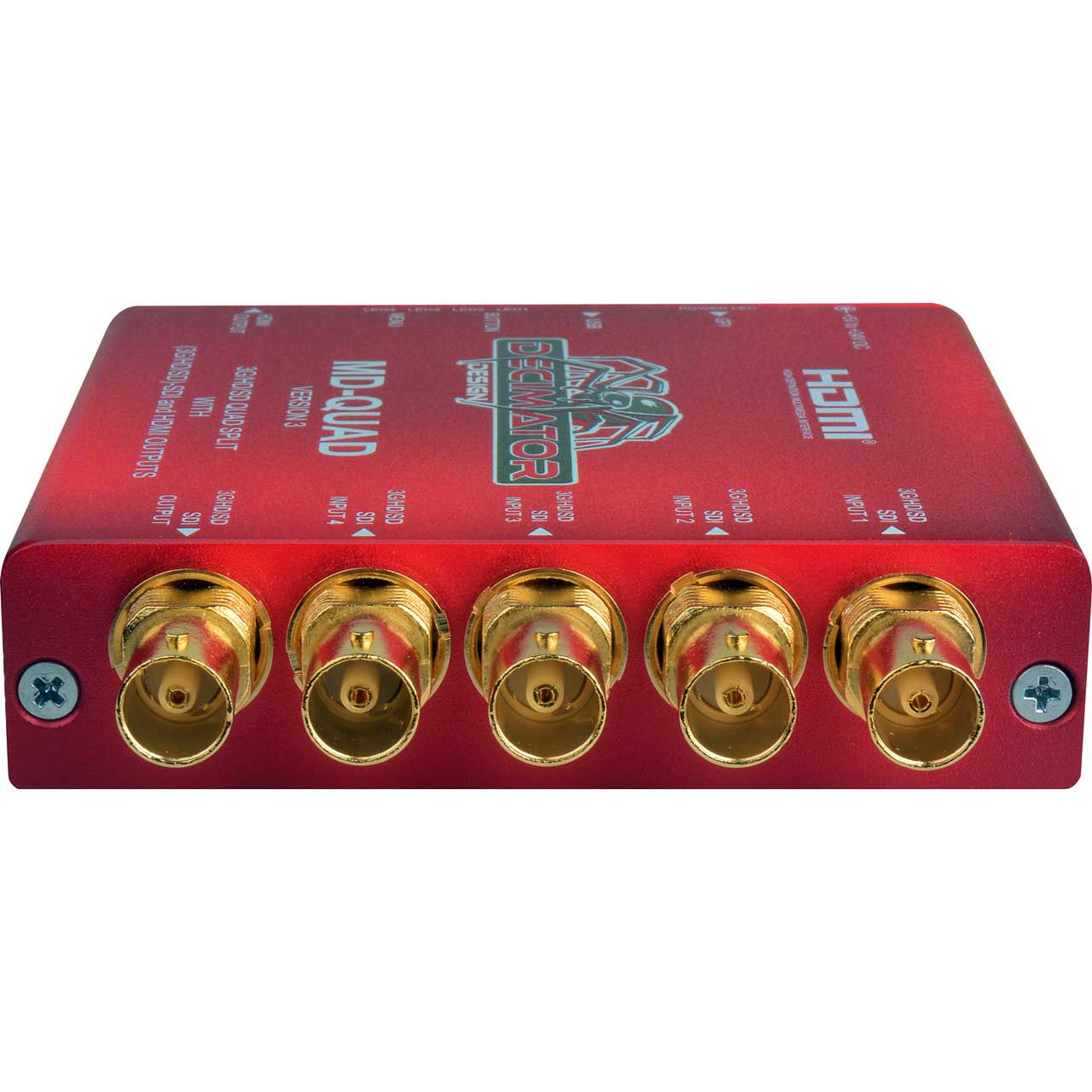

      • 4 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)
      • Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
      • Variable aspect ratios per window
      • Pass-Through mode allowing any of the 4 inputs to be selected and routed to both the (3G/HD/SD)-SDI and HDMI outputs

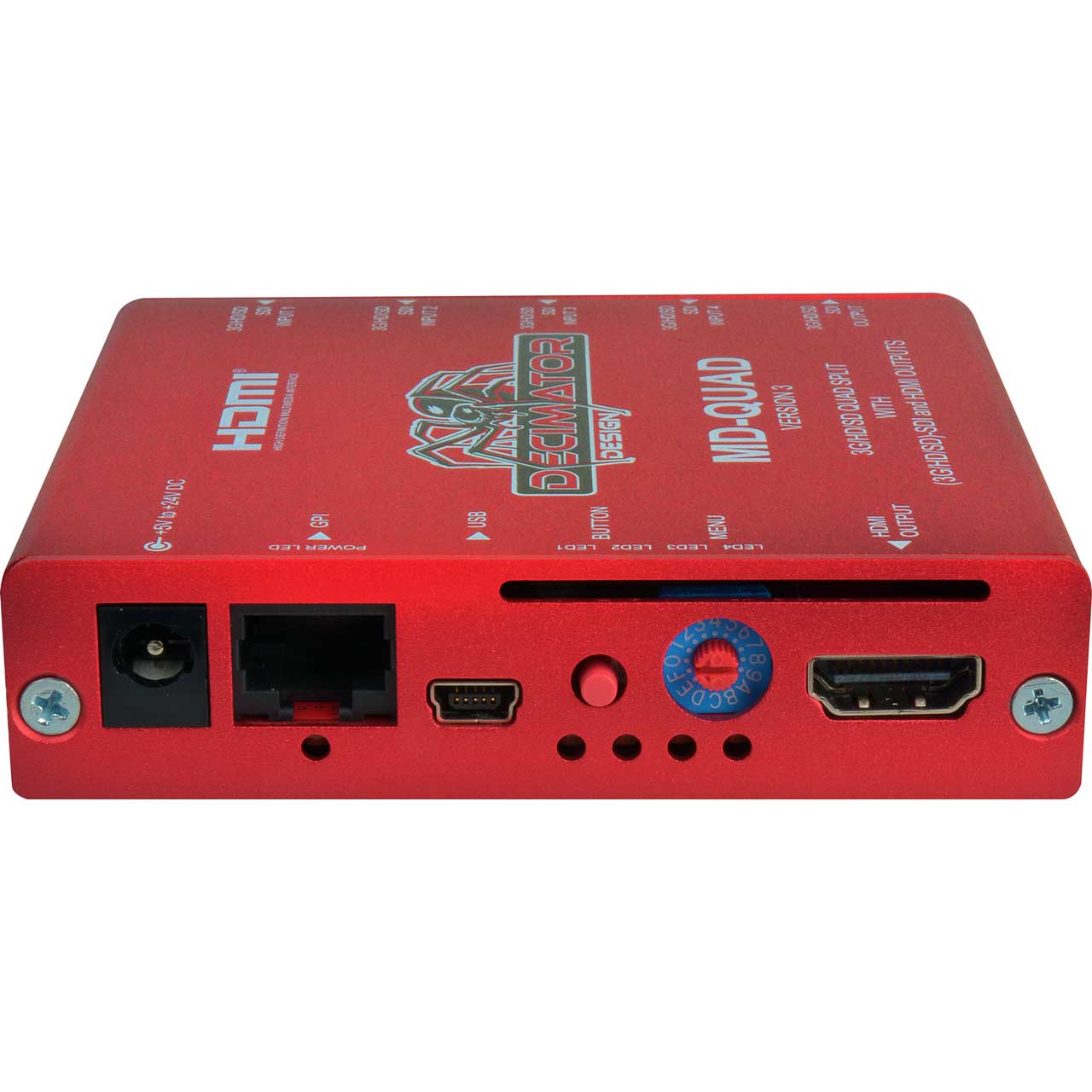

      • An extensive selection of user controllable functions via an easy to use rotary encoder for menu selection. LEDs and a push button can then be used for status and control
      • USB port for control and updates
      • Locking DC Power Socket
      • 5 GPI on standard RJ-45 connector for Tallies and Remote Switching
      • RS422/485 is also include on the same RJ-45 connector for Dynamic UMD and Tallies via TSL protocol

    • Specifications:

      • SDI FORMATS
      • 3G: SMPTE [email protected] and 2.967Gb/s
      • 1080p@60/59.94/50Hz
      • HD: SMPTE 292M/274M/[email protected] and 1.435Gb/s
      • 1080i@60/59.94/50Hz
      • 1080p/psf@30/29.97/25/24/23.98Hz
      • 720p@60/59.94/50/30/29.97/25/24/23.98Hz
      • SD: SMPTE 259M@270Mb/s
      • 625i50
      • 525i59.94

        INPUTS
      • Input Equalization > 100M using Belden 1694A
      • USB for control and updates
      • GPI on RJ-45

        LED STATUS
      • Power
      • 4 x Signal lock and rate

      • MENU OPTIONS
      • Input status for all 4 inputs
      • Output format
      • Output selection of Quad Split or input 1, 2, 3 or 4.
      • Output aspect and type of 16:9 or 4:3 at either 90 or 100% of screen size
      • Individual aspect format for each input of Same as output, Letter-box or Pillar-box
      • Border Enable
      • Quad split mode reference of either Free-run or input 1
      • Enables for On-Screen Overlays
      • Basic Audio Meter control

        INPUTS
      • Input Equalization > 100M using Belden 1694A
      • USB for control and updates
      • GPI on RJ-45

        OUTPUTS
      • 1 x 10-bit (3G/HD/SD)-SDI Re-clocked
      • HDMI

        DIMENSIONS
      • 90mm x 94mm x 23mm (3.5" x 3.7" x 0.9")

        POWER
      • +5V to +24V DC, 6 Watts
      • Positive Centre Pin

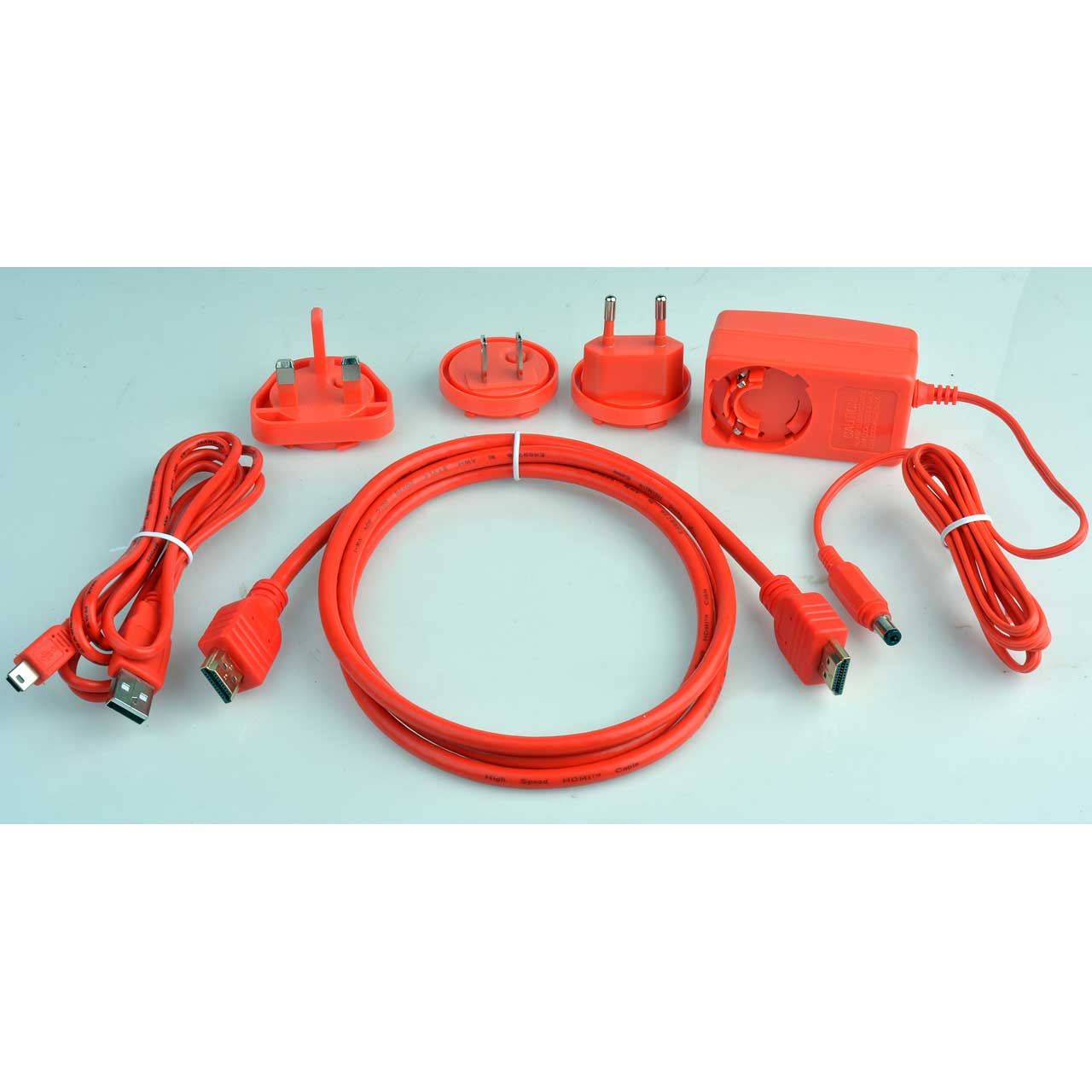

    • Item Includes:

      • 1x DECIMATOR MD-QUAD 3G/HD/SD-SDI Quad Split Multi-Viewer with SD/HD/3G-SDI & HDMI Outputs Version 3
      • 1x Universal Power Supply
      • 1x HDMI Cable
      • 1x USB Cable
      • 1x Mounting Bracket

    • GTIN:

      5060417390076
