Allen Avionics HEC-2000V 75 Ohm Hum Eliminator with Stainless Steel Guard Rails

ITEM #: HEC-2000V MFG #: HEC 2000V

Primary Image
Allen Avionics
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$186.95

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    HEC 2000V - Overview

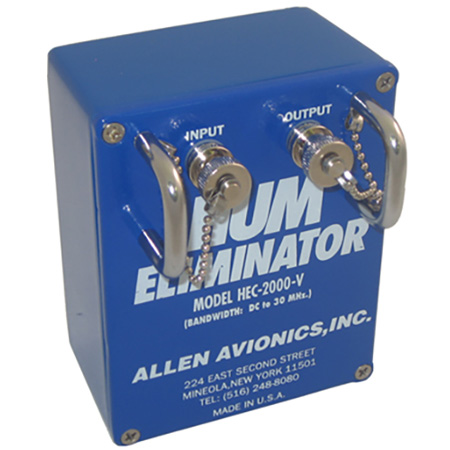

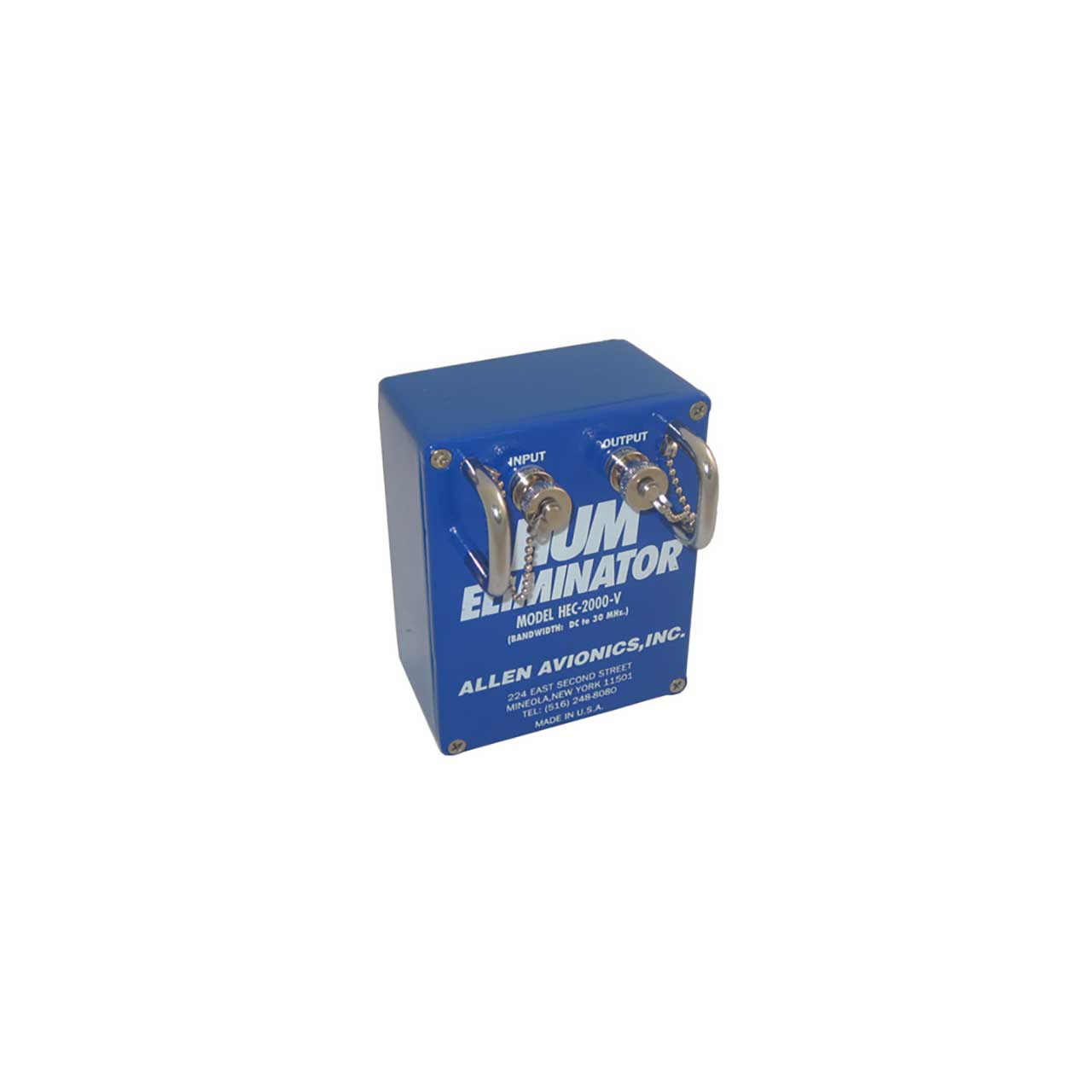

    The Allen Avionics HEC-2000V is a single channel hum eliminator for Broadcast quality applications in a high impact metal enclosure with BNC covers and chains designed for vertical mounting. Broadcast quality hum eliminators designed to eliminate hum and other interference in video lines up to 30MHz. Perfect for all RGB applications.

    • Features:

      • Flat Response
      • Bandwidths up to 30MHz
      • No Low or High Frequency Roll-Off
      • No Differential Gain or Phase Distortion
      • Rugged, Waterproof Case
      • BNC Connectors
      • Passive Device - Failure Free
      • For Color and Black & White
      • Reversible
      • Small, Compact Package


    • Specifications:

      • Impedance (Ohms): 75Ω Unbalanced
      • Insertion Loss: .2 dB max.
      • Return Loss: 20 dB min.
      • Bandwidth: DC to 30 MHz., 0.75 dB @ 10 MHz., 1.20 dB @ 20 MHz., 1.50 dB @ 30 MHz.
      • Hum Reduction: 60 dB for 50 Hz or 60 Hz. hum, depending on system
      • Isolation Between Channels (Typical): N/A
      • Package: Die Cast Metal
      • Mounting: Four (4) 6-32 x 1/2" Inserts
      • Dimensions: ht. x width x depth: 4-11/16" x 3-11/16" x 2-1/16"
      • Weight: 3-1/2 lbs.
