Allen Avionics HD-VIT-75 HD-SDI Video Isolation Transformer

ITEM #: HD-VIT-75 MFG #: HD-VIT-75

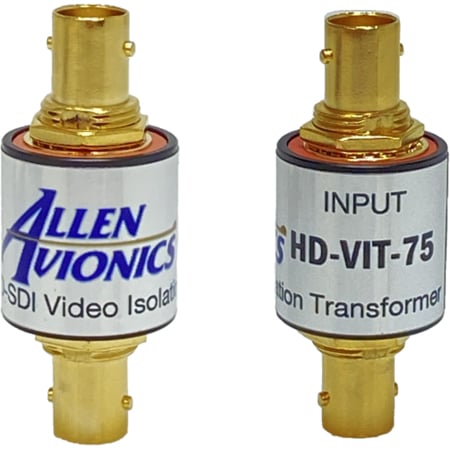

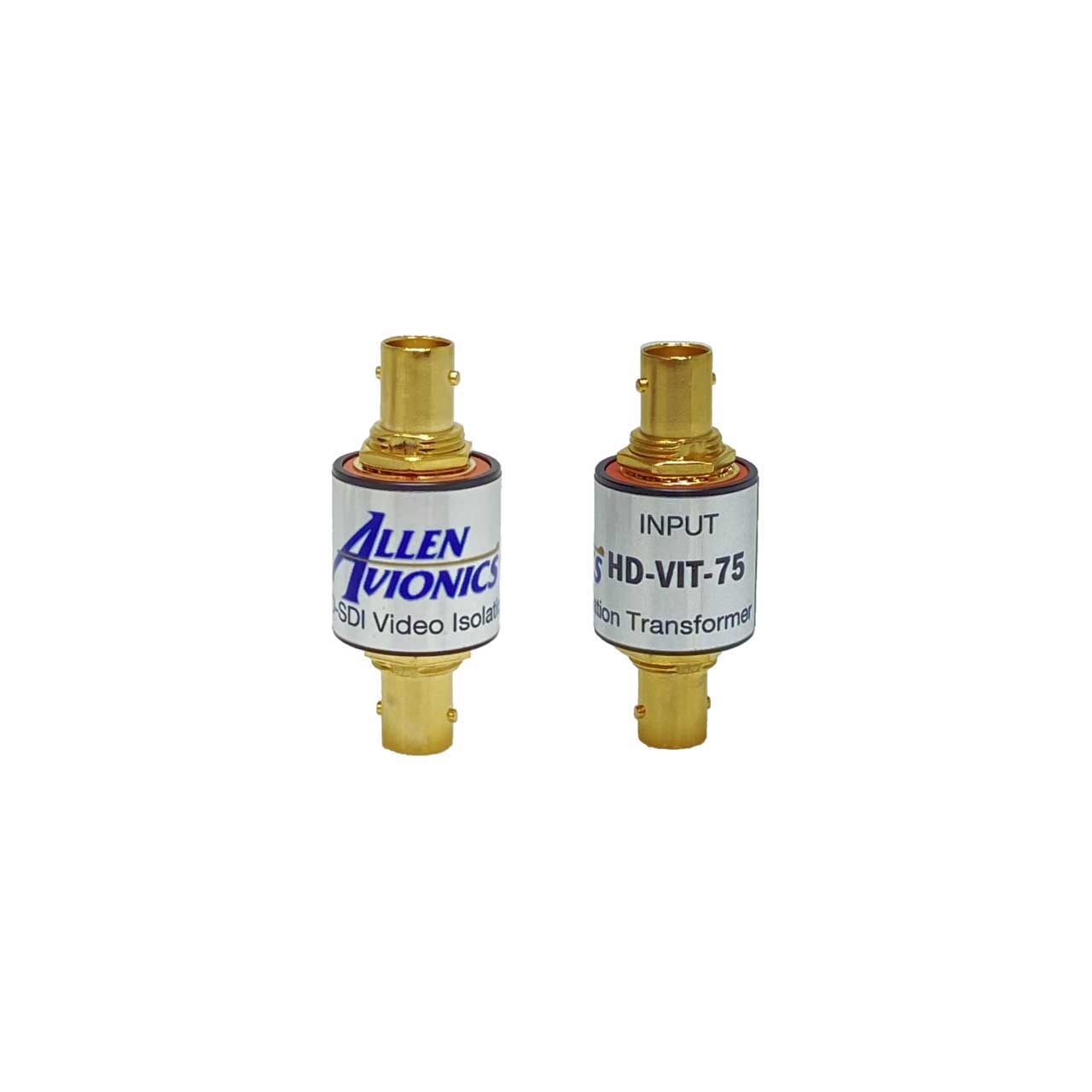

Primary Image
Free Shipping with $49 Minimum Order

Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    HD-VIT-75 - Overview

    HD-VIT-75 is a Video Isolation Transformer for eliminating hum in High Definition Serial Digital Transmission Lines. This can be used for Broadcast Systems where hum is present due to ground loops or where there are large difference in ground potential. The HD-VIT-75 provides electrical isolation between the Input and Output and will also eliminate induced currents in long cable runs.

    • Features:

      • Supports all transmission rates of SMPTE259m and SMPTE292m up to 1.50Gbps HD-SDI Video Input
      • Equivalent to less than 20 feet of cable
      • Isolated Signal Path
      • Greater than 60 dB of Ground Loop Isolation
      • Passive Device - No power required
      • Small Cylindrical Package with Gold BNC Connectors for better response
      • 75 Ohms Balanced with 3.0 GHz Bandwidth
      • Greater than 15 dB Return Loss till 1.50 GHz
      • 2 kV flash tested
