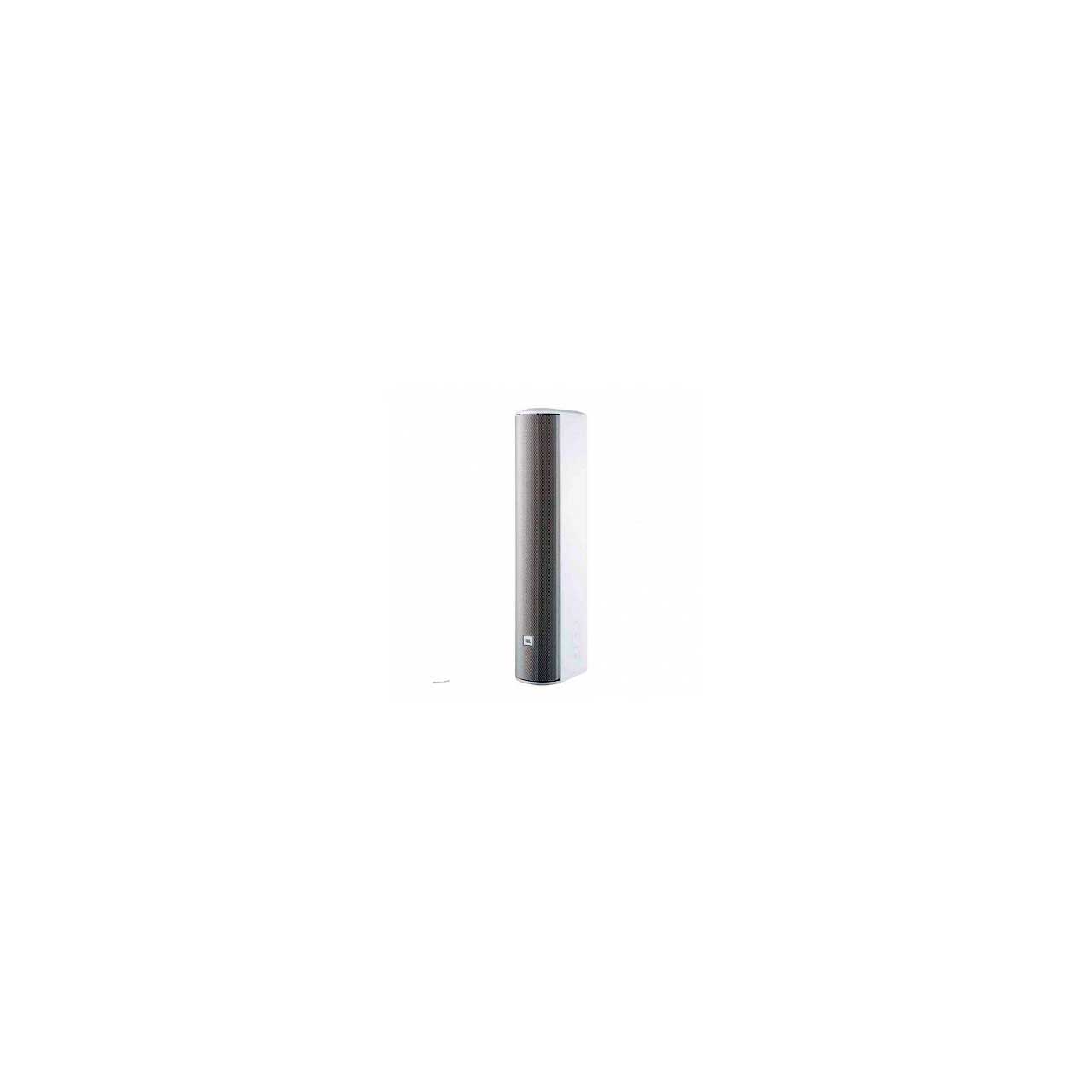

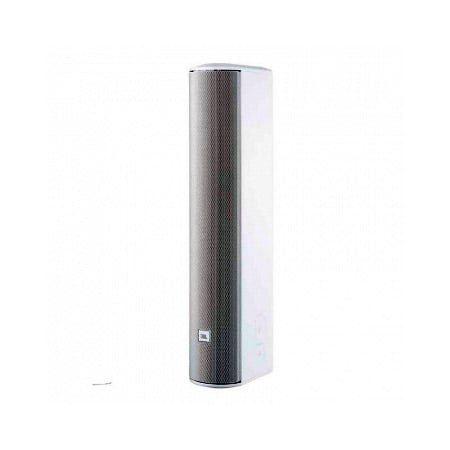

JBL CBT 50LA Constant Beamwidth Technology Line Array Loudspeaker - White - Each

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    JBL CBT 50LA Constant Beamwidth Technology Line Array Loudspeaker - White - Each

    Manufacturer: JBL Professional

    Item #: JBL-CBT50LA-1-WH   •   MFG #: CBT 50LA-1-WH



    List Price:$505.00
    Our Price:$404.00

    free ship


    Availability: Usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.


    • This item is not returnable unless shipped in error or defective.


    Share!





    The CBT 50LA-1, with Constant Beamwidth Technology, represents a breakthrough in pattern control, utilizing analog delay beam-forming and amplitude tapering to accomplish consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor passive column speakers.


    • Features

      • Patent-pending Constant Beamwidth Technology provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
      • Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
      • Dynamic SonicGuard overload protection
      • Built-in 70V/100V transformer, plus 8 ohm direct capability.
      • Swivel (pan) / tilt wall bracket included.

    • Specifications

      • Components Eight 50 mm
      • (2 in) Full-Range
      • Frequency Range (-10 dB) 80 Hz - 20 kHz
      • Coverage Pattern Vertical 20° (1.5 kHz - 16 kHz, ±10°)
      • Horizontal 150° (ave, 1 kHz - 4 kHz, ±20°)
      • Sensitivity (2.83V@ 1m) 93 dB (speech mode, 2 kHz - 14 kHz)
      • 89 dB (music mode, 300 Hz - 18 kHz)
      • Nominal Impedance 8 ohms
      • Power Capacity
      • (8 ohm setting) 150W (600W peak), 2 hrs
      • 100 W (400W peak), 100 hrs
      • Max SPL Speech mode: 115 dB cont ave (121 peak)
      • Music mode: 111 dB cont ave (117 peak)
      • 70V/100V Transformer Taps 60W, 30W, 15W, (7.5W at 70V only), and 8O thru, via switch
      • Enclosure Fiberglass reinforced ABS cabinet, painted aluminum grille
      • Outdoor Capability IP-54 rated, per IEC529. UV, moisture and salt-spray resistant
      • Colors Black or White (-WH)
      • Insert Points Ten M6 insert points on back panel.
      • Mounting Included swivel (pan) / tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt -- see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously adjustable ±15 degree tilt, as well as 5 degree fixed increment points within the range. Ten threaded mounting points located on back panel conform to industry standard rectangular 108 x 51 mm (4.25 x 2.0 in) pattern for OmniMountr 30.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension.
      • Dimensions (H x W x D) 528 x 99 x 153 mm
      • (20.8 x 3.9 x 6.0 in)
      • Net Weight 4.1 kg (9.0 lb)

    • Item Includes

      • Constant Beamwidth Technology Line Array Loudspeaker - White -Each
      • Swivel (pan) / tilt wall bracket
