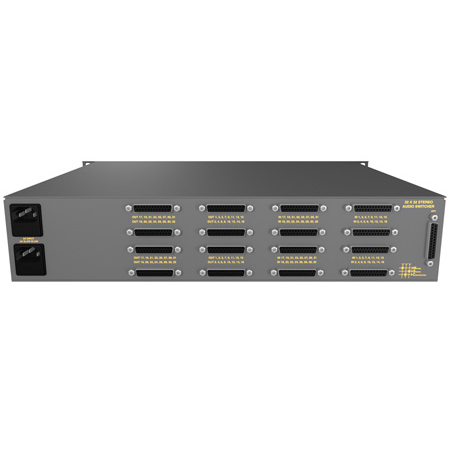

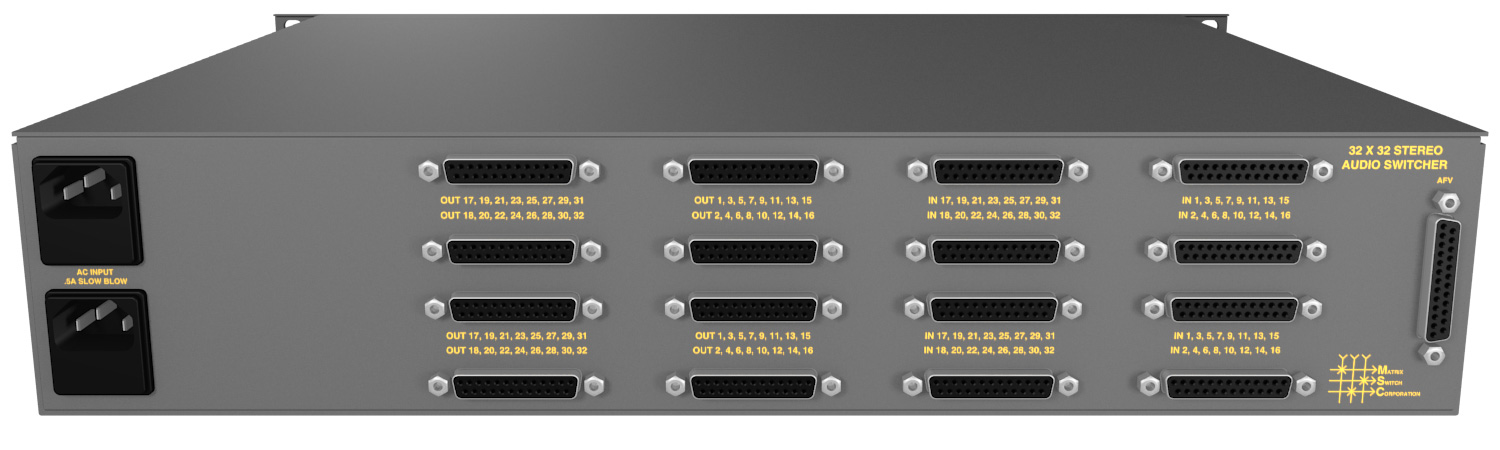

Matrix Switch MSC-AA3232 32x32 Stereo Analog Audio Switcher

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Matrix Switch MSC-AA3232 32x32 Stereo Analog Audio Switcher

    Item #: MSC-AA3232   •   MFG #: MSC-AA3232



    List Price:$5,000.00
    Our Price:$4,350.00

    free ship


    Availability: Direct Ship From Manufacturer
    i
    Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.


    • Drop-shipped (normal delivery time 2-7 business days) shipping UPS ground. (Sales tax may apply.)


    Share!





    Matrix Switch Corporation's analog audio routing switchers are available in a variety of configurations and utilize D25 connectors for inputs and outputs at +24DBm and 120dB S/N ratio.

    The D25 pinout is compatible with Tascam breakout adapaters to male or female XLR connectors. Adapters are available for converting from D25 connectors to compression screw terminal strips. In addition to low cost Tascam adapters low cost pre-assembled 25 wire cable with D connectors or ribbon cable can be used to install these systems. Drastically cutting down on time and labor costs.

    These units are usually combined with other Matrix Switch Corporation video routers. Please Contact Us if you are interested in a standalone analog audio solution.


    • Features

      • Balanced stereo audio
      • Compact size
      • Rugged frame design
      • Uses reliable 25 pin connectors which are Tascam pinout compatible.
      • +24dB professional I/O

    • Specifications

      • Input impedance >10K Ohms
      • Nominal input level +8dBm
      • Maximum input level +24dBm
      • Overall gain Unity +/-1% into a high impedance load
      • Frequency response +/-0.1dB to 20Hz to 20KHz
      • Crosstalk >80dB at 10KHz all hostile
      • Distortion (THD & IM) <0.1% at 1KHz at nominal signal level
      • S/N ratio >120dB ref to +24dBm to 20KHz
