Rolls PM50S Personal Headphone Monitor Amp

ITEM #: PM50 MFG #: PM50S

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the PM50

PM50S - Overview

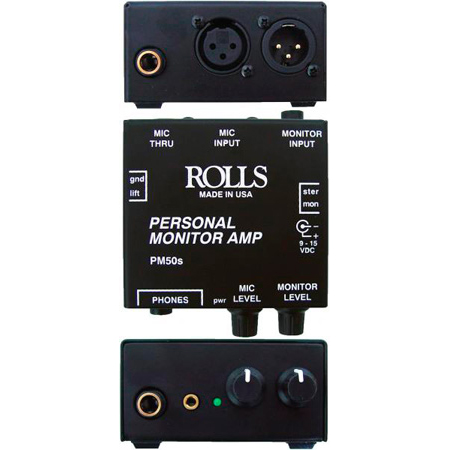

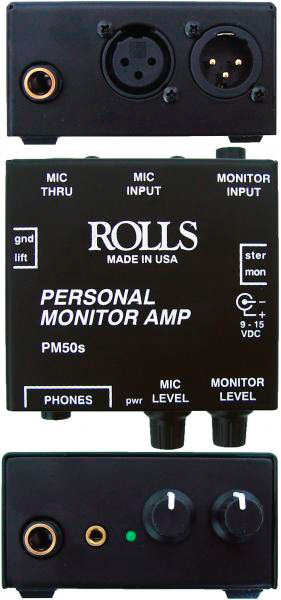

The Rolls PM50s mixes a stereo line-level Monitor signal with a mic level XLR microphone signal to a set of headphones or earphones. It has a monitor level control, mic level control, mic pass through XLR jacks, two headphone output jacks, and a stereo TRS 1/4" monitor input jack. Possible users may be drummers who need to hear a click track, choir singers. Power adapter is included.

  • Features:

    • XLR Mic In & Pass Thru
    • Ground Lift on XLR Thru
    • Mono or Stereo 1/4" Monitor Input
    • 1/4" and 1/8" Phone Outputs
    • Lots of output level, it's loud

  • Specifications:

    • Inputs: -20 dB max XLR 1K balanced, 20 dB monitor
    • Outputs: 1/4", and 1/8" (3.5mm) 8 ohm or greater
    • Gain: 20 dB 1/4", 50 dB XLR
    • Bandwidth: 20 - 20K Hz
    • S/N Ratio: 90 dB
    • Power: 9-18 VAC/DC, 9-24 VDC
    • Size: 3" X 2.5" X 1.25"
    • Weight: 1 lb (.45 kg)
    • Current drain 60ma nominal no load 15vdc
