RDL RU-ASX4D 4x1 Stereo Balanced Audio Switcher - Terminal Block
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    RDL RU-ASX4D 4x1 Stereo Balanced Audio Switcher - Terminal Block

    Manufacturer: Radio Design Labs

    Item #: RDL-RU-ASX4D   •   MFG #: RU-ASX4D


    List Price:$386.36
    Our Price:$272.75

    free ship
    Availability: Usually ships in 3-10 business days
    This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.



      Required Accessories

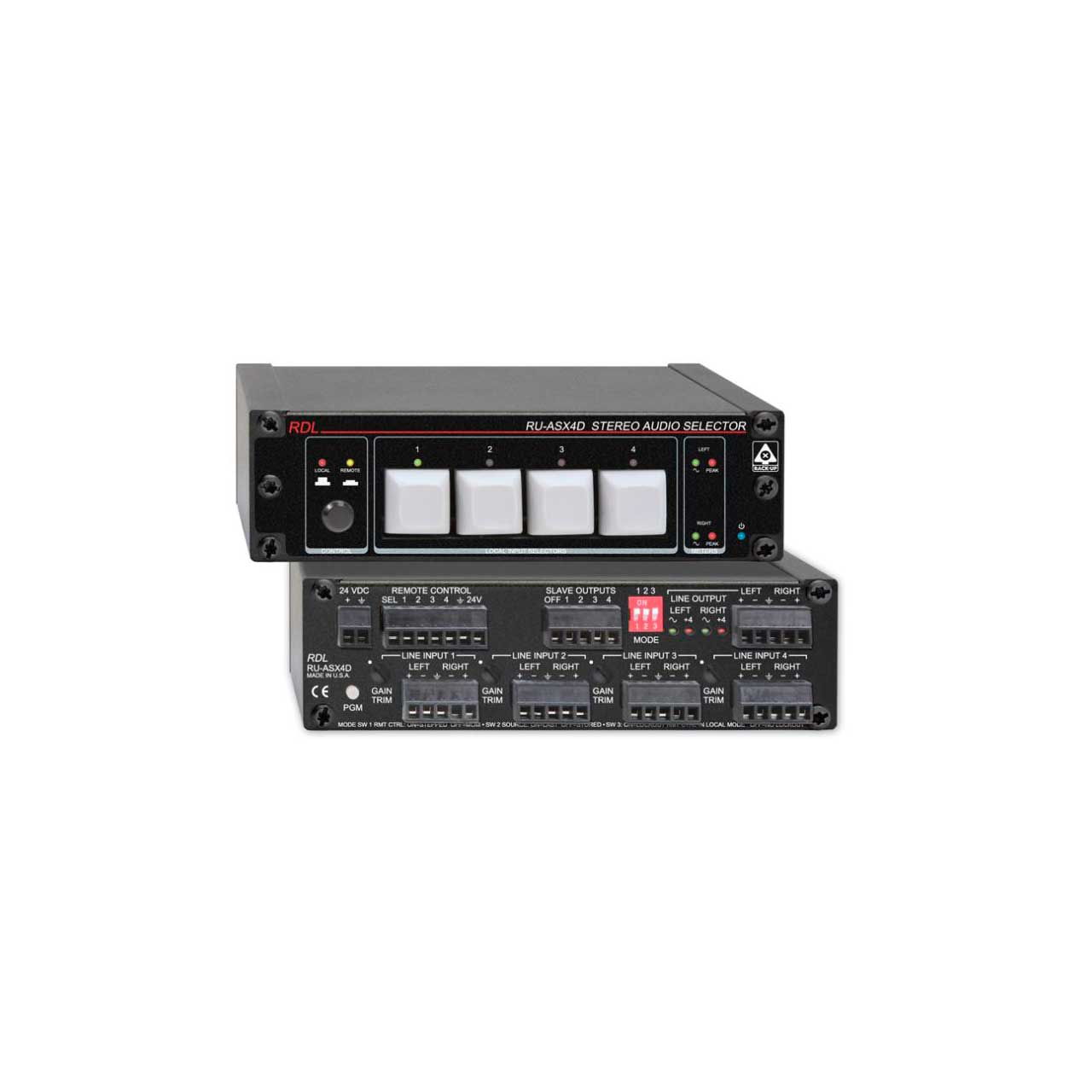

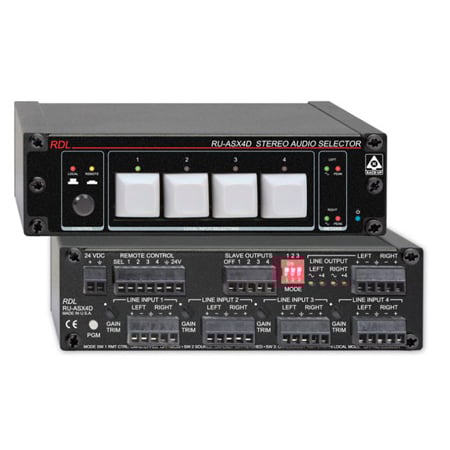

      The RU-ASX4D is a four channel stereo audio selector with input gain adjustments and output level metering. The inputs and outputs are connected on rear-panel detachable terminal blocks.

      Each of the four stereo line level inputs accepts either a balanced or an unbalanced signal. Each input is equipped with a rear panel screwdriver-adjustable input gain trimmer. Input signal levels between -15 dBV and +8 dBu may be set to the proper operating level as indicated by a stereo dual-LED VU meter. This assures ample headroom at all normal operating levels. The module is equipped with two identical dual-led VU meters, one on the front panel, the other on the rear panel. The maximum input level is +25 dBu.

      The RU-ASX4D was designed for absolute silent switching of audio signals using only solid-state switching circuitry.

      The output is stereo line level. Each output channel may be connected balanced or unbalanced. Each of the VU-meters, left and right, is calibrated to read +4 dBu for the corresponding balanced output.

      A front-panel LOCAL/REMOTE switch enables either the front-panel buttons or the rear-panel remote control terminals provided on detachable terminal blocks. In the LOCAL mode, four keyboard style long-life pushbuttons on the front panel are used to select one input. When a button is pushed, the corresponding audio input is fed to the output and any previously selected source is shut off. Only one source may be selected at a time. If the button for a selected source is pushed again, all inputs are turned off. An LED above each pushbutton indicates the selected source. In the REMOTE mode, inputs are selected by a sequential remote control such as an RDL D-RCS4, by a momentary remote control such as an RDL D-RC4M or by an external open-collector momentary closure to ground. The RU-ASX4D may be remote controlled from a single or from multiple locations. When a source is selected, the RU-ASX4D provides a 25 mA open-collector output to control other equipment or modules.

      Rear-panel DIP switches are provided to permanently activate the remote control terminals, to select the remote control mode (sequential or individual source selection), and upon power-up a return to either a pre-programmed source or to the last source used. The pre-programmed source is stored when the module is installed.

      The RU-ASX4D offers exceptional headroom, very low distortion, excellent crosstalk isolation, wide flat frequency response and extremely low noise with very high common-mode signal rejection. It provides exceptional audio performance for the most critical applications in a professional audio environment.

      The RU-ASX4D operates from 24 Vdc connected through a rear-panel detachable terminal block.

      • Features

        • Local or Remote Controlled Switching
        • Multiple Switching Control Points
        • 4 Stereo Inputs to 1 Stereo Output
        • Line-Level Audio Switching
        • Balanced or Unbalanced Inputs and Output
        • Gain Trim on Each Source
        • Controllable Using Various RDL Remote Controls
        • Open-Collector Output for Selected Input
      • Specifications

        • Audio Inputs (4): Stereo, Line level on Detachable Terminal Block
        • Input Impedance:> 20 kΩ balanced, >10 kΩ unbalanced
        • Input Level (for +4 dBu output): -15 dBV to +8 dBu, adjustable on rear-panel trimmers
        • Maximum Input Level: +25 dBu
        • Common Mode Rejection: > 60 dB (50 Hz to 120 Hz)
        • Headroom (above +4 dBu): > 20 dB (unity gain)
        • Frequency Response: 10 Hz to 20 kHz (±0.2 dB)
        • Distortion (THD + N): < 0.01% (20 Hz to 20 kHz)
        • Noise (below +4 dBu): < -85 dB (with any input selected); < -95 dB (with no input selected)
        • Off Attenuation: > 85 dB (1 kHz), > 70 dB (20 kHz)
        • Crosstalk: < -85 dB (1 kHz); < -65 dB (20 kHz)
        • Front-Panel Switches: Momentary pushbuttons (4, 1 per input), LOCAL/REMOTE latching pushbutton
        • Front-Panel Indicators (11): Power, Selected channel (4), LOCAL/REMOTE selector (2), L and R Dual-LED VU meters (4)
        • Audio Output: Stereo, Line level on Detachable Terminal Block
        • Output Impedance: 150 Ω balanced, 75 Ω unbalanced
        • Output Level: +4 dBu balanced, unbalanced output 6 dB below balanced output level
        • Control inputs (5): 1 mA, pulled to ground (4, source selection); 1 mA, pulled to +15 Vdc (SEL)
        • Control outputs (5): 25 mA, open-collector to ground
        • Rear-Panel Indicators (4): L and R Dual-LED VU meters
        • RDL Remote Control Compatibility: D-RC4M, D-RCS4
        • Power Connection: Detachable Terminal Block
        • Power Requirement: 24 Vdc @ 150 mA, Ground-referenced
        • Ambient Operating Environment: 0° C to 55° C
