RDL TX-PSD1 Paging Sound Detector

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

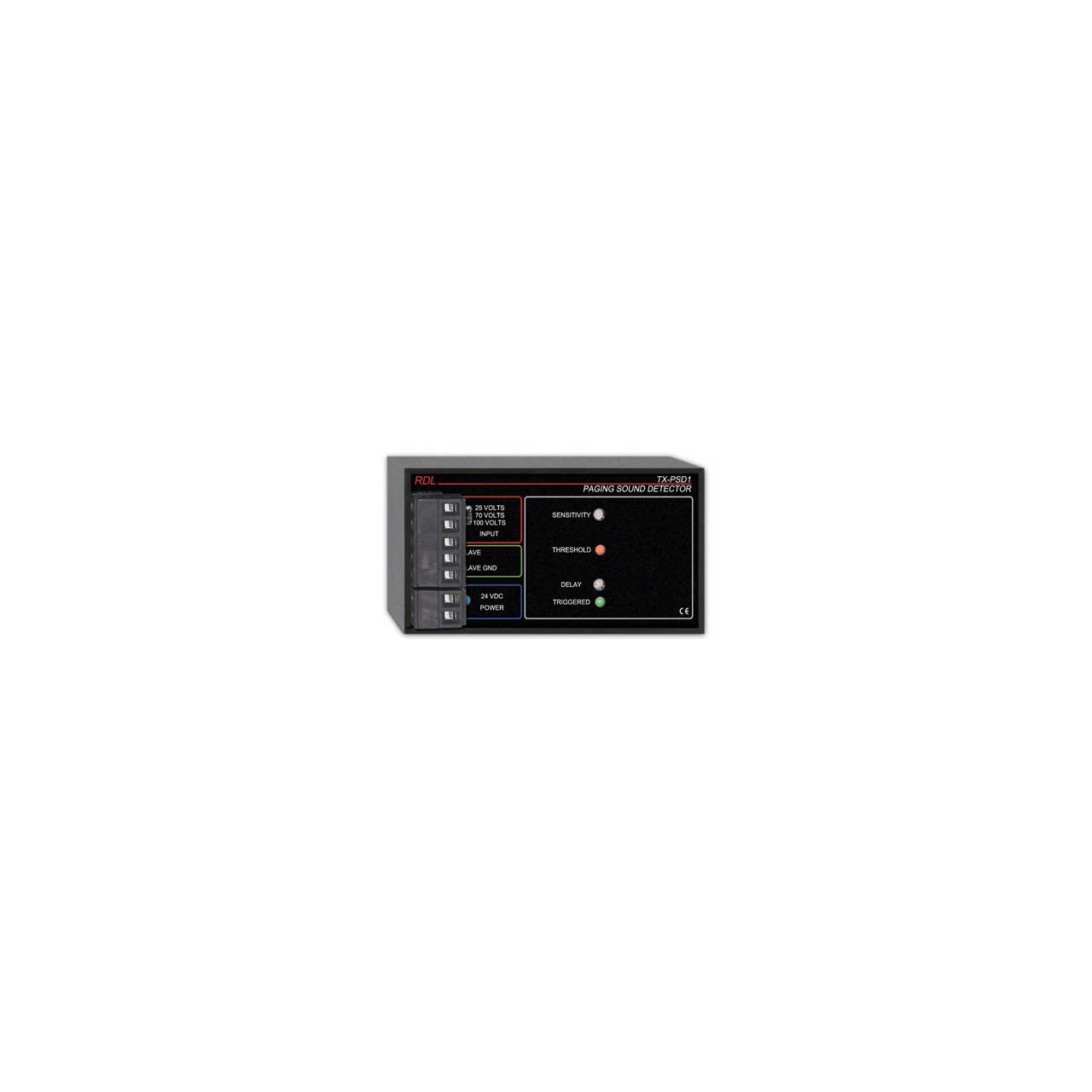

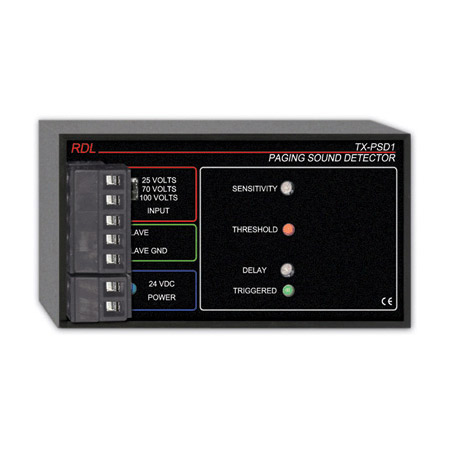

    RDL TX-PSD1 Paging Sound Detector

    Manufacturer: Radio Design Labs

    Item #: RDL-TXPSD1   •   MFG #: TX-PSD1



    List Price:$123.84
    Our Price:$89.95

    free ship


    Availability: Usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.




      Share!





      Required Accessories

      The TX-PSD1 is the ideal choice in many applications where switching needs to be controlled from a constant-voltage amplified audio source. The module will trigger on any program material, with paging sources being the most common. The TX-PSD1 provides an open-collector SLAVE output to control other modules or equipment when a paging signal is detected.

      The amplified audio source is connected using a detachable terminal block. A front-panel switch is provided to select the source type: 25 V, 70 V or 100 V. The 25 V setting may be used for an 8 ohm, 75 Watt maximum, amplified source. Input sensitivity is adjusted on a single-turn trimmer. In the clockwise position, the SENSITIVITY trigger threshold is 30 dB below the switch-selected constant voltage. A red LED illuminates whenever the audio level exceeds the trigger threshold, facilitating the sensitivity adjustment.

      The module is triggered when the audio exceeds the threshold and it remains triggered for a defined time duration after the audio falls below the threshold. This DELAY is adjustable from 3 to 25 seconds using a front-panel trimmer. Adjustment is simplified by a green LED that remains illuminated while the module is triggered. The SLAVE terminal may be used as either an input or output control terminal. When the module is triggered, the SLAVE terminal is internally pulled to ground through an open collector. If the TX-PSD1 SLAVE terminal is externally pulled to ground through a switch or the open-collector terminal of another RDL module, the relay will energize until the terminal is released.

      A blue POWER LED illuminates when the TX-PSD1 is powered from an external 24 Vdc power supply.

      Use the TX-PSD1 to control RDL modules or other equipment with ground activated control inputs that permit a 24 V pull up.


      • Features

        • Switching Functions Controlled by Speaker-Level Source
        • Input Accepts Amplified Constant Voltage Signals
        • Switch-Selectable Input: 25 V, 70 V, 100 V
        • 25 Volt Input Also Accepts 8 Ohm Inputs up to 75 Watts
        • Transformer-Isolated Input
        • Front-Panel Trimmer Provides Sensitivity Adjustment
        • Signal Threshold LED Facilitates Sensitivity Adjustment
        • Front-Panel Trimmer Provides Release Delay Adjustment
        • LED Indicates when Module is Triggered
        • Release Delay Adjustable from 3 to 25 Seconds
        • Open-Collector Output Active when Module is Triggered
        • Switches on Paging or Any Other Amplified Audio Signal
