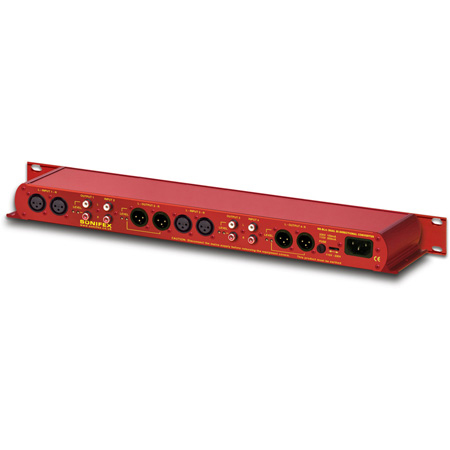

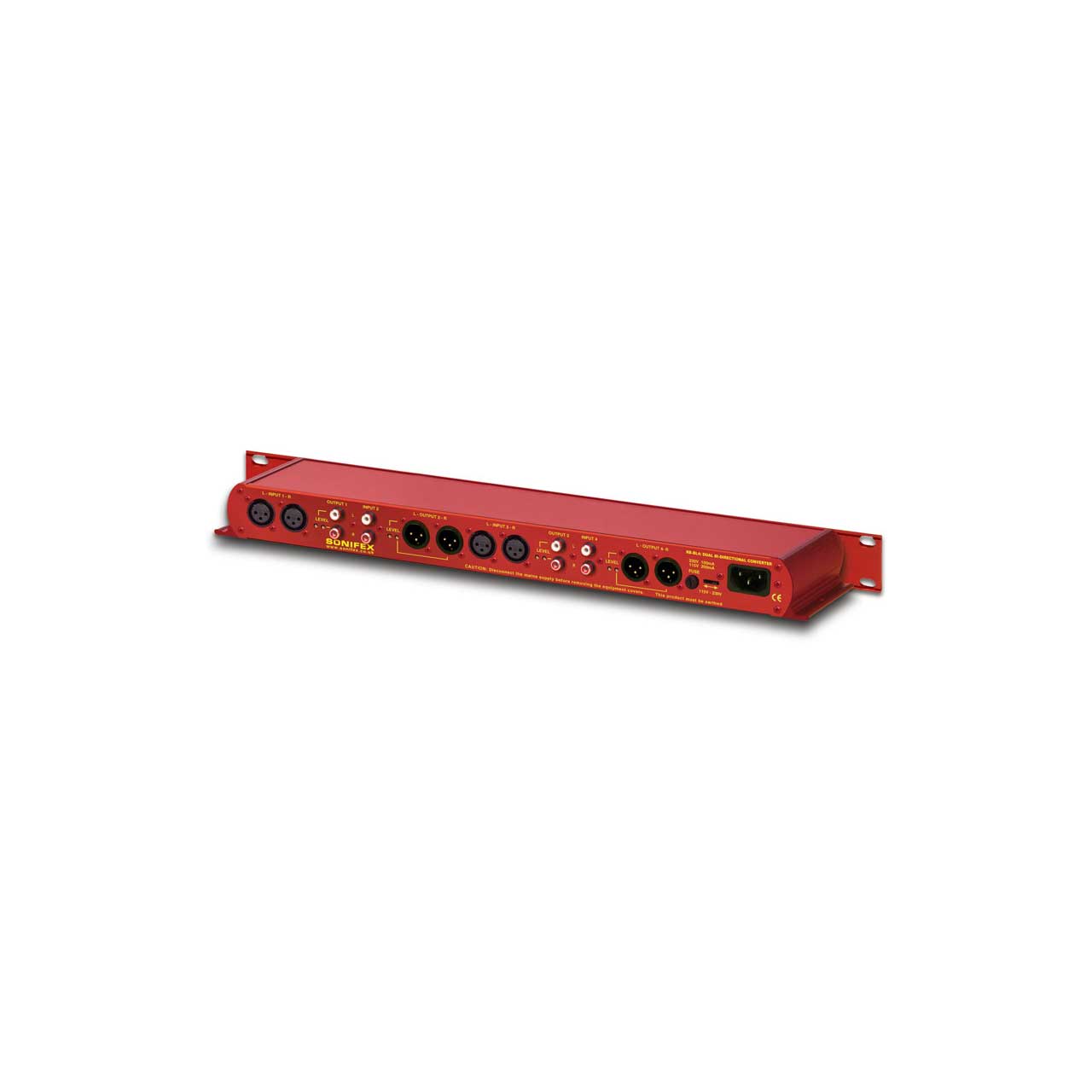

The The RB-BL4 is a dual bi-directional stereo unit for interfacing domestic or semi-pro unbalanced equipment to professional balanced line levels, and vice versa.
The four XLR-3 electronically balanced inputs have an impedance of 20kO bridging and are routed to four unbalanced RCA (phono) outputs with an output impedance of <50O.
The four RCA unbalanced inputs have an impedance of 20kO and are routed to four balanced XLR-3 outputs with an output impedance of <50O. All connections are on the rear panel.
The output gain can be adjusted for left and right channels by using pre-set potentiometers accessible through the rear panel.
