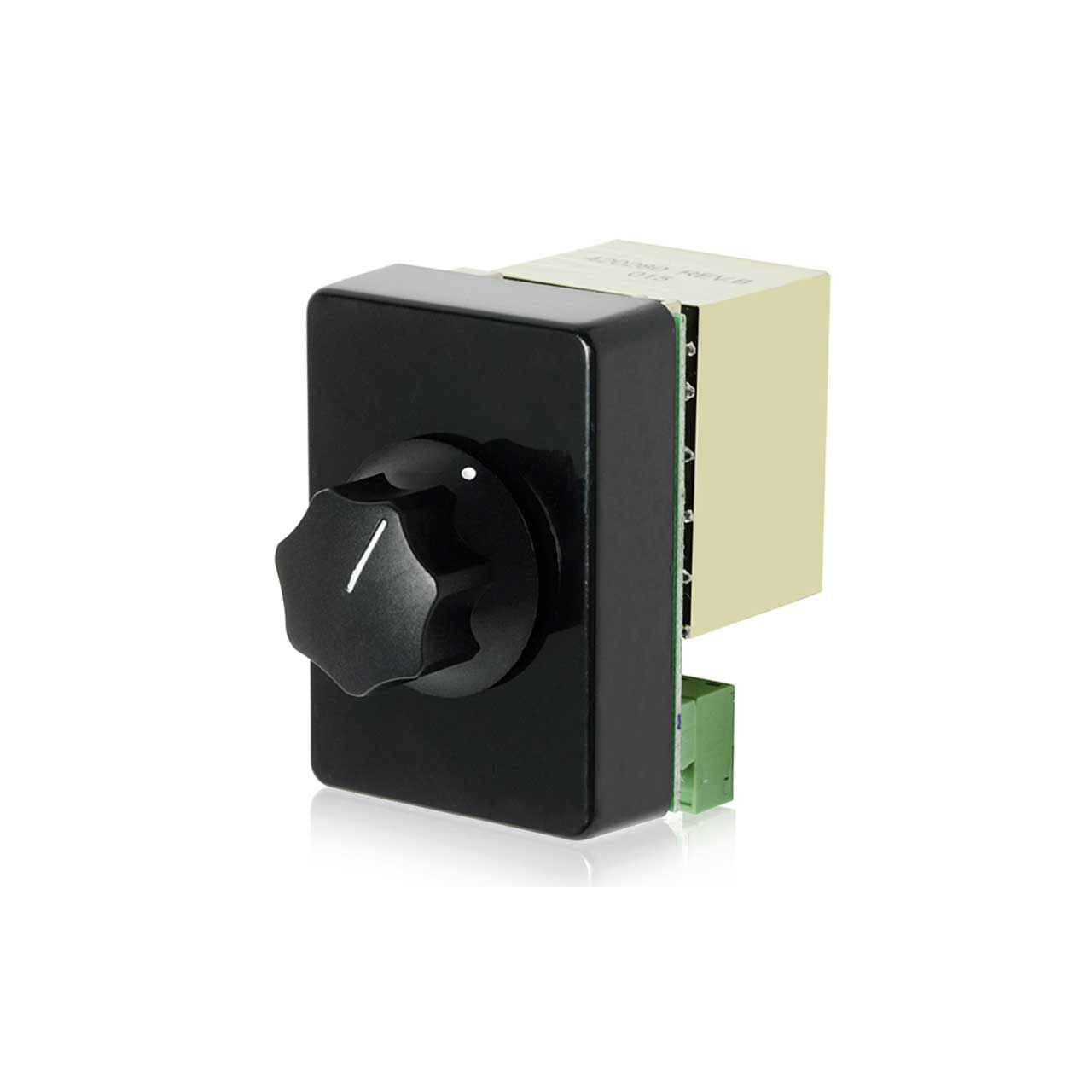

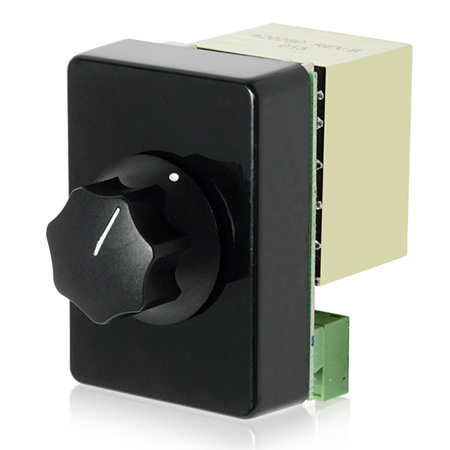

Atlas AT10-PARM Deluxe Priority Rack Mounted 10W Attenuator w/Priority Relay

ITEM #: AT10-PARM MFG #: AT10-PARM

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$52.99

Our Price:

$44.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    AT10-PARM - Overview

    High-quality auto transformer AT10-PARM provides the advantages of excellent frequency response, low insertion loss and reliable performance for volume control application in 25 and 70.7-volt systems.

    Attenuation is accomplished in ten make before break steps plus positive off position. (No stop between maximum and off position to prevent switch damage). Contacts are silver plated for noise-free operation.

    Features a removable terminal block. Includes screen printed dial scale and a skirted black knob.

    • Features:

      • Attractive Matte Black Polycarbonate Dial Scale Overlay with Adhesive Backing Replaces the Mounting Plate. Includes Skirted Black Knob.
      • Priority Paging Feature By-Passes the Effect of the Attenuator
      • Rack Mount Attenuator for Mounting on to Blank Panels in Equipment Cabinets
      • The SPDT Relay is Operated with 24 VDC at 10mA

    • Specifications:

      • Power Rating: 10W
      • Total Attenuation: 33 dB
      • Height: 2 3/4" (6.985 cm)
      • Width: 1 3/4" (4.445 cm)
      • Depth: 2 1/8" (5.3975 cm)
      • Shipping Weight: 1.00 lb (0.45 kgs)
      • Safety Listed: 813, 2043

    • GTIN:

      0612079179510
