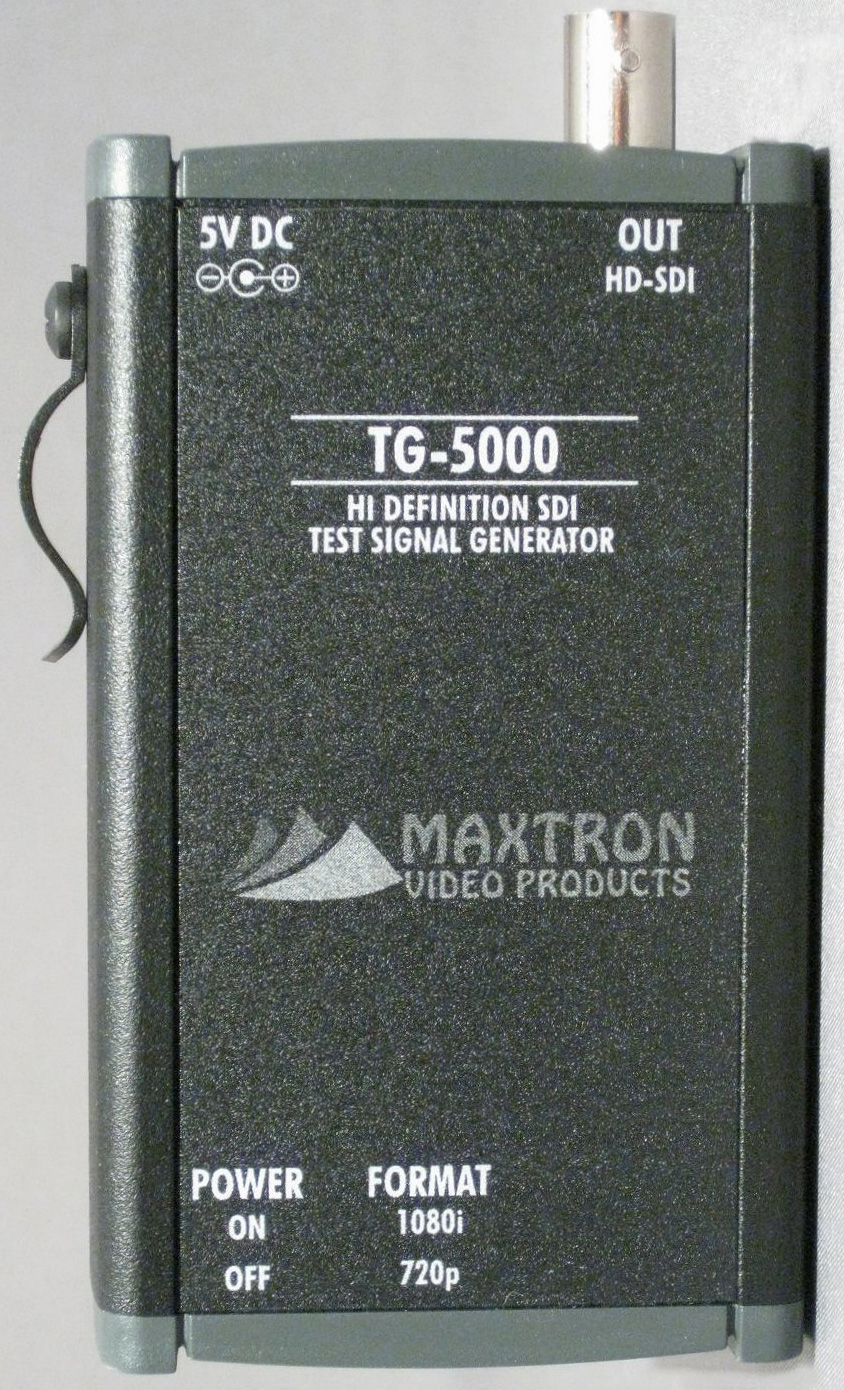

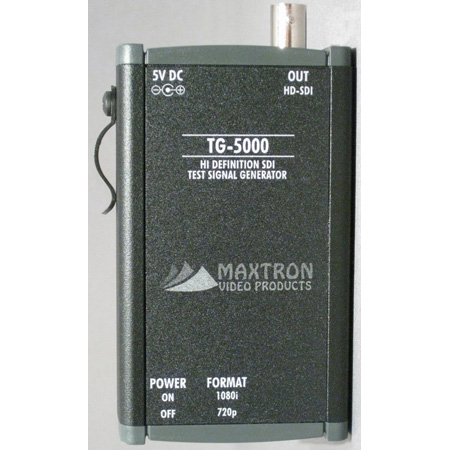

Maxtron TG-5000 Dual-Format HD-SDI Pattern Generator (no audio)

Manufacturer: Maxtron Products

Item #: TG-5000   •   MFG #: TG-5000








Types:





Share!





To answer the demands for a cost effective HD-SDI pattern generator Maxtron introduces the TG-5000 test pattern generator. The TG-5000 is a very low-cost HD-SDI generator which supports both the 720p and1080i HD formats 59.94Hz frame rates. These two formats are the only formats used by broadcast facilities in the US and Canada.

The TG-5000 provides the latest SMPTE recommended HD test pattern - the RP 219-2002 HD color bar signal. The pattern is native 16:9 aspect and consists of both 75% and 100% color bars, a white strip, and a linear ramp. The output conforms to SMPTE 292M at a signal level of 800mv into 75 ohms.

Mechanically the TG-5000 is very sturdily built and comes in a conveniently small package. It won't roll off the bench or hide under a monitor. The package size is 4 x 2.5 x 1.25 inches.

Ordering Information
TG-5000 Base model with no audio tones.
TG-5000A Adds embedded Audio Tones and 16 Channel Voice ID option to base model.
TG-5000B* Base model with no audio tones and internal Li-Ion battery, 4-5 hour run time.
TG-5000AB* Adds 16 Channel Voice ID option, embedded Audio Tones and internal Li-Ion battery, 4-5 hour run time.
PS-1512 Ultra Miniature power supply 5VDC, 1A, 100-240VAC, DC plug type EIAJ-2, 1.7mm x 4.0mm. This item is included with all the above models.
*Please note that battery models are factory order only, non-battery models cannot be field upgraded.


  • Features

    • SMPTE 292M compliment output
    • 720p or 1080i at 59.94
    • New SMPTE color bars - RP 219-2000
    • Full 20-bit pattern generation
    • Designed for Portable and Bench applications
    • Extremely small size - about the size of a deck of cards
    • 100-240VAC to 5V DC power supply included



REVIEW SNAPSHOT®

by PowerReviews
MAXTRON PRODUCTSMaxtron TG-5000 Dual-Format HD-SDI Pattern Generator

5.0

(based on 3 reviews)

Ratings Distribution

  • 5 Stars



    (3)

  • 4 Stars



    (0)

  • 3 Stars



    (0)

  • 2 Stars



    (0)

  • 1 Stars



    (0)

100%

of respondents would recommend this to a friend.

Pros

  • Compact (3)
  • Durable (3)
  • Easy to use (3)
  • Lightweight (3)

Cons

No Cons

Best Uses

No Best Uses

Reviewed by 3 customers

Sort by

Displaying reviews 1-3

Back to top


5.0

Small size. Many uses.

By Billsat

from Jacksonville, FL

Verified Buyer

Pros

  • Compact
  • Durable
  • Easy To Use
  • Lightweight

Cons

    Best Uses

      Comments about MAXTRON PRODUCTS Maxtron TG-5000 Dual-Format HD-SDI Pattern Generator:

      I have used the Maxtron to check monitor feeds, cable identification, and to feed HD SDI bars/tone to our ENG truck inputs for testing. The first few minutes out of the box and I was feeding an HD test signal into a CATV QAM modulator for troubleshooting. To add to the versatility of the unit, consider ordering the TG-5000AB. This will give you verbal audio identifiers, and this model (AB) is powered by the on-board battery. The unit has two controls: power and format. The 720P setting gives you a circle overlay for aspect ratio checks. Very lightweight, this little generator is great for shop and field work.


      5.0

      Nice, portable product

      By Kevin

      from MD

      Pros

      • Compact
      • Durable
      • Easy To Use
      • Lightweight
      • Versatile

      Cons

        Best Uses

          Comments about MAXTRON PRODUCTS Maxtron TG-5000 Dual-Format HD-SDI Pattern Generator:

          The battery last a good long time. It is very small and portable.

          Only Con I can think of: The bar chart is low color depth, but good enough.

          (0 of 1 customers found this review helpful)


          5.0

          the boss says it's great!

          By -bp

          from fairfax, VA

          About Me Experienced

          Pros

          • Compact
          • Durable
          • Easy To Use
          • Lightweight
          • Versatile

          Cons

            Best Uses

            • Video system analysis

            Comments about MAXTRON PRODUCTS Maxtron TG-5000 Dual-Format HD-SDI Pattern Generator:

            i guess it's good--the boss won't let me use it. he loves it, though.

            -bp
