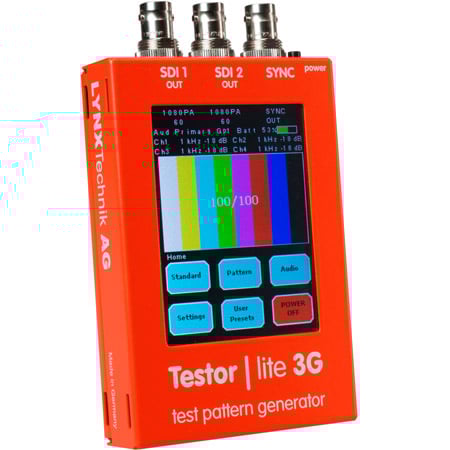

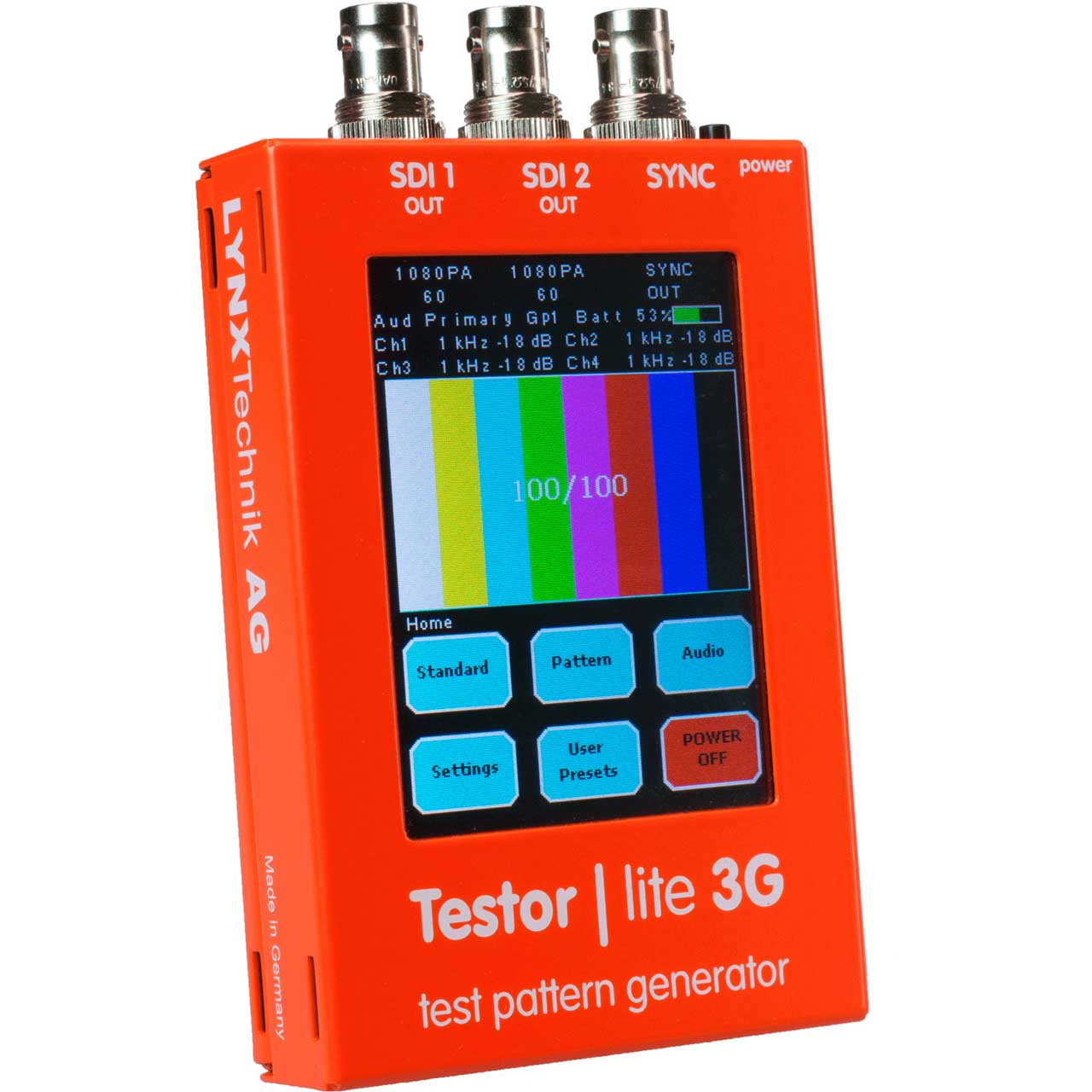

LYNX Technik PTG 1802 Testor Lite 3G SD/HD/3G Test Pattern Generator

ITEM #: LNX-PTG-1802 MFG #: PTG-1802

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

List Price:


Our Price:


Availability: In Stock
iAvailability Description Popup

    PTG-1802 - Overview

    The LYNX TechnikTestor | lite 3G PTG 1802 is a compact SDI video and audio test generator designed to address a multitude of test and verification needs in modern digital infrastructures. The large color touch-screen provides a simple, intuitive user interface and the integrated rechargeable battery will provide for up to 4 hours of continuous use. External power / charge is provided via the USB port. Note: USB port is also used for firmware updates.

    When connected to a standard USB 2.0 port the Testor | lite 3G will draw 500mA (max) to charge battery. (if the unit is powered while connected to a USB 2.0 port then it will use the internal battery and is not charging).

    Charge time 360 minutes approx. (from empty) when connected to standard USB 2.0 port (i.e. computer) with Testor | lite 3G switched off.
    If connected to the USB-DCP power supply (included) then the unit can be powered and charged simultaneously. (1.5A). Charge times (from empty): 100 minutes approx. with unit switched off and 180 minutes approx. with unit switched on.
