Ward-Beck MF-82/12 Rackmount Frame - 12 Card Capacity
  • Ward-Beck MF-82/12 Rackmount Frame - 12 Card Capacity
  • Ward-Beck MF-82/12 Rackmount Frame - 12 Card Capacity

Questions? Ask a Markertek Expert:
800-522-2025 Email

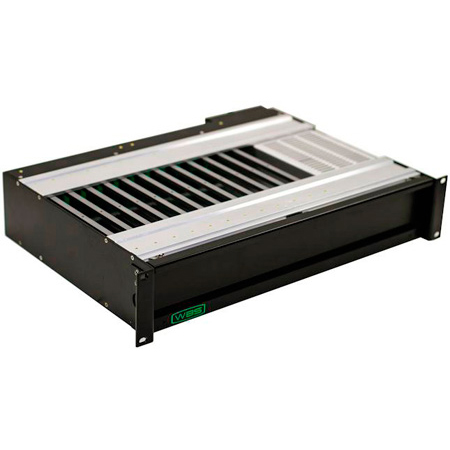

Ward-Beck MF-82/12 Rackmount Frame - 12 Card Capacity

Manufacturer: Ward-Beck Systems Ltd.

Item #: WARD-MF-82-12   •   MFG #: MF-82/12



List Price:$565.00
Our Price:$564.00

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.




    Share!

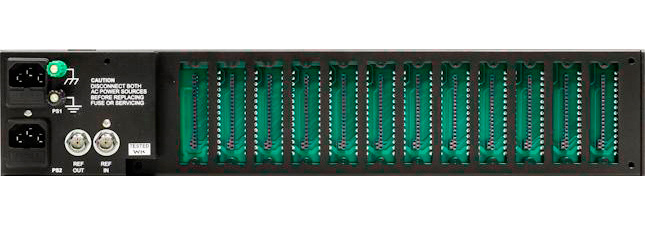

    The MF-82/12 can house up to twelve cards and two power supplies and occupies two vertical units of rack space. Headers for each amplifier slot are accessible from the rear of the frame. Terminal interface assemblies for the appropriate amplifier card plug into these headers to allow for input and output connections. When distributing signals on BNC terminations, the MF-82/12 frame provides space for a terminating input and six outputs per card. As an option, MF82 frames can of accept an AES and a video reference input. These two inputs are on 75 Ohm BNC connectors, located on the optional M82REF rear assembly. The hinged, quick release front panel facilitates rapid access to controls and tallies located on the front edge of the amplifier cards. During installation and system setup, the panels may be easily removed to afford unobstructed access to all cards and their controls and tallies. Power supply redundancy in the MF82 frame is carried through the primary mains to the separate switchmode supplies. Two separately fused AC power cords are provided. The switchmode supplies operation on 115V to 230V 50 or 60Hz without any special setup and require 130 VA maximum.


    • Features

      • modular solution for the distribution and conversion of audio and video signals
      • occupies two vertical units of rack space
      • houses up to 12 cards and two power supplies
      • Terminal interface assemblies for the appropriate amplifier card plug into to MF8210 allow for input and output connections
      • ingenious, hinged, quick release front panel facilitates rapid access to controls and tallies located on the front edge of the amplifier cards
      • Power supply redundancy in the MF82 frame is carried through the primary mains to the separate switchmode supplies
      • 2 separately fused AC power cords are provided
      • switchmode supplies operation on 115V to 230V 50 or 60Hz without any special setup and require 130 VA maximum.

    • Specifications

      • General
      • Power Requirements 110/230V 50/60Hz 130VA
      • Weight (frame only) 16 lbs. 14 oz. (7.65kg)
      • Dimensions 19"w x 3.5"h x 13.25"d (482mm x89mm x336mm)
      • Card Capacity 12 x 8200 Series Cards
