Wohler AMP1-E8-MDA 8 Channel 3G/HD/SD-SDI Audio Monitor
  • Wohler AMP1-E8-MDA 8 Channel 3G/HD/SD-SDI Audio Monitor
  • Wohler AMP1-E8-MDA 8 Channel 3G/HD/SD-SDI Audio Monitor

Questions? Ask a Markertek Expert:
800-522-2025 Email

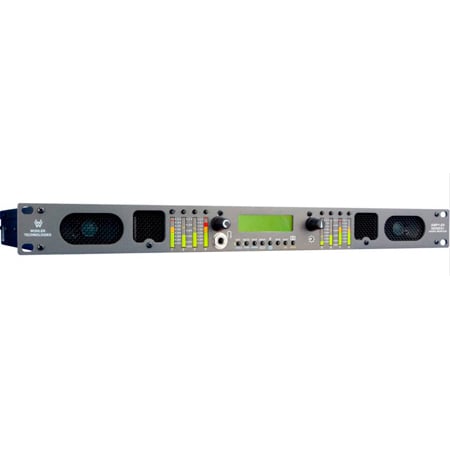

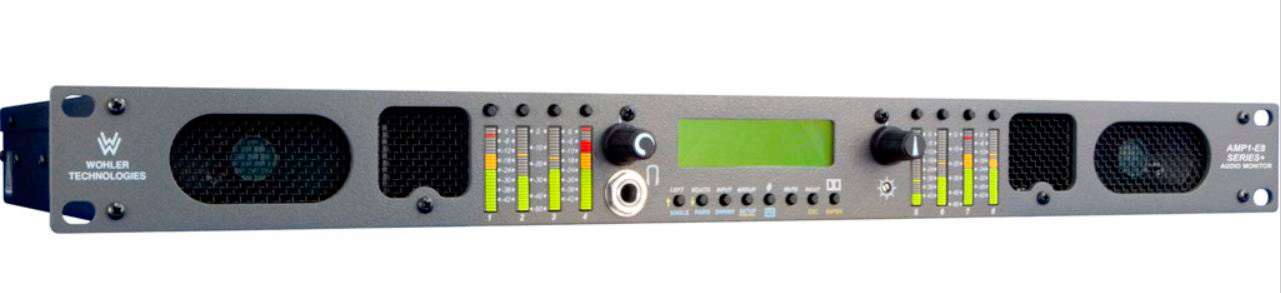

Wohler AMP1-E8-MDA 8 Channel 3G/HD/SD-SDI Audio Monitor

Item #: WOH-AMP1-E8-MDA   •   MFG #: AMP1-E8-MDA



List Price:$5,495.00
Our Price:$4,999.99

free ship


Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.


  • Drop-shipped (normal delivery time 2-7 business days) shipping UPS ground. (Sales tax may apply.)


Share!





Those of you who have been with us for a while know that the Wohler AMP2-E8MDA is a legend in broadcast audio. Reliable, familiar and powerful, E8's are the benchmark for Dolby-capable, 8-channel audio monitoring. While its 2-unit chassis is ideal for the best sound quality, we also realize space is often at a premium.

Thus we introduce the AMP1-E8-MDA complete with everything you know and love about the E8 series, with the addition of 3G capability. The AMP1-E8 Series multi-format audio monitors provide a complete, exceptionally high-quality audio monitoring solution capable of monitoring audio from Dolby E, Dolby Digital (AC-3), HD-SDI, SD-SDI, AES/EBU, and analog signal sources.

The sleek design provides optimally focused sound for operators in an ultra near field environment (1 to 3 ft.) and offers performance comparable to that of many separate monitor pairs without installation hassles and awkward speaker placements. This enables a higher SPL for the operator while reducing overall ambient sound and adjacent bay crosstalk.

The AMP1-E8's are suited to providing high quality, multi-channel, digital and analog audio monitoring in a compact unit. Ideal for use in VTR bays, mobile production vehicles, teleconferencing installations, multimedia systems, satellite links, cable TV facilities, and on-air radio studios.


  • Features

    • Rack Height: 1RU
    • Weight: 18.0 LBS (8.2 KG)
    • Dimensions: 1.75X19X13.5" (45X483X343MM)
    • Power Consumption: 72W MAX
    • Signals Monitored: ANALOG;AES/EBU;HD/SD-SDI;DOLBY;SD-SDI
    • Analog Inputs: 8 BALANCED ANALOG INPUTS ON DB-25
    • Analog Outputs: 2 BALANCED ANALOG OUTPUTS SUMMED FROM SELECTED SOURCE ON XLR; 8 BALANCED ANALOG OUTPUTS FROM SELECTED SOURCE ON DB-25
    • AES/EBU Inputs: 4 UNBALANCED AES INPUT PAIRS ON BNC; 4 BALANCED AES INPUT PAIRS ON DB-25
    • AES/EBU Input Termination: 110 OHMS BALANCED; 75 OHMS UNBALANCED
    • AES/EBU Input Sampling Rate: 32-48 KHZ, AUTO-DETECTING
    • AES/EBU Outputs: 4 BALANCED AES LOOP-THROUGH OUTPUT PAIRS ON DB-25; 4 BALANCED AES OUTPUTS FROM SDI ON DB-25
    • SDI Inputs: 2 3G/HD/SD-SDI INPUTS ON BNC
    • SDI Input Termination: 75 OHMS UNBALANCED
    • SDI Outputs: 1 3G/HD/SD-SDI RECLOCKED OUTPUT ON BNC
    • Dolby Inputs: 2 DOLBY-E/AC-3 INPUTS ON BNC
    • Dobly Outputs: 4 DOLBY-E/AC-3 DECODED OUTPUTS ON BNC; 1 UNBALANCED AES MIX OUTPUT FROM DOLBY-E/AC-3 ON BNC
    • Level Meters: 8 X 26 SEGMENTS (VERTICAL)
    • Level Meter Scale: 0 TO -60 DB
    • Level Meter Threshold: 0, +4, +6, +8 DBV: SWITCH SELECTABLE
    • Level Meter Dynamics: SIMULTANEOUS VU & PPM
    • Level Meter Resolution: 1 DB
