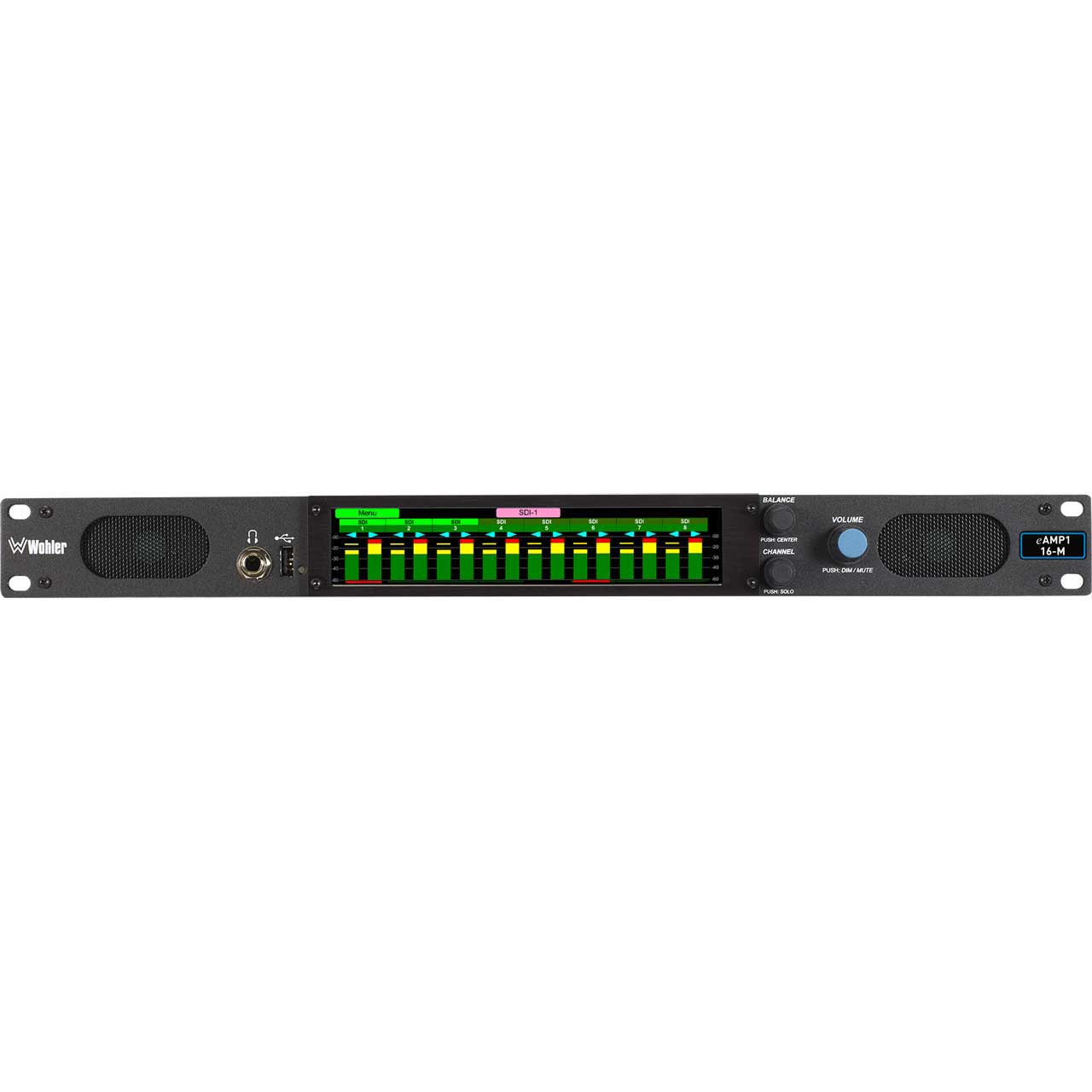

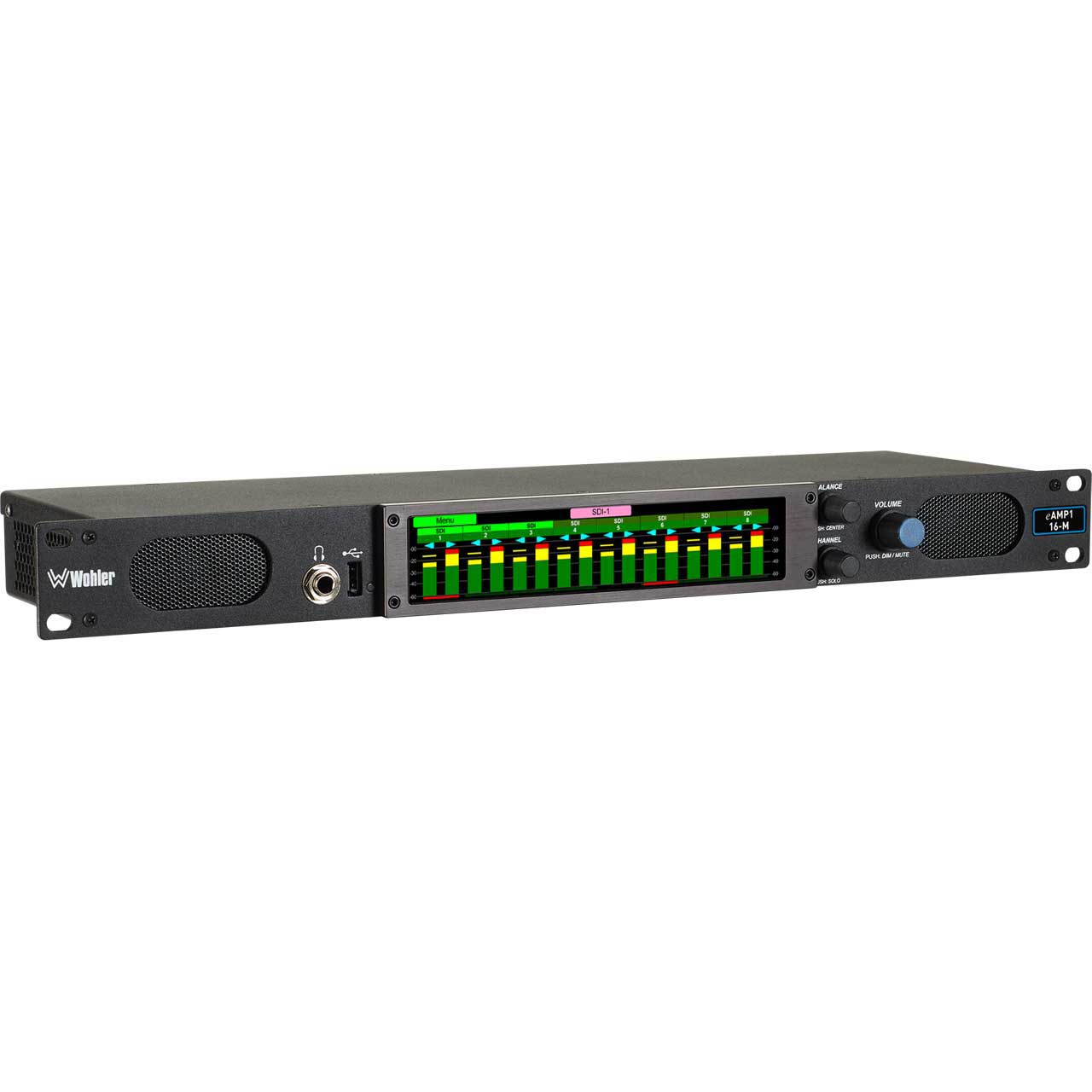

Wohler eAMP1-16-M Dual Input 3G/HD/SD-SDI 16 Channel Audio Monitor - 1RU

ITEM #: WOH-EAMP-1-16-M MFG #: EAMP-1-16-M

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Wohler Technologies
Free Shipping with $49 Minimum Order

Our Price:

$3,095.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    EAMP-1-16-M - Overview

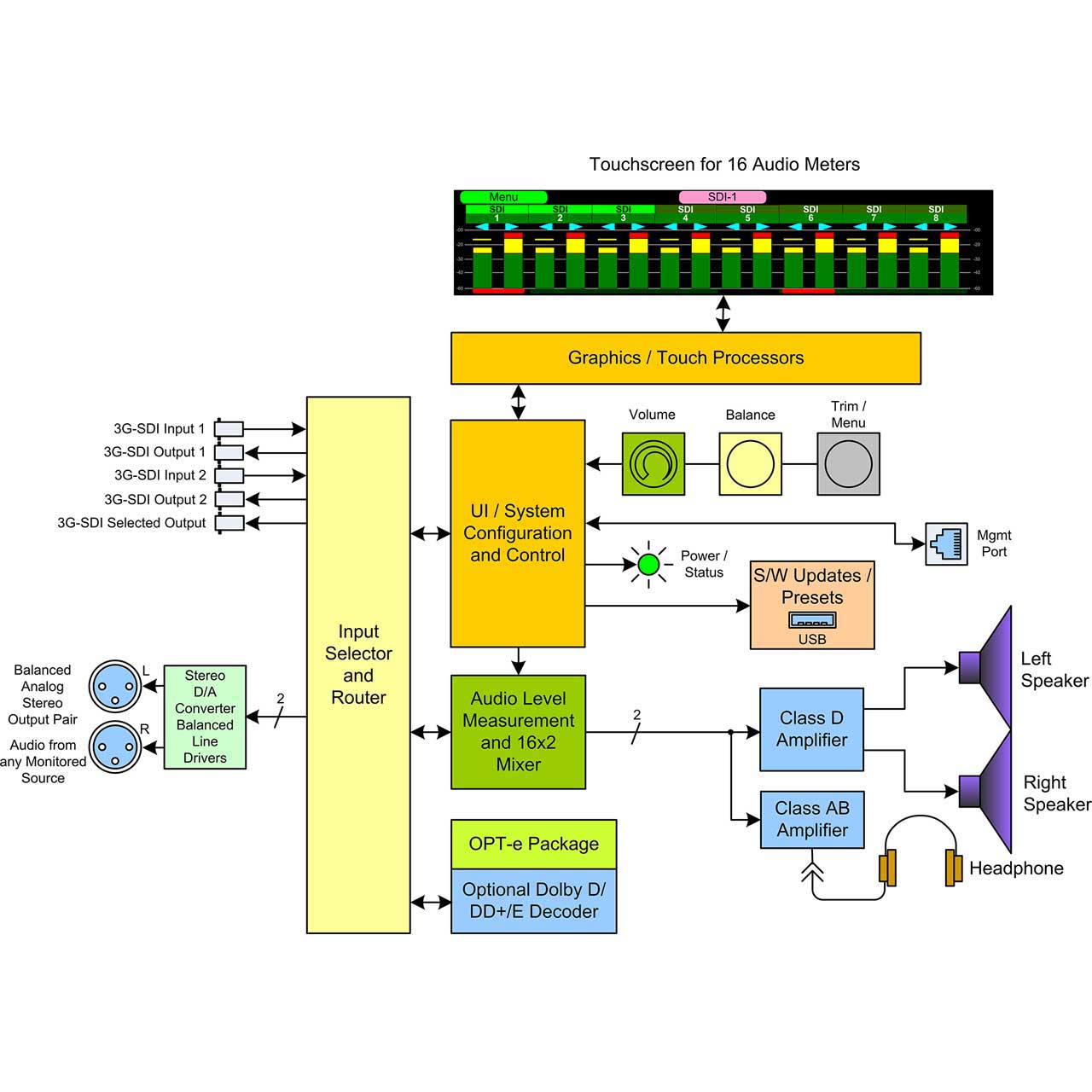

    Single 7"screen, compact, low-cost unit to select and monitor up to 16 audio channels from either of two 3G/HD/SD-SDI inputs.

    Replacements for the 16-M's, the, eAMP1-16-M offers fast, intuitive operation for monitoring SDI audio in the most demanding production applications. Whether in the studio or on the road, these models provide simultaneous selection and summing of any grouping of SDI audio pairs. They feature adjustable volume and balance controls, clear display of levels, and phase indications on a bright 7" LED-backlit LCD display.

    • Features:

      • Simultaneous level metering of up to 16 channels of de-embedded audio channels from SDI
      • Touch-enabled or scroll and push selection of any pairs to sum for monitoring
      • Monitor through built-in speakers, headphones and analog outputs with optional muting for internal speakers
      • Stereo or mono monitoring
      • Stereo phase indicators
      • Adjustable Volume and Balance

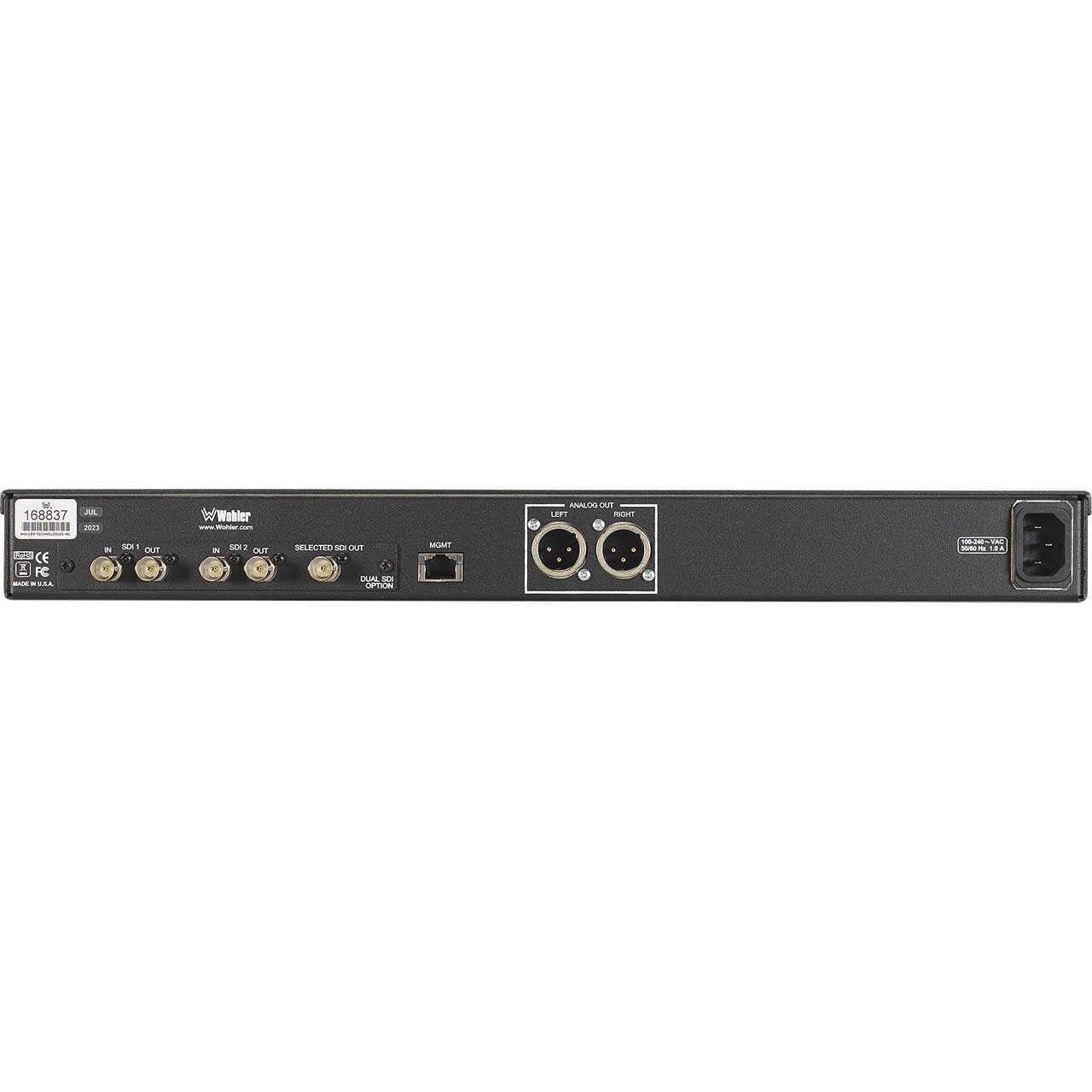

      • Balanced stereo analog outputs on XLR-Ms with fixed level or volume / balance configuration options.
      • Automatic frame rate detection and selection
      • Selectable line level or front panel volume control and outputs
      • Shallow chassis depth for easy installation in OB vehicles and consoles
      • OPT-DOLBY adds decoding of *Dolby D, DD+ and E (requires OPT-e package)
      • APIs provide easy integration with 3rd party systems (requires OPT- e package)


    • Specifications:

      • Dimensions (W x H x D): 1RU in standard 19" rack: 19" x 1.75" x 5.5" (483 mm x 45 mm x 140 mm). Shipping dims: 23"x 6"x 12"
      • Shipping Weight / Net Weight: 5.8 lbs. (2.6 kg) / 3.3 lbs. (1.5 kg)
      • Power Consumption / Supply: 19W, 100 to 240 VAC ± 10%, 50-60 Hz, CE & UL approved
      • Display Type / Resolution: 7" (178 mm) LCD Capacitive Touchscreen; 1242H x 280V
      • Viewing Angle: 160° (H) x 160° (V)
      • Audio Channels: 16 Max
      • Hum and Noise: Better than -68 dB below full output
      • Peak Acoustic Output: 90 dB SPL @ 2 feet
      • Speaker Power Output: 5W RMS per side, 12W Peak
      • Upgrades: Via USB or GUI web interface
