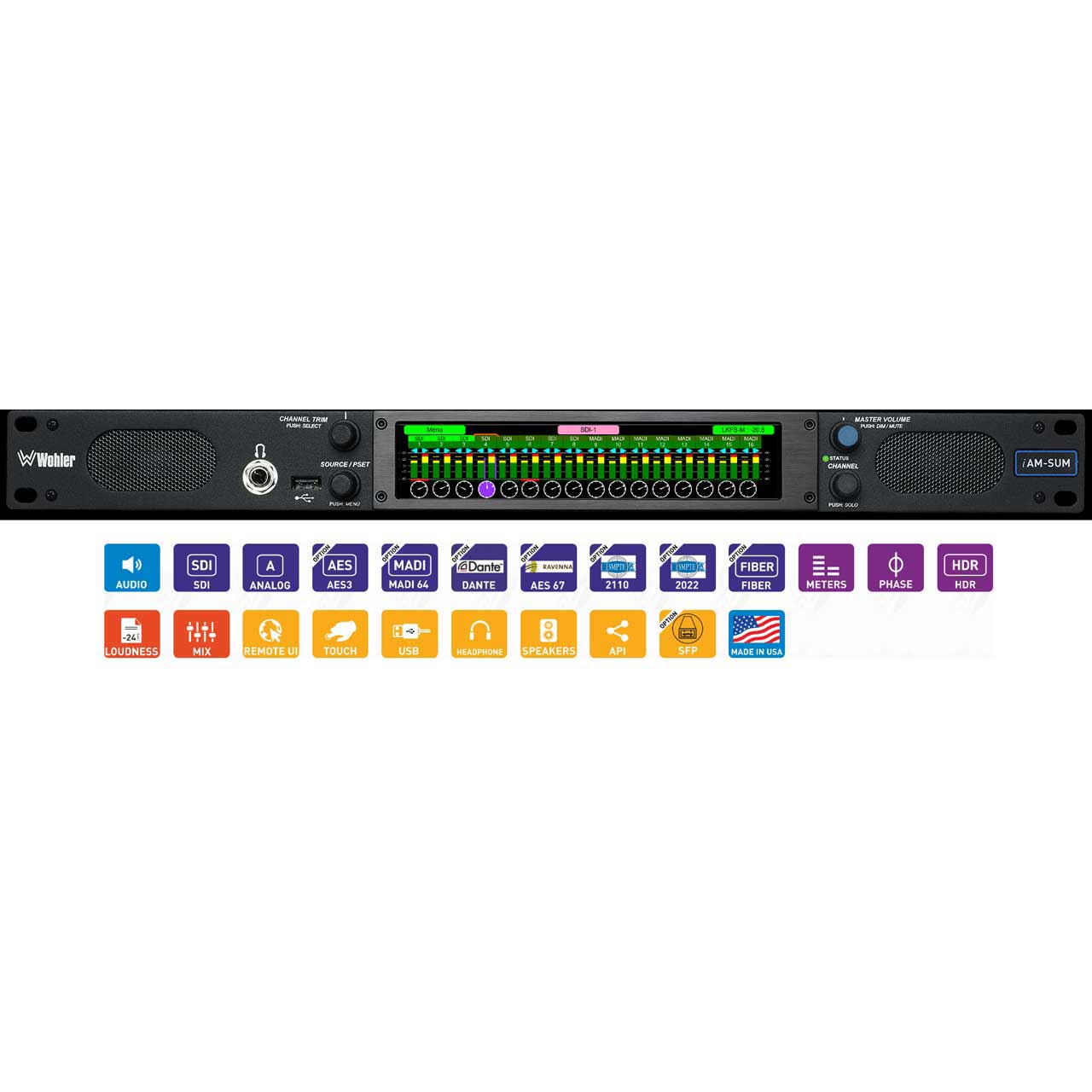

Wohler iAM-SUM16 1RU 7 Inch Touchscreen 16 Channel 3G-SDI & Analog Audio Monitor/Mixer with Signal Upgrades

ITEM #: WOH-IAM-SUM16 MFG #: 8121-0351

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$4,795.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    8121-0351 - Overview

    The iAM-SUM Series is a set of well featured, easy to use and competitively priced IP ready audio monitors /mixers available in either 8, 16 or 32 channel configurations. Whether monitoring 8, 16 or 32 channels, the unit can be configured to operate in either single channel or pair mode. Standard features include 3G-SDI and a pair of Analog inputs and outputs. Upgrade/license other signal formats and processing options, as and when needed, either initially or after purchase.

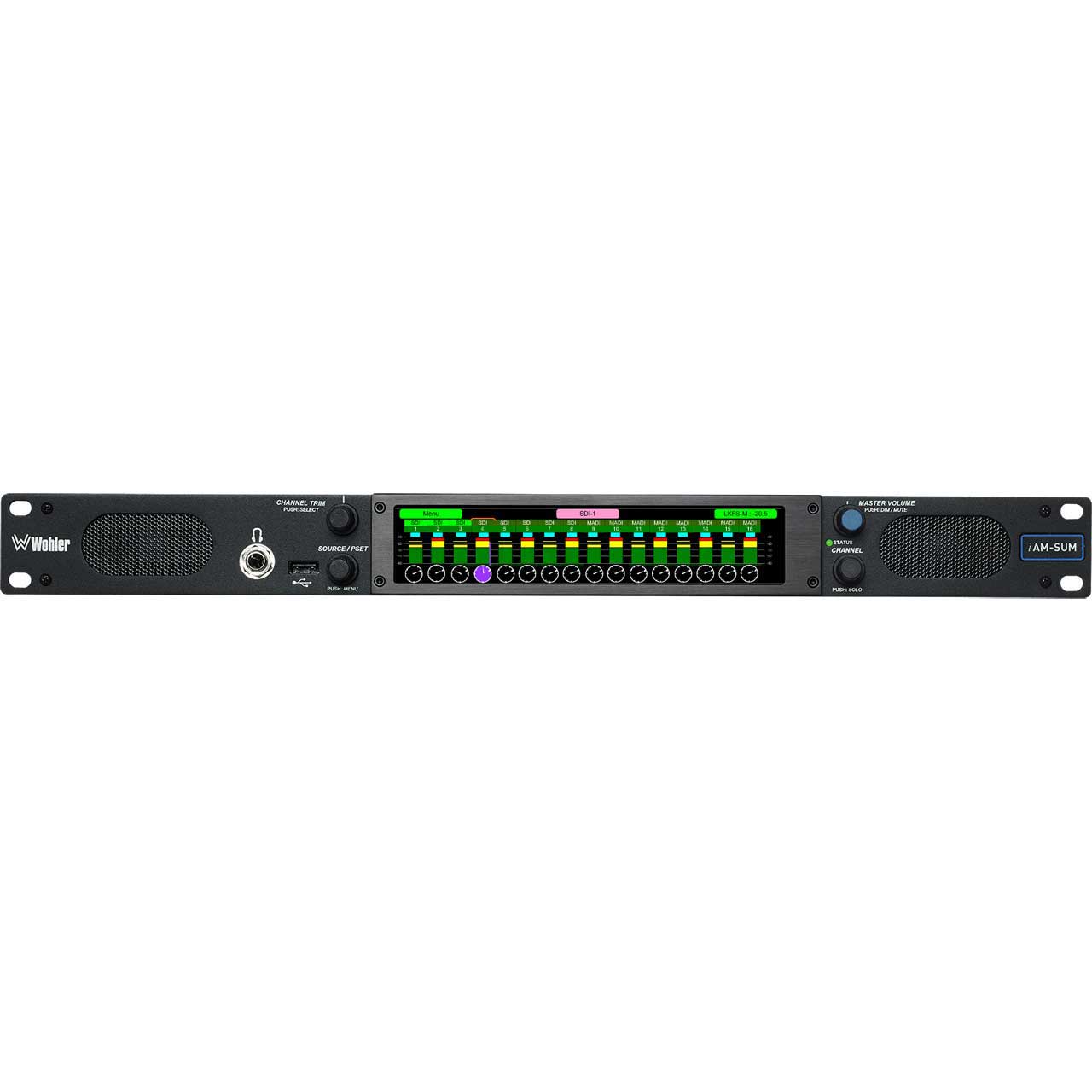

    Wohler iAM-SUM16 is a 1RU single 7" touchscreen, 16 channel Dual input 3G/HD-SD/SDI audio Monitor. Includes a pair of analog inputs and outputs on XLR. OPT-Dolby N/A for iAM-SUM.

    Flexible. Adaptable. Future Proof.
    Equally at home in QC, fast-paced OB and live-to-air production environments, iAM-SUM provides intuitive audio monitoring with instant access to signals or to user-definable presets of any individual signal source or a mix of sources for monitoring and mixing. Options for additional signals, include AES3, MADI, Dante™, Ravenna™, SMPTE-2110 and SMPTE-2022-7.

    All iAM Series monitors contain an onboard web server. Multiple units on the same network can be updated, monitored, and controlled via a web-based user interface.

    • Features:

      • Fast selection and summing of audio channels, allowing quick muting and hold-for-solo
      • Up to 64 presets
      • Virtual rotary dials showing trim levels
      • Access control with lockout prevents accidental or unauthorized changing of critical settings

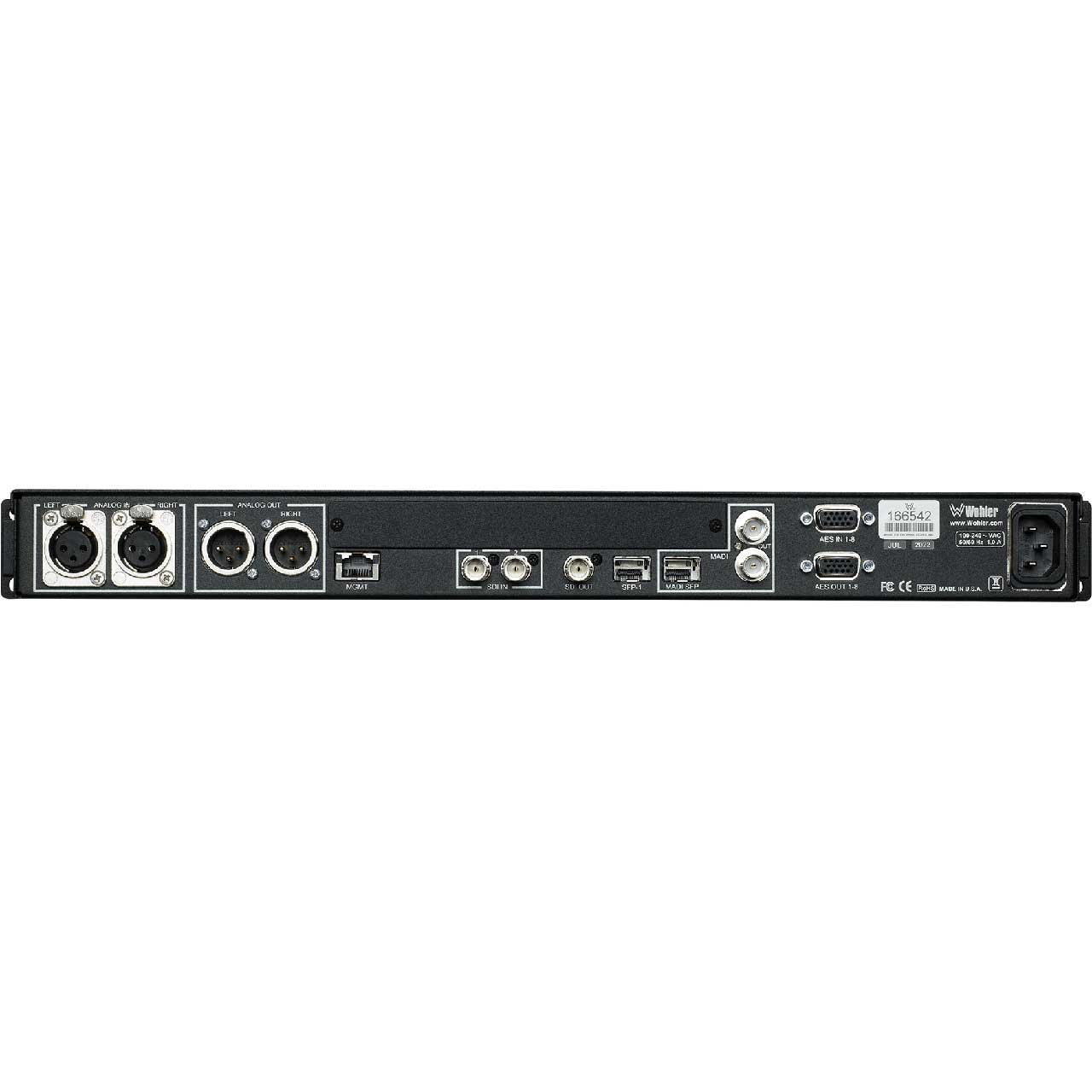

      • 2 x 3G-SDI Inputs on BNC; 1 x 3G-SDI Output on BNC + 1 pair Analog in/out on XLR
      • Optional Output routing enables the flexibility to route input signals to various outputs
      • Optional I/O for AES3 on HD-15 (incl selected audio source converted to AES3 out), MADI on BNC (looped out), and SMPTE 2110 or SMPTE 2022 via SFP
      • Option cards: Choose between AoIP, an additional 8 channels of analog inputs and outputs, or 2 additional SFP cages
      • Measure Audio Loudness using ITU-R BS.1770 or EBU R128 standards
      • Software upgradeable individually via USB or multiple units on the same network
      • Browser-based interface that supports fast configuration that protects critical configurations from unauthorized alteration
      • APIs for remote management

    • Specifications:

      • Speaker Power Output: RMS Each Side: 5W Continuous/12W Peak
      • Peak Acoustic Output @ 2 feet: 90 dB SPL @ 2ft
      • AES Input Sampling Rate: 48 kHZ
      • Analog Input Impedance: 40k Ohms balanced
      • Frequency Response: 150 Hz to 16 kHz (+/-dB) acoustic, 40 Hz to 20 kHz (+/-1dB) electrical
      • Hum and Noise: Better than -68 dB below full output
      • Meter Dynamics: Simultaneous VU & PPM
      • Display Type: Capacitive LCD Touchscreen
      • Number of screens: 1
      • Diagonal Display Size: 7.0"
      • Display Resolution (HxV): 1242H x 280V
      • Viewing Angle: 160 (H) x 160 (V)
      • Rack Height: 1RU
      • Power Consumption: 65 Watts typical
      • Power Supply: Internal 100-240 VAC ± 10%, 50/60 Hz, CE & UL approved
      • Dimension Width: 19.0"
      • Dimension Height: 1.75"
      • Dimension Depth: 5.5"
      • Net Weight: 5.5 lbs
      • Shipping Weight: 8.0 lbs
      • Shipping Dimensions: 23 x 12 x 6 in (LxWxH)

    • Item Includes:

      • 1x Wohler iAM-SUM16 1RU 7 Inch Touchscreen 16 Channel 3G-SDI & Analog Audio Monitor with Signal Upgrades
