Amphenol 034-1123-12G HD-BNC Straight Crimp Jack for Belden 1855A/4855R/4855P - Bulkhead Rear Mount - 75 Ohm IP67 12G

ITEM #: 034-1123-12G MFG #: 034-1123-12G

Primary Image
Amphenol
Free Shipping with $49 Minimum Order

List Price:

$21.00

Our Price:

$19.42

Quantity Pricing

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    034-1123-12G - Overview

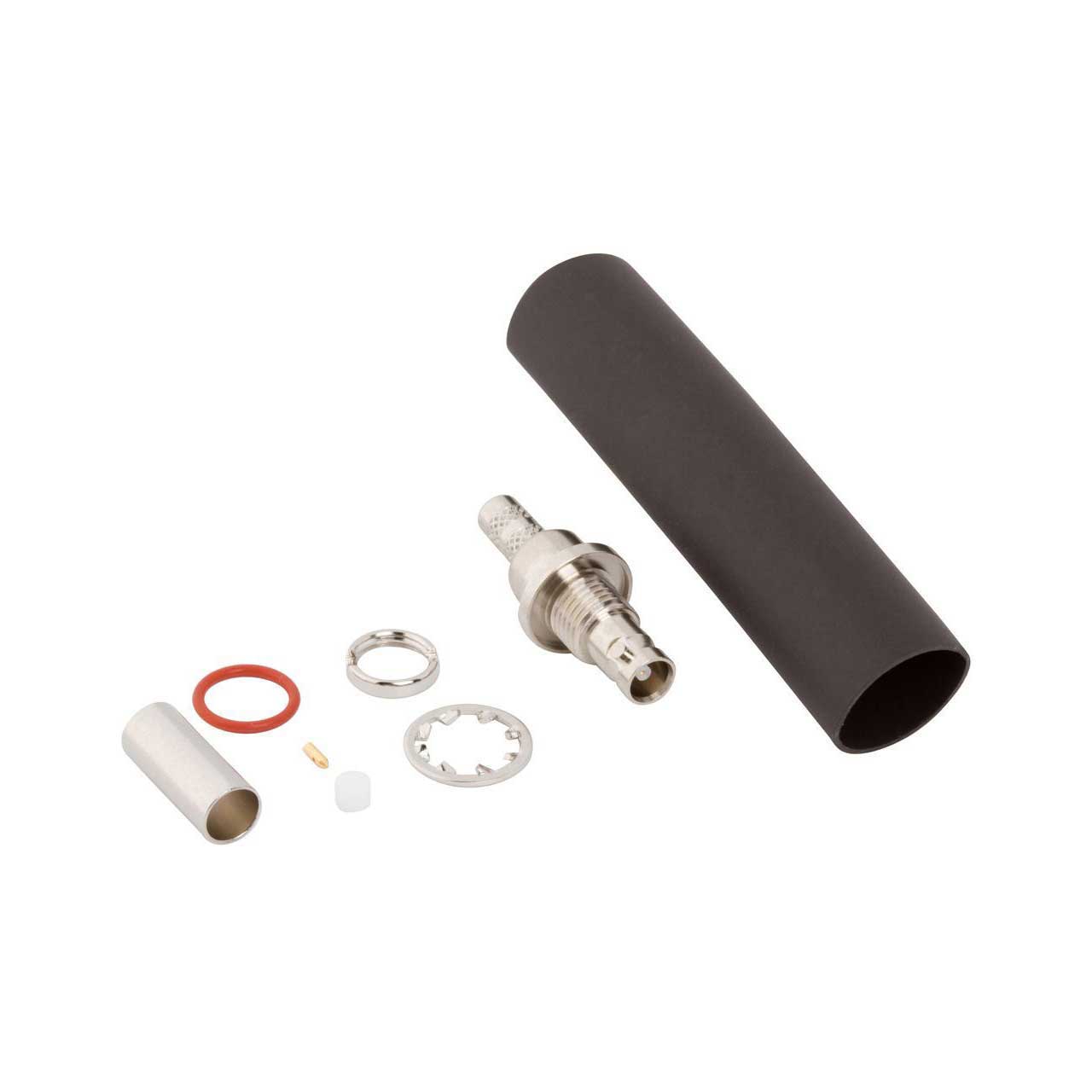

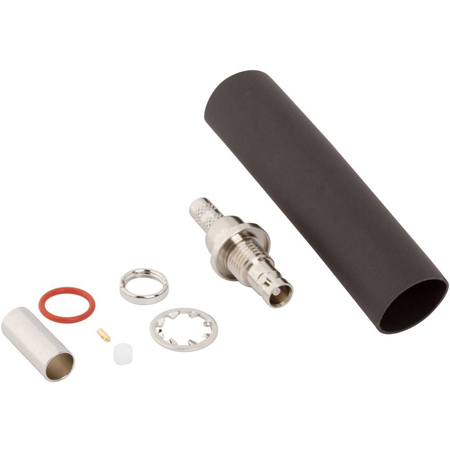

    Amphenol 034-1123-12G is a HD-BNC Straight Crimp Jack for RF. Use with Belden 1855A, Belden 4855R, and Belden 4855P Bulkhead Rear Mount. 75 Ohm IP67 12G Optimized.

    • Specifications:

      • Body Finish: Nickel
      • Body Material: Brass
      • Cable Type (Terminates to): Belden 1855A, Belden 4855R, Belden 4855P
      • Contact Finish: Gold
      • Contact Material: Brass and Beryllium Copper
      • Contact Termination: Crimp
      • Coupling Mechanism: Bayonet
      • Export Control Classification Number: EAR99
      • Frequency (Max GHz): 18
      • Gender: Jack
      • IP Rating: IP67
      • Impedance (Ohms): 75
      • Insulator Material: PTFE
      • Isolated: No
      • Low PIM: No
      • Mil Qualified: No
      • Non Magnetic: No
      • Orientation: Straight
      • Panel Mounting Feature: Bulkhead - Rear Mount
      • Ports: 1 (Single Port)
      • Size Category: Miniature
      • Temp (Max Degrees Celsius): 165
      • Temp (Min Degrees Celsius): -65
      • Termination Style: Cable - Crimp


    • Item Includes:

      • 1x Amphenol 034-1123-12G HD-BNC Straight Crimp Jack for Belden 1855A/4855R/4855P Bulkhead Rear Mount 75 Ohm IP67 12G
