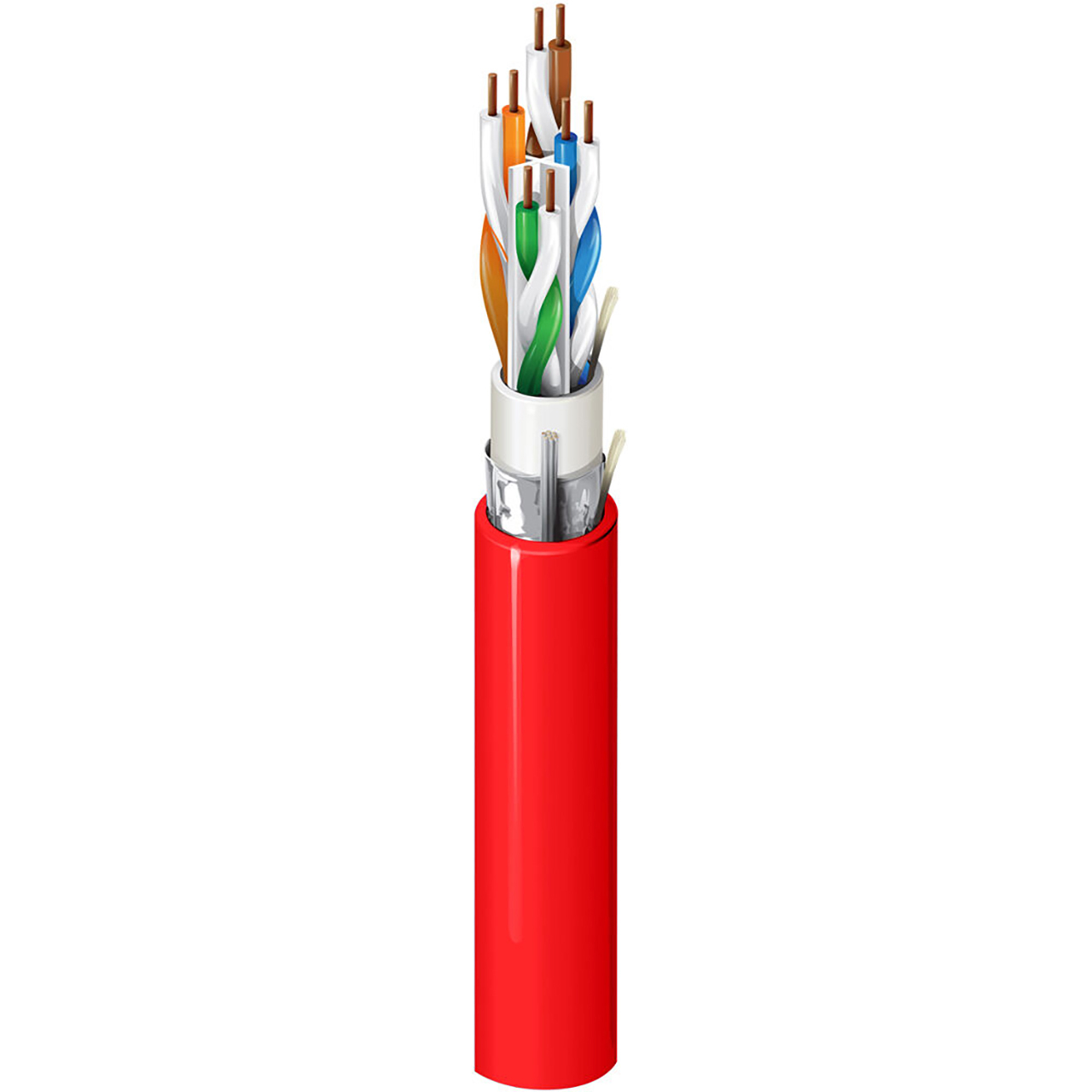

Belden 10GXS13 CMP/Plenum Category 6A U/UTP Enhanced Cable 625MHz Solid BC / 4x 23AWG - Red - 1000 Foot Reel in Box

10GXS13002A1000 - Overview

• Features:

  • Reliable Network Performance: Designed for mission-critical situations that require constant uptime
  • Best-in-Class System Noise Immunity: Achieved through outstanding cable balance, is less susceptible to RFI/EMI in noisy environments
  • Unparalleled Performance: Full 100m channel length under 100W PoE load without derating up to 140°F (60°C) using 10GXS cables


• Specifications:

  • Conductor Count: 8
  • Total Number of Pairs: 4
  • Conductor Size: 23 AWG
  • Conductor Stranding: Solid
  • Conductor Material: BC - Bare Copper
  • Insulation Material: FEP - Fluorinated Ethylene Propylene
  • Insulation Color Code: White & Blue, White & Orange, White & Green, White & Brown
  • Outer Jacket Separator: Center Member (Patented EquiSpliner), EquiBlock Barrier Technology
  • Outer Jacket Material: PVC - Polyvinyl Chloride
  • Outer Jacket Material Trade Name: Flamarrest
  • Outer Jacket Nom. Diameter: 0.265" (6.73mm)
  • Outer Jacket Ripcord: Yes
  • Overall Cable Diameter (Nominal): 0.265" (6.73mm)
  • UL Voltage Rating:
    - 300V (CMP)
    - 300V (CL3P)
  • Environmental Suitability: Plenum, Indoor
  • Sustainability: Product LensT, Environmental Product Declaration (EPD) Available
  • Flammability/Reaction to Fire: NFPA 262, UL 910 (Plenum), FT6, IEC 60332-1-2
  • CPR Compliance:
    - CPR Euroclass: Eca
    - CPR UKCA Class: Eca
  • NEC/UL Compliance: Article 800
  • CEC/C (UL) Compliance: CMP
  • Installation Temp Range: 32°F - 122°F (0°C - 50°C)
  • UL Temp Rating: 221°F (105°C)
  • Operating/Storage Temp Range: -4°F - 167°F (-20°C - 75°C)
  • Bulk Cable Weight: 37lbs/1000ft
  • Max Recommended Pulling Tension: 25lbs
  • Min Bend Radius/Minor Axis: 2.25"
  • Min Bend Radius/Installation: 2.75"


• GTIN:

  0612825004066
