Belden CAPFCU-B25 - Field Crimpable Modular RJ45/8MOD Connector/Plug Kit for CAT6/6A - 25 Pack

CAPFCU-B25 - Overview

• Specifications:

  • Transmission Characteristics (Connectivity)
  • Mated Connection Table - Footnote: * Category 6 - TIA 568.C.2 when tested with Recommended CAT6 Cables. Category 6A - TIA 568.C.2
  • when tested with Recommended CAT6A Cables.
  • Dielectric Strength: 1,000 V RMS @ 60 Hz for 1 minute
  • Current Rating: 1.500 A
  • Insulation Resistance: 500 M-Ohm Minimum
  • Max. Contact Resistance: 10 m-Ohm
  • Operating Temperature Range: -40°C To +85°C
  • Tool Compatibility: Crimping Tool CTPFC01


  • Applicable Specifications and Agency Compliance (Overall)
  • Applicable Standards & Environmental Programs
  • UL Rating: 94V-0
  • Other Standards: FCC Part 68, Subpart F, IEC 60603-7
  • EU Directive 2002/95/EC (RoHS): Yes
  • EU RoHS Compliance Date (mm/dd/yyyy): 07/01/2006
  • Telecommunications Standards: Category 6 - TIA 568.C.2, Category 6A - TIA 568.C.2, ISO/IEC 11801:2002 Ed.2
  • Other Specification: Complies with ANSI/TIA-1096-A Requirements.
  • Suitability
  • Suitability - Indoor: Yes - Indoor

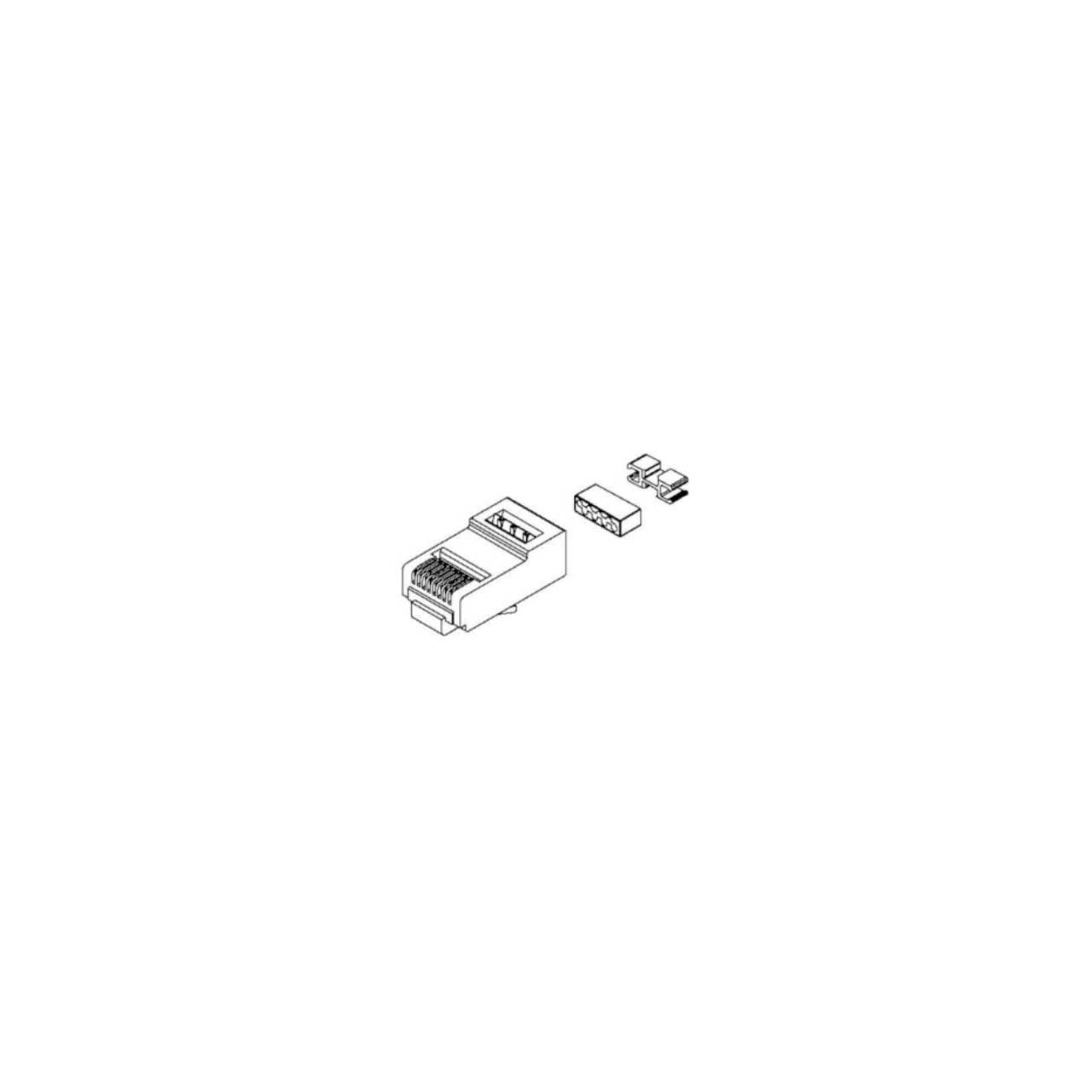

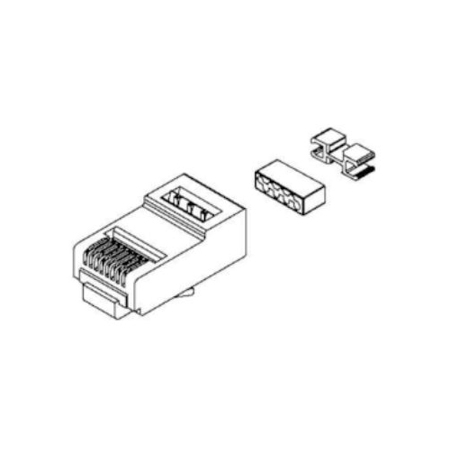

• Item Includes:

  • 25 RJ45 Plugs
  • Load Bar
  • Wire guide
  • Installation Guide
