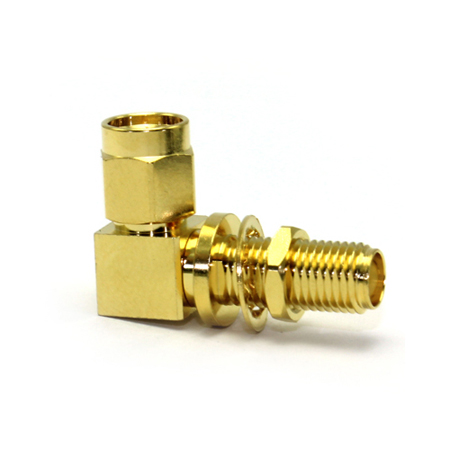

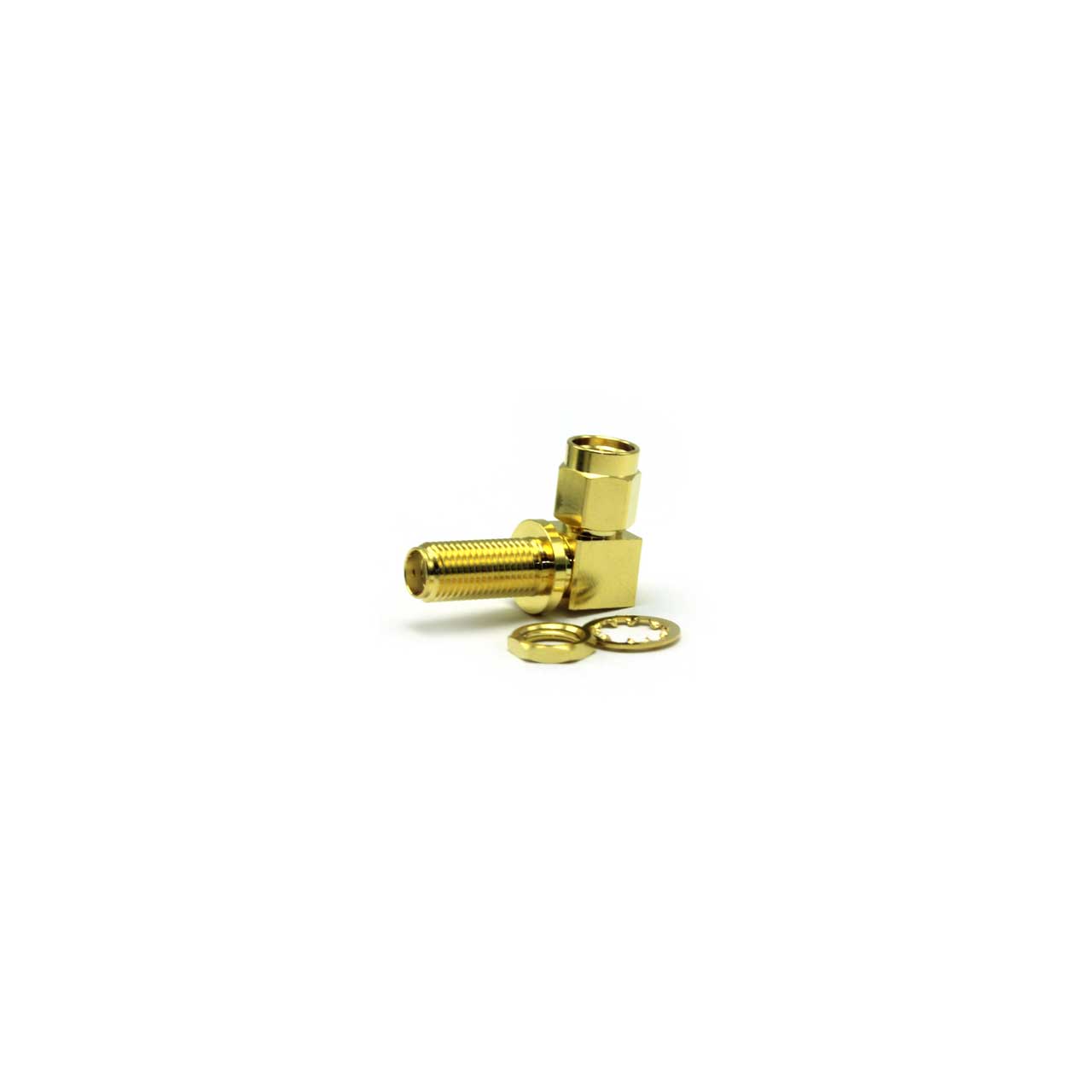

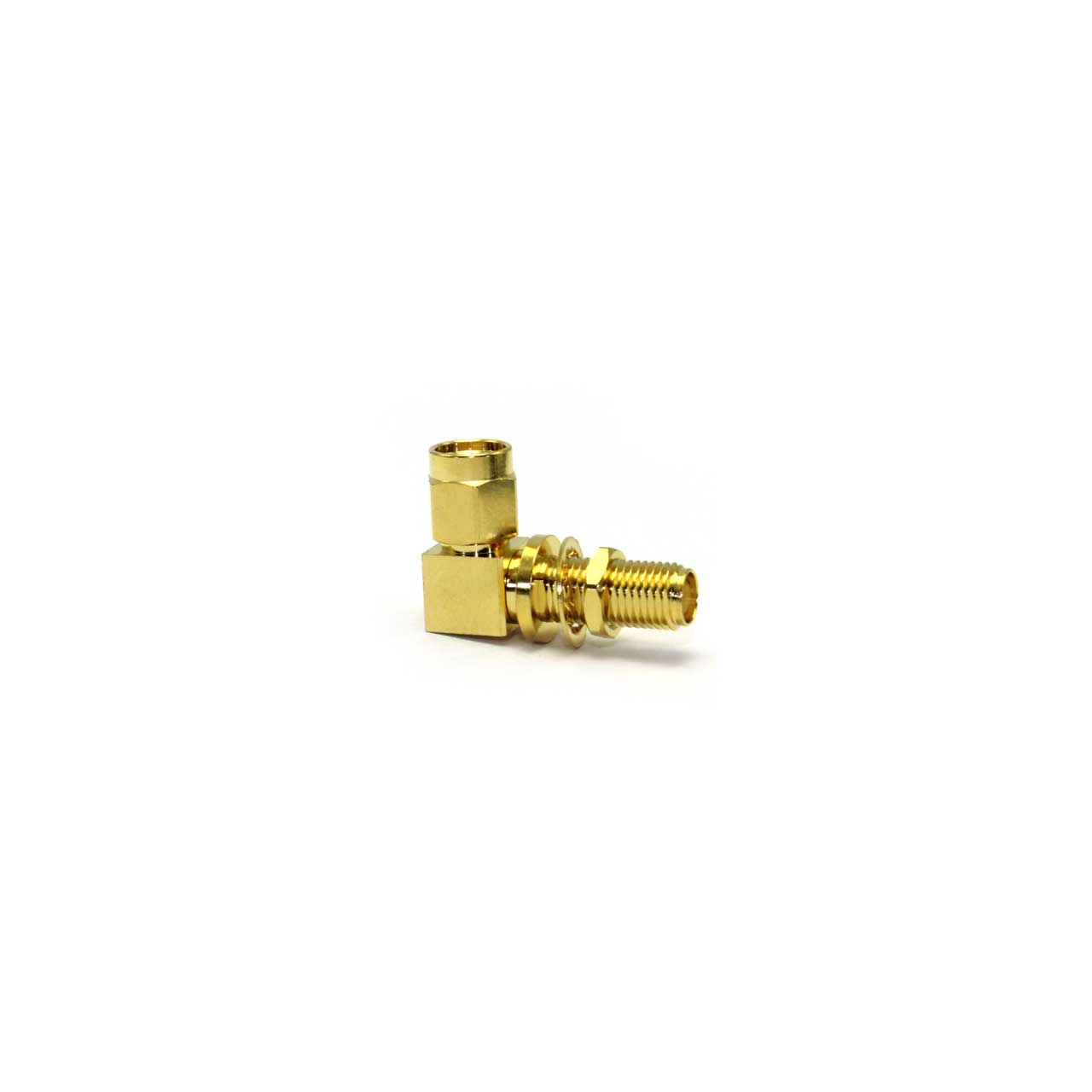

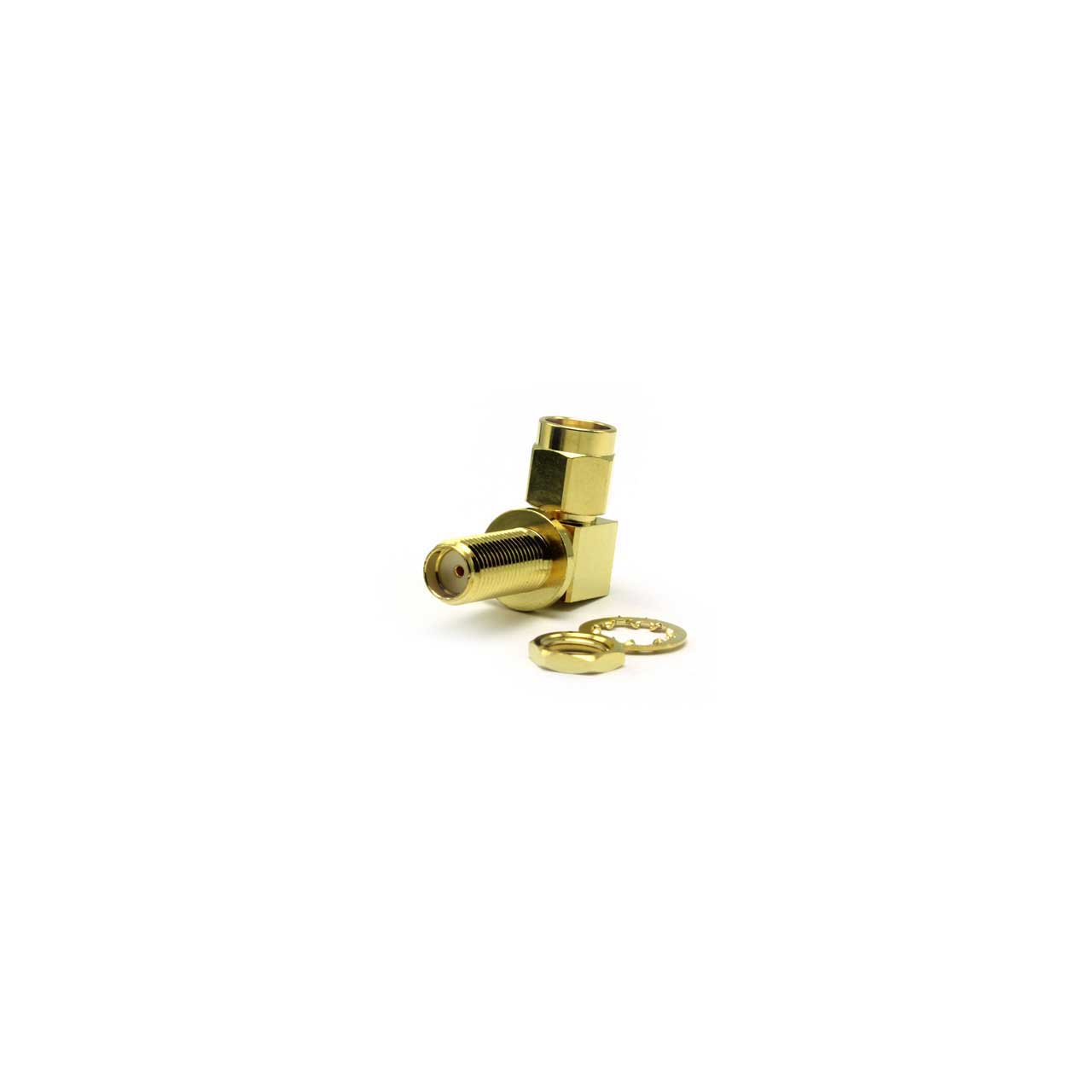

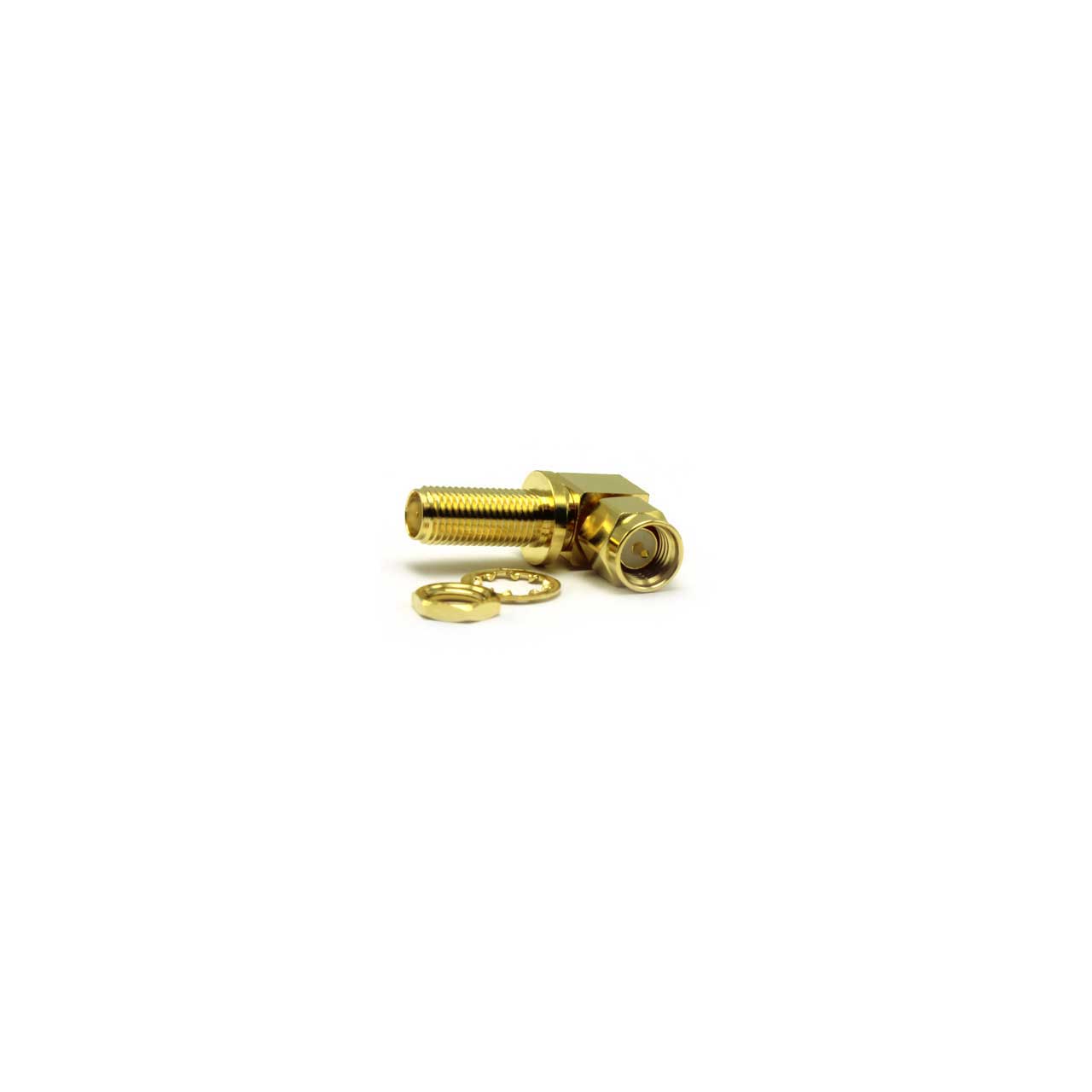

Coax Connectors 30-548-D3 SMA Right Angle Bulkhead Jack to Plug Adaptor - Gold Plated Body & Center Contact.

ITEM #: 30-548D3 MFG #: 30-548D3

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$12.96

Our Price:

$9.29

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    30-548D3 - Overview

    SMA sub-miniature series are a popular general purpose high performance 50 ohm connector. SMA have a screw together coupling with versions available for use up to 11 GHz and feature gold plated bodies and center contacts. SMA connectors are suited to a wide variety of industries from high performance applications in defence and aerospace to general purpose industrial. Reverse polarity versions are also available.

    • Specifications:

      • Impedance: 50 Ohm
      • Frequency Range: 10GHz
      • Dielectric Withstand Voltage: 750 Veff
      • Insulation Resistance: 5000 M-Ohm
      • Design Standard: IEC 60169-15
      • RoHS3 Compliant: Yes
      • Mating Cycles: 250
      • Contact Retention: 27N min

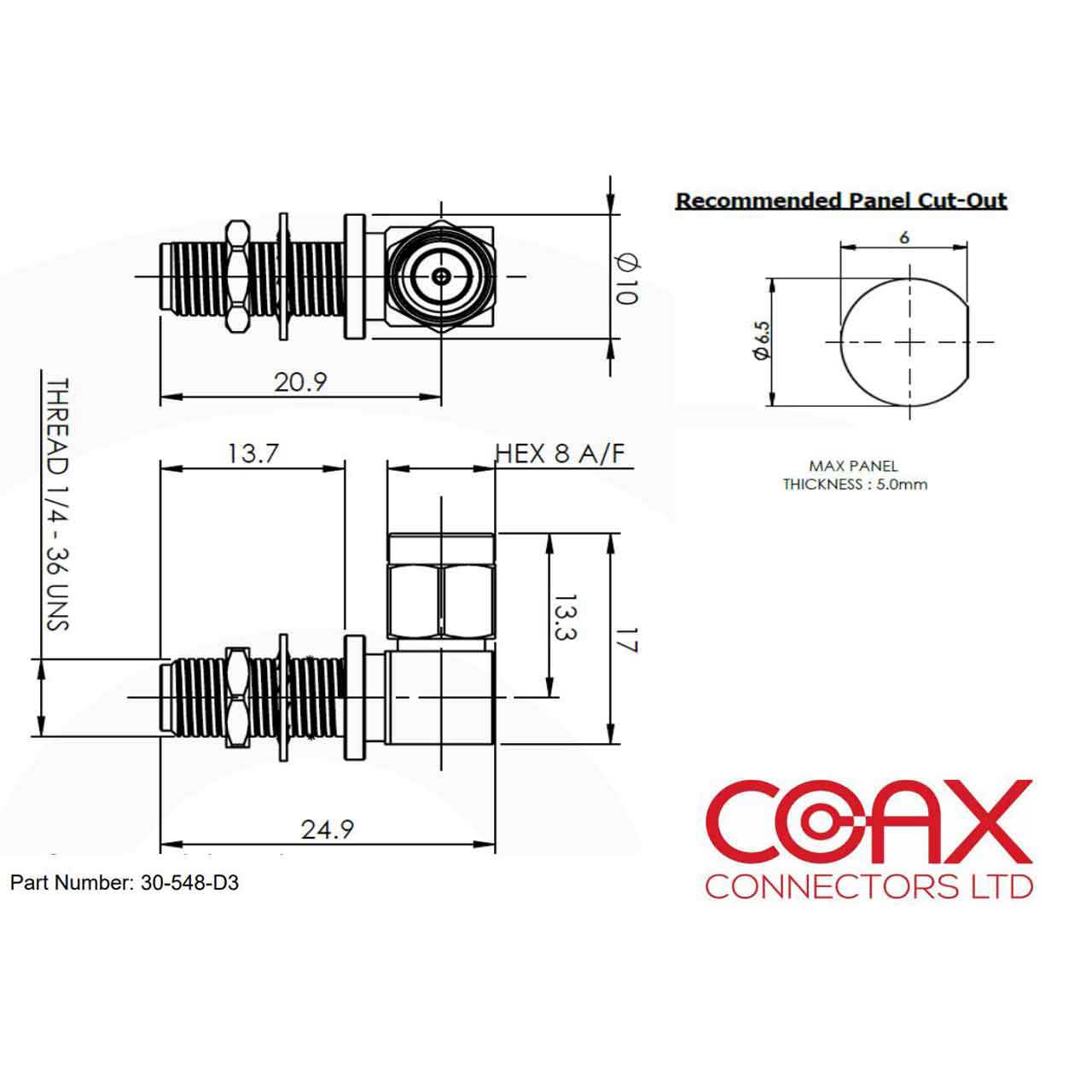

      • Max Panel Thickness: 5mm
      • Weight: 4.3g
      • Mating Force: 23Ncn
      • Un-Coupling Force: 23Ncn
      • Operating Temperature: -55 to +155 Deg C
      • IP Rating ( Mated ): IP40
      • Center Contact: Phosphor Bronze
      • Outer Contact: Brass
      • Insulator: PTFE
      • Center Contact Plating: Gold
      • Outer Contact Plating: Gold
      • Pack Size: 1
