Neutrik NBNC75BFG7X 4K/8K 12G-SDI rearTWIST UHD BNC Connector for Belden 1855ENH

ITEM #: NBNC75BFG7X MFG #: NBNC75BFG7X

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$4.05

Our Price:

$3.47

Availability: In Stock
iAvailability Description Popup


    NBNC75BFG7X - Overview

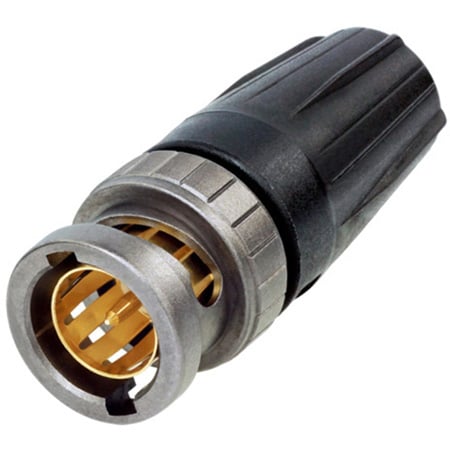

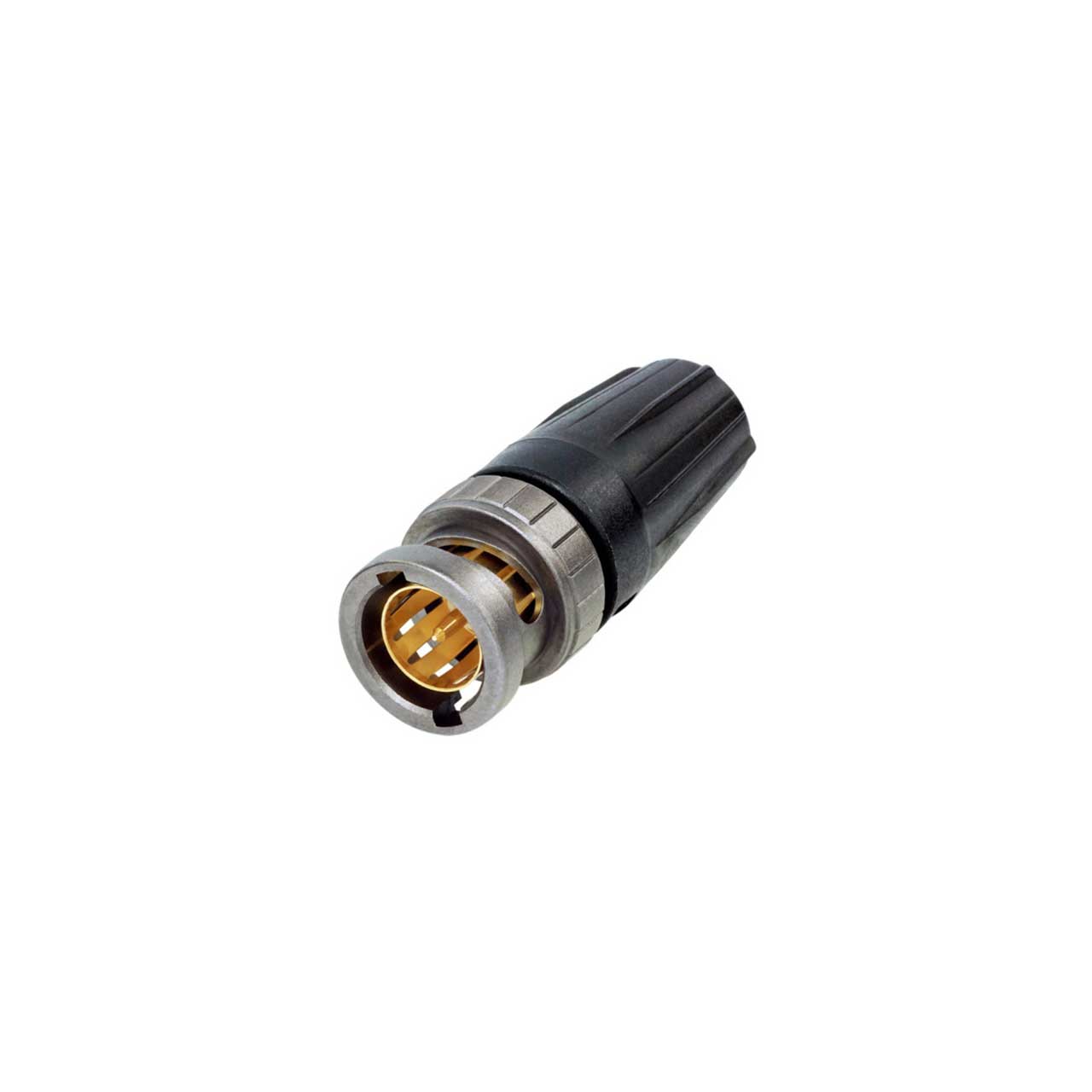

    The rearTWIST UHD BNC connectors are specifically designed for high resolution video signal transmissions. Due to the unique insulator and contact pin design, the connectors feature low return loss values for 4K and 8K signals.

    Suitable Cables:

    To guarantee high performance for each cable-connector combination at high frequencies Neutrik measured common COAX cables which are specifically designed for ultra high definition transmission (UHD). Find all approved cables listed below.

    Suitable cables:
    Bryant BD SD01, Canford SDV, Cordial CVI 06-28, Cordial CVI 06-28HD, Cordial CVI 06-28HD-FRNC, Cordial CVI 3-7, Draka 0.6/2.8 AF, Draka 0.6 L/2.8 AF, Extron BNC-5RC, Fuzion SD-1, Klotz V06/28, Klotz VMXx75Y, Kabeltronik HFV 0.6/2.8 AF- FRNC, Kabeltronik MVP 5x 0.6/2.8 AF-FRNC, Nexans HF 75 0,6/2,9 02YS(ST)CH, Percon VK5, Sommer 600-0101M, Sommer 600-0104M

    UHD optimized cables:
    Argosy Image 360, Belden 1855ENH, Belden 1855ECH, Belden 1855DNH, Belden 70080, Belden 70080NH, Belden 70080CH, Canford SDV-X-LFH, Draka HD Pro 0.6/2.8 AF, Klotz V062SH

    • Features:

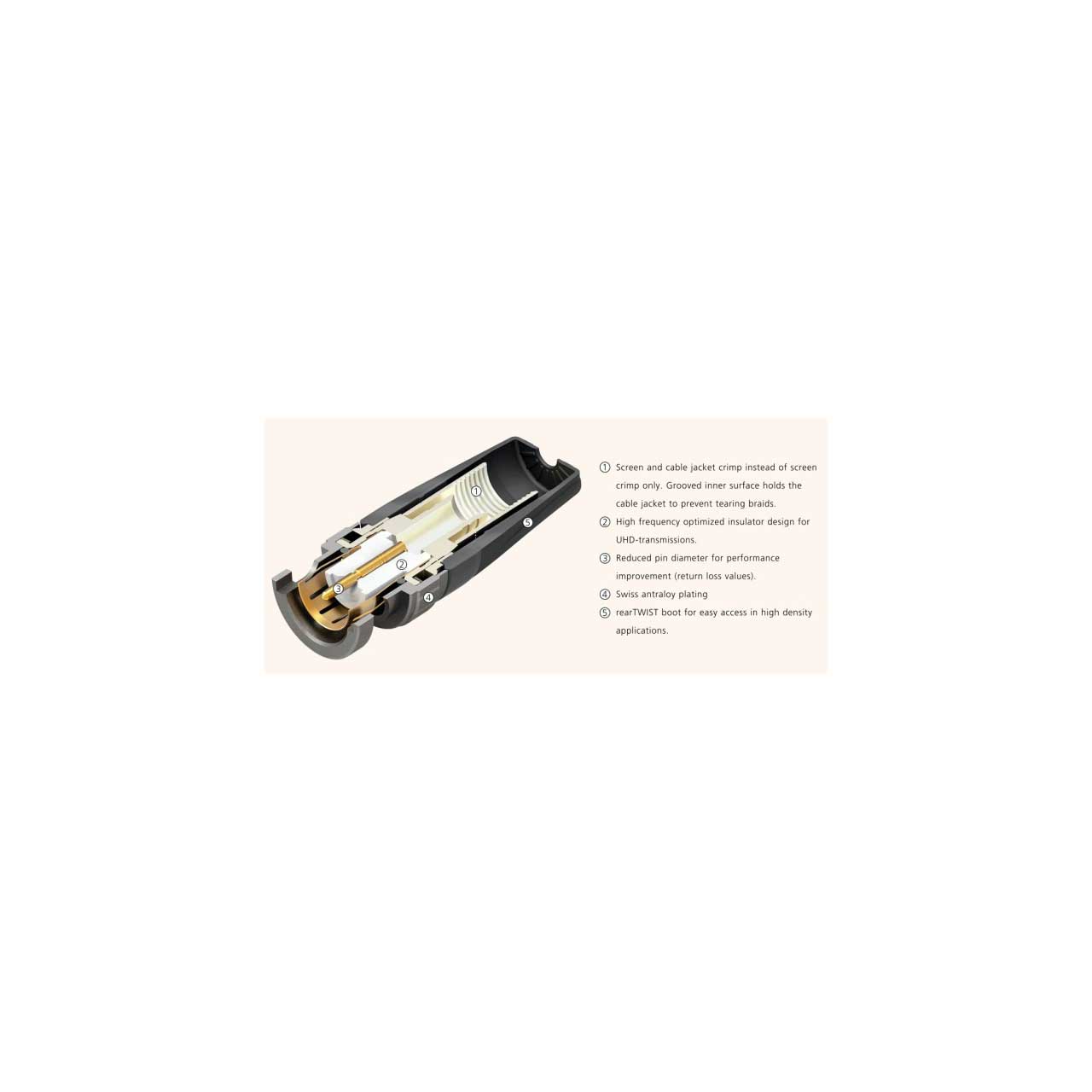

      • Optimized contact pin and insulator design for UHD-data transmissions
      • Proven rearTWIST technology
      • Swiss antraloy plating
      • Fully compatible with conventional BNC chassis connectors
      • Improved return loss values at high frequencies

    • Specifications:

      • Connection Type: BNC 75 Ohm
      • Gender: Male
      • Contact resistance: = 3 m Ohm (inner)
      • Contact resistance: = 2 m Ohm (outer)
      • Dielectric strength: 1.5 kVdc
      • Impedance: 75 Ohm
      • Insulation resistance: > 5 G Ohm
      • Rated voltage: < 50 V
      • VSWR:
      • =1.06 / >30 dB up to 6 GHz
      • =1.13 / >24 dB up to 12 GHz
      • =1.22 / >20 dB up to 18 Ghz
      • Cable O.D.: 4.3 mm
      • Cable retention: > 30 N (center)
      • Crimp size: 5.0 Hex crimp (shield)
      • Crimp size (pin): 1.07 crimp
      • Insertion force: < 25 N
      • Lifetime: > 1000 mating cycles
      • Locking device: Bayonett
      • Cable anchoring: Jacket crimping
      • Contacts: Brass (CuZn35Pb2), 0.2 æm AuCo (center contact)
      • Shell: Brass (CuZn39Pb3)
      • Shell plating: Antraloy
      • Insert: PP
      • Temperature range: -30 °C to +85 °C
      • Contact crimpability: Complies with IEC 60803 and IEC 60352-2

    • GTIN:

      7613187009518
