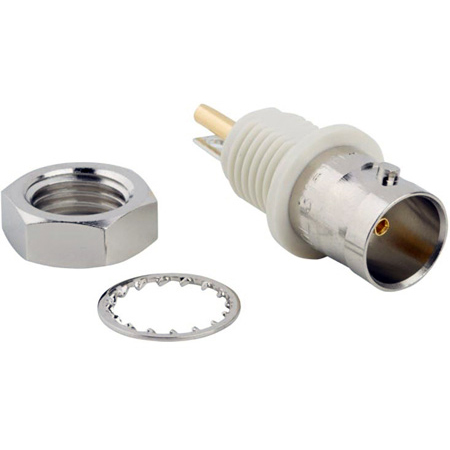

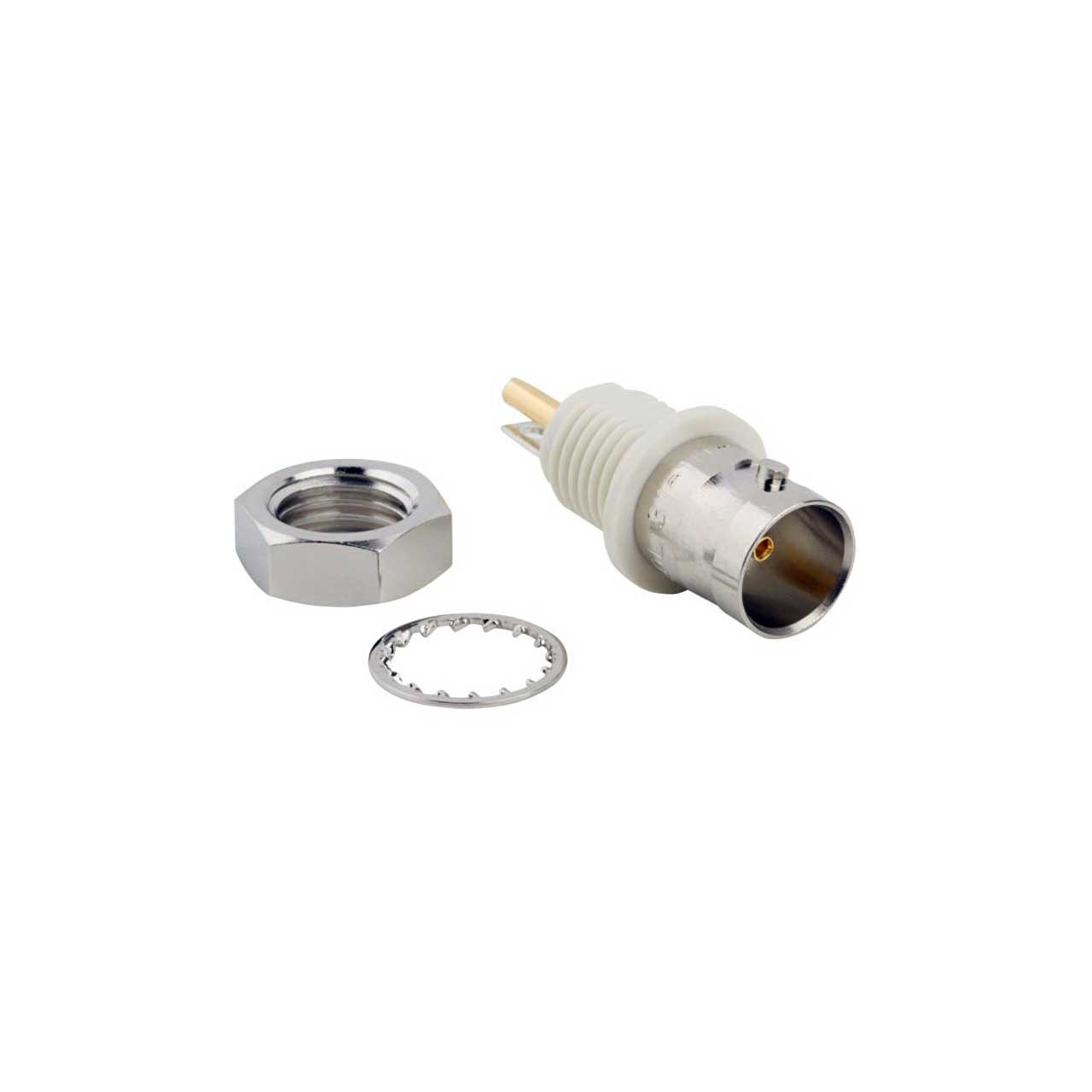

Amphenol 31-10-75 BNC Straight Jack Isolated Solder Cup - 75 Ohm - Bulkhead

31-10-75 - Overview

• Specifications:

  • Gender: Jack
  • Orientation: Straight
  • Termination Style: Solder Cup
  • Impedance (Ohms): 75
  • Body Finish: Nickel
  • Body Material: Brass
  • Contact Finish: Gold
  • Contact Material: Phosphor Bronze
  • Contact Termination Style: Solder
  • Insulator Material: Nylon
  • Coupling Mechanism: Bayonet
  • Mounting Feature: Bulkhead - Front Mount
  • Isolated: Yes
  • Max Frequency (GHz): 11
  • Polarity: Standard
  • Extended Dielectric: Yes
  • Extended Dielectric Length (Inches): 0.76
  • Min. Temp. (Celsius): -85
  • Max. Temp. (Celsius): 165
  • Mating Cycles: 500
  • Weight (Grams): 7.1
