Remee 3CSMPTP Hybrid SMPTE-311M HDTV 3-Channel Plenum Rated Cable - 2500 Foot

Name: Remee 3CSMPTP Hybrid SMPTE-311M HDTV 3-Channel Plenum Rated Cable - 2500 Foot
Brand: Remee Wire & Cable
SKU: 3CSMPTP25K
Availability: Backorder

ITEM #: 3CSMPTP25K MFG #: 3CSMPTP25K

Remee Wire & Cable

We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Notify when in stock

Shipment of this item is subject to a separate oversized-package carrier surcharge.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

3CSMPTP25K - Overview

The Remee 3CSMPTP cable is a 2500ft, 3-channel, plenum-rated hybrid SMPTE-311M HDTV broadcast cable. This cable combines fiber optics and copper conductors to transmit high-definition signals and power over long distances.

Please Note: Spools have a ±5% variance in length. Contact one of our sales reps for exact reel size.

Applications:
• Broadcast camera systems/setups
• Studio camera interconnects
• HDTV production facilities
• Sports and live-event production venues
• Fixed installations requiring SMPTE hybrid fiber connectivity

Features:
- 3-channel SMPTE 311M hybrid fiber camera cable for HDTV camera systems
- 6x single-mode optical fibers
- Tight-buffered, simplex construction
- Shielded with aluminum/polyester tape and tinned copper drain wire for EMI protection
Specifications:
- Conductor: 18AWG 19/30 TC
- Insulation: FEP
- Nominal Diameter: 0.078" (2mm)
- Colors: 3x Black, 3x White

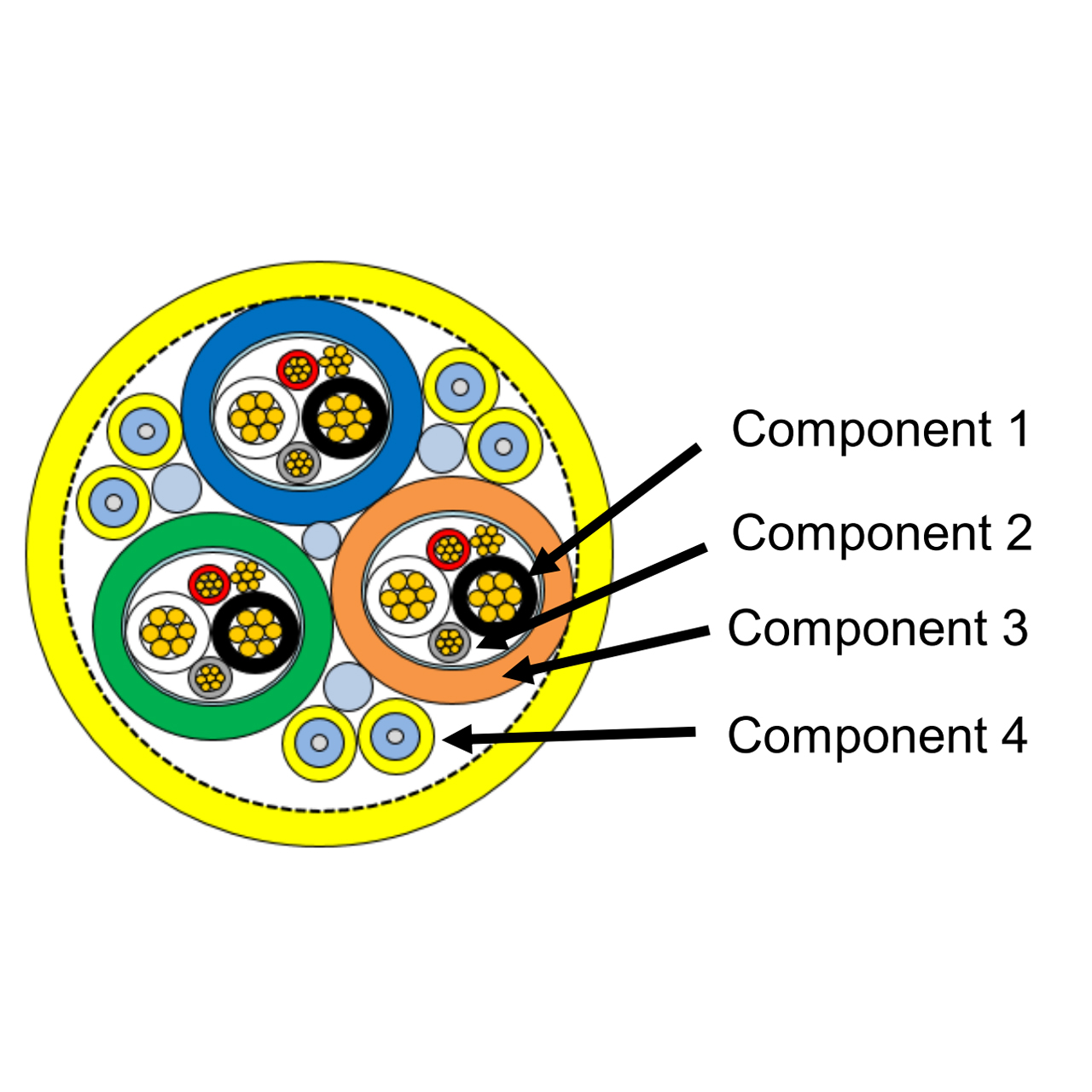

  Construction Details - Component 2
- Conductor: 24AWG 7/32 TC
- Insulation: FEP
- Nominal Diameter: 0.038" (1mm)
- Colors: 3x Red, 3x Gray

  Construction Details - Component 3
- Construction: 2 of component 1 and 2 of component 2 are cabled together to form the core.
- Shield: Aluminum/Polyester Tape (100% Coverage, Foil in)
- Drain Wire: 22AWG 7/30 Tin Copper (Under Shield)
- Jacket Material: PVDF
- Jacket Colors: Blue, Orange, Green
- Nominal Diameter: 0.220" (5.6mm)
- Surface Print: None

  Construction Details - Component 4
- Fiber Type: Simplex Singlemode
- Buffer: Tight Buffer Blue
- Material: Thermoplastic
- Diameter: 900 ±50 micron (0.035" ±0.002")
- Color: Yellow numbered 1-6
- Subunit Diameter: 0.078" Nominal

  Electricals
- Voltage Rating: 300V
- Optical Attenuation @ 1310nm: ≤0.5dB/km
- Optical Attenuation @ 1550nm: ≤0.5dB/km
- Component 1 (18AWG) DCR 6.21Ω/1M' @ 68°F (20°C)
- Component 2 (24AWG) DCR: 26.25Ω/1M' @ 68°F (20°C)

  Other
- Spool Length: 2500ft (762m)
- Maximum Cable Pull Strength: 600lbs (272.2kg)
- Minimum Bend Radius: 3.9" (10cm)
Item Includes:
- 1x Remee 3CSMPTP Hybrid SMPTE-311M HDTV 3-Channel Plenum Rated Cable - 2500 Foot
Warranty:
- 1 Year Limited Warranty
