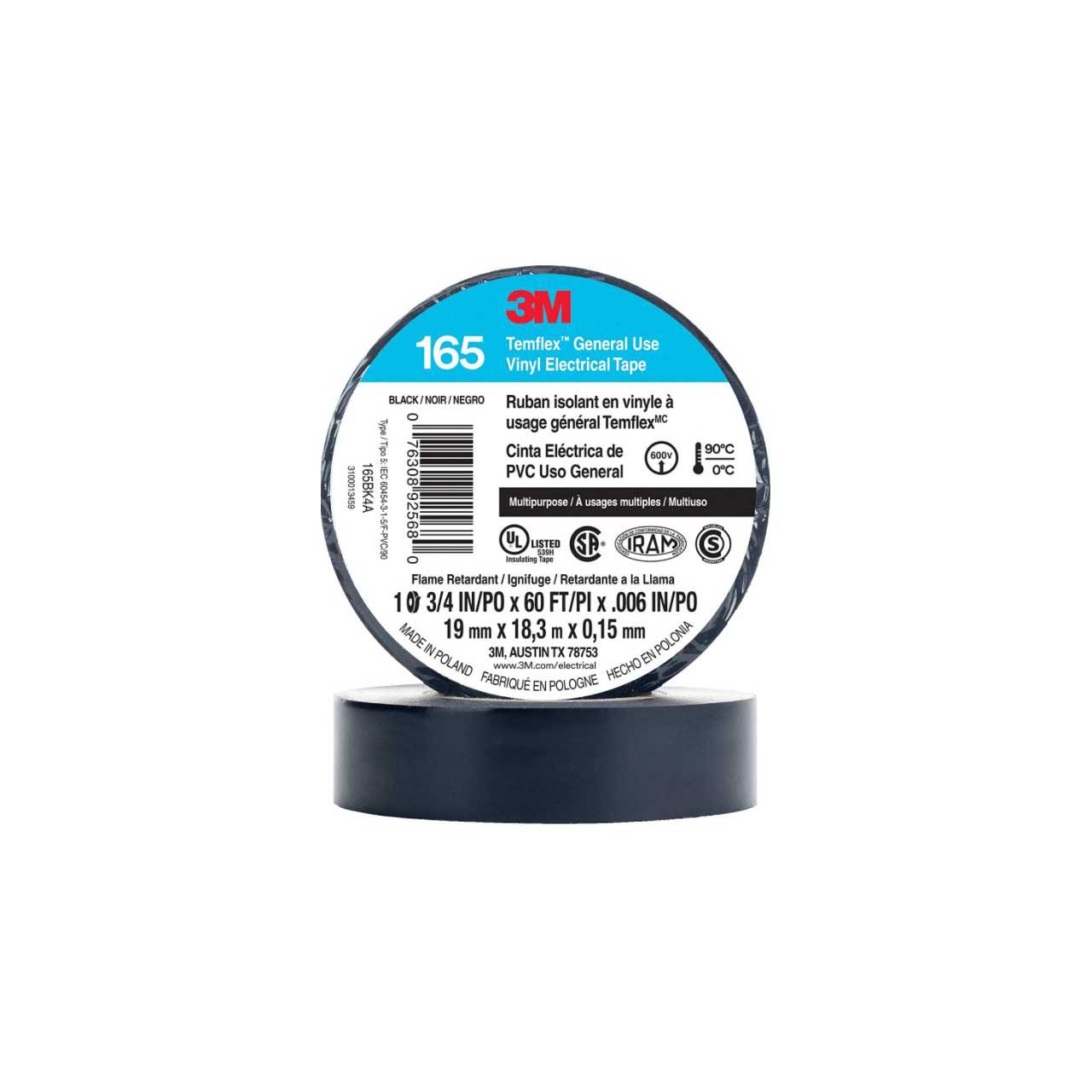

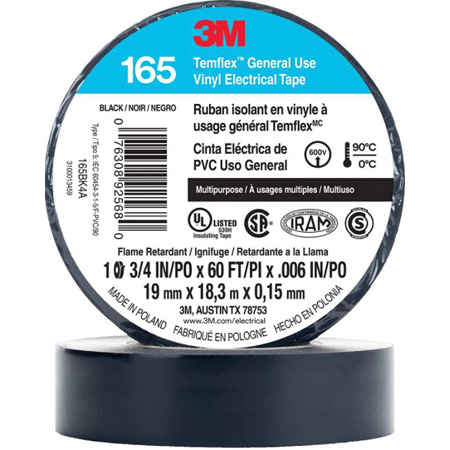

3M Temflex 165 3/4 Inch x 60 Feet Electrical Tape - Black

3M-165-60 BK - Overview

• Features:

  • Resists abrasion, moisture, alkalis, solvents and acids
  • Flame-retardant and inhibits the corrosion of electrical conductors
  • Made of durable PVC
  • Compatible with rubber and synthetic splicing compounds
  • Withstands a temperature range of 32 to 194 °F (0 to 90 °C)
  • UL Listed, CSA and VDE Certified


• Specifications:

  • Adhesion to Steel: 18 oz/in
  • Adhesive Type: Rubber
  • Application: Insulation
  • Backing Material: Polyvinyl Chloride
  • Brand: Temflex
  • Chemical Resistant: Yes
  • Dielectric Strength (V/mil): 1000
  • Elongation at Break: 200
  • Flame Retardant: Yes
  • Maximum Operating Temperature (Celsius): 90 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 194 Degree Fahrenheit
  • Minimum Operating Temperature (Fahrenheit): 32 Degree Fahrenheit
  • Overall Length (Imperial): 60 ft
  • Overall Length (Metric): 18.3 m
  • Overall Width (Imperial): 0.75 in
  • Overall Width (Metric): 19 mm
  • Product Color: Black
  • Product Type: Vinyl Electrical Tapes
  • Shelf Life in Months (From Date of Manufacture): 60
  • Suitable for High Voltage: No
  • Tape Grade: General Use
  • Tape Length (Metric): 18.3 m
  • Tape Width (Metric): 19 mm
  • Voltage Rating: 600 V


• Item Includes:

  • 1x 3M Temflex 165 3/4 Inch x 60 Feet Electrical Tape - Black
