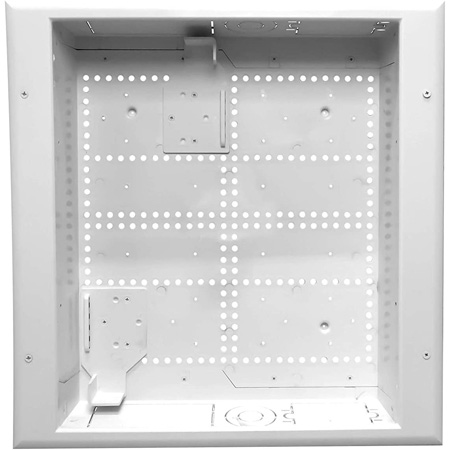

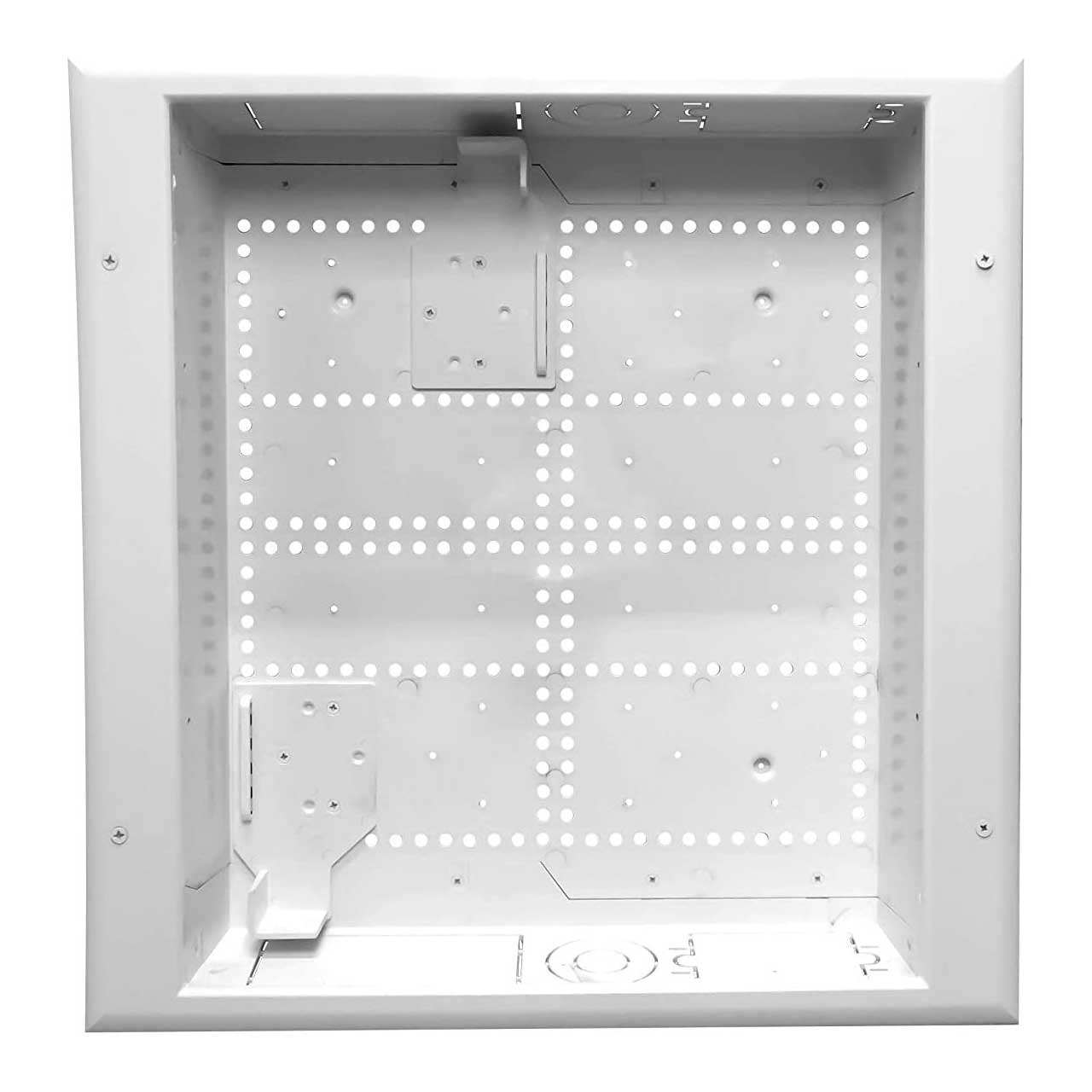

DataComm Electronics' 45-8017-1C Connected Media Box allows you to hide large power sources like the Samsung One Connect Box behind your TV. With the ability to add power solutions to this box you you can give your TV the wireless look you want.
Use trim ring when installing with a tilted, articulating, or full-motion TV mount. Use without trim ring when installing the TV directly on the wall with a fixed TV mount.
Flat Blade and Phillips Head Screwdriver
Drill is optional
Four (4) Metal Wood Screws
The Connected Media Box will fill an entire stud bay horizontally. Make sure the box will fit either below the TV mount or to the side and still be able to be covered by the TV. The outside dimensions of the trim ring are 17.50" W x 18" H.

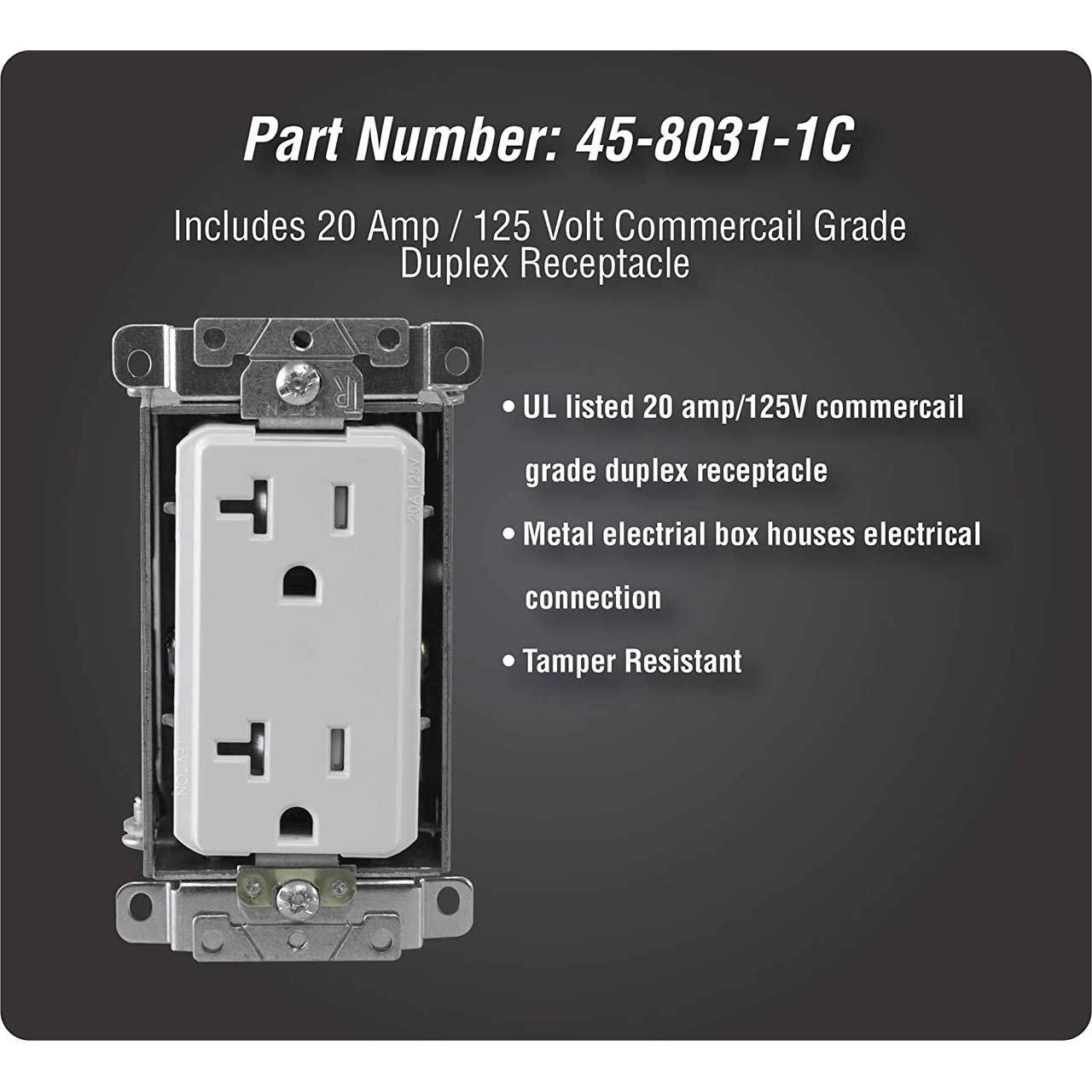

Locate the panel in close proximity to a 110VAC for power requirements of amplifier or security panels. There is an outlet knockout i the bottom of the panel for the installation of an UL and/or ETL approved outlet or J-Box.
Have a licensed electrician install the outlet to meet current code requirements.
There is no fire rating on this panel, therefore, it should not be installed in fire rated walls.
The Connected Media Box is a distribution panel for low voltage wiring systems. It is not designed to be used as an AC power distribution panel. Use only Class 2 powered or passive devices.
