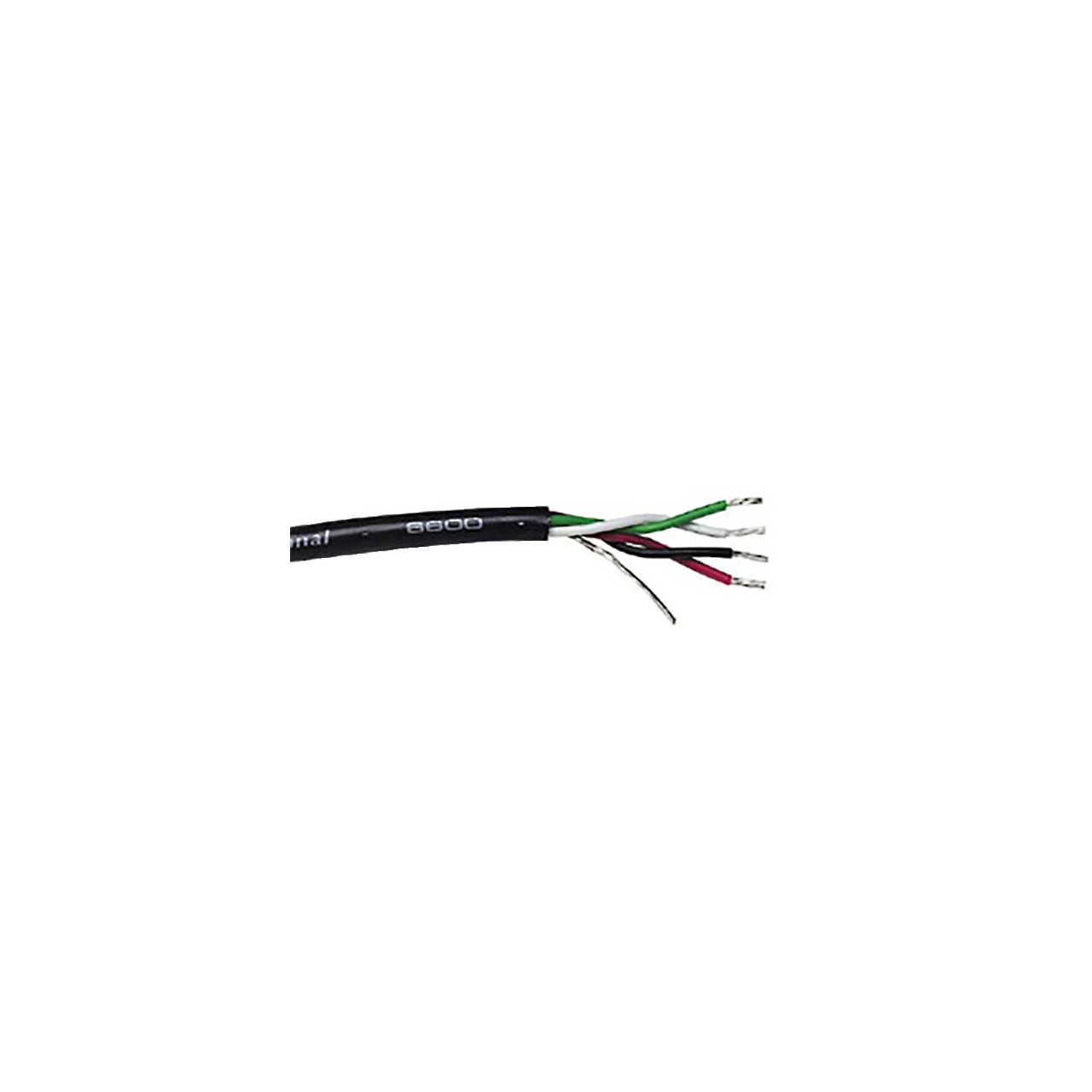

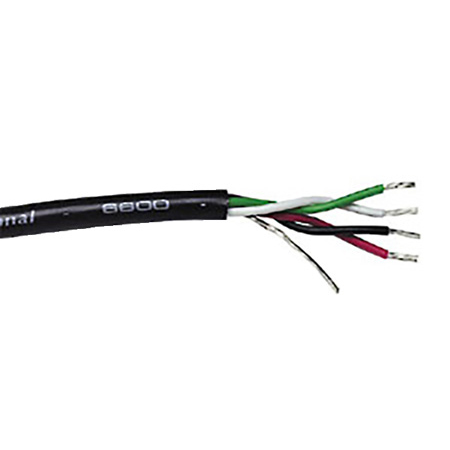

Gepco 6600 22 AWG 2 Pair Stranded TC Audio/Control Cable 1000 Ft Black

ITEM #: 6600-1000 MFG #: 6600-1000

free ship

List Price:

$298.00

Our Price:

$196.35

Availability: In Stock
iAvailability Description Popup


    6600-1000 - Overview

    Two shielded twisted-pairs under a single round jacket for audio or control applications. Easy to terminate, the 6600 series features a reduced overall cable diameter. Each pair is individually shielded, but electrically in common, and shares a single tinned-copper drain wire. Insulation is a high-grade polyethylene that provides both improved electrical and temperature characteristics compared to PVC. Ideal for general purpose data or machine control applications.

    • Features:

      • Standard Capacitance
      • Polyethylene or Halar Dielectric
      • Small Overall Diameter
      • Individual Pair Shields
      • Common Drain Wire
      • CM Rated

    • Specifications:

      • Conductors: 22 AWG (7x30) Stranded TC
      • Drain Wire: 24 AWG (7x32) Stranded TC (common for both pairs)
      • Pairs: 2
      • Nominal O.D.: 0.173"
      • Insulation (type, wall thick)/ Color Code: PE, .008"/ Red & Black; White & Green
      • Shield: 100% Foil (per pair)
      • Capacitance: 29 pF/ft between conductors, 53pF/ft between one conductor and other tied to shield
      • Cond. DCR: 15.3 Ohm/Mft
      • Drain DCR: 23.8 Ohm / Mft
      • Jacke: PVC, Black
      • UL Type: CM
      • Weight: 21 Lbs. / M ft.

    • GTIN:

      0612825393580
