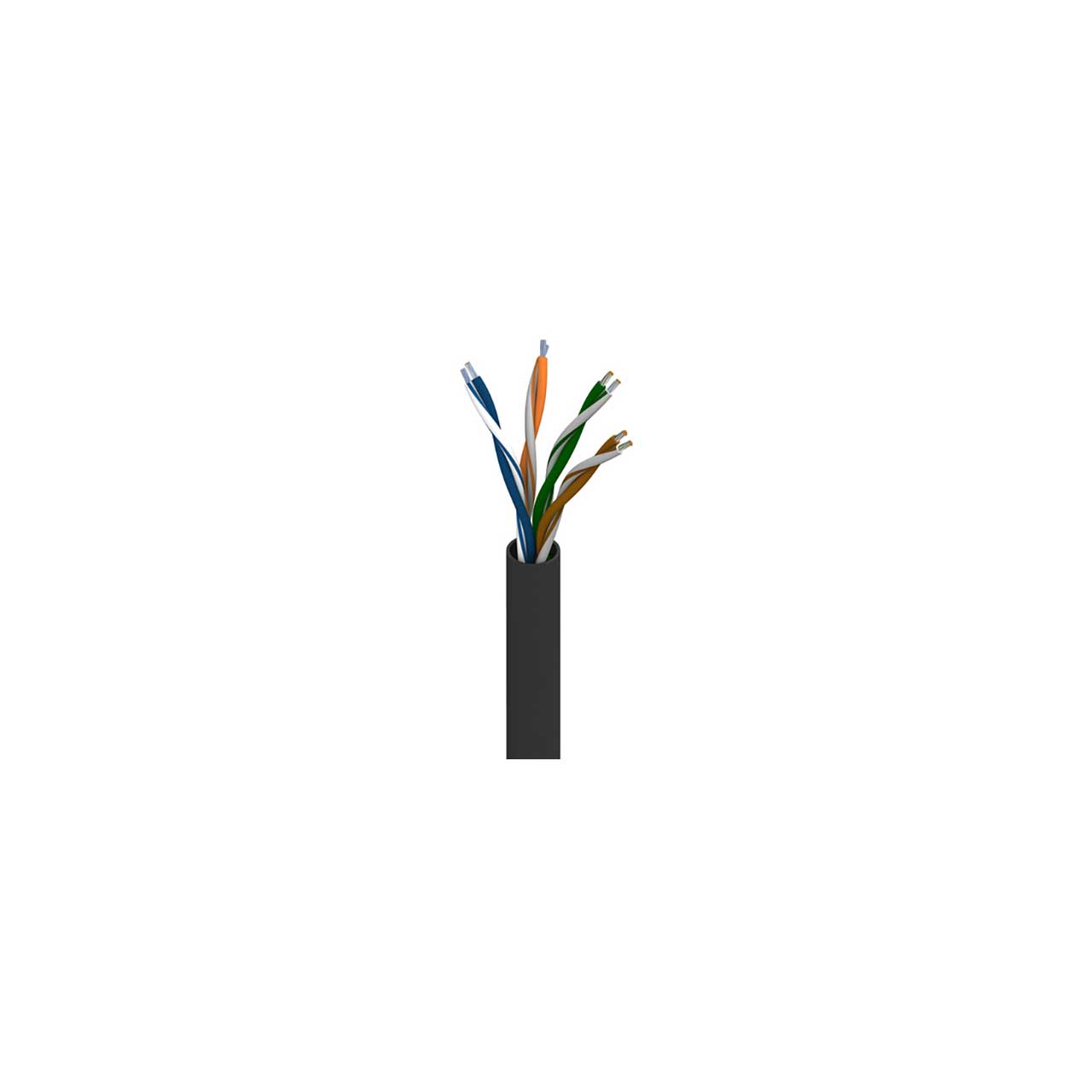

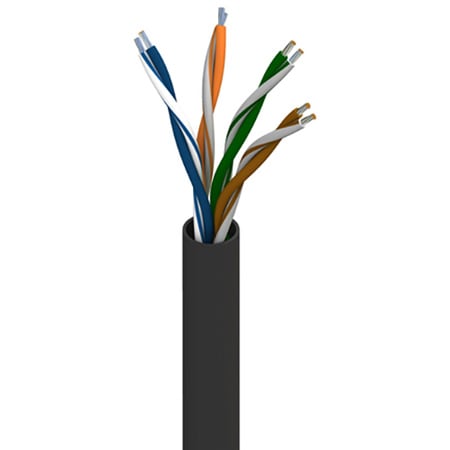

Belden 7924A CMR/CMX-Outdoor DataTuff Industrial Ethernet Cat5e Cable 4 Bonded Pr BC 24AWG UV/Oil Res - Black - Per Foot

ITEM #: 7924A-FT MFG #: 7924A 0101000

Belden
Free Shipping with Minimum Order Banner

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1.87

Our Price:

$1.84

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    7924A 0101000 - Overview

    Belden 7924A is a CMR/CMX-Outdoor rated DataTuff® Industrial Ethernet Category 5e cable with 4 Bonded-Pair, 24AWG (7x32) Tinned Copper Conductors and PO Insulation in a PVC Outer Jacket. 7924A is rated for Indoor or Outdoor use and it's Sunlight and Oil Resistant.

    Ensure maximum network performance and stability in legacy IP applications, renovations and price-sensitive environments with Category 5e cables that exceed standards. Belden offers several Category 5e performance levels that provide headroom beyond the TIA-568-C.2 Category 5e standard and are offered with Bonded-Pair technology to make your installation as robust as possible.

    Applications
    Outdoor & Harsh environments
    IIoT (industrial internet of things)
    Factory or process automation
    Robotics
    IP cameras and devices
    Data communication

    • Features:

      • Superior Electrical Performance: Exceeds Category 5e performance
      • Performance Headroom: RevConnect delivers data rates up to 1.2 Gb/s for a system with usable bandwidth of 160 MHz
      • Stable Electricals: Cables design features matched conductors on all four pairs providing for extremely stable electrical performance


    • Specifications:

      • Conductor AWG: 24
      • Conductor Stranding: 7x32
      • Conductor Material: TC - Tinned Copper
      • Conductor Number of Pairs: 4
      • Insulation Material: PO - Polyolefin
      • Insulation Color Code: White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown
      • Bonded-Pair: Yes
      • Outer Jacket Material: PVC - Polyvinyl Chloride
      • Outer Jacket Nom. Diameter: 0.242 in (6.15 mm)
      • Outer Jacket Ripcord: No
      • Overall Cable Diameter (Nominal): 0.242 in (6.15 mm)
      • UL Voltage Rating: 300 V (CMR), 300 V (CMX-Outdoor)
      • Max. Conductor DCR: 9 Ohm/1000ft / 90 Ohm/km
      • Max. DCR Unbalance: 3.0%
      • Max. Capacitance Unbalance: 49.2
      • Nom. Mutual Capacitance: 15 pF/ft
      • Max. Delay Skew: 25 ns/100m
      • Nominal Velocity of Propagation (VP) [%]: 70%
      • Max. Pull Tension: 40 lbs
      • Bulk Cable Weight: 26 lbs/1000ft
      • Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Oil Resistance
      • Flammability / Fire Resistance: UL1666 Riser, FT4, FT4, IEC 60332-1-2
      • NEC / UL Compliance: Article 800, CMR;CMX-Outdoor
      • CEC / C(UL) Compliance: CMX-Outdoor


    • Item Includes:

      • 7924A CMR/CMX-Outdoor DataTuff Cat5e Cable 24AWG- Black - Per Foot


    • Warranty:

      • 10 Year Limited Warranty


    • GTIN:

      0612825191414
