Belden 9536 6 Conductor Computer Cable for EIA RS-232 Applications - Per Foot

ITEM #: 9536 MFG #: 9536 060500 PER FOOT

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Belden
Free Shipping with $49 Minimum Order
Availability: Sold Out
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    9536 060500 PER FOOT - Overview

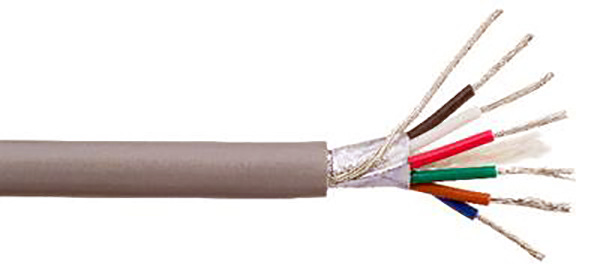

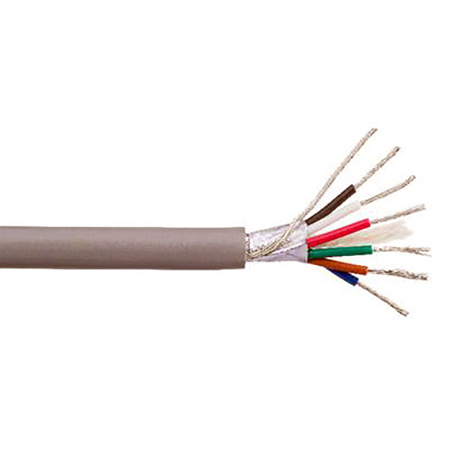

    Belden 9536 Computer EIA RS-232 Cable, 24 AWG stranded (7x32) tinned copper conductors, semi-rigid PVC insulation, overall Beldfoil shield (100% coverage), 24 AWG stranded tinned copper drain wire, PVC jacket. Suitable for RS-232 Applications; Computer Communications; Low Voltage Analog Signals (4-20mA, 0-10V,); Low Voltage Digital Control (24V,); Line Level Audio; Panel Wiring applications.

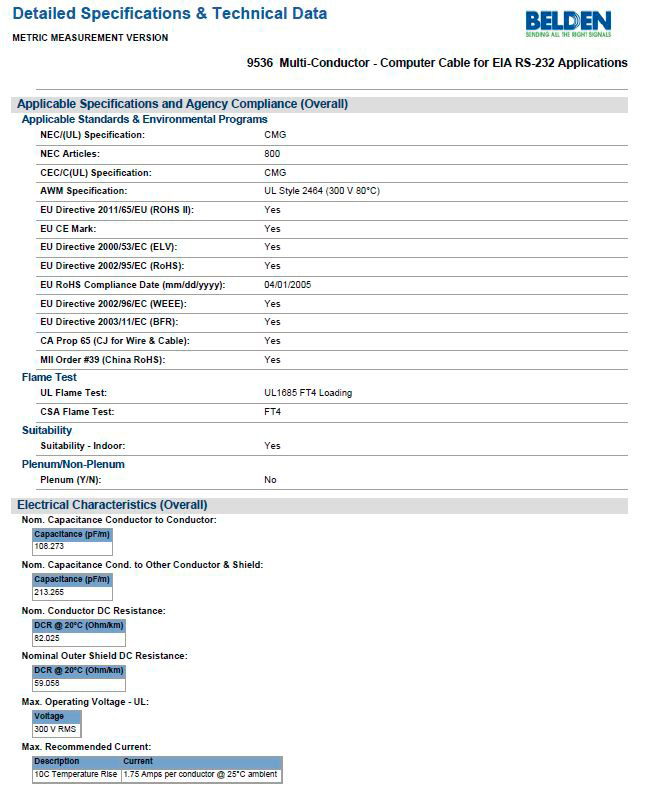

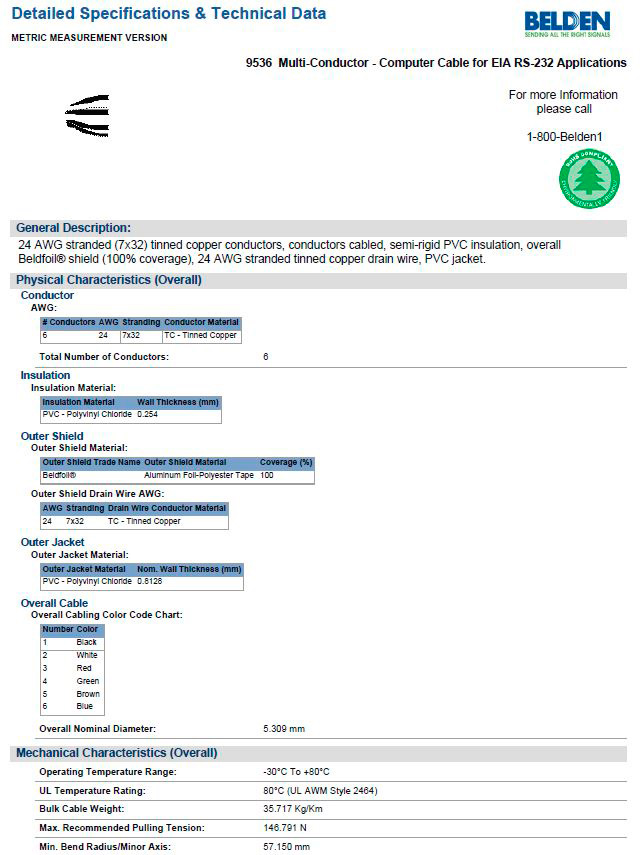

    • Specifications:

      • Conductors: 6
      • AWG: 24
      • Strand: 7x32
      • Conductor: TC - Tinned Copper
      • Insulation: PVC
      • Outer Shield: Beldfoil Aluminum Foil-Polyester Tape
      • Shield Coverage: 100%
      • Outer Shield Drain Wire AWG:: 24 (7x32 Tinned Copper)
      • Outer Jacket Material: PVC
      • Overall Nominal Diameter: 0.209 in.
      • UL Voltage Rating: 300 V (CMG), 300 V (UL AWM 2464)
      • Max. Pull Tension: 39 lbs
      • Bulk Cable Weight: 24 lbs/1000ft
      • Environmental Suitability: Indoor
      • Sustainability: CA Prop 65
      • Flammability / Fire Resistance: UL1685 FT4 Loading, FT4, IEC 60332-1-2
      • NEC / UL Compliance: Article 800, CMG


    • GTIN:

      0612825255208
