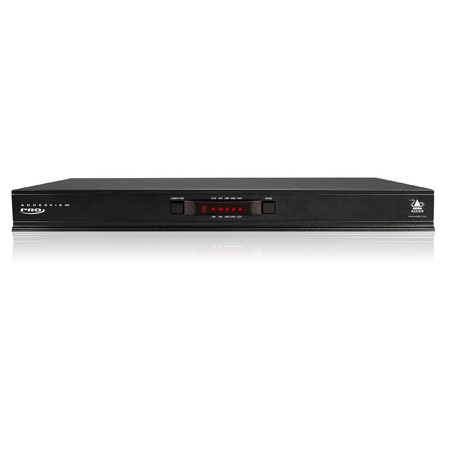

ADDERView AV8PRO-DVI-US AV8 PRO DVI - 8-port KVMA Switch - Dual Link - DVI-I & USB2.0


  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

List Price:


Our Price:


Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup

    AV8PRO-DVI-US - Overview

    Ultimate flexibility for sharing high-res screens and USB peripherals

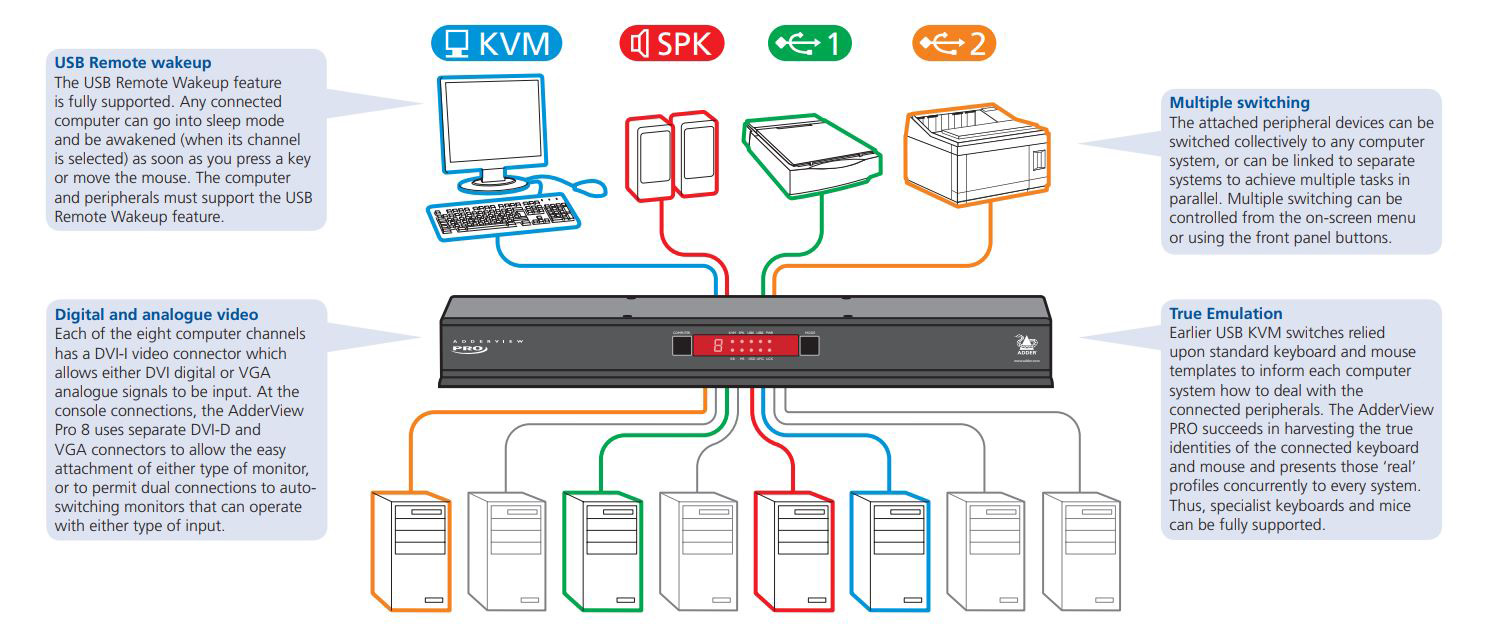

    The AV8PRO-DVI is designed to enable eight computers to be controlled from a single high resolution KVM console using either dual link DVI or high definition analog video links. The switch makes use of Adder's True Emulation technology which enables USB HID devices to be continuously emulated to each computer. This unique technology enables instantaneous and reliable hotkey switching whilst also supporting the extra keys and features of enhanced keyboards and mice. The AdderView also includes two independently switchable USB 2.0 channels and an audio channel, giving the user the flexibility to attach selected peripherals to different computers. An advanced OSD completes the professional switching experience.

    • Features:

      • High resolution video: the dual link DVI capabilities enable users to work at very high resolutions including 2K (2048 x 1080) and WQXGQ (2560 x1600)
      • Extended DDC EDID profile: ensures that the graphics card is always optimized to work with your screen
      • USB True Emulation: USB 2.0 enables connection to any USB human interface device from mice and keyboards through to graphics tablets, jog shuttles, joysticks and 3D explorers
      • Independent USB device selection: switching options enable the operator to use the keyboard and mouse on one computer whilst the USB peripherals are connected to other ones
      • Channel selection options: switch using selectable keyboard hotkeys, three button mice or the front panel controls, or add a RC4 remote
      • Broad USB 2.0 HID Support: a range of USB devices can be connected, including printers, scanners, and non-standard human interface devices
      • Options port for control, synchronisation and upgrade: port allows remote switching using simple ASCII codes; units to be switched in synchrony to create a multi video head switching system; and firmware upgrades, all through the same port
    • Specifications:

      • Video Resolutions
      • The dual link DVI capabilities enable users to work at very high resolutions including 2K (2048 x 1080) for film post production, or WQXGQ (2560 x 1600) for detailed medical imaging

      • Audio
      • 3.5mm stereo jack

      • Approvals / Compliance
      • CE
      • FCC
      • UKCA

      • Standards
      • USB 2.0 type B, Low, Full and High Speed

      • Cable Requirements
      • All standard cables

      • Environmental
      • 0 to 40 deg C / 32 to 104 deg F

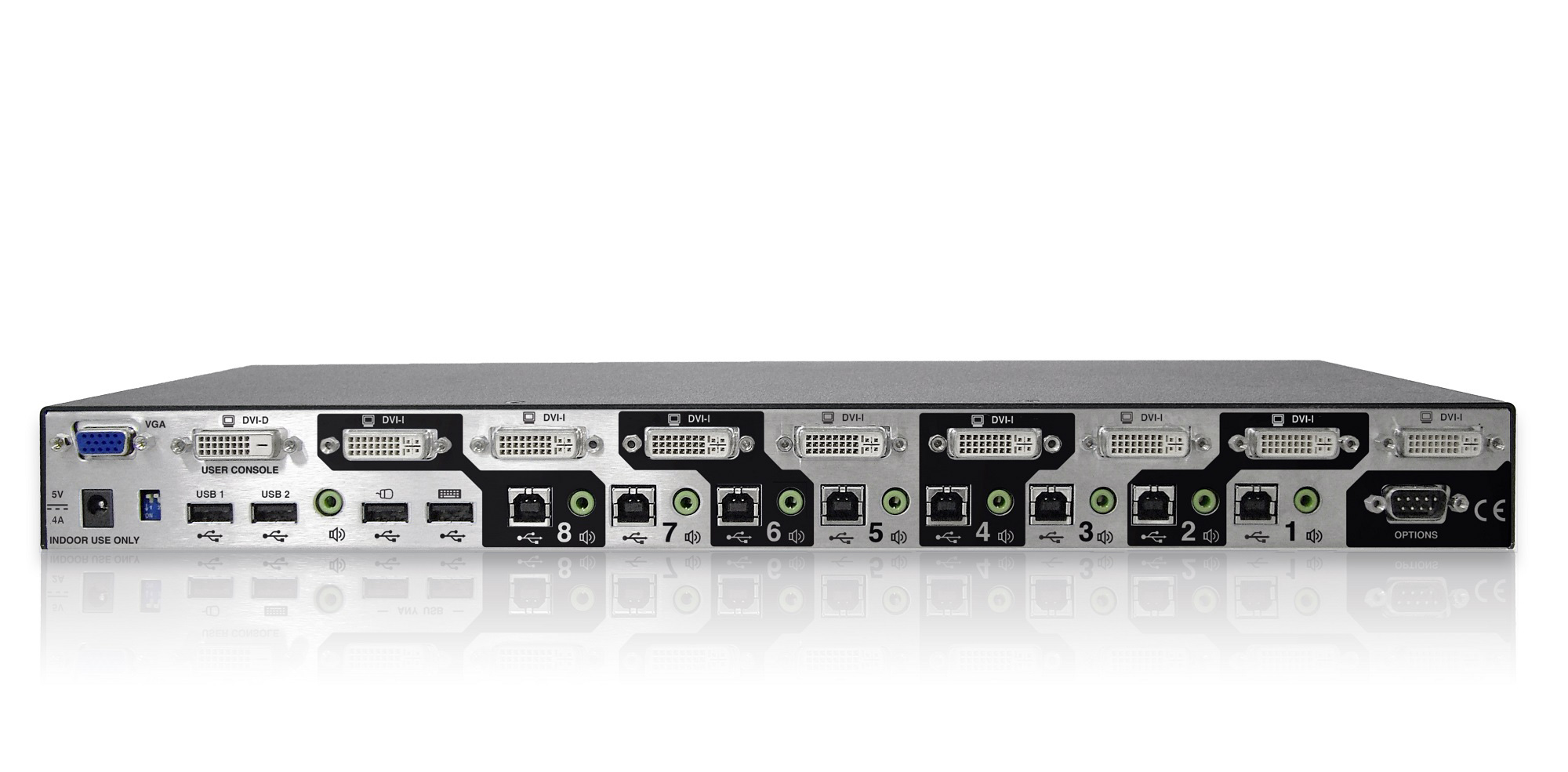

      • Connectors - User
      • Video: HDD15, Dual-link DVI-D
      • Keyboard/Mouse: 2 x USB type A
      • Switched USB: 2 x USB 2.0 type A
      • Audio: 3.5mm stereo jack

      • Connectors - Computer
      • USB 2.0 type B, Dual-link DVI-I, 3.5mm stereo jack

      • Mechanical
      • 1U high metal case 482mm/19" (w), 215mm/8.5" (d), 45mm/1.8" (h)

      • Power
      • 2.5mm DC jack, power adapter included; 100-240VAC 50/60Hz input to power adapter, 5VDC 4A output from power adapter

      • Software
      • Operates with all known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, all Sun OS, all Mac OS, NetWare etc
    • Item Includes:

      • 1x AV8PRO unit
      • 1x US Power supply
    • Warranty:

      • 2 Year Limited
