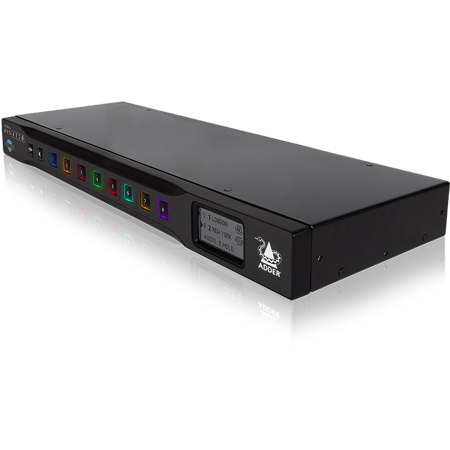

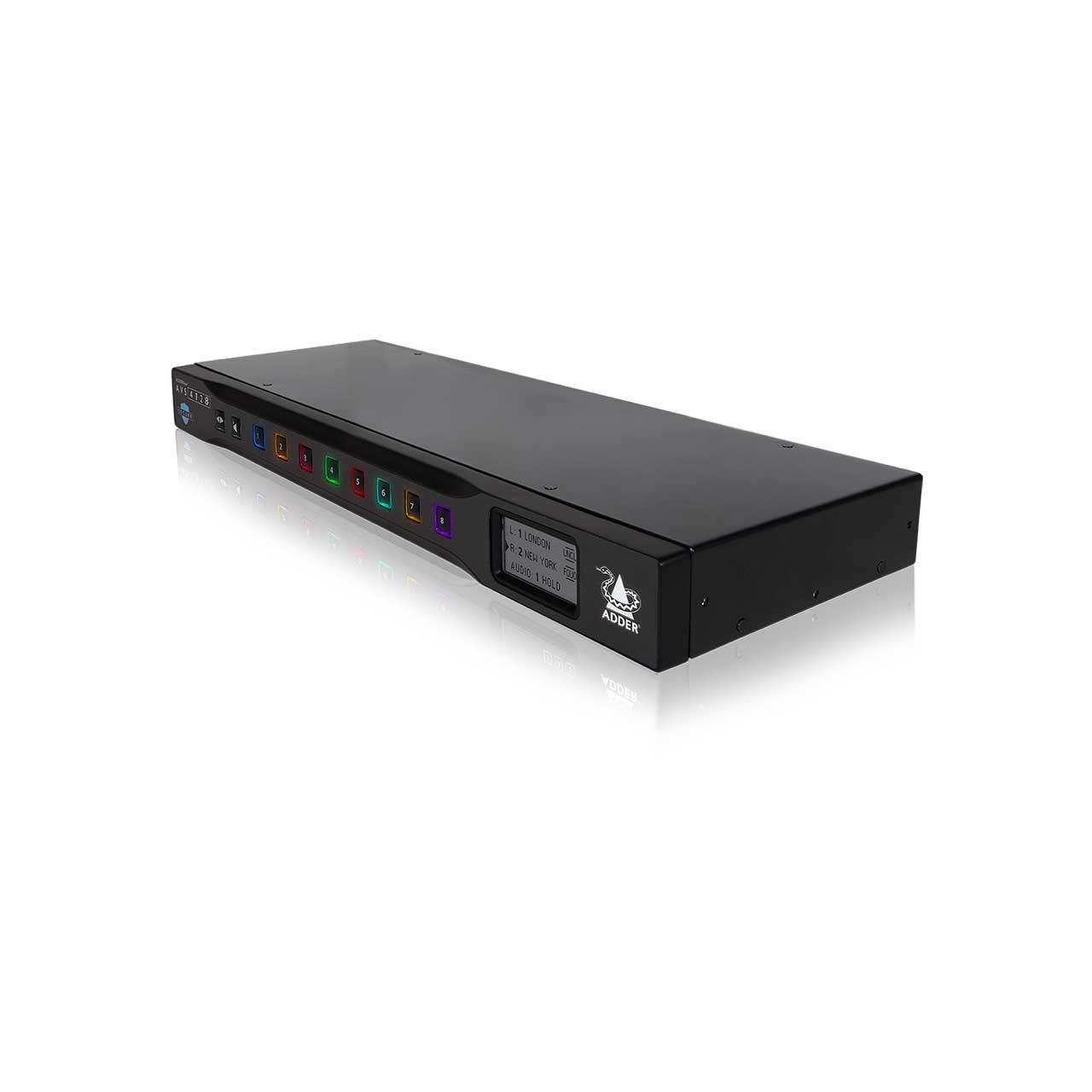

ADDERView AVS-4128 4K Desktop KVM Switch with Dual Head & 8x DP/HDMI

AVS-4128 - Overview

• Features:

  • Uni-directional keyboard and mouse data paths: Uni-directional optical diodes ensure data paths travel in only one direction, thus preventing data leakage through shared peripherals. A uni-directional structure also protects against timing analysis or forced malfunction attacks and prevents computers influencing the operation of any common circuitry.
  • Keyboard locks status: Indicate status of keyboard locks (CAPS-LOCK, NUM-LOCK, SCROLL-LOCK) that are blocked by uni-directional data paths.
  • No shared RAM between channels: The keyboard and mouse processor is powered down and reset at each switchover to thwart shared RAM leakages. All data buffers are actively cleared once they have been used.
  • Automatic switching (configuration option): Free-flow KVM and audio control between ports without the need to press any buttons. Simply move the mouse between windows.
  • Flexible connections: The user can switch between a combination of single and dual head computers. Two single head computers can be controlled concurrently.
  • Hardware anti-tampering: Holographic anti-tampering labels protect the product's enclosure, providing a clear visual indication if it has been opened or compromised.
  • Video Performance: Up to UHD 4K video resolution at 60 fps for graphics intensive applications requiring very high quality.
  • Non-reprogrammable firmware: There is no access to the product's firmware or memory through any port. Firmware is permanently stored in non-reprogrammable Read Only Memory (ROM) to prevent modification. Firmware integrity is verified through a self-test procedure during power up. Detection of a critical failure disables the device and provides a clear visual indication to the user.
  • Restricted USB function: The USB ports will only accept HID (Human Interface Devices), such as keyboards and mice. Other devices, such as USB storage drives, are actively prohibited.
  • Channel identification: Reduce the chances of operator error by displaying a name for each channel and its security classification on the E-paper display. The color of the channel LED may also be configured to reflect the security classification.


• Specifications:

  • Approvals / Compliance
  • CE, FCC class A, TUV US & Canada
  • NIAP PP 4.0 Certified for Peripheral Sharing Devices (PSD)

    Video Resolutions
  • The system supports UHD 4K resolution to a maximum of 3840 x 2160 @ 60 Hz.

    Software Compatibility
  • Windows, Linux, Mac host computer OS's USB HID, including touchscreens compliant with Microsoft Digitizer.

    Console Connections
  • 2x Dual port for DP/HDMI, USB type A, Audio 3.5mm
  • RJ12 for remote control

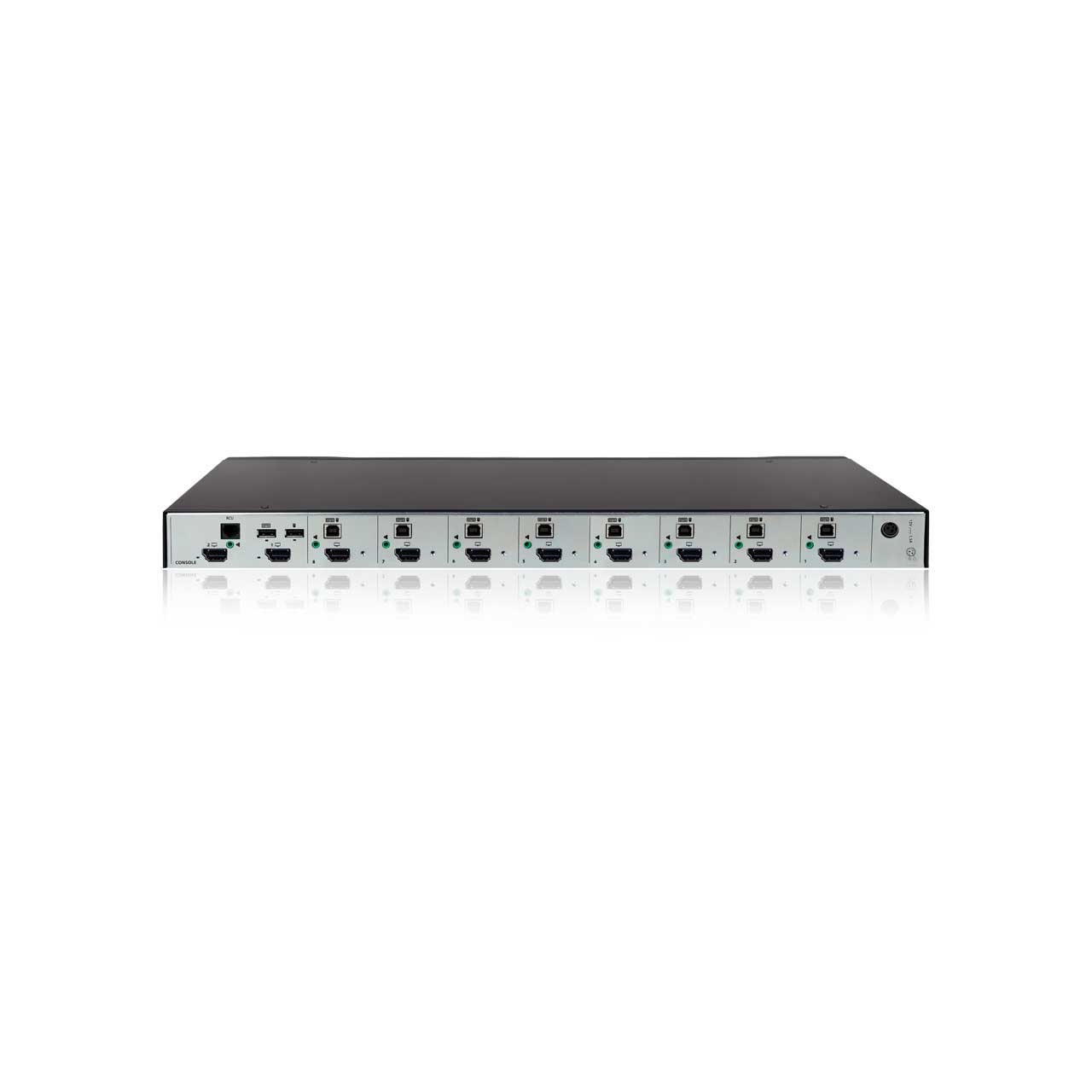

    Computer Connections
  • 8x dual ports for DP/HDMI, USB type B, Audio 3.5mm

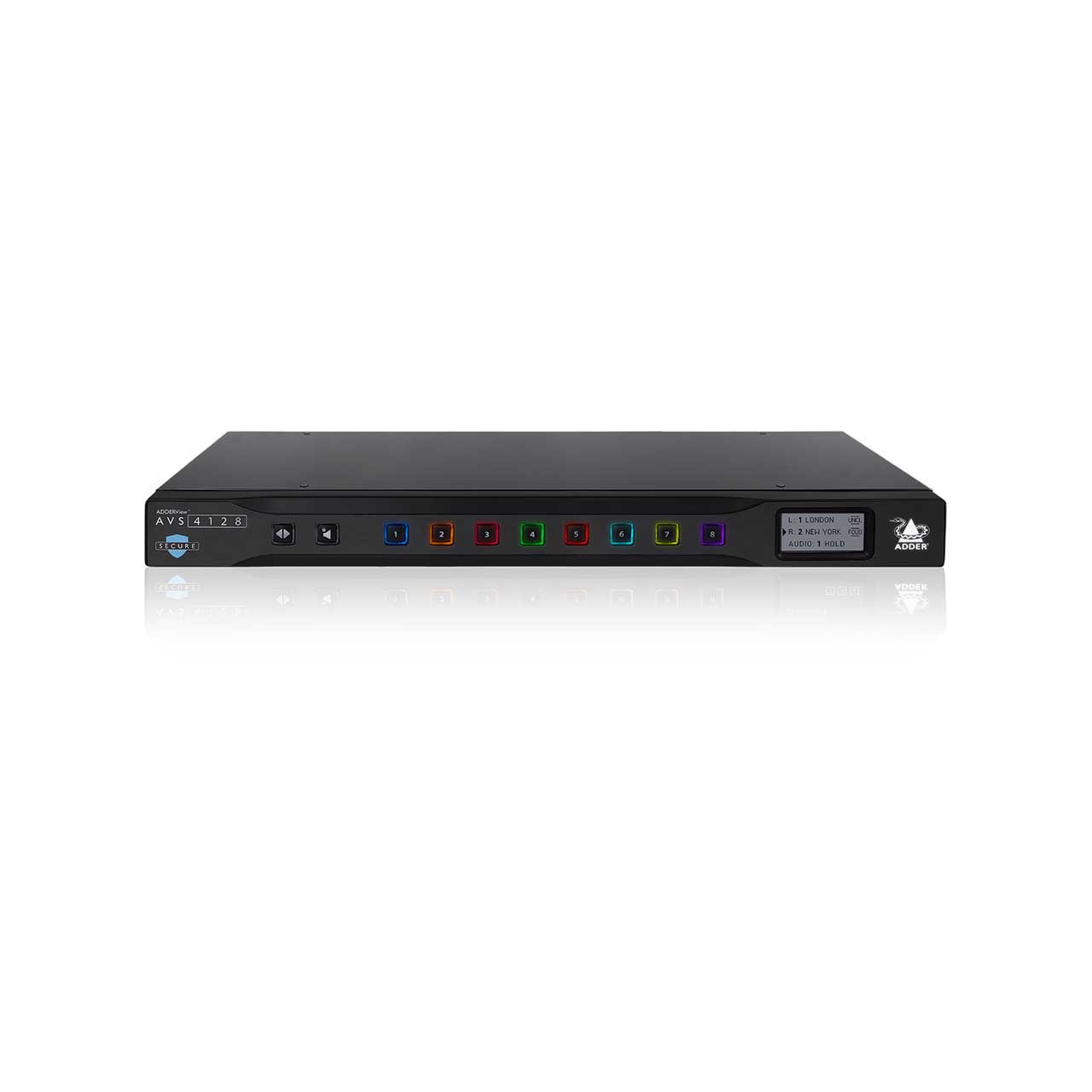

    Front Panel
  • Monitor selection button
  • Audio hold button and status LED
  • 8x Channel selection button and status LED
  • 212x104 E-Paper Display

    Physical Design
  • Robust metal construction
  • Dimensions (WxHxD): 18.9 x 1.85 x 5.98" (480 x 47 x 152mm)
  • Weight: 5.73Lbs (2.6kg)

    Power Supply
  • 100 - 240V AC, 47/63Hz
  • 12V DC 30W output from power supply unit

    Environmental
  • Operating temp: 32° to 104°F (0° to 40°C)
  • Storage temp: -4° to 140°F (-20° to 60°C)
  • Humidity: 0 to 80% RH, non-condensing


• Item Includes:

  • 1x AVS-4128 8-Port Switch
  • 1x Power Supply with country specific mains cable
  • 1x Quick start guide
