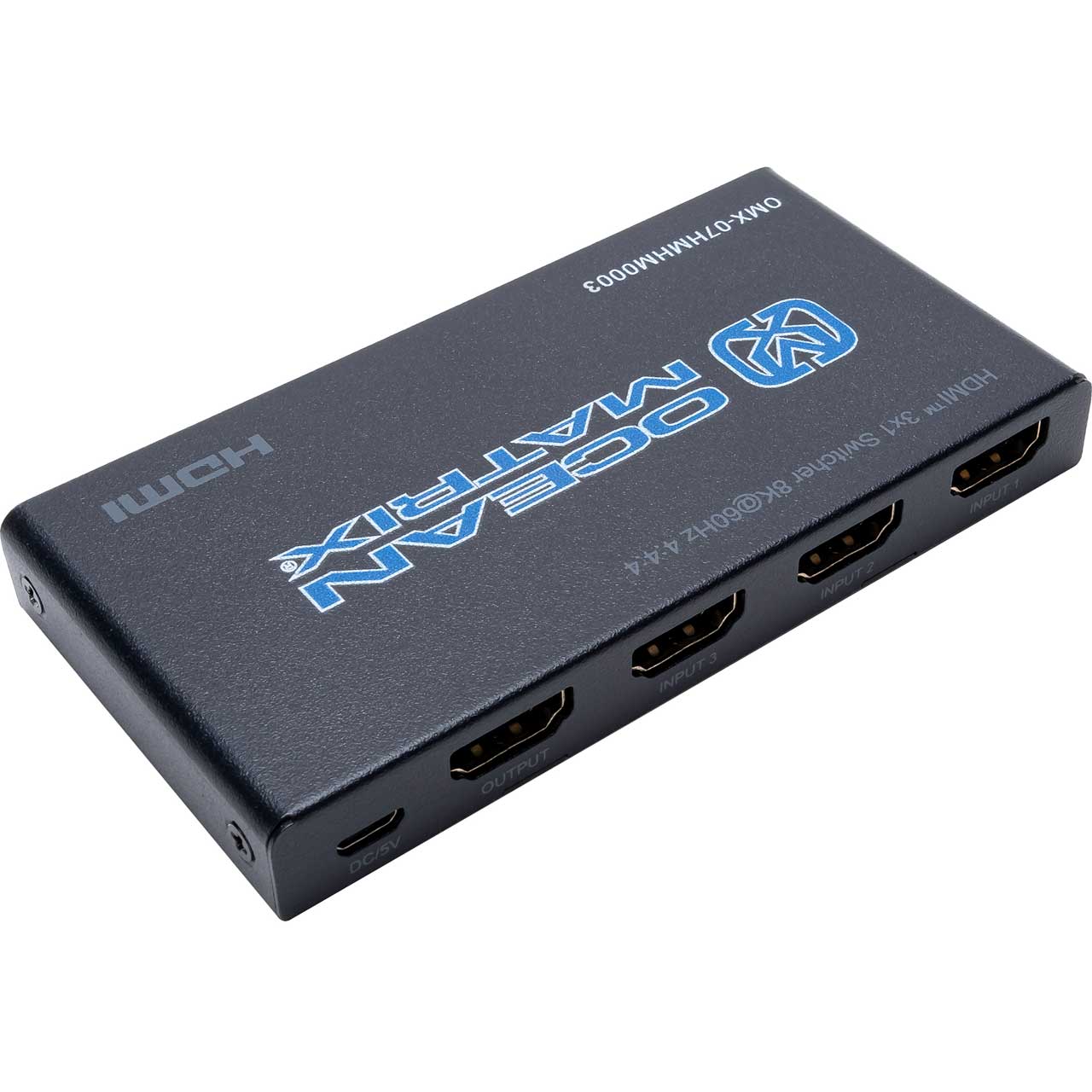

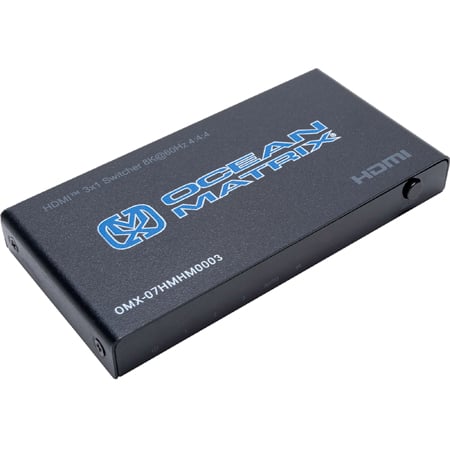

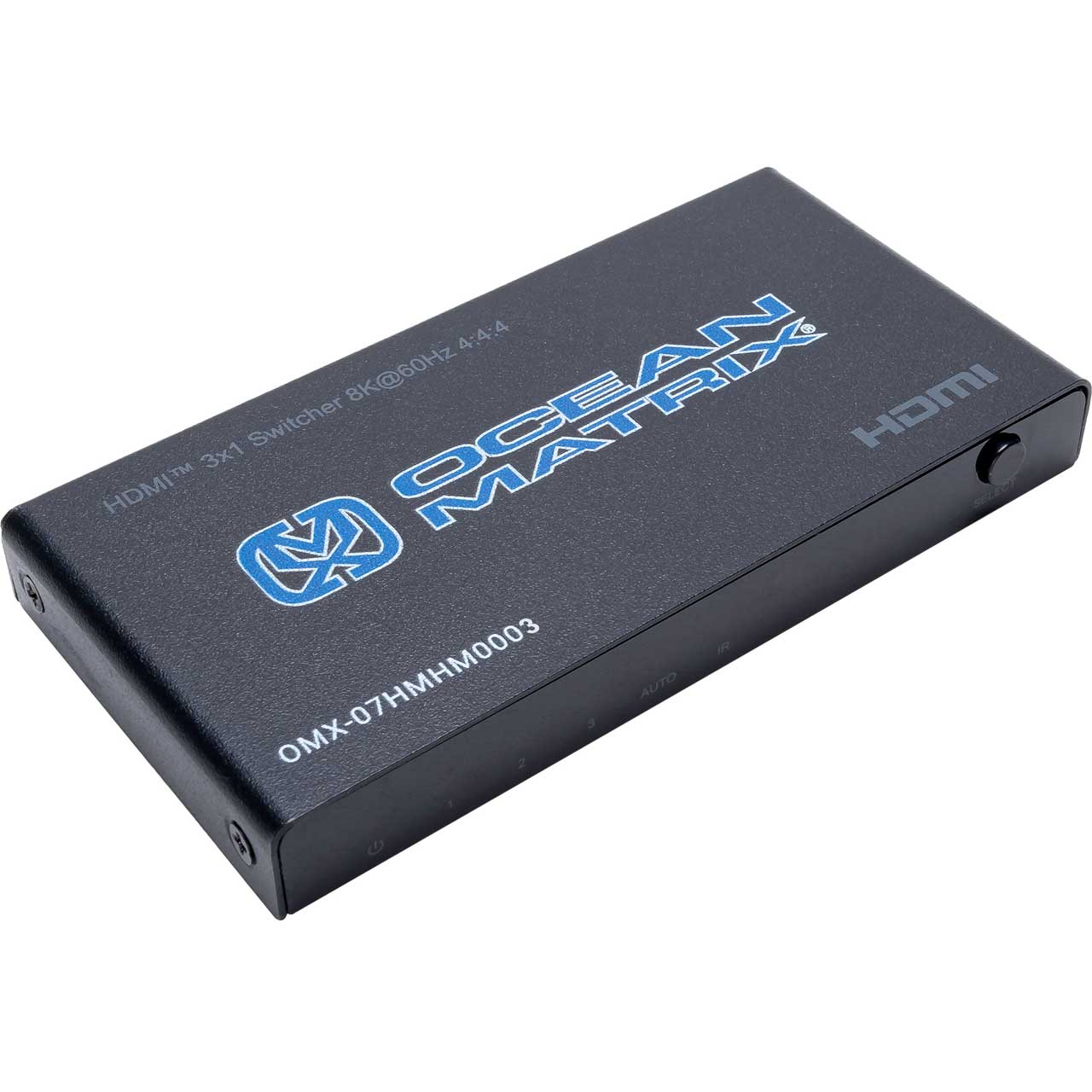

Ocean Matrix OMX-07HMHM0003 HDMI 3x1 Switcher 8K 60Hz 4:4:4 HDR HDCP2.3

ITEM #: OMX-07HMHM0003 MFG #: OMX-07HMHM0003

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Ocean Matrix
Free Shipping with $49 Minimum Order

List Price:

$81.95

Our Price:

$74.95

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    OMX-07HMHM0003 - Overview

    A low cost switching solution, the Ocean Matrix 07HMHM0003 permits selection between 3 HDMI sources for routing to a single display, projection system, digital signage system or HDMI extender. The unit supports resolutions up to 8K@60Hz 4:4:4 and is backward compatible for sources at 4K@120Hz and 1080p@240Hz.

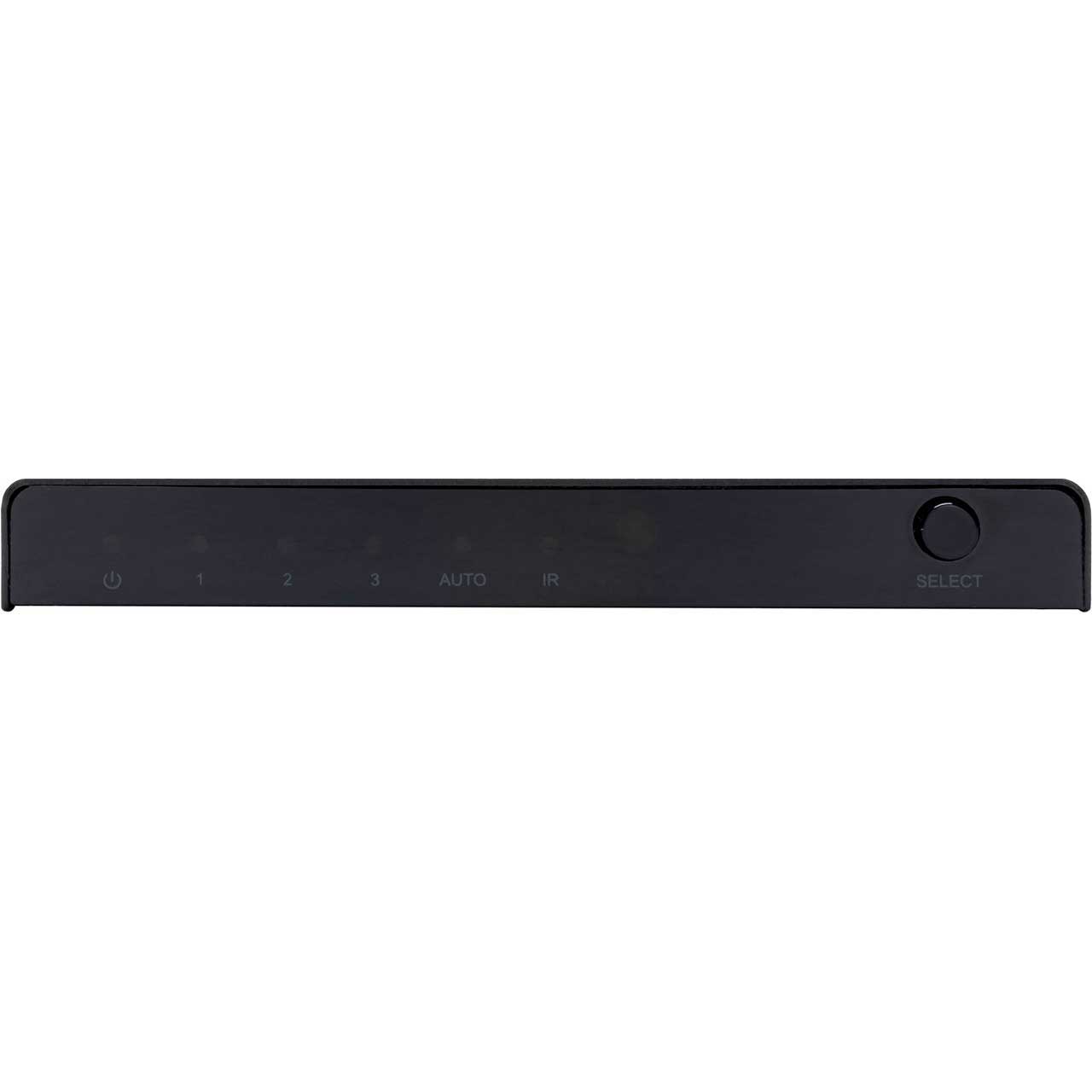

    HDMI source selection can be controlled in three ways - IR Remote, front panel and auto input sensing - offering greater flexibility in controlling the action. The Ocean Matrix 07HMHM0003 supports HDR as well as 1200MHz/12Gbps per Channel Bandwidth (48Gbps All Channels). It is HDMI 1.4 and HDCP 2.3 & 2.2 compliant. The unit is powered by 5VDC via USB allowing it to be used in simple field operations.

    • Features:

      • Supports Resolutions up to 8K@60Hz 4:4:4, 4K@120Hz, and 1080p@240Hz
      • 1200MHz/12Gbps per Channel Bandwidth (48Gbps All Channels)
      • Supports 12bit per Channel (36bit All Channels) Deep Color
      • HDCP 2.3, HDCP2.2 and HDCP1.4 Compliant
      • Support High Dynamic Range (HDR) Video Pass-through, such as HDR10/HDR10+/Dolby vision etc.
      • VRR (Variable Refresh Rate), ALLM (Auto Low-latency Mode), and QFT (Quick Frame Transport) Functionality
      • Built-in Equalizer, Retiming, and Driver
      • Automatic, Manual, and Remote Control Switching Supported
      • Supports Uncompressed Audio; LPCM
      • Supports Compressed Audio: DTS, Dolby Digital (DTS-HD Master AudioT and Dolby TrueHD?


    • Specifications:

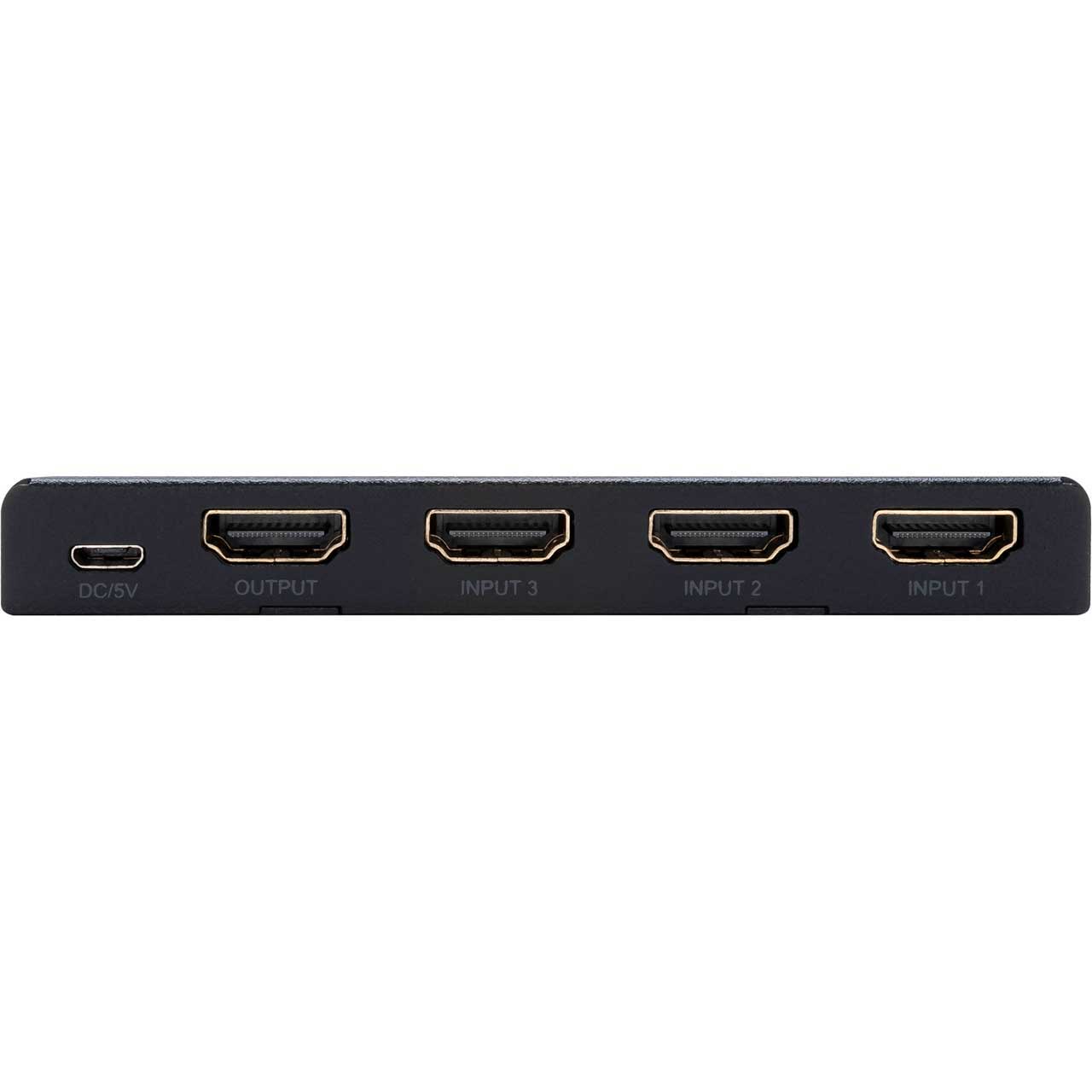

      • Input Ports: HDMI x 3
      • Output Ports: HDMI x 1
      • Vertical Frequency Range: 50/60/100/120/240Hz
      • Video Amplifier Bandwidth: 12Gbps/1200MHz per Channel (48Gbps All Channels)
      • Interlaced (50 & 60Hz): 480i,576i,1080i
      • Progressive (50 & 60Hz): 480p,576p,720p,1080p,4K@24/30Hz,4K@50/60/120Hz, 8K@24/30/50/60Hz
      • Operating Temperature: 32°F - 158°F
      • Storage Humidity: 5% to 90% TH Non-condensation
      • Power Consumption (Max): 5W
      • Switcher Unit & Power Supply Certifications: FCC, CE, RoHS
      • Dimensions (LxWxH): 4.4 x 2.2 x 0.6in (112.3 x 56.6 x 14.5mm)
      • Weight: 0.288lbs (131g)


    • Item Includes:

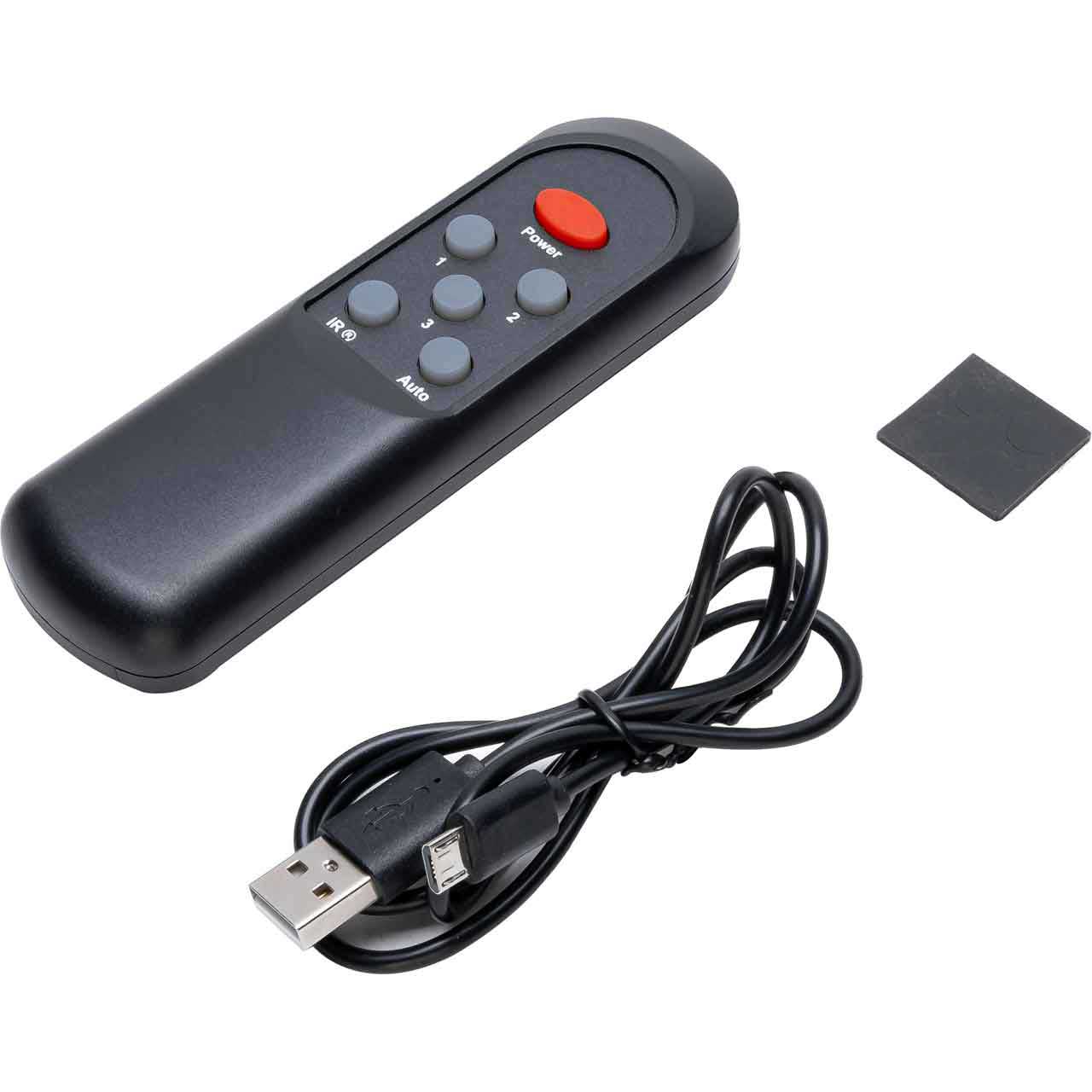

      • 1 x Remote Control
      • 1 x USB Power Cable


    • Warranty:

      • 1 Year
