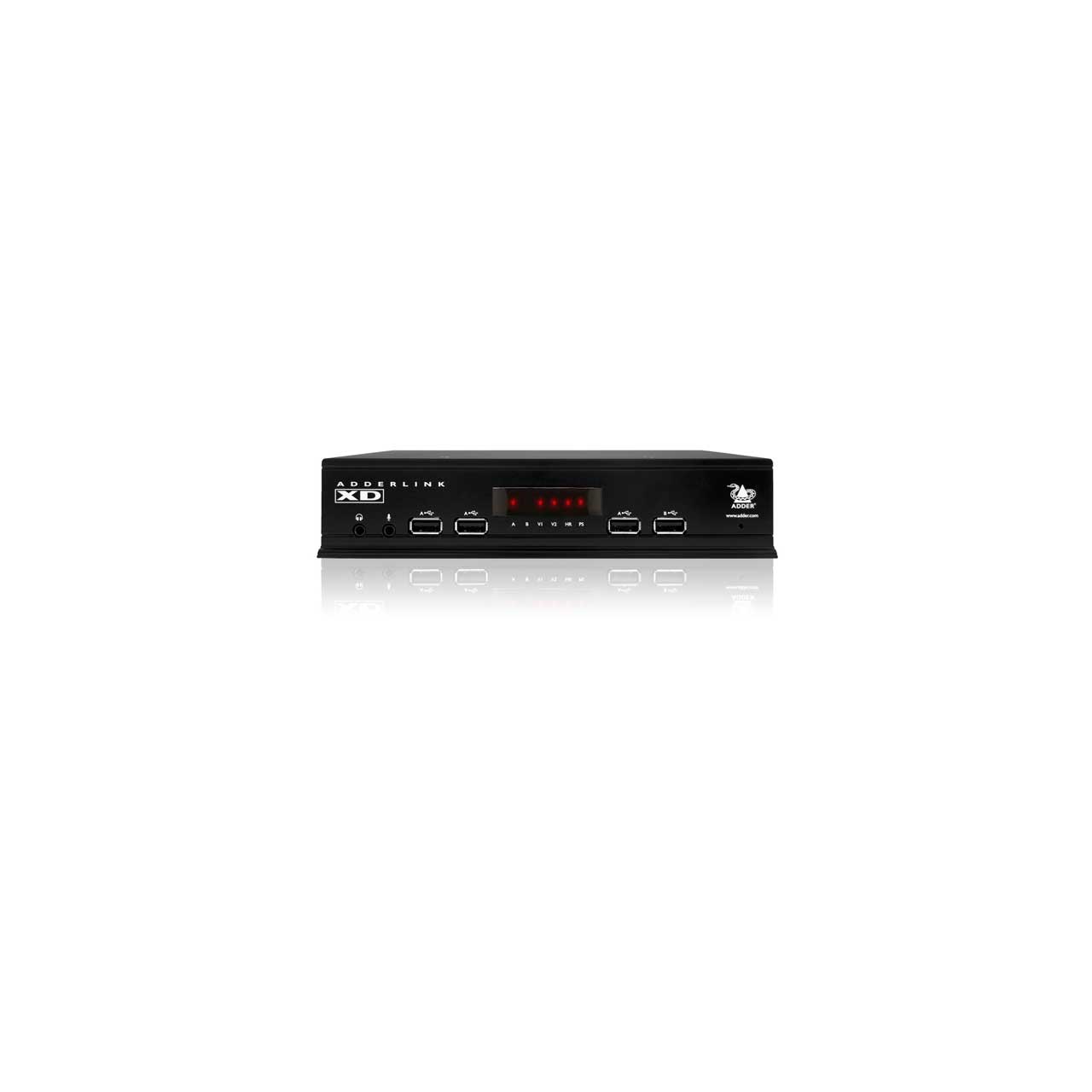

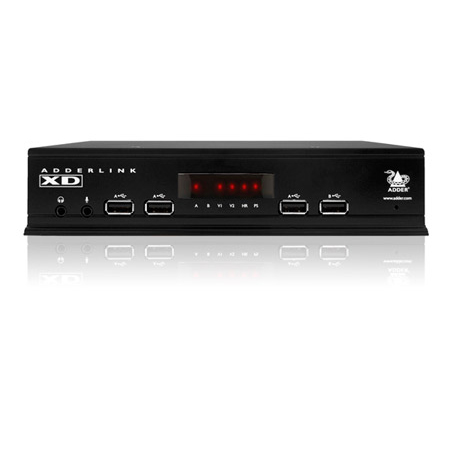

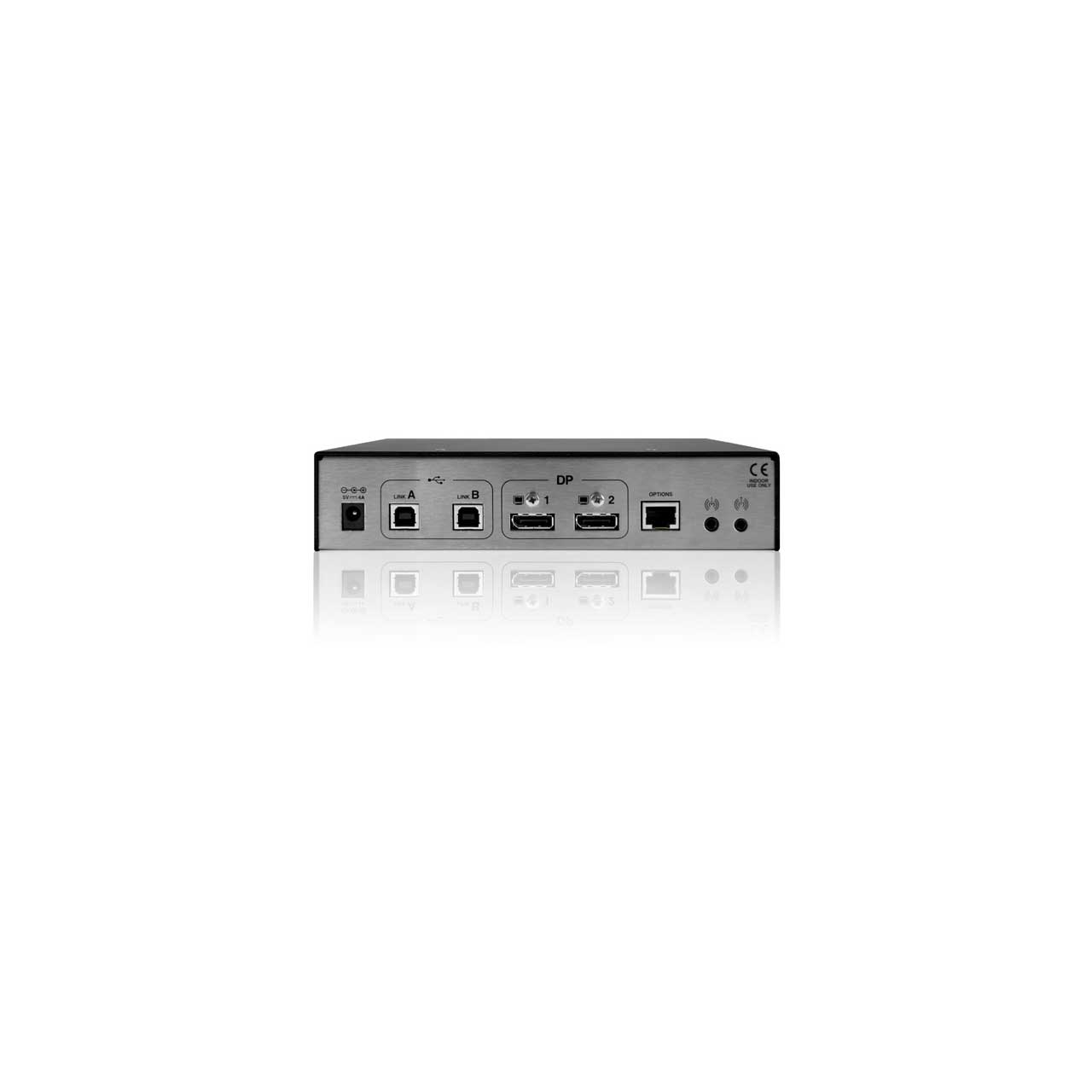

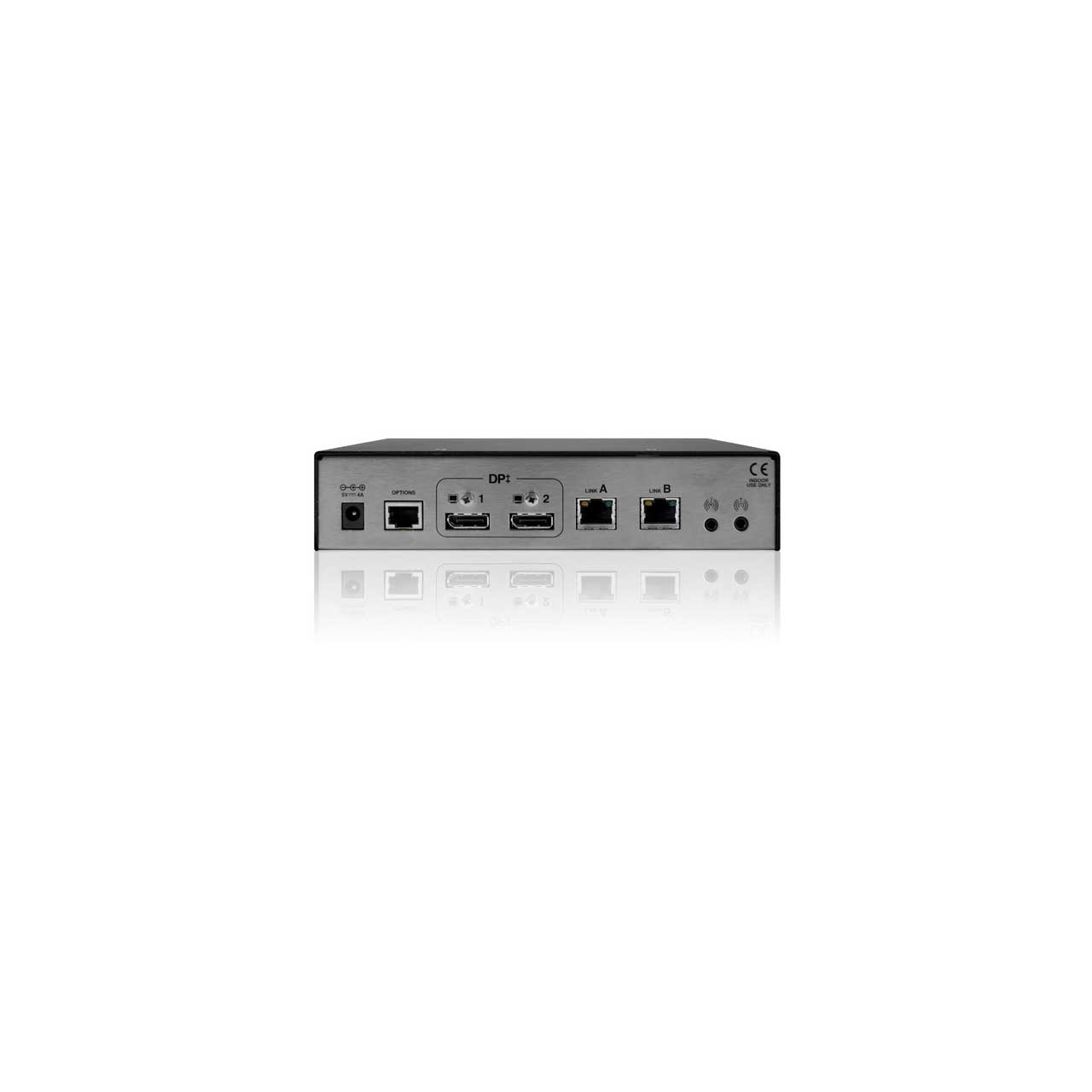

ADDERLink XD522-DP-PAIR-US XD522 KVM Extender System TX/RX - DisplayPort - USB2.0 - Audio to 492 feet/150m

ITEM #: ADR-XD522DPPAIRU MFG #: XD522-DP-PAIR-US

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

List Price:

$1,975.00

Our Price:

$1,779.00

Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup


    XD522-DP-PAIR-US - Overview

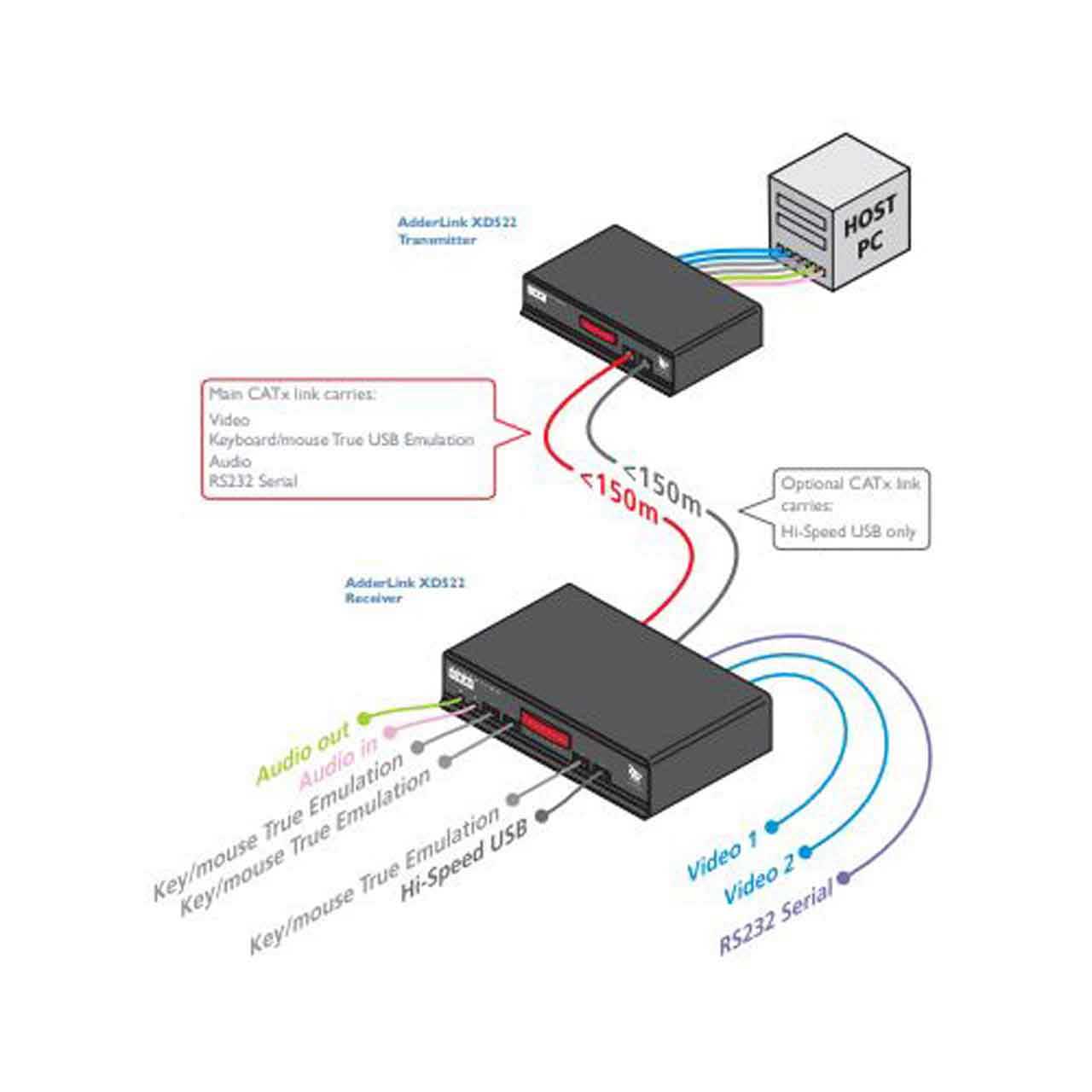

    The ADDERLink XD522-DP-PAIR is a high performance DisplayPort KVM (Keyboard, Video, Mouse) extender TX/RX pair that enables you to locate your critical computing hardware in a secure and temperature controlled environment away from the user work station while maintaining the same user desktop experience. It can transmit either two 1920x1200 @60Hz video streams or one higher resolution video stream (3840x2160 @30Hz or 2560x1600 @60Hz resolutions), digital audio (S/PDIF), analog audio, Hi-Speed USB2.0 and USB2.0 (full and low speed) over CATx cables.

    • Features:

      • Intelligent EDID Management: Extended Display Identification Data allows the true characteristics of the monitor to be passed back to the computer.
      • Plug and Play: The ADDERLink XD522 extender is delivered in a zero config state enabling true plug and play installation with no need for downloading of drivers or software
      • Display port audio and S/PDIF Support: via an optical 3.5mm jack socket (dual use with analog audio via mini Toslink)
      • HD Quality Analog Audio: stereo channel 24bit sampled at 96kHz available to transfer audio from local to remote for Line in / Line out. Microphone in and headphone use cases are also supported

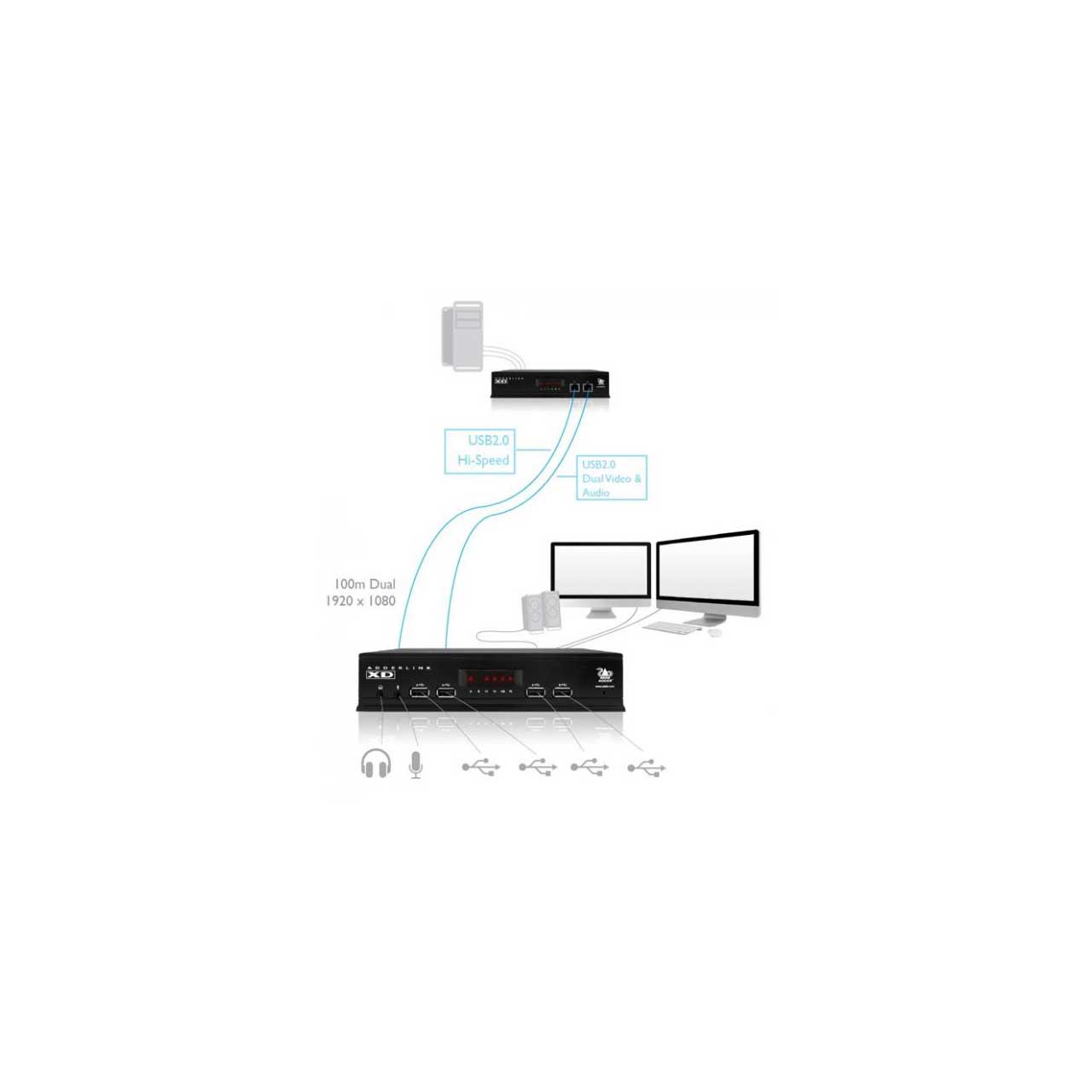

      • Extension Distances: 150m (500ft) extension distance for a single 1920x1080 screen; 100m (330ft) extension distance for two 1920 x 1200 screens or a single high resolution screen to 2560 x 1600
      • Single High Dynamic Range Monitor Support: up to 2560 x 1600 @60Hz 10bit per color
      • USB 2.0 High Speed: for mass storage devices plus keyboard, mouse tablet and touch

    • Specifications:

      • Approvals / Compliance
      • CE
      • FCC
      • RCM
      • UL

        Hardware Compatibility
      • Support for all computers with display port, USB, audio, RS232 - requirement dependent

        Display Port Interface
      • The system supports a maximum of 3840x2180 @30Hz (8bit) or 2560x1600 @60Hz on a single monitor or 1920x1200 @60Hz (10 bit) Supports two monitors 1920 x1200 @60Hz (8 bit). The receiver unit can drive HDMI or DVI monitors with the use of the correct adapter. Content protection is not supported.

        USB 2.0
      • Supports up to six USB2.0 devices (low or full speed). HID devices are supported on ports marked "A" and isochronous devices (i.e. USB audio or video devices) on the Hi-Speed link only marked "B".

        Display Port Audio
      • The system delivers analog stereo audio (Line in, line out) & supports microphone input & headphones. It also delivers S/ PDIF (optical input) via a 3.5mm jack line in connector (mini Toslink). The display port audio path can have up to eight channels of 24-bit 192 kHz uncompressed "Pulse-code modulation"PCM audio or can encapsulate compressed audio formats in the audio stream. Supported compressed formats: DRA, DolbyT MAT, DTS HD.

        RS232
      • RS232 can be passed between the units to a maximum baud rate of 115K2 via the options port.

        Software Compatibility:
      • All known operating systems

    • Item Includes:

      • 1x XD522 transmitter and receivers units
      • 2x 20W power adapters
      • 2x Audio cables 2m
      • 2x USB cables 2m (type A to B)
      • 1x Displayport cable
      • 1x Serial cable 2m

    • Warranty:

      • 2 Year Limited
