ADDERLink XD612P-DP-US Single or Dual-Head KVMA Extender Pair - DisplayPort/USB2.0/Audio on a Single CATx or Fiber Cable

ITEM #: ADR-XD612P-DP-US MFG #: XD612P-DP-US

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

List Price:

$1,760.00

Our Price:

$1,584.00

Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup


    XD612P-DP-US - Overview

    The ADDERLink XD612 is a high performance KVMA (Keyboard, Video, Mouse and Audio) extender that is designed to provide reliable and real-time access to critical computers - regardless of the location, whilst maintaining the same user desktop experience. Developed for enterprise organizations and highpressure control rooms, it combines the simplicity of true plug and play and high performance HD KVM extension; resulting in superior functionality and flexibility in a cost-effective, reliable and straight forward solution.

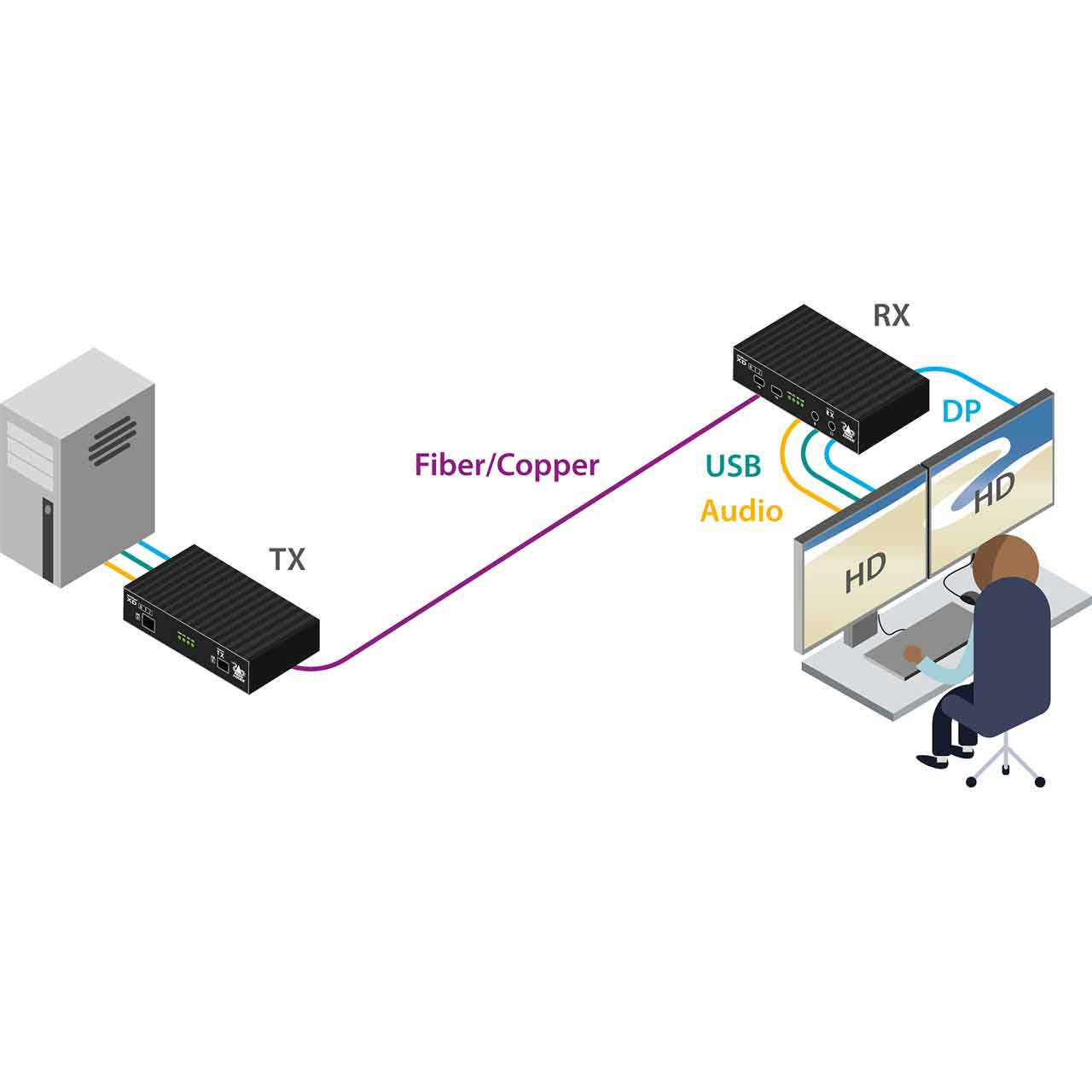

    Single or dual-head HD60 video, USB2.0 (HID) and audio are transmitted on a single CATx or fiber cable
    Point-to-point protocol for ultra-low latency
    Flexibility between copper and fiber connectivity
    Adder's USB True Emulation ensures reliable computer bootup

    • Features:

      • High resolution video, real-time control: The system supports resolutions up to 1920x1200 @60Hz using 8 bits per color and 4:4:4 chroma sampling. Either single or dual-heads are transmitted within a single cable. There is a single DisplayPort™ 1.2 connection at the transmitter (TX) and either one or two video outputs at the receiver (RX). Dual-head utilizes DisplayPort™ MST (Multi-Stream Transport) technology and there is a local pass-through video port at the TX.
      • Single cable: HD video, USB2.0 HID (human interface device) and audio are transmitted on a single CATx or fiber cable.
      • Up to 4km/2.5 mile range: The ADDERLink® XD612 (XD612) supports both copper and fiber interfaces. It provides a range of up to 100m/328ft over a CAT6 cable link, and up to 4km/2.5 miles over an optical fiber link.
      • Emulated USB2.0: Enables connection of any full and low-speed USB HID from mouse and keyboards through to graphics tablets and jog shuttles.
      • EDID management: The system has intelligent EDID management to allow the true characteristics of the monitor to be passed back to the computer.
      • Plug and play: The XD612 extender is delivered in a zero config. state so it works, without the need for drivers or software, as soon as it is connected.
      • Audio: Video: Encapsulates two channels of 24-bit, 192kHz sampled "Pulse-code modulation" (PCM) audio with each video signal. USB: Two channels of 24-bit, 96kHz sampled PCM audio. Analog: Two channels of 24-bit, 96kHz audio for Line in/out, microphone and headphone/ speakers.
      • Serial communications: RS232 can be passed between the units to a maximum baud rate 115K2 with RTS/CTS flow control.

    • Specifications:

      • Video resolutions
      • The system supports up to 2 heads at resolutions to a maximum of 1920x1200 @ 60Hz

      • Software compatibility
      • All known operating systems. No drivers required.

      • Extension technology
      • 5Gb/s CATx or 10Gb/s fiber with ultra low latency adaptive video stream compression.

      • Connections

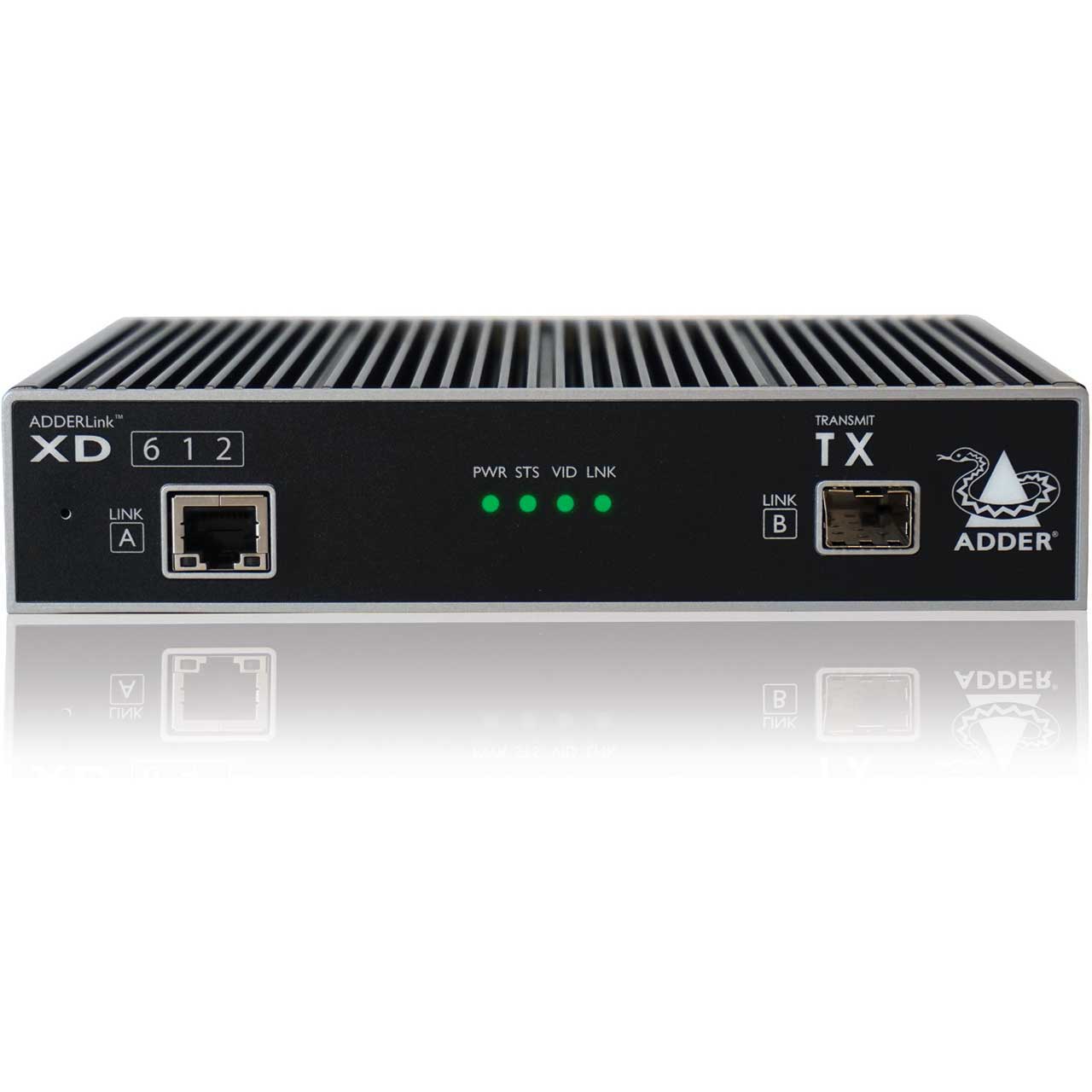

      • Local unit - Transmitter (TX)
      • 4 x Tri-color status LEDs
      • DisplayPort™ in and local pass-through out
      • 2 x USB2.0 Type B
      • Line in and out analog audio
      • RJ12 serial port
      • RJ45 and SFP+ ports

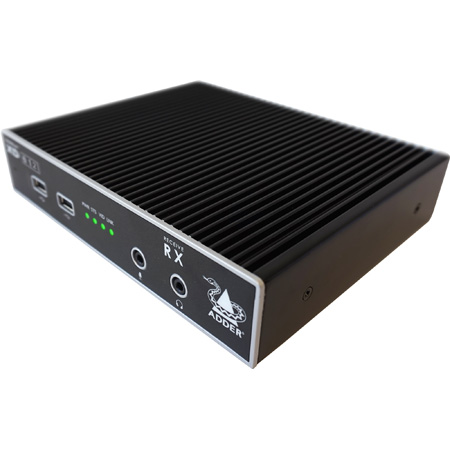

      • Remote unit - Receiver (RX)
      • 4 x Tri-color status LEDs
      • 2 x DisplayPort™ out
      • 4 x USB2.0 full speed Type A
      • Mic in, headset and speaker out
      • RJ12 serial port
      • RJ45 and SFP+ ports

      • Physical Design
      • Robust metal construction
      • TX and RX: 186mm/7.32" (w), 39mm/1.54" (h), 148mm/5.83" (d)
      • TX: 1.29kg/2.84lbs - RX: 1.24kg/2.73lbs

      • Power supply
      • 100-240 VAC, 47/63Hz
      • 12 VDC 18W output from power supply unit

      • Operating temperature
      • 0°C to 40°C/32°F to 104°F

      • Storage temperature
      • -10°C to 50°C/14°F to 122°F

      • Humidity
      • 0% to 80% (non-condensing)

      • Approvals
      • UKCA, CE, FCC, ICES, RCM, cULus

    • Item Includes:

      • (1x) XD612 Local Transmitter (TX)
      • (1x) XD612 Remote Receiver (RX)
      • (1x) VSCD17 DisplayPort Cable
      • (1x) VSC24 USB Cable
      • (1x) VSC22 6.6ft / 2m audio cable (3.5mm jacks)
      • (2x) PSU-IEC-12VDC-1.5A: Power adapter + US power cord (for TX and RX)

    • Warranty:

      • 2 Year Limited

    • GTIN:

      0753464121490
