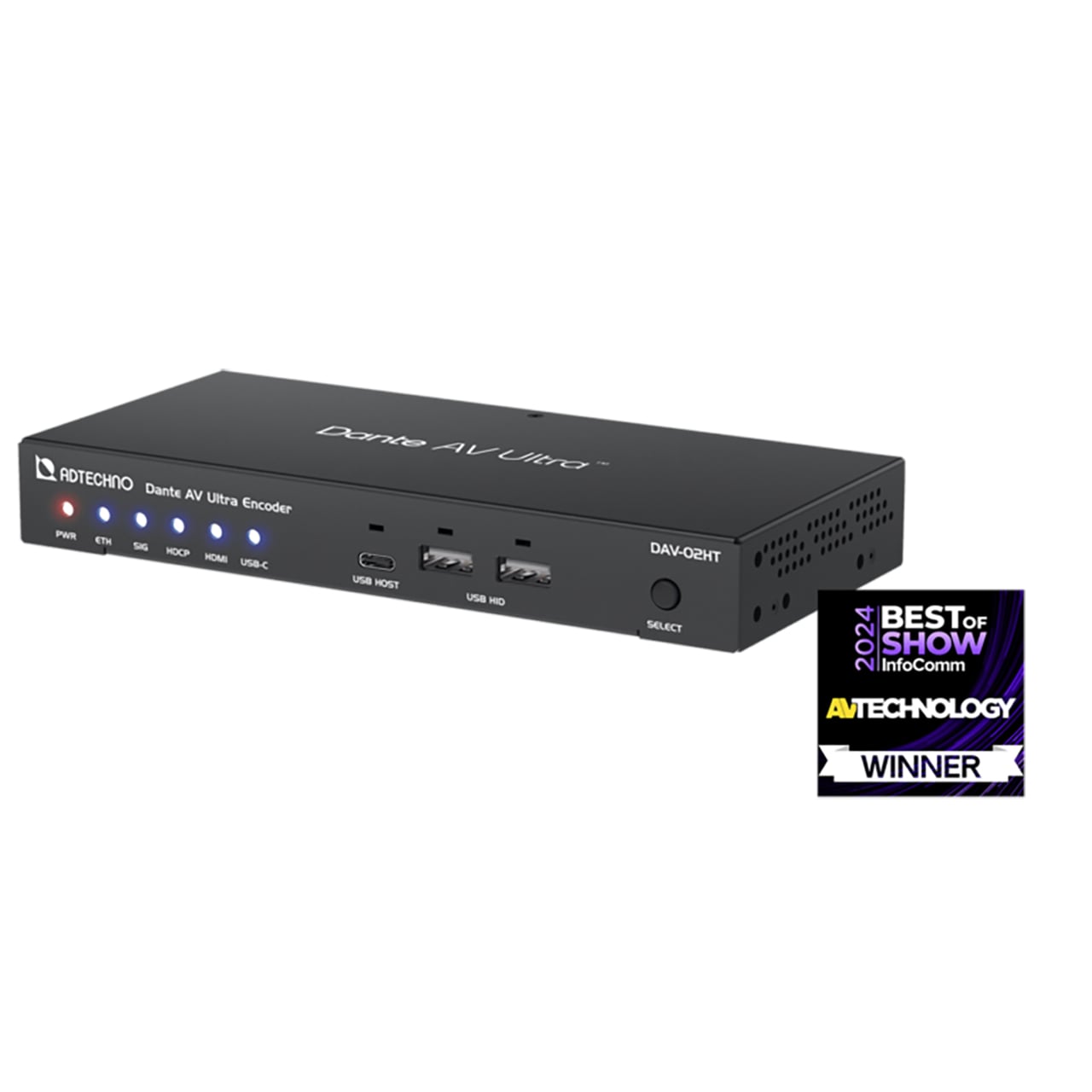

The ADTECHNO DAV-02HT is a high-performance Dante AV Ultra Encoder designed to deliver pristine video and audio signals over standard 1GbE networks. Supporting HDMI and USB-C video inputs, it enables transmission of up to 4Kp60 4:4:4 video with visually lossless quality, synchronized perfectly with 8-channel audio. This encoder is optimized for intuitive signal management through Dante Controller, offering flexible source-switching modes-automatic, manual, or via an external button using a sensor input. Its fanless design ensures silent operation, ideal for high-end meeting rooms, classrooms, and conference settings that demand reliable and quiet performance.
Manual or Automated Source Selection

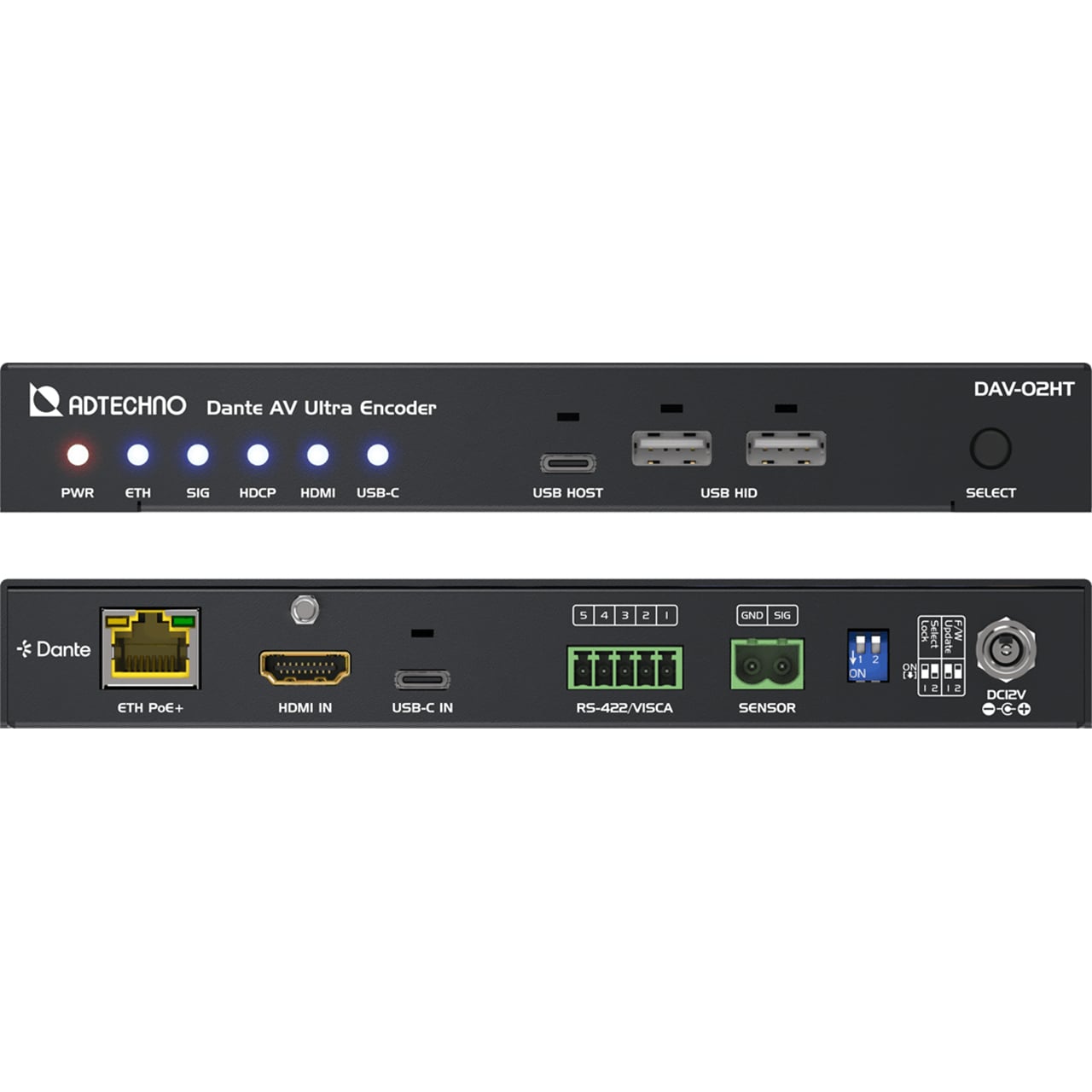

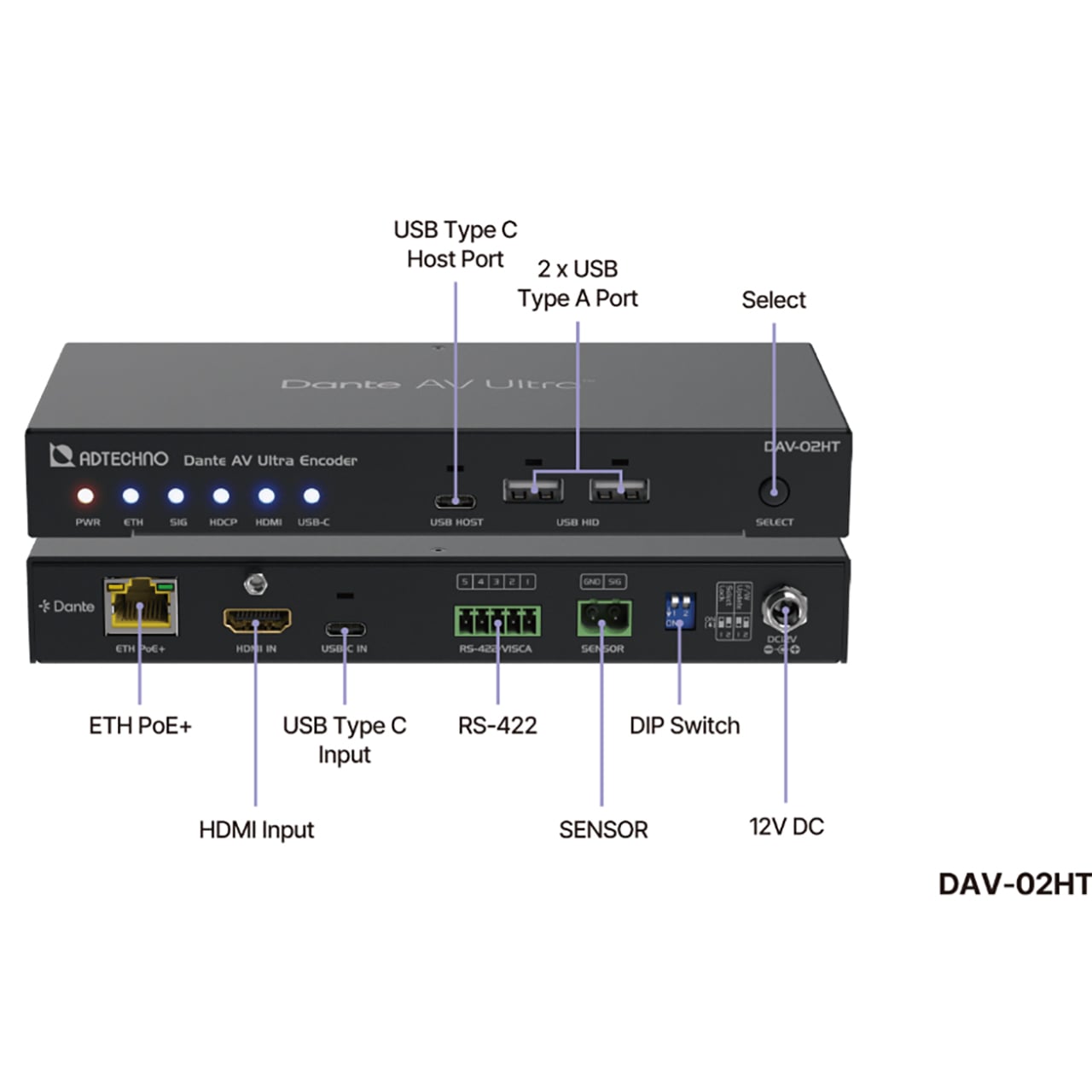

Dante AV Ultra encoder, DAV-02HT, features inputs for both USB-C and HDMI, allowing for the automatic switching of sources upon detecting an incoming TMDS signal. Users can also manually select sources by pressing a front-panel button or by utilizing a sensor input to connect a custom-tailored press button, allowing system integrators to externally wire a press button, suitable for installation on a table.
A Fanless Design Guarantees Stable Performance with Minimal Maintenance Required
Emphasizing stability and efficiency, the DAV-02 series boasts a fanless design that ensures silent operation, greater reliability, and superior energy efficiency. This design significantly reduces maintenance needs while prolonging the lifespan of the devices.
Auto-downscaling and HDCP Revision Conversion
The HDMI ports on the ADTECHNO Dante AV Ultra Encoder read Extended Display Identification Data (EDID) of every connected screen and adjust the output video resolution automatically to ensure the optimal display resolution for each screen. Additionally, HDCP is automatically converted to the appropriate revision for each connected screen.

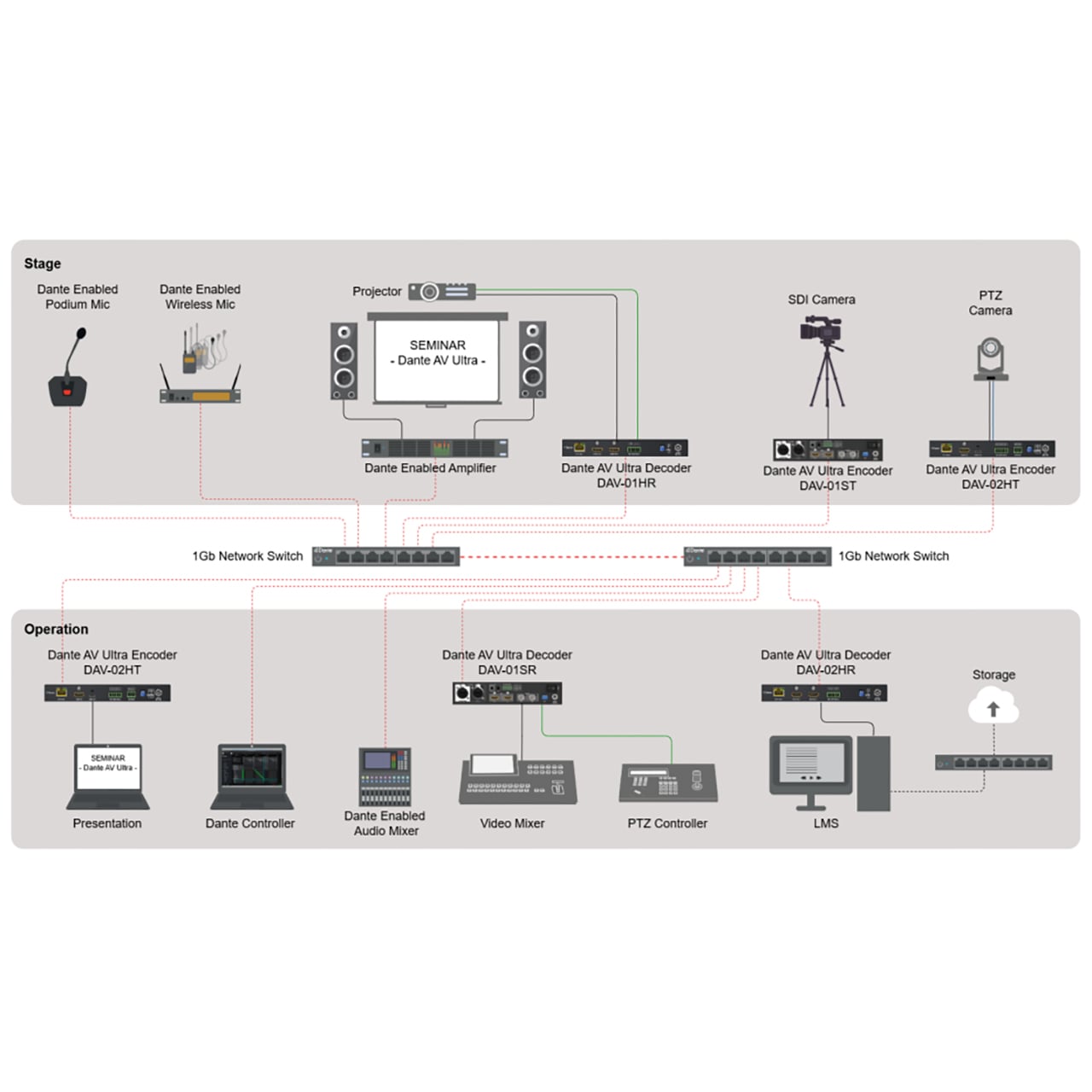

The Largest AV over IP Technology Ecosystem
Compatible with over 4,000 existing Dante products available on the market. Controlling video, audio, and control signals has never been easier with the familiar Dante Controller Software. Installing ADTECHNO Dante AV Ultra onto an existing 1GbE network infrastructure is straightforward, without management difficulties and performance issues.
