Allen & Heath AH-DLIVE-CDM48 dLive C Class MixRack with 48Mic/Line Inputs - 160x64 FPGA Core


Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.

Availability: In Stock
iAvailability Description Popup
  • Shipment of this item is subject to a separate oversized-package carrier surcharge.

AH-DLIVE-CDM48 - Overview

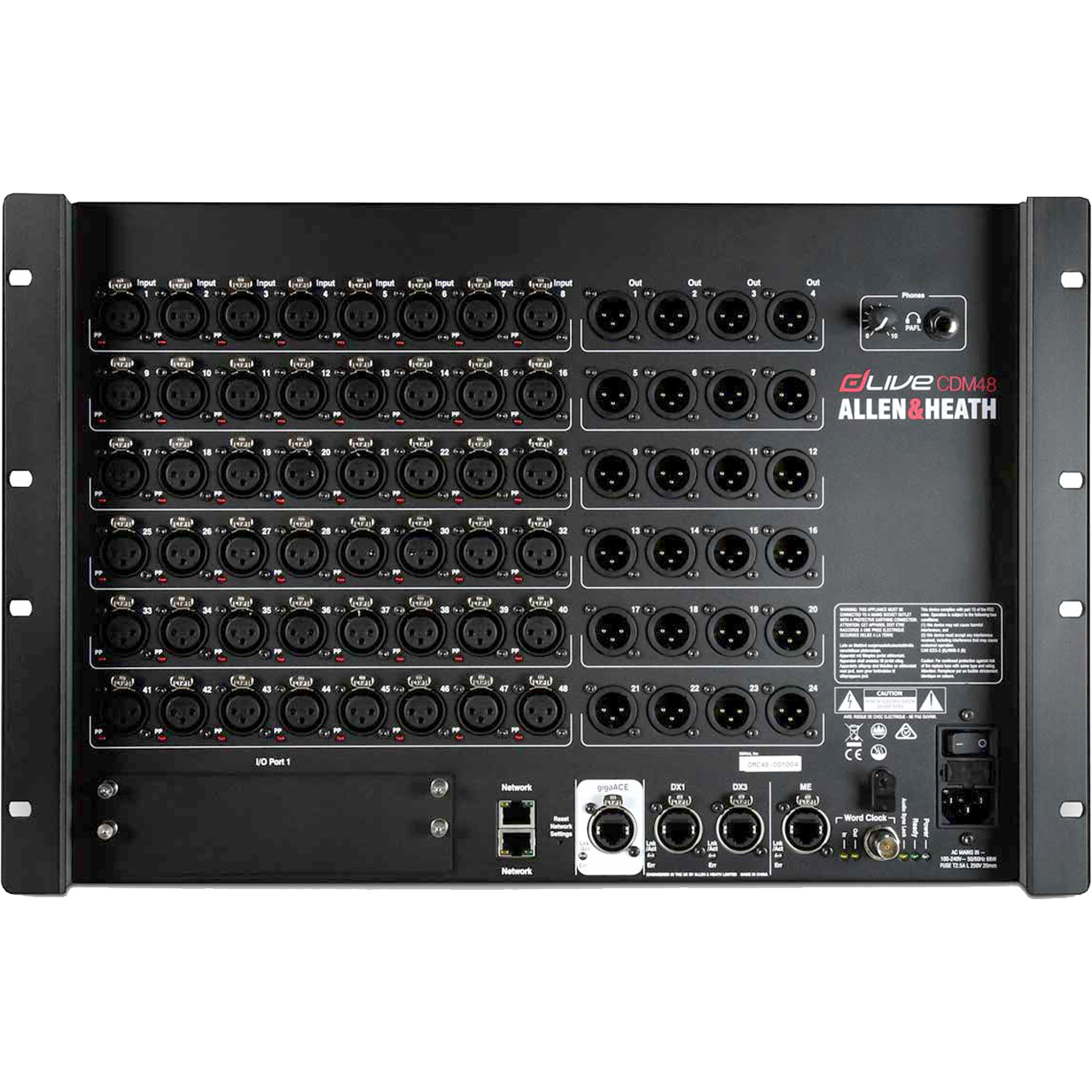

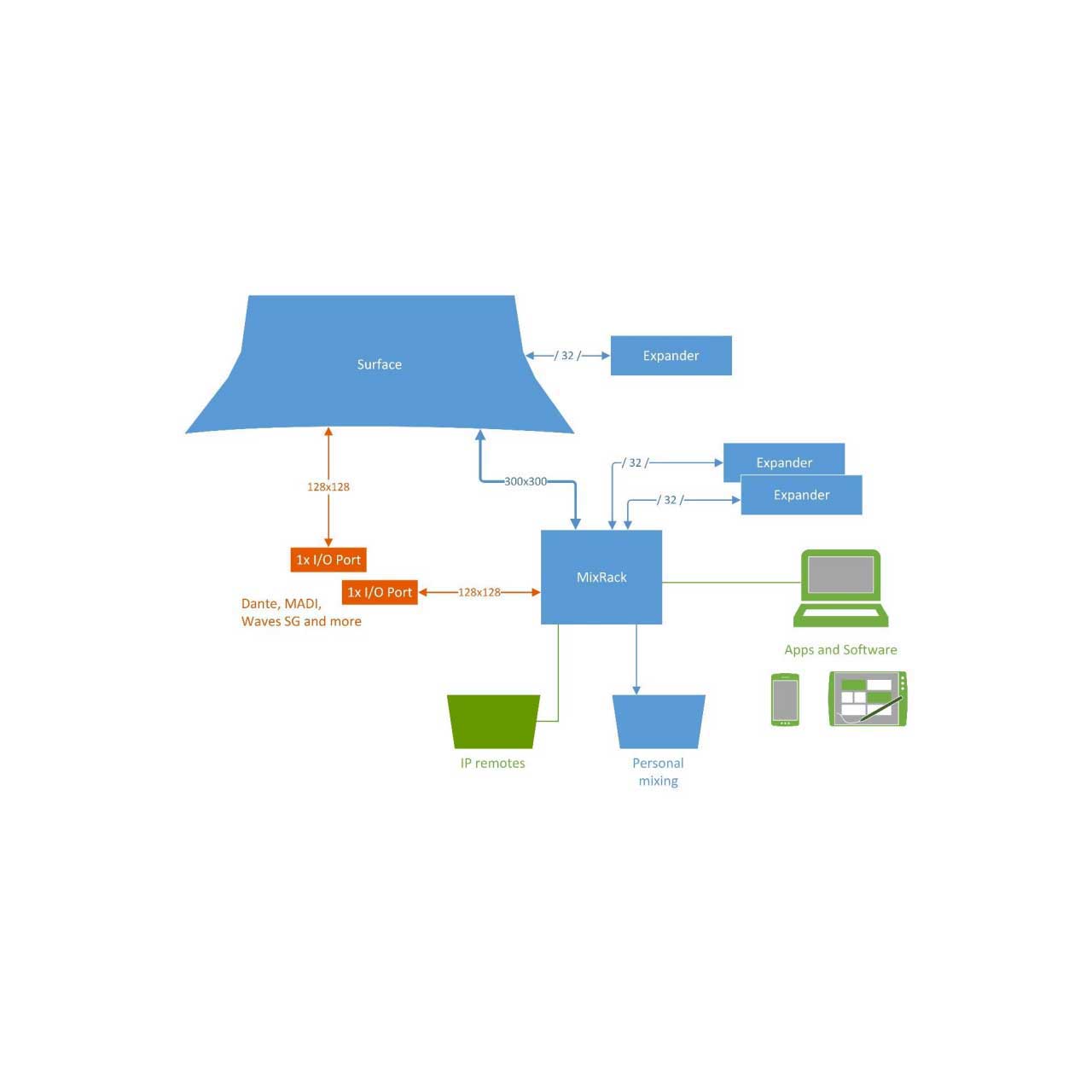

The Allen & Heath AH-DLIVE-CDM48 dLive MixRack is the heart of the dLive system housing the XCVI processing core. The CDM48 is compatible with any dLive C class or S class Surface. It also can be ran with a laptop, iPad, via the Allen & Heath range of IP controllers, or with third party controllers. The CDM48 features 48 Inputs and 24 outputs, 96K sample rate, the ability to mix 128 input channels and 64 output channels with full processing, built in DEEP processing, Automatic Mic Mixer, and is expandable via the included DX link port and available option card slot.

The power of dLive emanates from the XCVI Core - pioneered by the Allen & Heath R&D team using next generation FPGA technology, with 36 parallel virtual processing cores generating enough power for 160x64 channels of processing at 96kHz sampling rate. Six parallel mixing engines within the Core calculate over 10,000 cross points per sample, while the FPGA router has capacity for 3,000 x 3,000 audio paths. The massive power of XCVI (25 billion operations per second) allows dLive to deliver 128 full processing inputs and 16 stereo FX returns, a configurable 64 bus architecture, variable bit depth for ultimate precision and noise performance, a virtually infinite mix headroom thanks to a 96bit accumulator, and class leading latency at an ultra-low 0.7ms.

DEEP Processing
The DEEP processing architecture embeds class-leading compressors and processing emulations directly within dLive's input and mix channels. An array of bespoke algorithms including Graphic EQs, Compressors and a 64 channel Automatic Mic Mixer (AMM) can be inserted on the fly without burning FX slots and without the setup, latency and license hassles associated with external plug-ins - they're right there, where you need them, whenever you need them. The compressor models capture the audio nuances and non-linear ballistics of industry classics, ranging from a Slow-Opto model, various RMS detection and soft knee circuits, through to super-fast peak and RMS based compression/limiting devices.

  • Features:

    • 48 mic/line inputs, 24 line outputs
    • XCVI 160x64 FPGA Core
      -96kHz sample rate
      -Variable bit-depth for ultimate precision and noise performance
      -Virtually infinite mix headroom thanks to 96bit accumulator
      -Class leading, ultra-low latency at 0.7ms
    • 128 Input Channels with full processing
    • 64 Mix Outputs with full processing
    • Configurable 64 bus architecture (group, FX, aux, matrix, mains)
      -LR, LCR and up to 5.1 mains mode
      -Multiple PFLs
    • 16 RackExtra FX with dedicated stereo returns
    • 24 DCAs
    • AMM (Automatic Mic Mixer) up to 64 channels across 1, 2 or 4 zones
    • Built-in signal generator and RTA
    • New preamp design for extra transparency
    • Unique Active PAD circuit for consistent performance with any source
    • Connection Hub
      -gigaACE gigabit link to Surface
      -2x DX links for I/O expansion
      -I/O Port - 128 ch 96 kHz
      -Dedicated ME-1 48kHz port
      -2x Network ports
      -Wordclock BNC I/O
    • Add up to 22 DX I/O expanders via DX Hub modules or DX Link cards

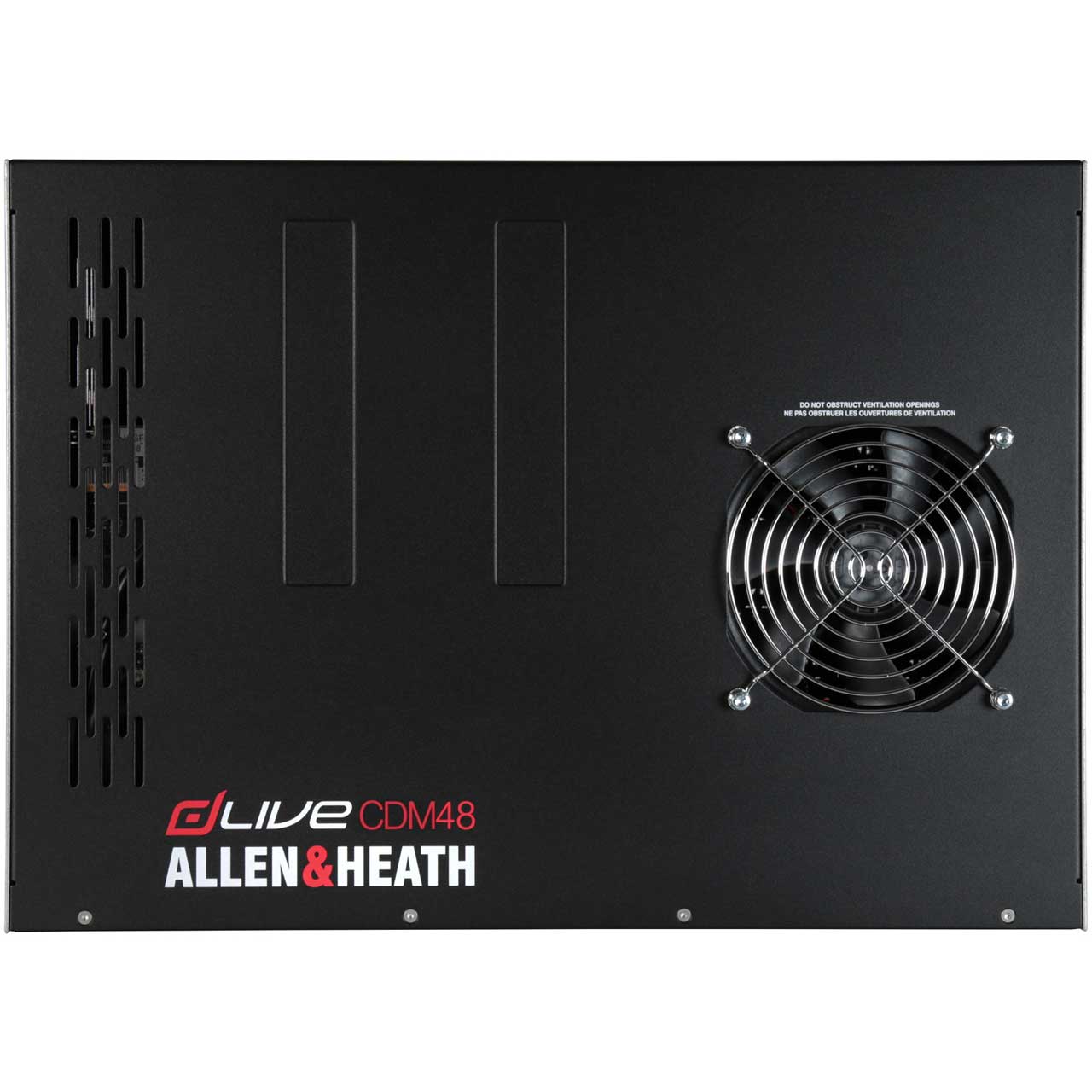

    • Flush front panel with ultra quiet fan
    • Reversible rack ears design
  • Specifications:

    • Inputs
    • Mic/Line XLR: Balanced XLR, +48V phantom power
    • Mic/Line Preamp: Fully recallable
    • Input Sensitivity: -60 to +15dBu
    • Analogue Gain: +5 to +60dB, 1dB steps
    • Pad: -20dB Active PAD
    • Maximum Input Level: +30dBu (PAD in)
    • Input Impedance: >4kΩ (Pad out), >10kΩ (Pad in)
    • Mic EIN: -127dB with 150Ω source
    • Phantom Power Indication: Per socket, internal or external phantom power sensing, triggered at 24V
    • Digital Inputs: AES3 2 Ch XLR, 2.5Vpp Balanced Terminated 110Ω SRC Range 32k - 192kHz with Bypass option

    • Analogue XLR Outputs: Balanced, Relay protected
    • Output Impedance: <75Ω
    • Nominal Output: +4dBu = 0dB meter reading
    • Maximum Output Level: +22dBu
    • Residual Output Noise: -92dBu (muted, 20-20kHz)

    • Measured balanced XLR in to XLR out, 20-20kHz, minimum Gain, Pad out
    • Dynamic Range: 110dB
    • System Signal to Noise: -92dB
    • Frequency Response: 20Hz - 30kHz +0/-0.8dB
    • THD+N (analogue in to out): 0.0015% @ +16dBu output, 1kHz 0dB gain
    • Headroom: +18dB
    • Internal operating Level: 0dBu
    • dBFS Alignment: +18dBu = 0dBFS (+22dBu at XLR output)
    • Meter Calibration: 0dB meter = -18dBFS (+4dBu at XLR out)
    • Meter Peak indication: -3dBFS (+19dBu at XLR out)
    • Sampling Rate: 96kHz +/- 20 PPM
    • ADC: 24-bit Delta-Sigma
    • DAC: 24-bit Delta-Sigma

      Dimensions and Weights
    • CDM48 - boxed (WxLxH): 23.6 x 16.9 x 18.5inch
    • Weight: 32Lbs
  • Warranty:

    • 3 Year Warranty
