AH-DLIVE-CTI1500 - Overview

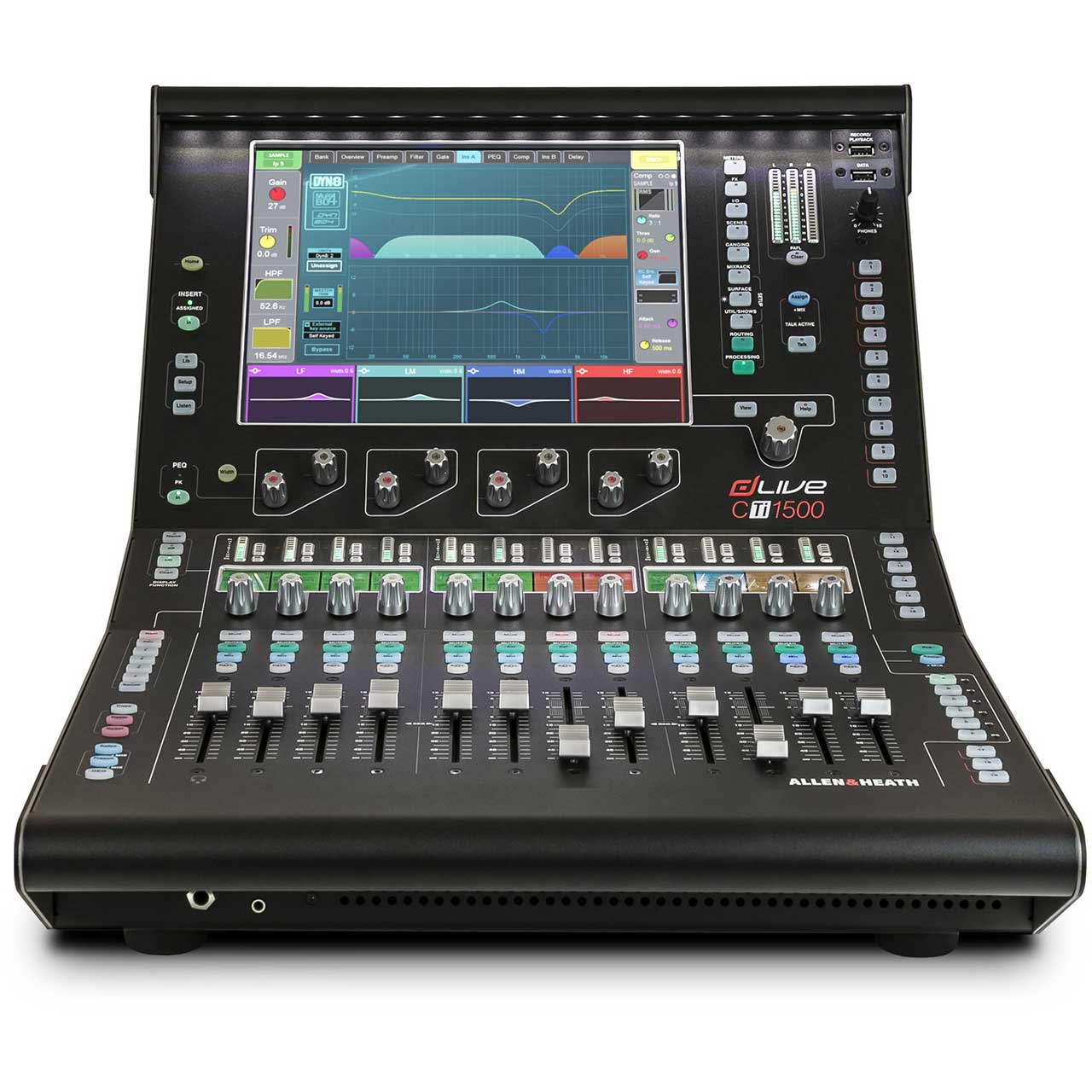

The lightest weight dLive surface available, (AH-DLIVE-CTI1500) at just 25.4lbs bring you 12 faders (with 6 layers), built-in audio I/O, an audio networking port, a 12" capacitive touchscreen, the innovative Harmony UI for the fastest workflow in the industry, plenty of rotary controls and 19 assignable softkeys.

Since its launch, C1500 has become a firm favourite in compact touring, particularly for fly dates, bus tours, support slots - in fact any applications where size and weight need to be carefully balanced against audio requirements. CTi1500 takes this no-compromise compact concept even further. With a mission to create a surface that would be under 23Kg/50lbs including flightcase, the Allen & Heath engineering team embarked on a year-long project to create the ultimate super-lightweight control surface.

On the outside, the side trims have been replaced by Titanium panels, lightweight, super-strong and a first in touring mixer design. The rear and base panels have also been cleverly re-engineered to cut the weight but retain strength.

Internally the weight loss continues, with new alloy metalwork throughout.

Crucially, the front panel remains largely the same as a C1500, providing the familiar dLive feel, but redesigned to replace the armrest with sleek steel curves.

Every change was carefully considered and rigorously tested to meet the high standards required of any Allen & Heath touring product.

Power. Packed.
It may be the lightest full control surface in the dLive range, but CTi1500 doesn't pull its punches and retains every knob, button and function of its C1500 stablemate.

That means packed in its tiny footprint you get 12 faders (with 6 layers), built-in audio I/O, an audio networking port, a 12" capacitive touchscreen and the innovative Harmony UI for the fastest workflow in the industry. You're also not short of tactile controls, with plenty of rotary controls and 19 assignable softkeys.

Ready for takeoff.
Loaded with an I/O card of your choice, and snugly wrapped in its dust cover (yes - they weighed that too…), CTi1500 can fly under 23kg / 50lbs in a custom flight case(You'll need a flightcase under 10kg/22lbs).

  • Features:

    • Titanium side panels and lightweight alloy metalwork
    • Weighs just 11.5kg / 25.4lbs
    • Can fly under 23kg with case*, I/O card and dust cover (*flightcase must weigh under 10kg/22lbs)
    • 12 faders
    • Fully assignable layout - 72 fader strips
    • Harmony UI integrates screen and wrap-around controls
      - 12” capacitive touchscreen
      - Gesture control - pinch, swipe, drag ‘n drop
      - Dedicated multi-mode EQ view
      - Configurable widget areas for Scenes, meters, FX and more
    • 19 assignable SoftKeys
    • Engineer's Wedge and IEM fader strips
    • Comprehensive multipoint metering
    • Daylight visibility
    • USB stereo recording and playback

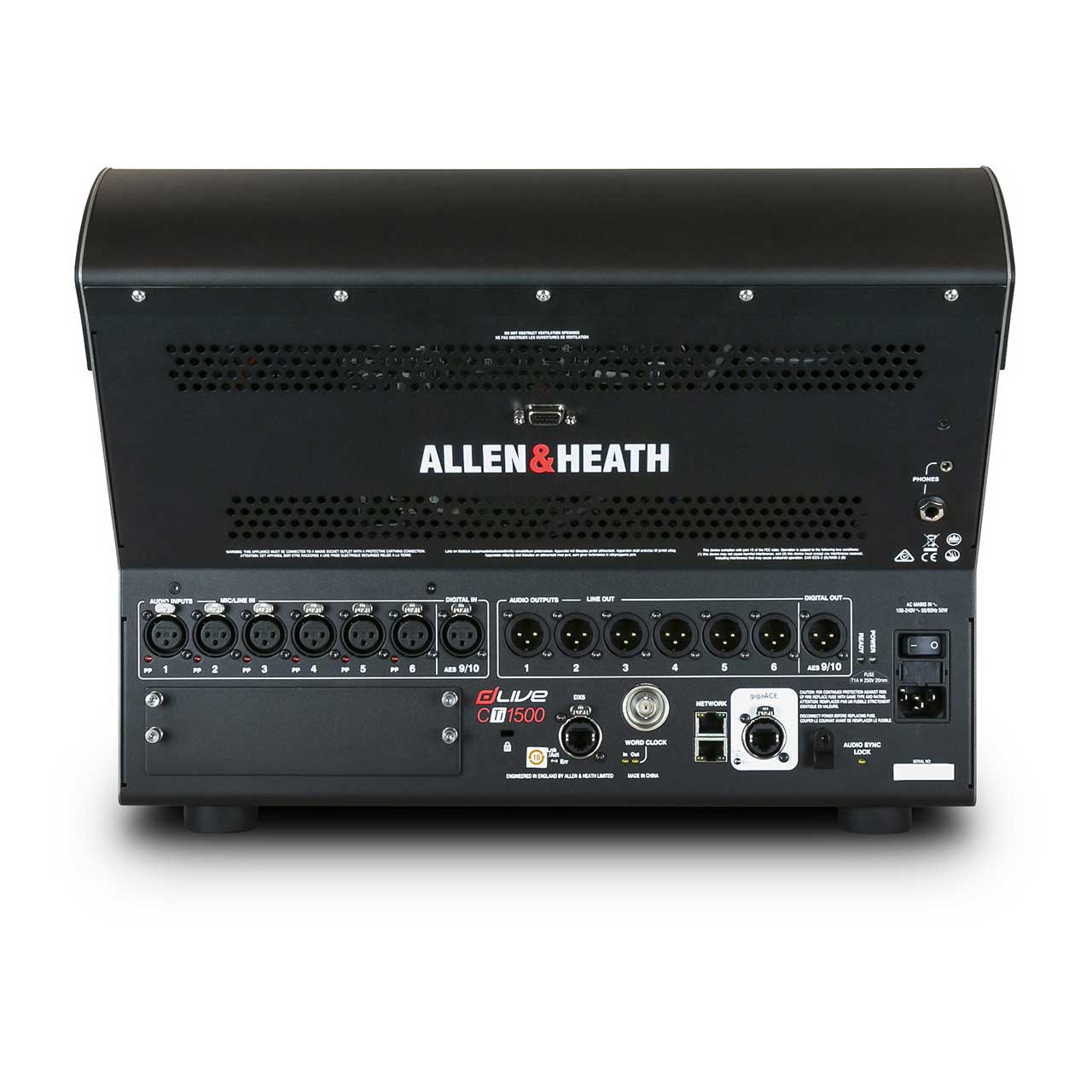

    • 6 XLR mic/line in, 6 XLR line out
    • 1 digital st AES3 in, 1 digital st AES3 out

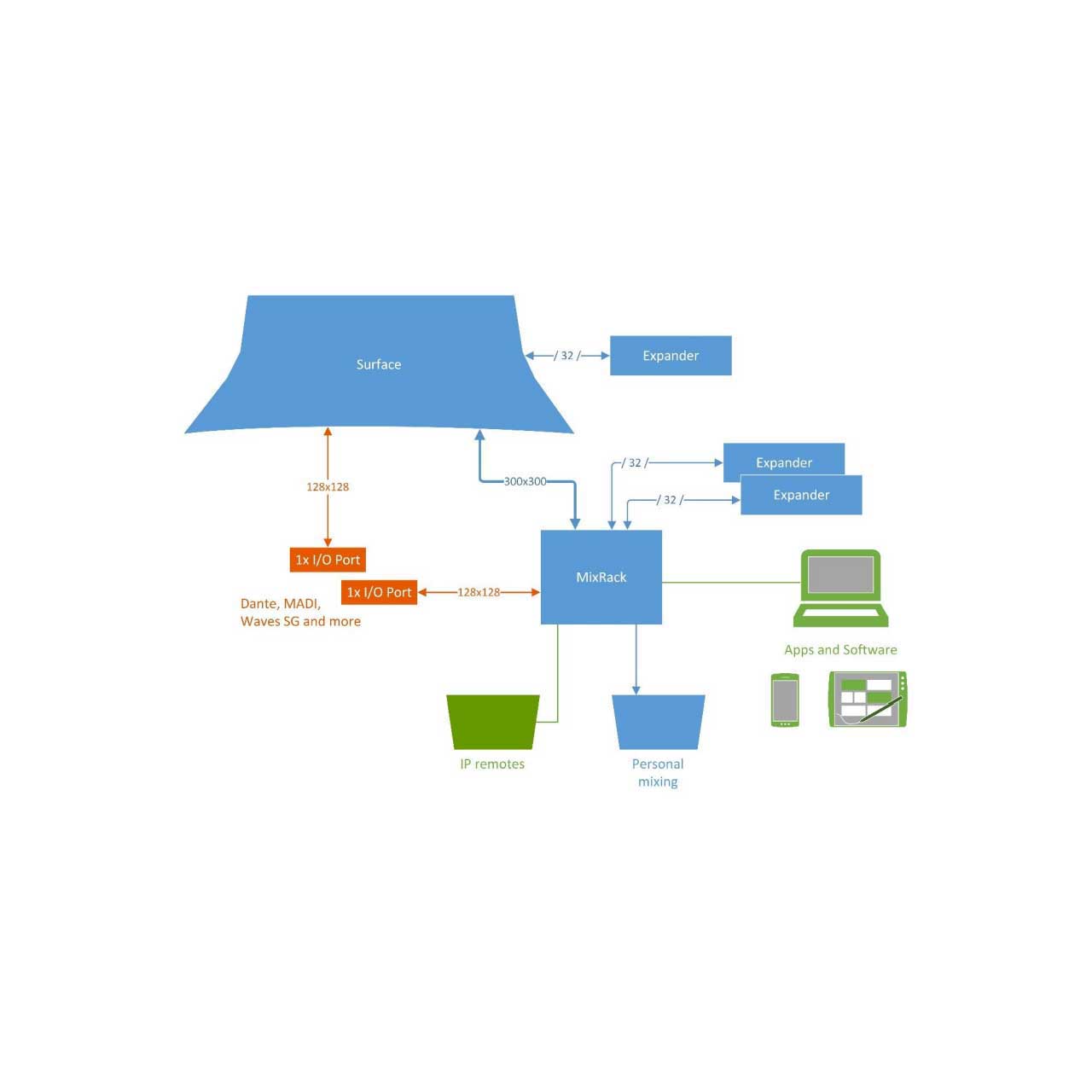

    • Connection hub
      - GigaACE gigabit link to MixRack
      - DX link for I/O expansion
      - I/O Port - 128 ch 96 kHz
      - 2x Network ports
      - Wordclock BNC I/O
      - Video output
  • Specifications:

    • Inputs
    • Mic/Line XLR Inputs: Balanced XLR, +48V phantom power
    • Mic/Line Preamp: Fully recallable
    • Input Sensitivity: -60 to +15dBu
    • Analog Gain: +5 to +60dB, 1dB steps
    • Pad: -20dB Active PAD
    • Maximum Input Level: +30dBu (PAD in)
    • Input Impedance: >4kω (Pad out), >10kω (Pad in)
    • Mic EIN: -127dB with 150ω source
    • Phantom Power indication: Per socket, internal or external phantom power sensing, triggered at 24V

    • Measured balanced XLR in to XLR out, 20-20kHz, minimum Gain, Pad out, signal @ 0dB (meter)
    • Dynamic Range: 110dB
    • System Signal to Noise: -92dB
    • Frequency Response: 20Hz - 30kHz +0/-0.8dB
    • THD+N (analog in to out): 0.0015% @ +16dBu output, 1kHz 0dB gain
    • Headroom: +18dB
    • Internal operating Level: 0dBu
    • dBFS Alignment: +18dBu = 0dBFS (+22dBu at XLR output)
    • Meter Calibration: 0dB meter = -18dBFS (+4dBu at XLR out)
    • Meter Peak indication: -3dBFS (+19dBu at XLR out)
    • Sampling Rate: 96kHz +/- 20 PPM
    • ADC: 24-bit Delta-Sigma
    • DAC: 24-bit Delta-Sigma
    • Latency:
      - 0.7 ms (MixRack XLR in to XLR out,
    • Input to Mix)
      - + 5 samples, Surface to Mixrack (GigaACE hop)
      - + 8 samples, DX32 to Mixrack (DX hop)
    • Operating Temperature Range: 32 °F to 95 °F
    • Mains Power: 100-240V AC, 50/60Hz, 110W Max
    • USB Audio Playback: Mono/stereo .WAV files, 16/24bit, 44.1/48/96kHz
    • USB Audio Recording: Stereo .WAV files, 24bit 96kHz

    • Analog XLR Outputs: Balanced, Relay protected
    • Output Impedance: <75ω
    • Nominal Output +4dBu = 0dB meter reading
    • Maximum Output Level: +22dBu
    • Residual Output Noise:
      - -92dBu (muted, 20-20kHz)
      - -90dBu (muted, 20-40kHz)

    • Length: 32.3 In
    • Width: 25.8 In
    • Height: 18.5 In
    • Weight: 44 lbs
  • Item Includes:

    • 1x AH-DLIVE-CTI15
    • 1x Ac Cable
    • 1x Dust Cover
    • 1x Manual
  • Warranty:

    • 3 Year Warranty
  • GTIN:
