Allen & Heath DX164-W Wall Mounted I/O Expander 16 Mic/Line in-4 Line Out 96kHz-Connects to DX Ports/Link Card/DX Hub

ITEM #: AH-DX164-W MFG #: DX164-W

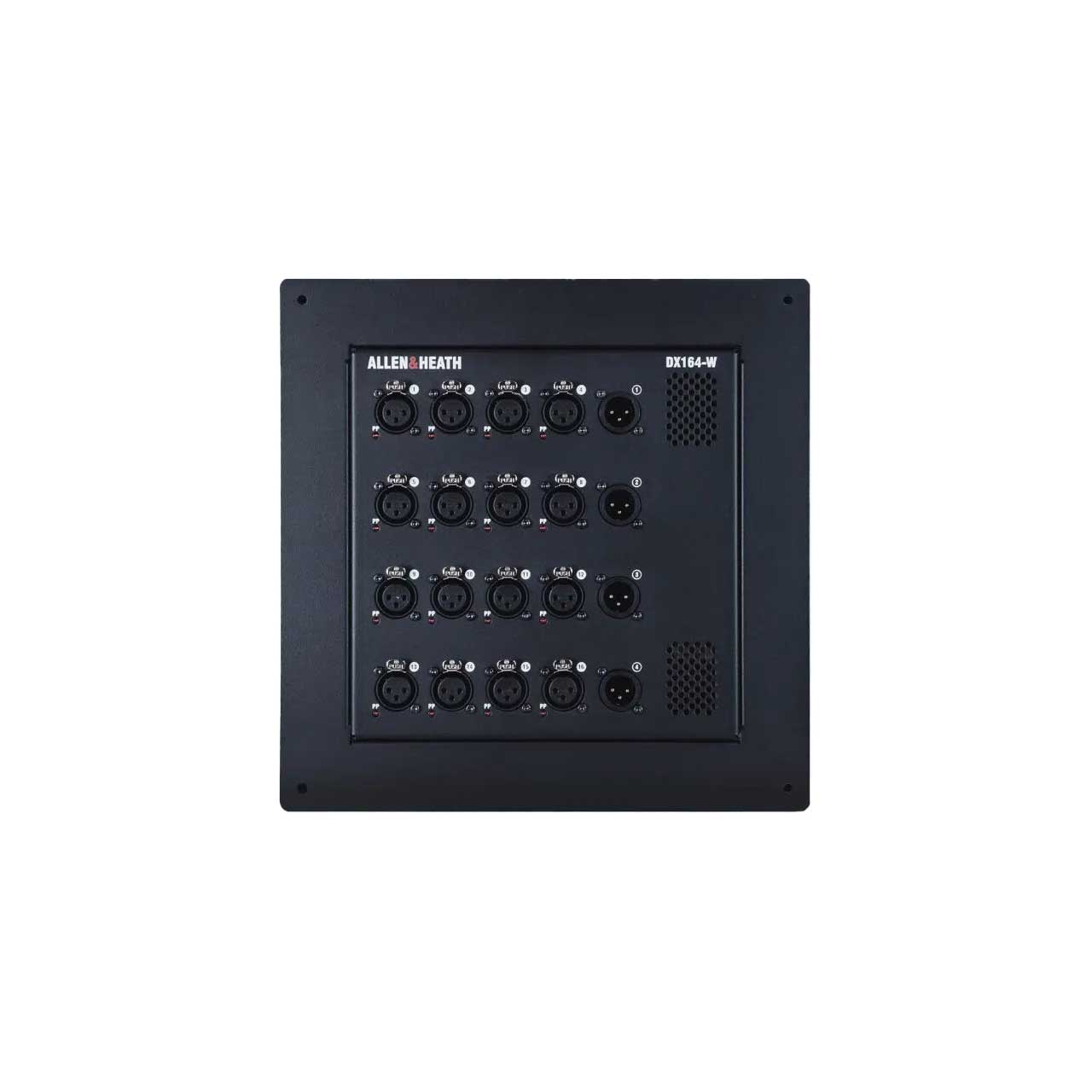

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Allen & Heath USA
Free Shipping with $49 Minimum Order

List Price:

$2,999.00

Our Price:

$2,399.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    DX164-W - Overview

    The DX164-W is a wall mountable expander that adds remote I/O to a dLive, Avantis or SQ mixer, or to AHM audio matrix processors.

    Wall or Floor Mount

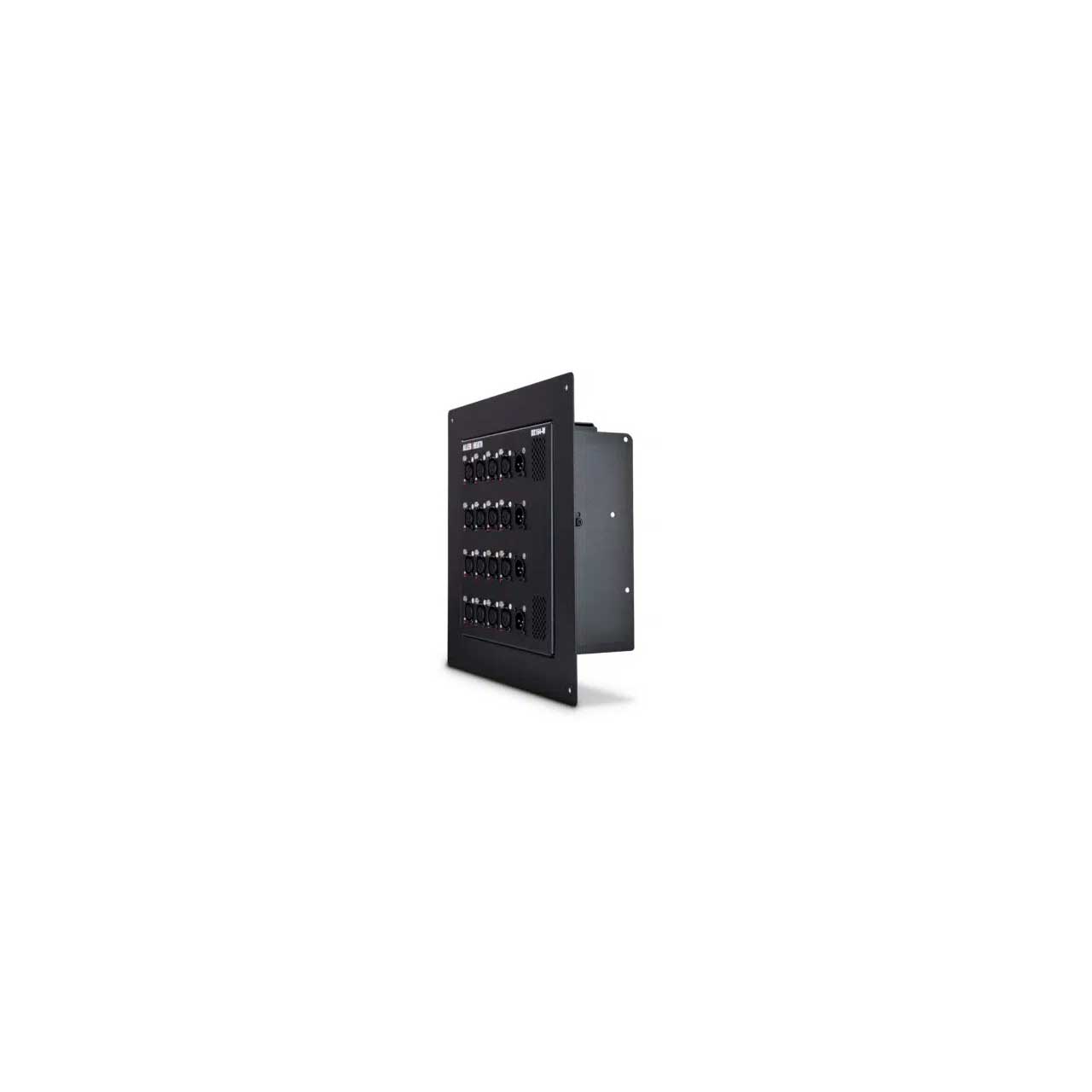

    The reversible mounting frame allows for in-wall or on-wall mounting. With custom brackets, the unit can be fitted in a standard NEMA box, or mounted in a floor pocket for stage use.

    Maximum Flexibility - Put It Where You Need It

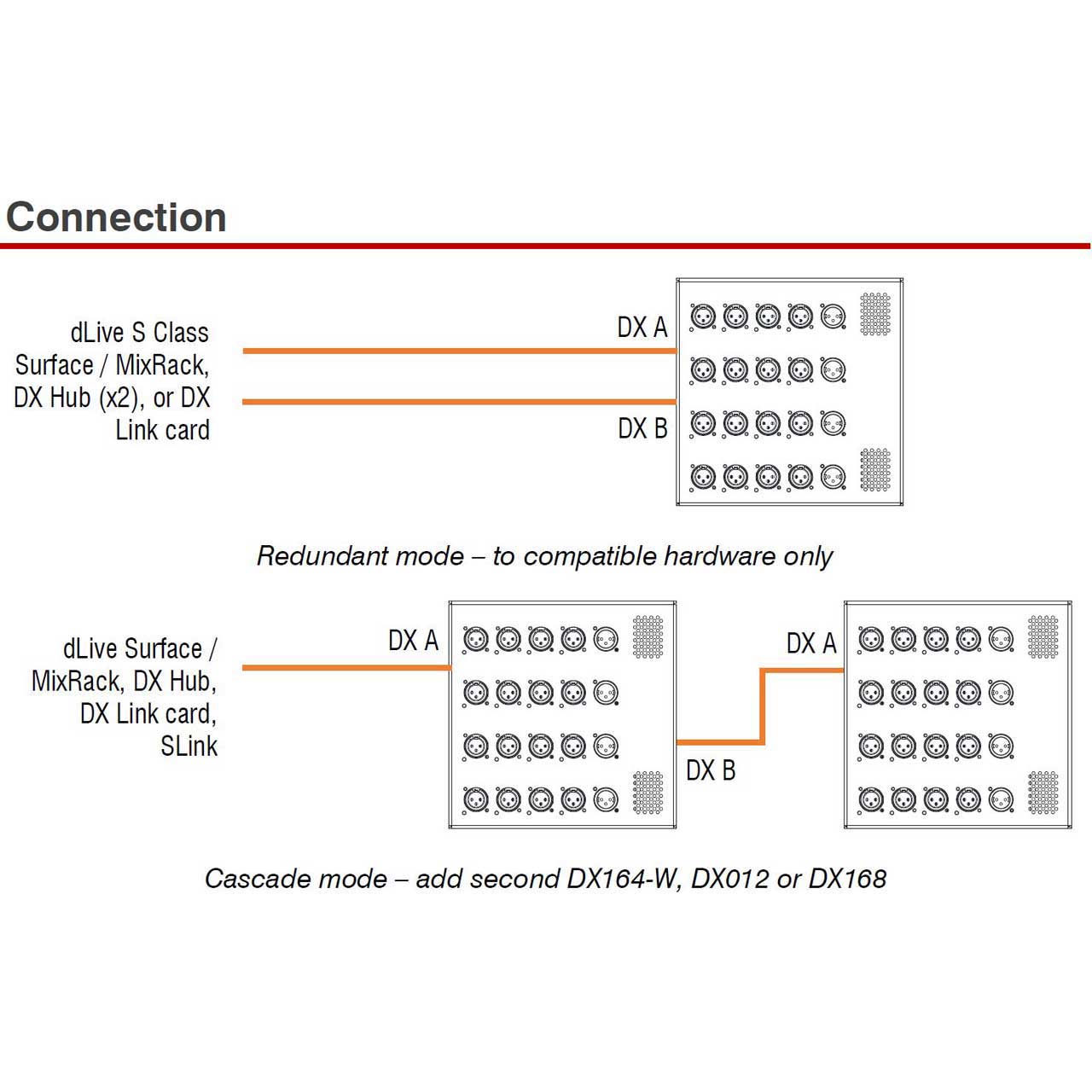

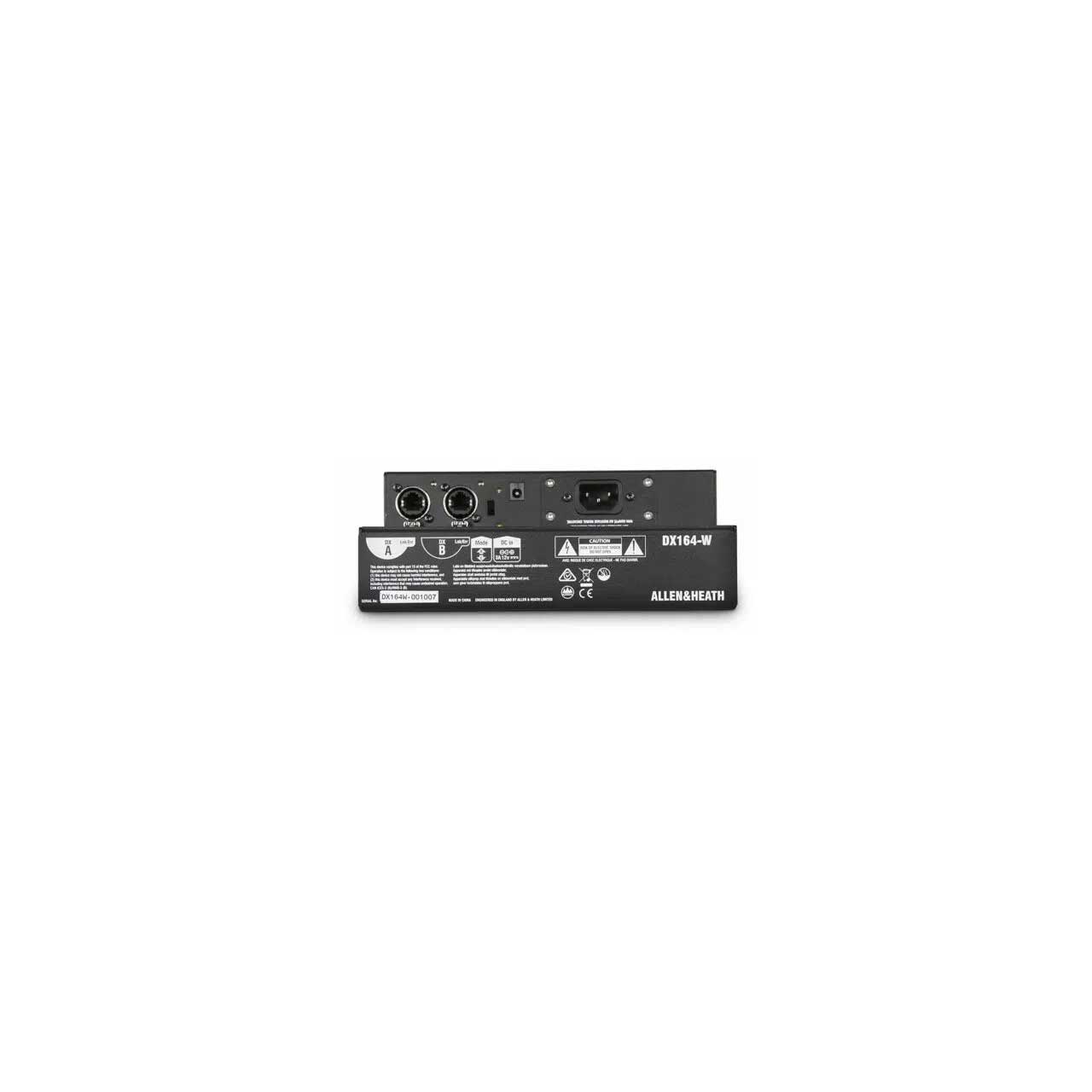

    The DX164-W can be placed up to 100m away from the mixer for maximum flexibility of positioning. The expander connects via a single Cat5e cable to the mixer or upstream DX Expander via a secure EtherCon port. A second locking EtherCon port is provided for redundant connection to compatible hardware, or for daisy-chaining to a downstream DX Expander for additional remote I/O.

    Flexible Power Options
    The IEC mains power inlet can be replaced with a gland module and screw terminals for fixed installation, and a DC 12V backup input is also provided.

    Compatible with:
    dLive
    Avantis
    SQ
    AHM-64

    • Features:

      • Designed for Wall Mount or Dip Trap installation
      • Compatible with dLive, Avantis, SQ and AHM-64

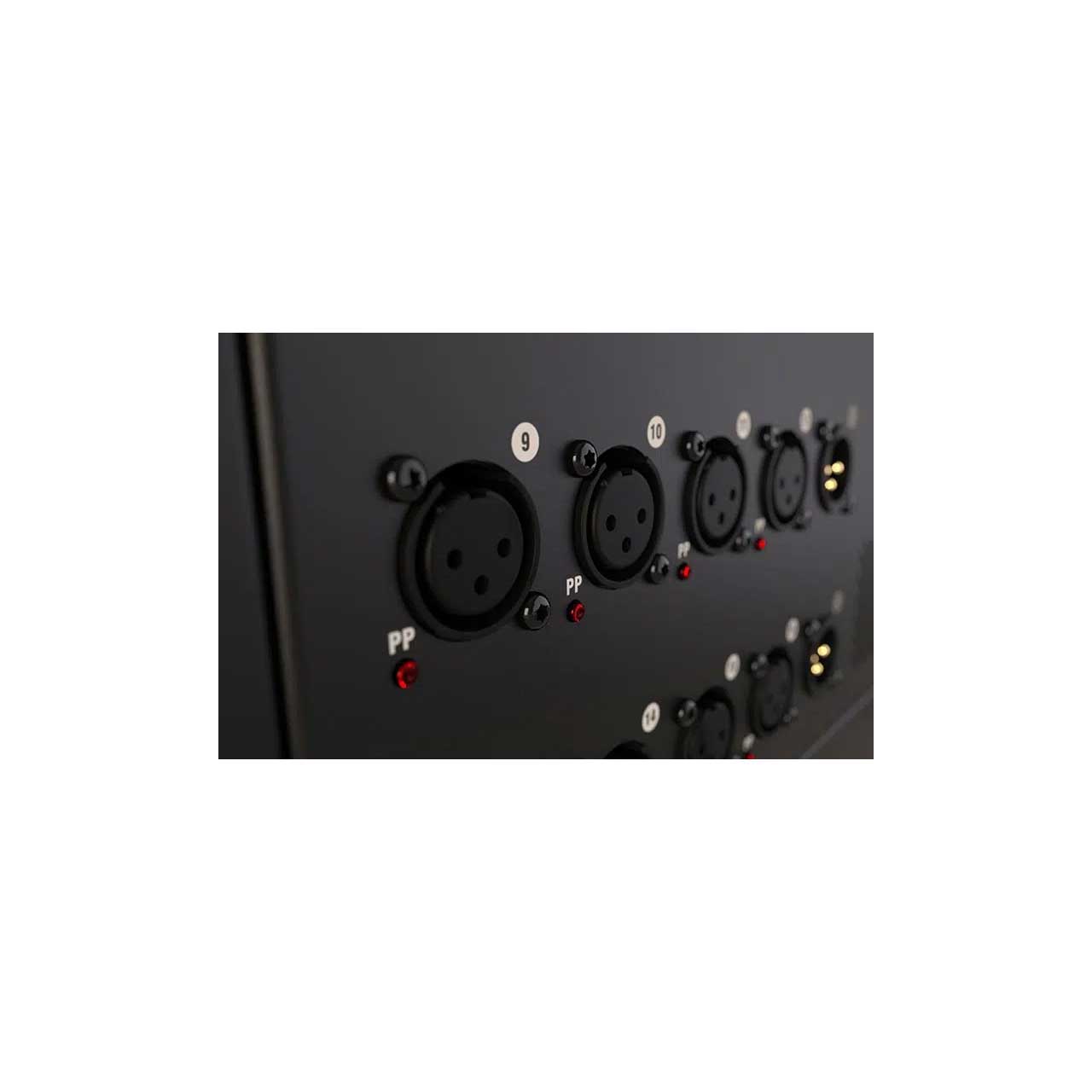

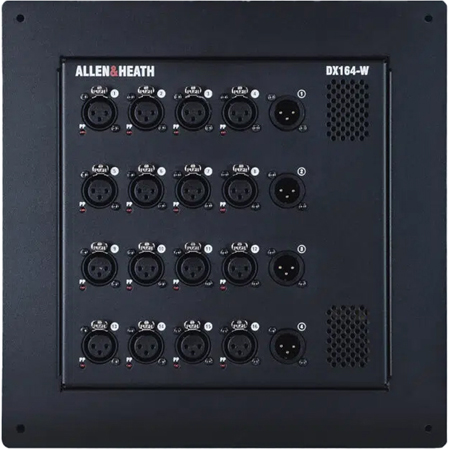

      • 16 Mic Preamps on XLR
      • Phantom Power LED per Input
      • 4 XLR Line Outs
      • DX A connection with locking Ethercon port
      • DX B locking Ethercon port for daisy chaining or redundancy


    • Specifications:

      • Mic/Line XLR Inputs
      • Balanced XLR, +48V phantom power
      • Mic/Line Preamp: Fully recallable
      • Input Sensitivity: -60 to +15dBu
      • Analog Gain: +5 to +60dB, 1dB steps
      • Pad: -20dB Active PAD
      • Maximum Input Level: +30dBu (PAD in)
      • Input Impedance: >4kΩ (Pad out), >10kΩ (Pad in)
      • Mic EIN: -127dB with 150Ω source

        Analog XLR Outputs
      • Balanced, Relay protected
      • Output Impedance: <75Ω
      • Nominal Output: +4dBu = 0dB meter reading
      • Maximum Output Level: +22dBu
      • Residual Output Noise: -92dBu (muted, 20-20kHz), 0dBu (muted, 20-40kHz)

        Power
      • Mains Voltage Operating Range: 100-240V AC, 50/60Hz
      • Mains Power Consumption: 35W max
      • DC Input: 12V DC, 3A max

        Physical
      • Operating Temperature Range 32°F to 95°F
      • Dimensions: 8.25" x 3.5" x 8.25"
      • Weight: 7lbs
