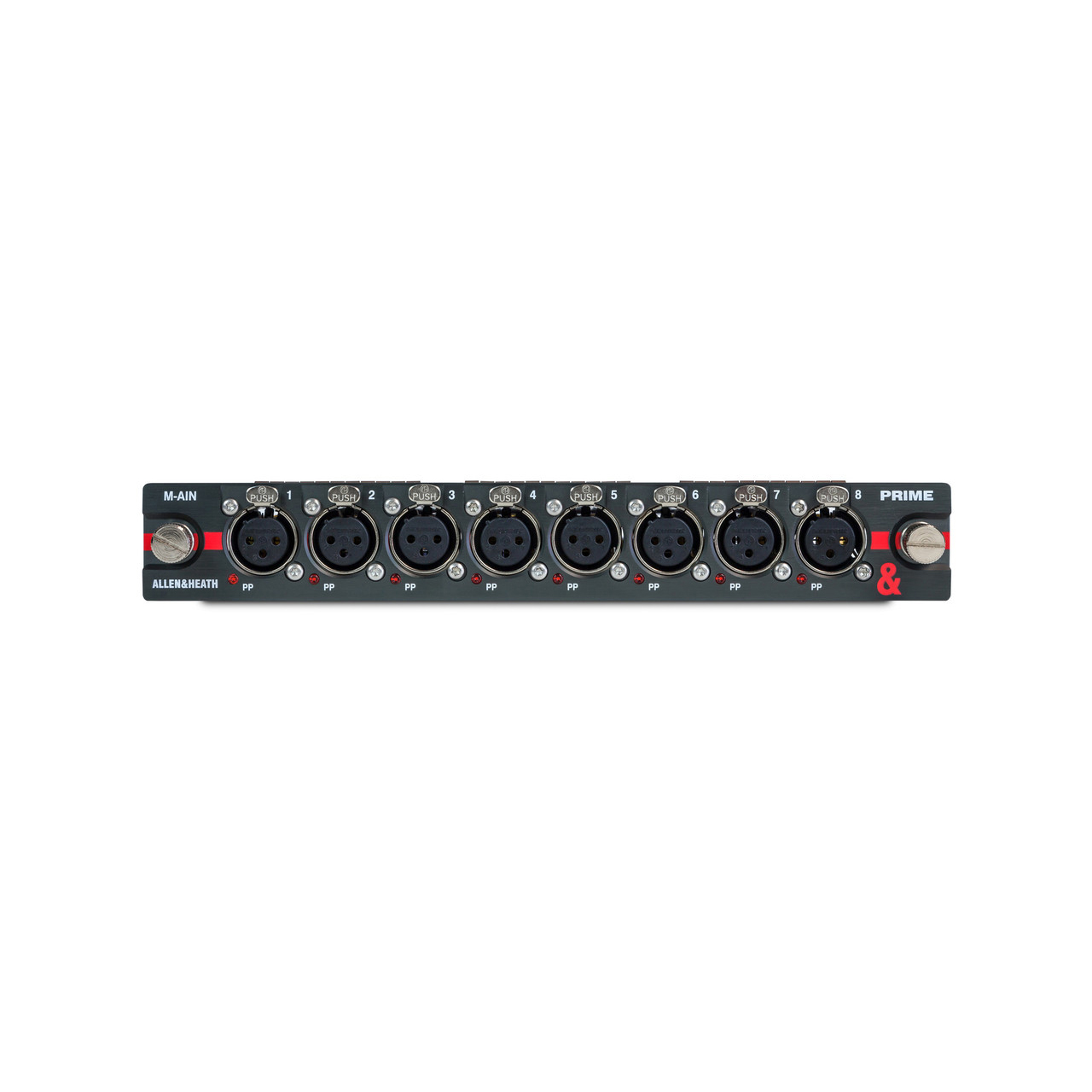

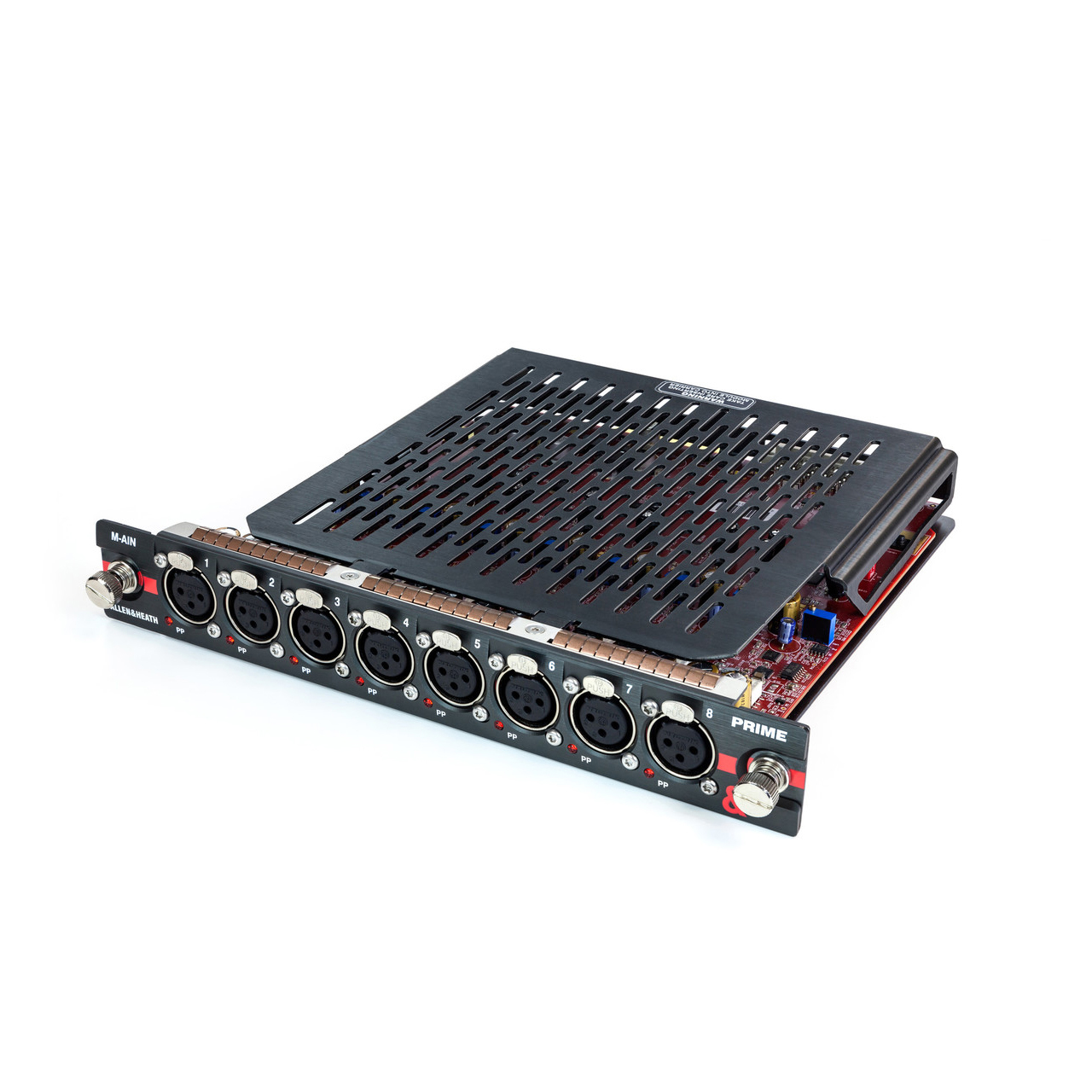

Allen & Heath DX32 PRIME Mic/Line Input Module - 8 Channel Mic Preamp for DX32 Expanders


Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup

    AH-M-DX32-PRIME-IN-A - Overview

    Next Generation Design
    With an ultra-flat frequency response from 1Hz all the way up to 40kHz, and an incredibly fast slew rate, PRIME delivers detailed and articulate audio to the mix engine at the highest possible resolution with breath-taking transient response, and full range linearity.

    While most preamps are based on AC coupled stages, PRIME has a DC coupled gain stage which eliminates the LF distortion typical of AC coupling, vastly improving low frequency linearity and phase response. This unique design calls for painstaking component choice and layout in addition to intensive per channel component trimming during commissioning.

    A Difference You Can Hear
    Because linearity was paramount in the design process, our design team made several innovations to improve high input level handling. A super-matched low noise quad transistor package on the front end dramatically reduces thermally induced very low frequency anomalies.

    Audiophile grade Nichicon FG (Fine Gold) electrolytic capacitors – manufactured using state of the art etching techniques – have been utilised in the signal path.

    Naturally, PRIME employs the very latest 32bit / 96kHz analogue-to-digital converters, but more importantlyalso

    Any combination of PRIME Input and Output cards can be installed in a DX32 modular expander. PRIME modules can also be mixed with existing analogue and digital DX32 I/O modules.

    • Features:

      • Next-generation Preamp Design With Dc Coupled Gain Stage
      • Use With DX32 for SQ, dLive & Avantis
      • Each Individual Channel is Fine-tuned by Hand for Optimum Common Mode Performance
      • Meticulous Design of Grounding and Power Supply to Minimise Noise and Distortion
      • Full Metal Shielding for Increased RF Rejection Throughout
      • The Very Latest 32-bit / 96kHz ADC for Class-leading Conversion
      • 4 Channels of Summed ADC Per Input for Extended Dynamic Range and Increased SNR
      • Optimised for Use With Our 96kHz XCVI FPGA Core
    • GTIN:
