Allen & Heath IP6 6-Rotary Encoder Remote Controller for AHM/Avantis or dLive with OLEDs - PoE Powered - includes PSU

ITEM #: AH-IP-6 MFG #: AH-IP-6

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: In Stock
iAvailability Description Popup

    AH-IP-6 - Overview

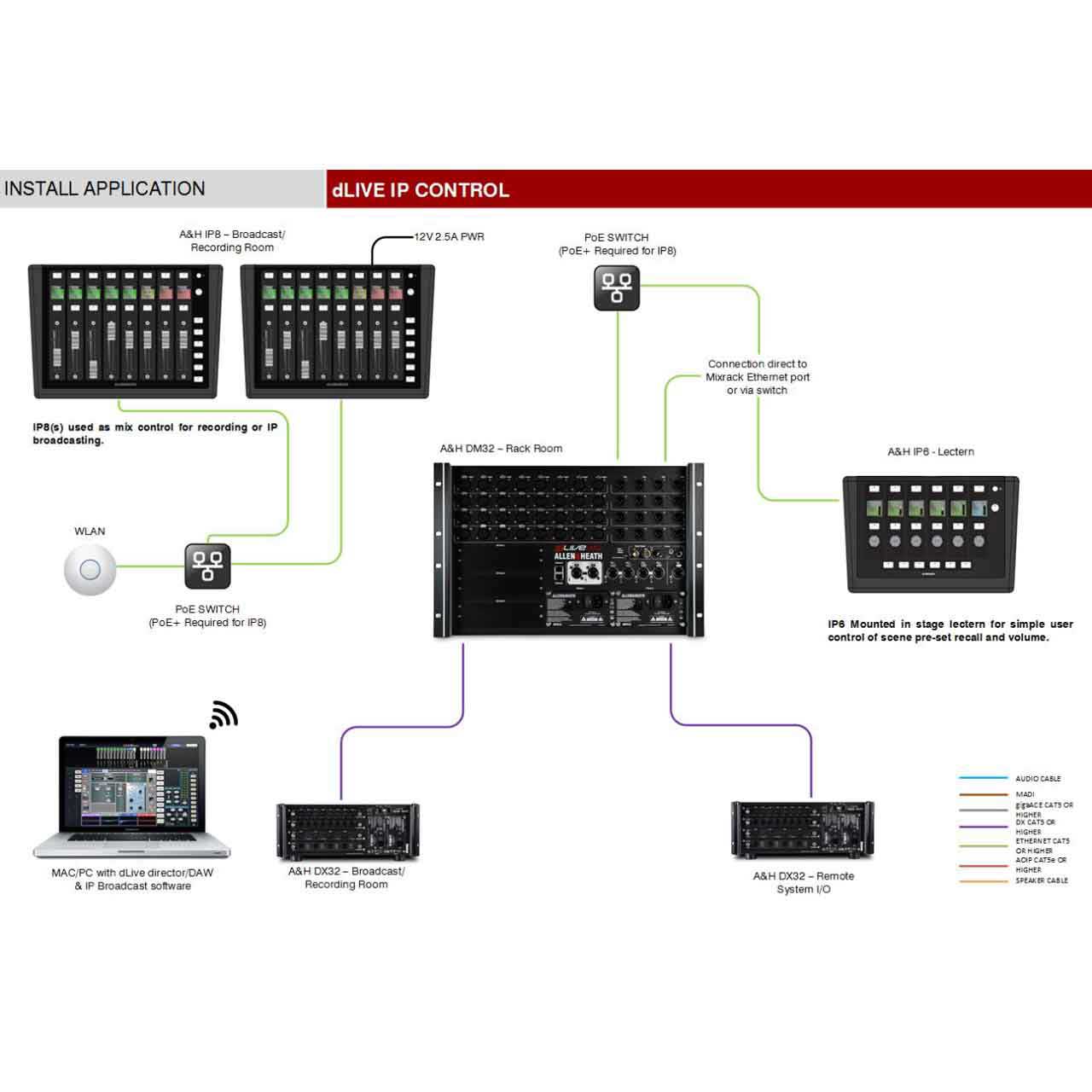

    Allen & Heath IP6 is a next generation remote controller for the AHM matrix processor, or for dLive and Avantis mixing systems, ideal for many install and live sound applications. It interfaces with the AHM, Avantis or dLive mixing system via standard TCP/IP Network connections and can be networked with other controllers, computers and third party devices using a standard Ethernet infrastructure. The IP controls and functions are configured using AHM System Manager or dLive Director software (PC or Mac), or via an Avantis mixer or dLive Surface, and can suit a number of applications including: The IP6 can be configured to control the Send levels, Pans and assignments of multiple channels to a specific mix on the dLive/Avantis, e.g. for wireless IEM use, giving musicians the freedom to control their own monitor sound. The installer or system integrator can configure the IP6 to provide the degree of control needed by the day to day operator, for example the levels of microphones and music sources in a room.

    • Features:

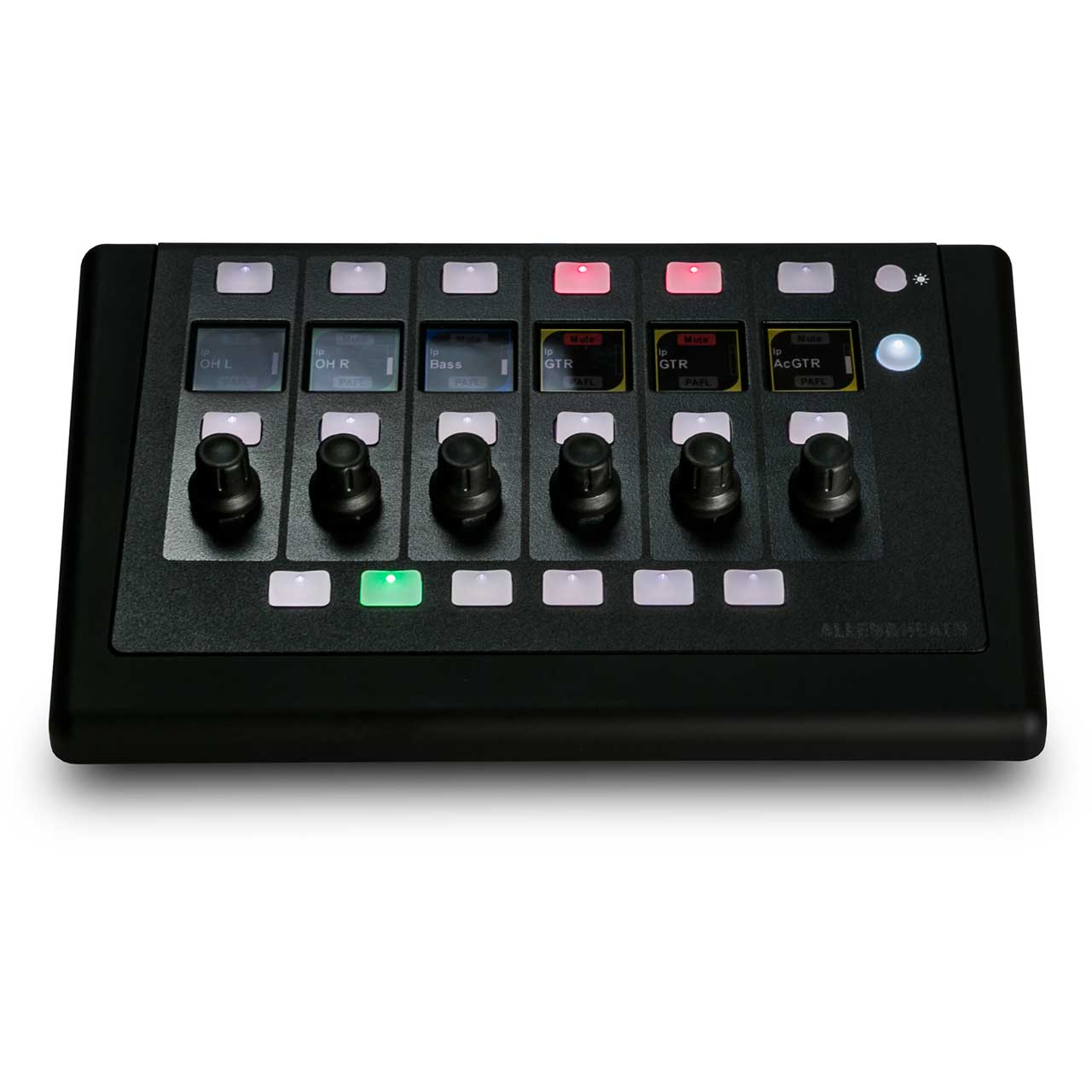

      • 6 Push n Turn Rotary encoders
      • 6x Layers
      • PoE or external 12V PSU (supplied)

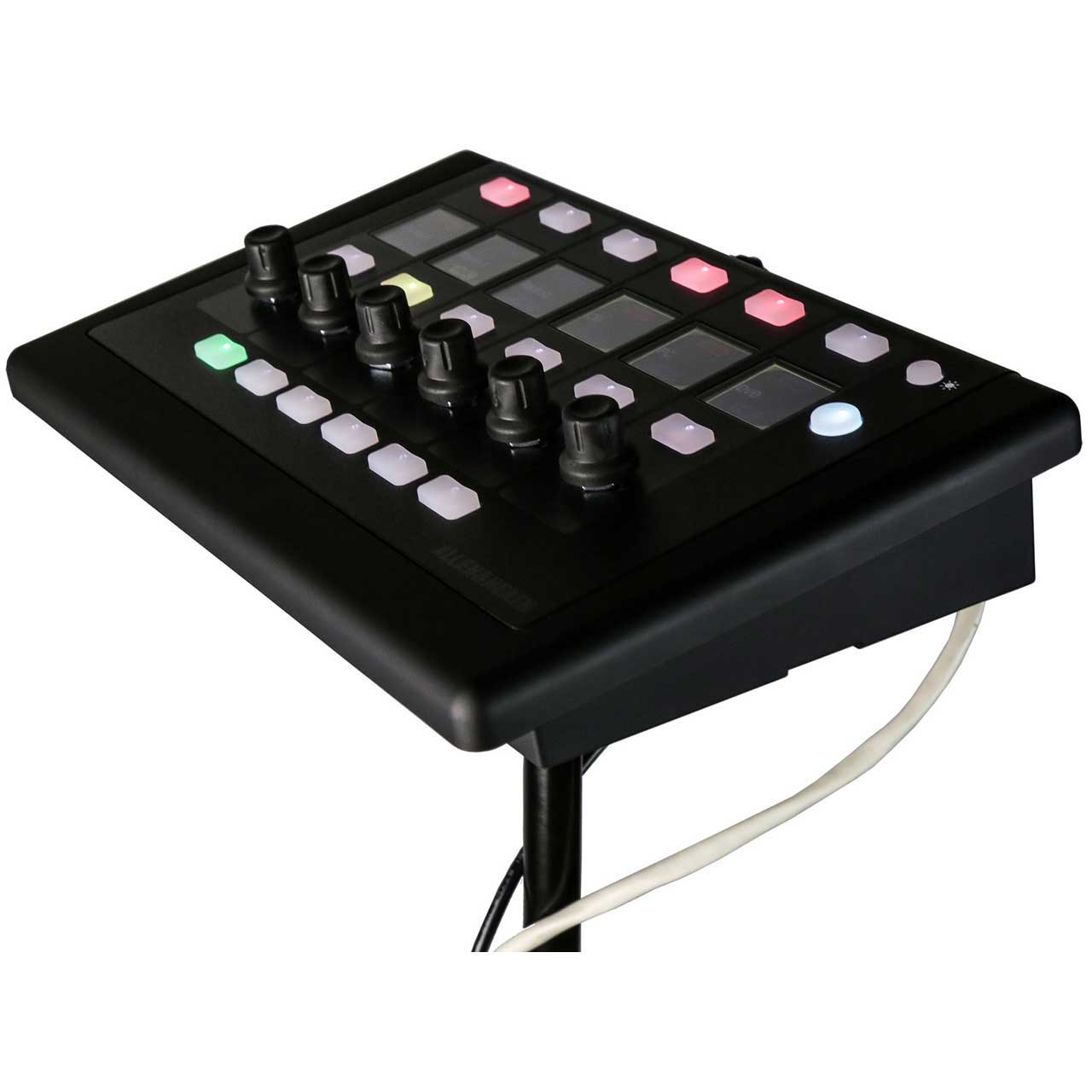

      • Optional mic stand bracket available (AB8999)
      • Optional headphone holder (AB8705)
      • Optional wall mount bracket (IP6-ME-MOUNT)
    • Specifications:

      • System
      • Network: Fast Ethernet 100MBps
      • Ext DC In: +12V, 360mA
      • PoE: 802.3af (15.4W at source)
      • Max power consumption: 5W
      • Operating: 0 deg C to 35 deg C
      • Temperature Range: 32 deg F to 95 deg F

      • IP6 - 227 x 150 x 55 mm - Width x Depth x Height
      • IP6 (boxed) - 300 x 330 x 170 mm - Width x Depth x Height
      • IP6 Weight : 3.3lbs
      • IP6 Weith (boxed): 3.5lbs
