Allen & Heath Right Angle LED Lamp for Mixer - 18 Inches


free ship

List Price:


Our Price:


Availability: In Stock
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.

AH-LEDLAMP-X - Overview

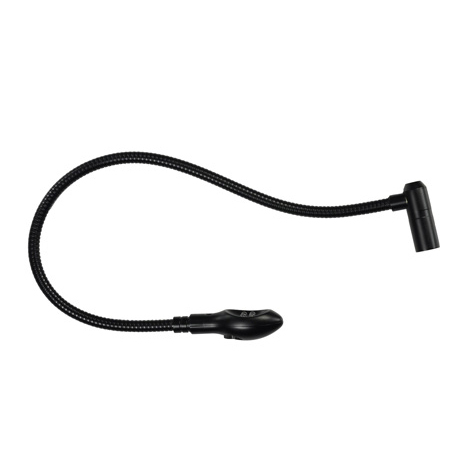

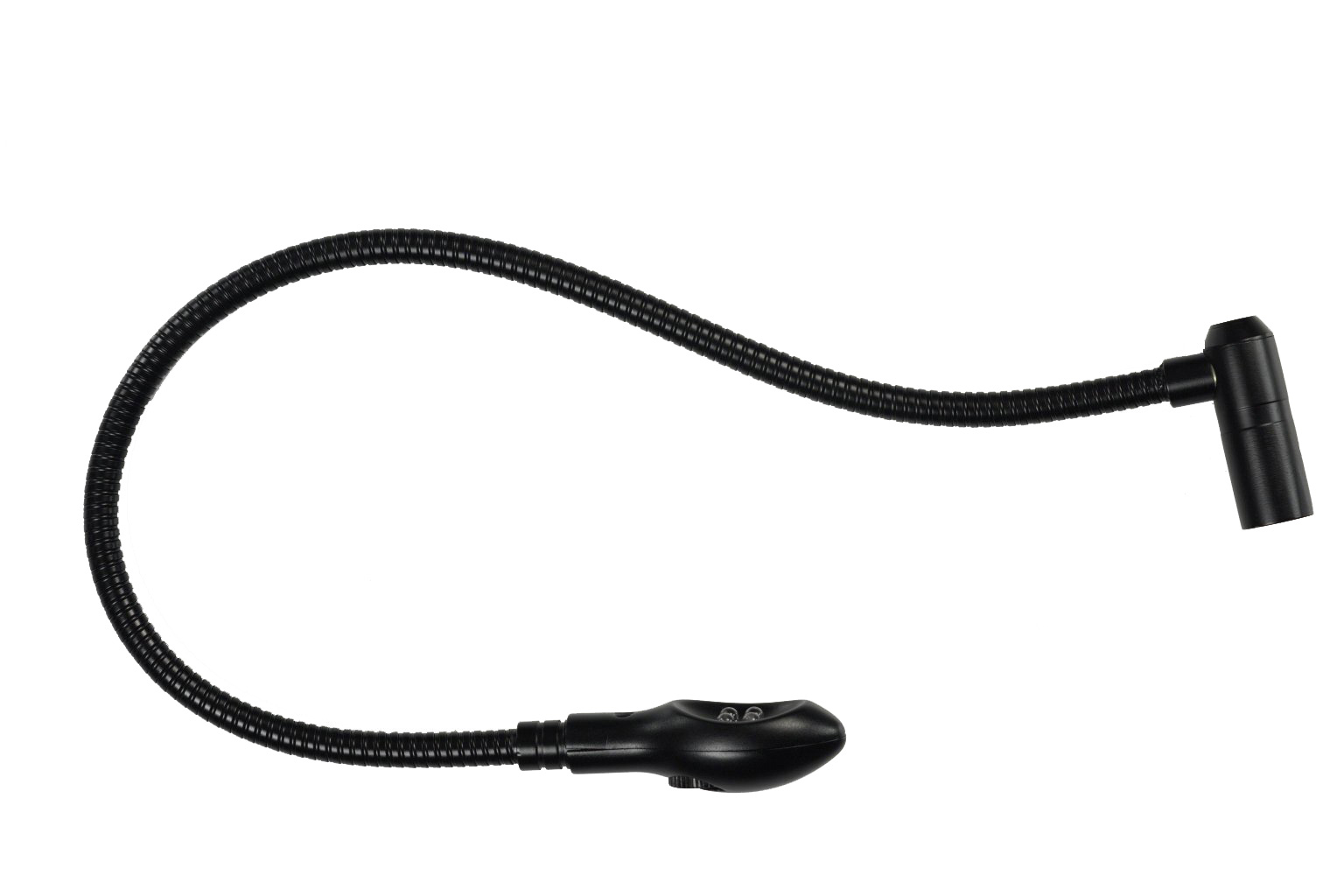

LEDLamp is a variable brightness 18" gooseneck lamp for mixing console and other equipment illumination using LEDs (light emitting diodes) instead of a filament bulb. The LEDs are angled at 40 degrees ensuring a suitably wide light dispersion. Producing a bright, white light, the LEDLamp is more relaxing on the eye and better suited to illuminating a console control surface than the yellow light of a filament bulb. Unlike the filament bulb, the LEDs do not produce heat and they do not require replacement in time. A dimmer function is built into the lamp head. The light can be variably dimmed using a knurled thumbwheel from fully on to almost off so that it can be set according to the operating brightness required.

The LEDLamp circuit is built into a strong, stylish plastic moulding to ensure protection and user comfort. The flexible metal gooseneck can be bent into shape to adjust to the area being illuminated. It terminates in a 4-pin metal XLR suitable for plugging into the mating socket as found on many consoles including those made by Allen & Heath. Alternatively, it can be powered from an external 12V power supply.

  • Features:

    • Flexible 4pin XLR (right angle) gooseneck LED lamp
    • Comfortable cool white light
    • Built-in dimmer for variable brightness
    • No need to replace bulbs
    • Low current requirement
    • Rugged construction with protective plastic head
  • Specifications:

    • Recommended power: 12V DC @ 35mA
    • Range allowed: 10 - 18V AC or DC
    • Maximum: 18V @ 8OmA
    • Light source: 4x super bright white LEDs
    • Brightness: Variable from low to fully on
    • Connector type: 4pin 90 degree male XLR
    • Wiring: Power across pins 3 and 4, case to shell
    • Mechanics: Metal connector and gooseneck, ABS head
    • Dimensions: Gooseneck 18", overall 22 1/2"
  • GTIN:
