    DANTE-AV-4K-R - Overview

    AJA Dante AV 4K-T and Dante AV 4K-R utilize the new Dante AV Ultra solution that enables networked video to be used alongside the industry leading Dante audio-over-IP platform on standard 1 GigE IP networks.

    Both devices support Dante AV Ultra signals up to 4K/UltraHD, with 12G-SDI and HDMI 2.0 inputs or outputs. Dante AV provides ease-of-use, seamless multi-vendor interoperability, and an integrated control experience that customers have come to expect from AJA Video and Dante by Audinate.

    Dante Controller
    Use Dante Controller software on macOS or Windows to set up your video and audio signal routing. Use this application to set up the video and audio routing between Dante devices, including Dante AV 4K-T and 4K-R, control the video and audio connections in the Dante setup, and move audio and video in real time over an Ethernet network. Please see the Dante AV 4K Quick Start Guide for more information.

    Dante Via
    Use Dante Via to configure audio devices to appear on the Dante network; for example, making the audio portion of AJA's Dante AV 4K-T and 4K-R appear as separate audio source channels on the Dante network.

    Dante Virtual Soundcard
    Dante Virtual Soundcard emulates a physical PC or Mac soundcard, but instead of connecting to actual physical audio devices like a mic, it connects to the Dante network. It can receive audio signals from the Dante network, including from Dante AV 4K-T and 4K-R, and present them to your DAW app just like a normal physical soundcard would.

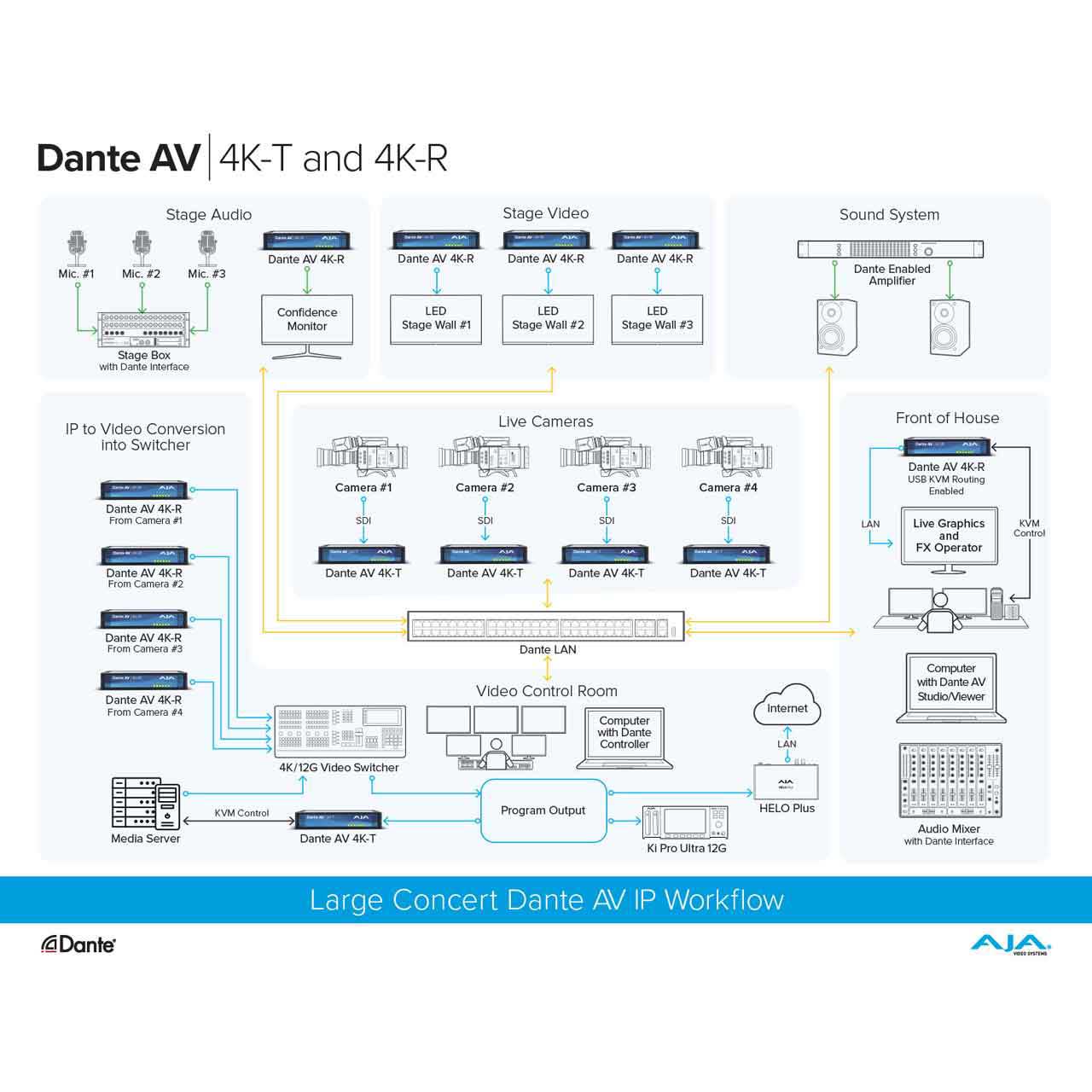

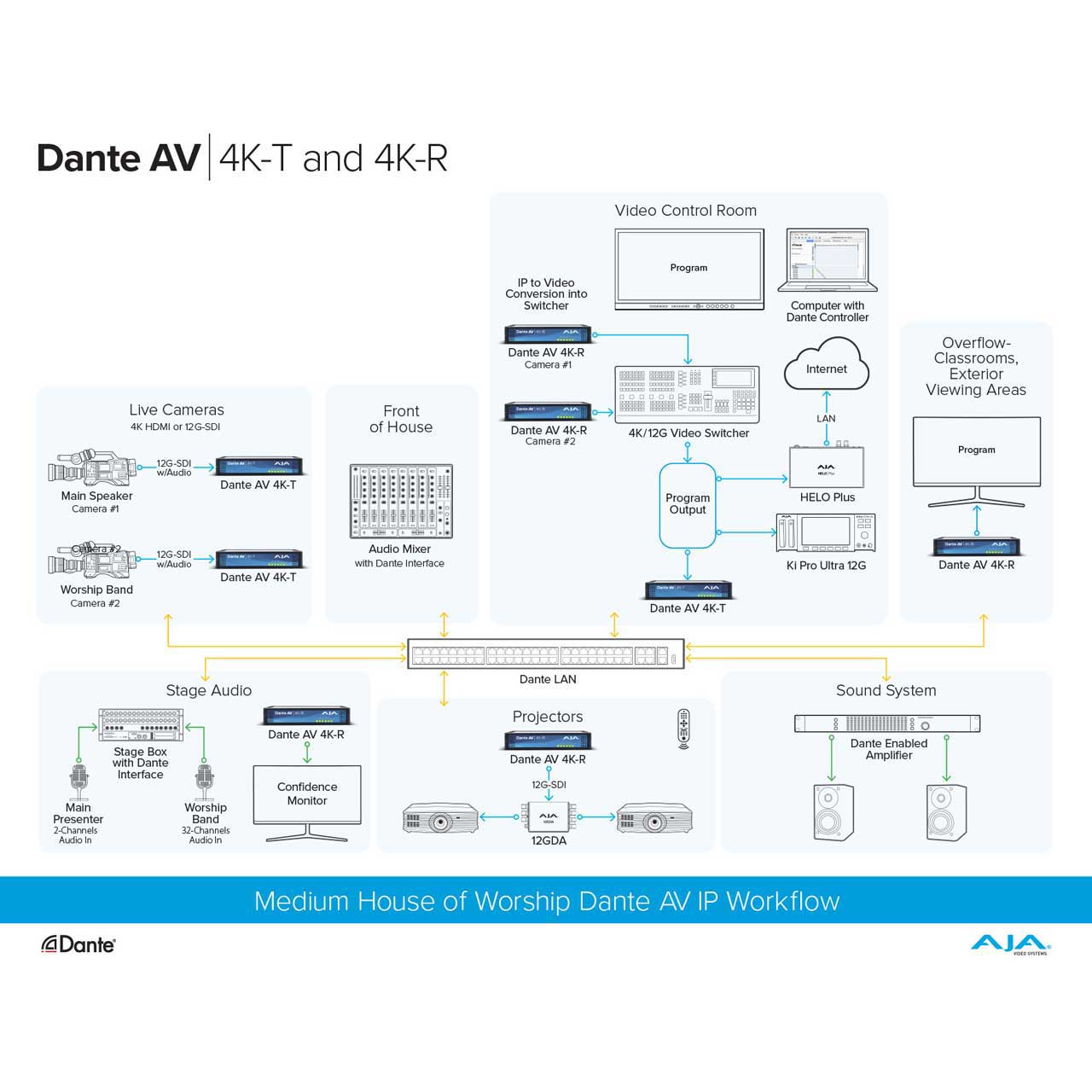

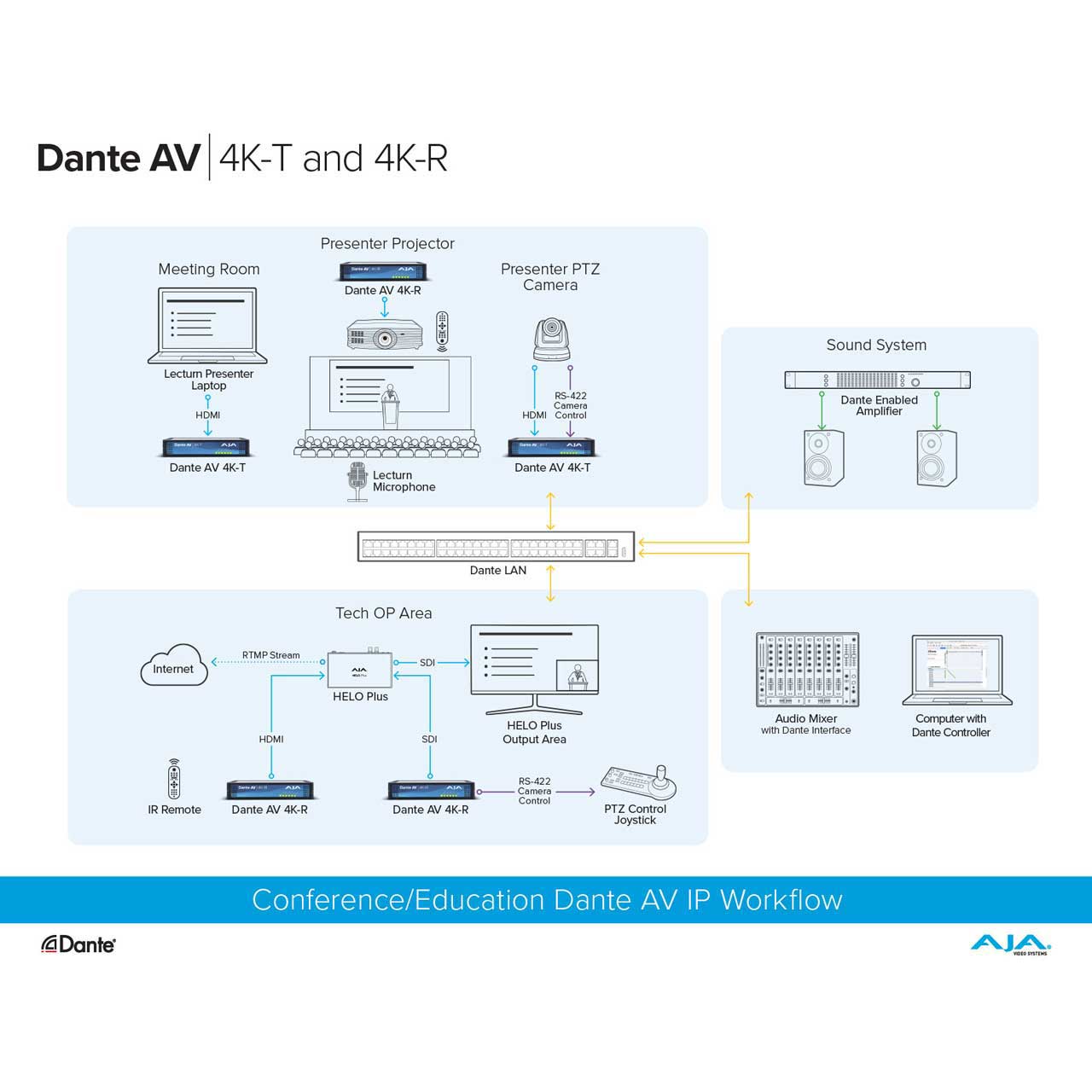

    Dante AV and Networking
    As an IP video product, the Dante AV 4K-T and Dante AV 4K-R need to be connected to a Dante network, either an existing network you might have for working with Dante audio or a new Dante purpose built network for Dante AV Ultra. In either case, for initial setup, the Dante AV 4K-T and AJA Dante AV 4K-R will need to be connected to a customer-supplied Mac or PC with the latest version of Dante Controller software from Audinate which you can find here: https://www.audinate.com/products/software/dante-controller

    Dante AV Ultra requires a managed network switch for operation. For further information on network switches compatible with Dante AV Ultra, please refer to Audinate's website: https://www.audinate.com/search/all/switches

    Audinate offers free classes on Dante set-up and configuration, which you can find here: https://www.audinate.com/learning/training-certification

    • Features:

      • Dante AV Ultra Receiver (JPEG 2000)
      • 4K/UltraHD/HD/VESA
      • 12G-SDI and HDMI 2.0 Out
      • 1 GigE POE+ IP
      • Compatible with Dante Controller software for routing Video, Audio, KVM, VISCA, and IR


    • Specifications:

      • Video Formats
      • (4K) 4096x2160p
      • (UltraHD) 3840x2160p
      • (2K) 2048x1080p
      • (HD) 1920x1080p
      • (HD) 1280x720p

        VESA Formats
      • (WUXGA) 1920x1200
      • (UXGA) 1600x1200
      • (SXGA) 1280x1024
      • (XGA) 1024x768
      • (SVGA) 800x600
      • (VGA) 640x480

        Media Transport Interfaces
      • Network Interface: Standard 1 GigE Ethernet
      • Audio Flow: Audio Flow x8 Flows/8-CHs per Flow (unicast or multicast)
      • Video Flow: Video Flow x1 Flow/1-CH per Flow (unicast or multicast)
      • Timestamp: Hardware timestamping, supporting sample accurate playback

        Video Output Digital
      • 1x 12G-SDI BNC, SMPTE 292 (1.5Gb/s), 424, 425-A(3Gb/s), 2081, 2082, 352 SDI Metadata Supported: YCbCr 4:2:2, 10-bit, Two Sample Interleave (2SI) 4K/UltraHD source mapping
      • 1x 12G SDI: (4K) 4096x2160p 50, 59.94, 60, (UltraHD) 3840x2160p 50, 59.94, 60
      • 1x 6G SDI: (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30
      • 1x 3G-SDI (Level A): (HD) 1920x1080p 50, 59.94, 60, (HD) 1280x720p 50, 59.94, 60
      • 1x 1.5G-SDI: (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, (HD) 1280x720p 50, 59.94, 60
      • 1x HDMI Type A connector, HDMI v2.0*: YCbCr 4:4:4, 4:2:2, SMPTE, or Full RGB 8, 10, 12-bit (4K/UltraHD 4:4:4 limited to 8-bit), (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60, (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60, (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60, (HD) 1280x720p 50, 59.94, 60, (WUXGA) 1920x1200, (UXGA) 1600x1200, (SXGA) 1280x1024, (XGA) 1024x768, (SVGA) 800x600, (VGA) 640x480
      • Notes: 1. VESA Formats are always RGB 4:4:4 60 8-bit 2. Only one input can be used at a time. Unit will auto-detect source, or user can select input in software if both SDI & HDMI inputs are connected. *If a connected monitor doesn't support HDMI protocol, the unit automatically switches to DVI protocol (which does not pass audio).

        Audio Input Digital
      • SDI embedded audio, 24-bit, 8-CH, 48 kHz PCM24
      • HDMI embedded audio, 24-bit, 8-CH, 48 kHz PCM24

        Audio Output Analog
      • 2x RCA analog audio
      • Levels at -10 dBu (nominal)

        IP Video Output
      • Dante AV Ultra
      • Single video channel
      • IP Audio Output
      • Dante Audio
      • Up to 8-CH audio, 24-bit per channel, 48 kHz PCM24
      • High quality, low jitter with onboard clock generator for audio
      • SRC Conversion Range: 1:8 to 8:1
      • ASRC Latency: 80 samples (1.6ms 48 kHz)

        Video Resolutions and Color Depth
      • SDI: Up to 4096x2160 60p; YCbCr 4:2:2 10-bit
      • HDMI: Up to 4096x2160 60p; RGB 4:4:4 8-bit, YCbCr 4:4:4 8-bit, YCbCr 4:2:2 8, 10, 12-bit
      • Audio Formats: Dante Audio over IP
      • Bit Rates: Up to 700 Mbps
      • Video Streaming: Unicast or Multicast
      • Copy Protection: HDCP 2.2, HDCP 2.3 for network
      • Latency: 0.5 frame (e.g., 2160p 60 Hz latency is < 8 ms between encoder and decoder), overall latency may increase depending on network configurations
      • Bandwidth 1: 4Kp60 10-bit 4:2:2; 500-600Mbps, results may vary depending on network configuration and management settings
      • Bandwidth 2: 1080p60 10-bit 4:2:2; 150-250Mbps, results may vary depending on network configuration and management settings

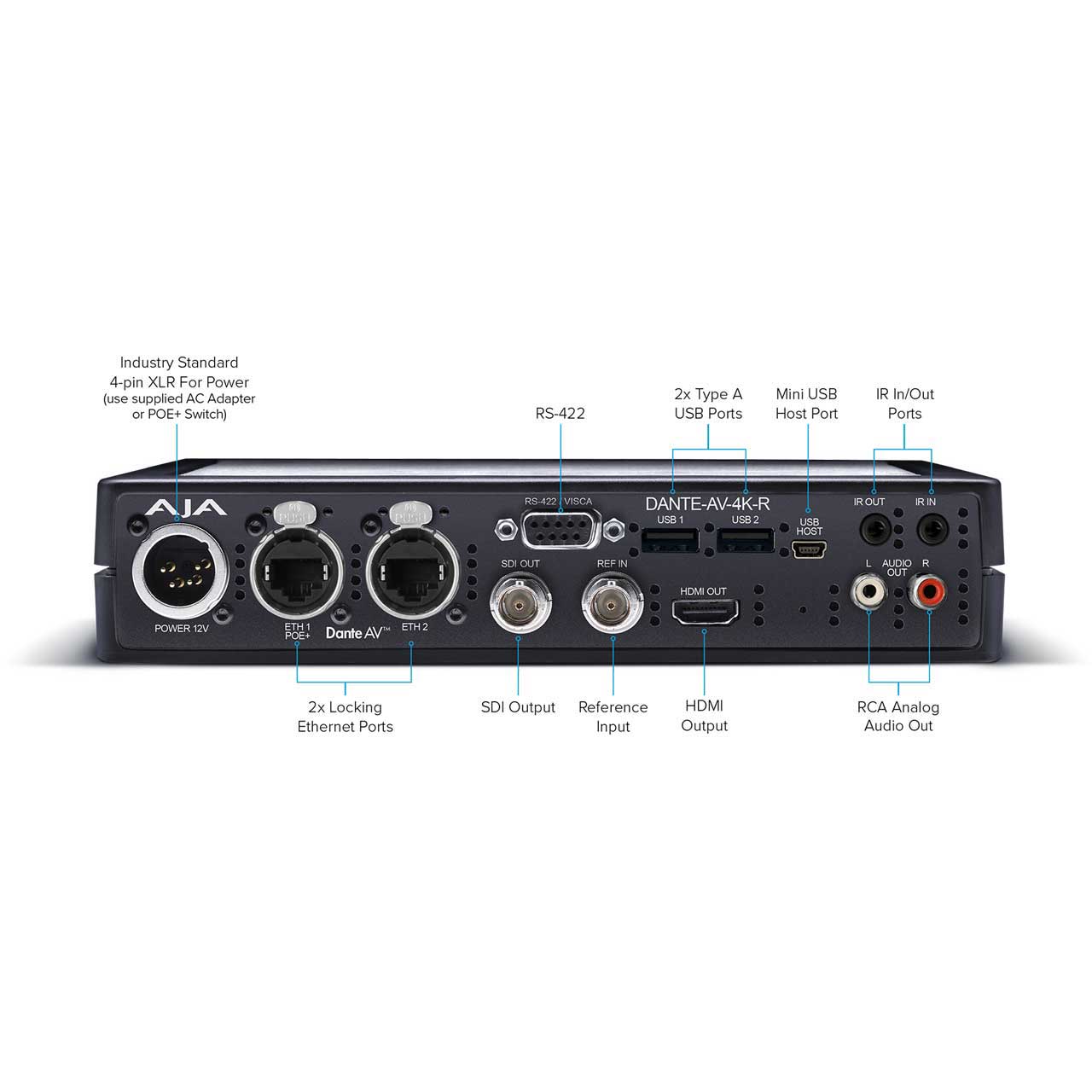

        Hardware Interface
      • 1x Neutrik etherCon RJ45 Connector - 1 GigE (Dante AV & POE+)
      • 1x Neutrik etherCon RJ45 Connector - 1 GigE (For future use)
      • 1x DB-9 RS-422/ VISCA Serial Port
      • 2x USB 2.0 Type A Connector
      • 1x USB 2.0 Mini-B Host connector
      • 3.5mm IR Tx/Rx jack for IR over IP

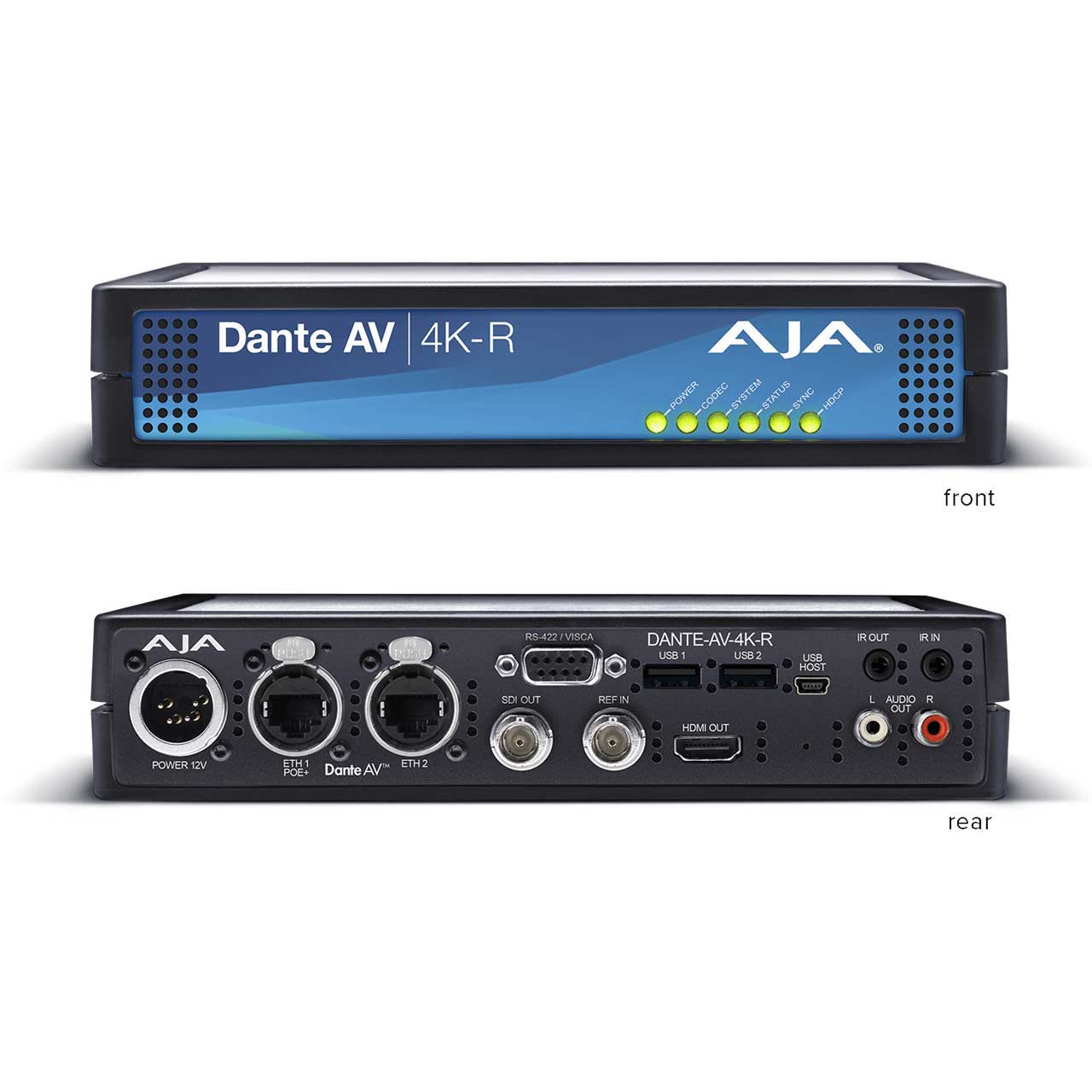

      • Front LED Indicators: Power, Codec, System, Status, Sync, & HDCP

        General
      • Operating Temperature: 32° to 104°F
      • Storage Temperature (Power OFF): -40° to 140°F
      • Operating Relative Humidity: 10 to 90% non-condensing
      • Operating Altitude: <10,000 feet
      • Dimensions (WxDxH): 8.74 x 7.09 x 1.65"
      • Weight: 3.1Lbs
      • Power Input: 1.5 A maximum 100-240 VAC, 50/60 Hz, Output: 4A 12 VDC; 12V DC IN has priority over Ethernet 1 POE+. Ethernet 1 POE+ will become active a fraction of a second after 12V DC IN is disconnected
      • For a list of full specifications, see the attachments tab


    • Item Includes:

      • 1x Dante AV 4K-R


    • Warranty:

      • Five year warranty
