AJA OG-X-FR OpenGear-Compatible 2RU Rackframe

ITEM #: AJA-OG-X-FR MFG #: OG-X-FR

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$1,956.00

Availability: In Stock
iAvailability Description Popup


    OG-X-FR - Overview

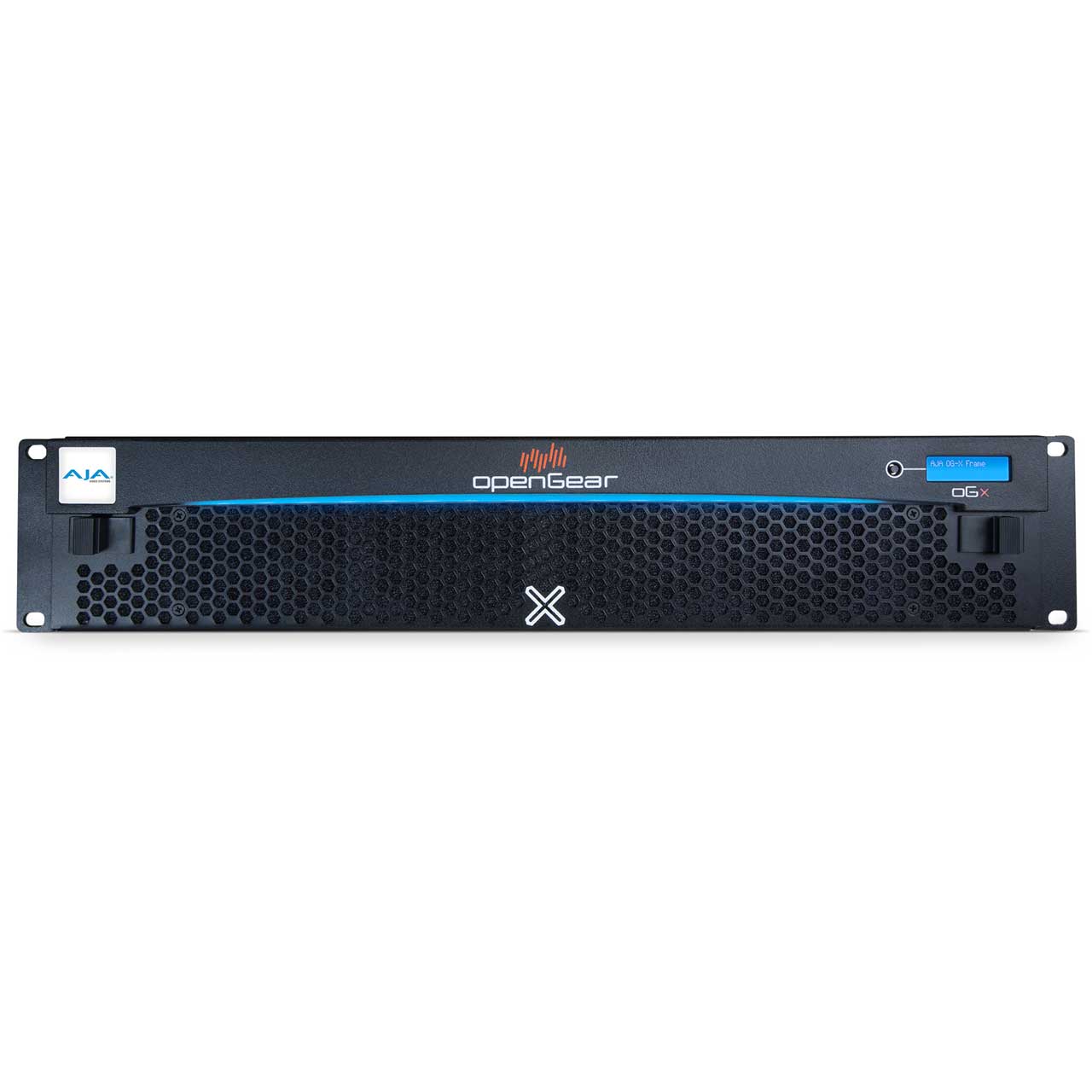

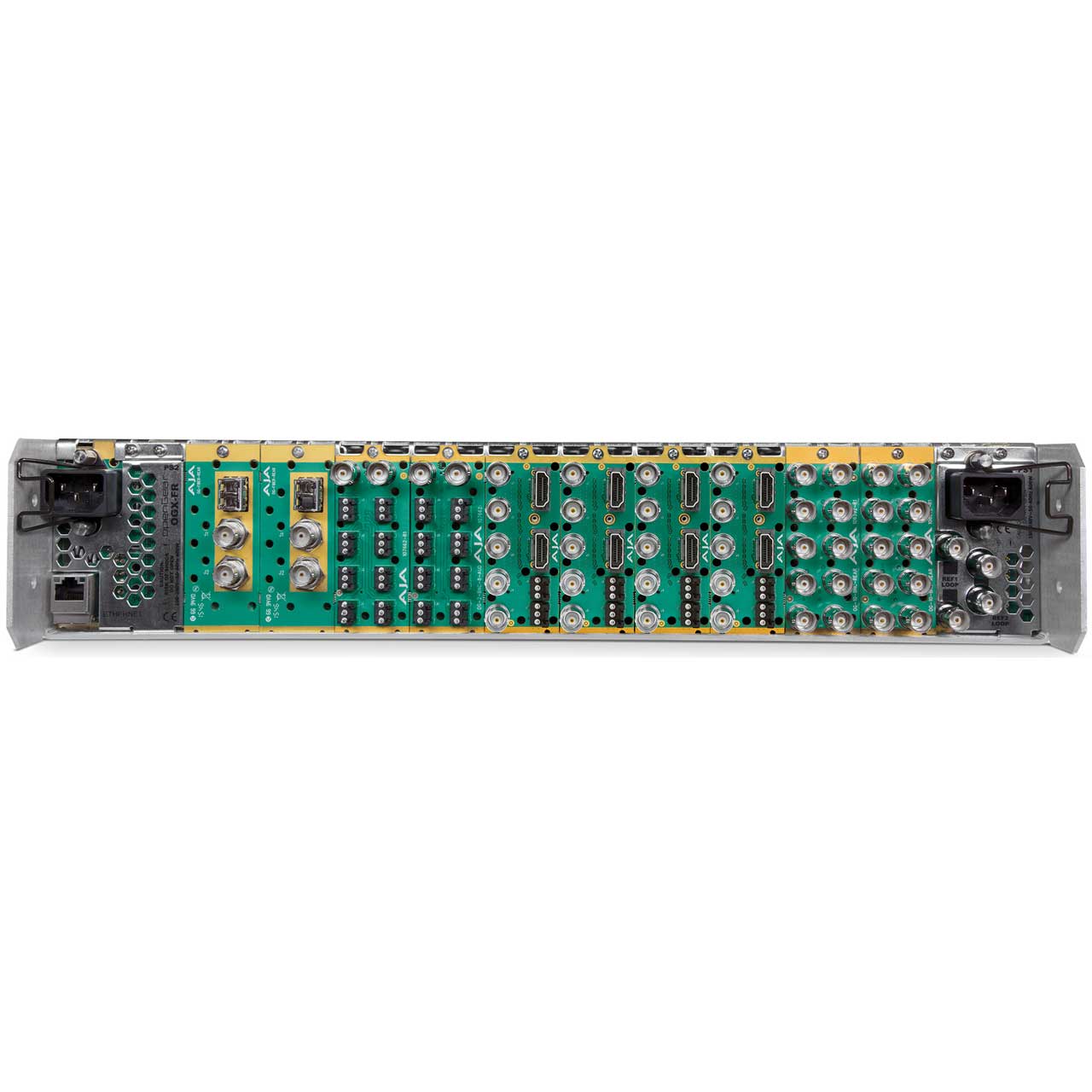

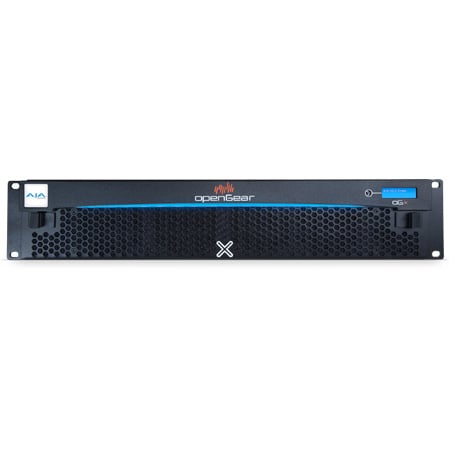

    The AJA OG-X-FR is a 2RU high openGear frame which is compatible with any openGear card and offers Dashboard support for the latest AJA Dashboard compatible openGear cards (cards sold separately). The frame has a 20-slot capacity with excellent cooling capabilities for high-density applications and compatibility with advanced openGear connectivity options for supported cards.

    openGear is an open-architecture, modular frame system designed by Ross Video and supported by a diverse range of terminal equipment manufacturers, including AJA. The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the future of rackframe products.

    One control system unites all openGear suppliers: DashBoard for setup, real-time control, monitoring, and tools for creating customized workflow through CustomPanels. The optional Advanced Networking controller from ROSS features DataSafe, which automatically saves and restores settings if a module is swapped.

    While many of AJA's openGear cards are energy-efficient, the high-density nature of rackmount cards can generate heat in a small space. Integrated fans in the OG-X-FR keep internal components operating at acceptable temperatures, leading to improved reliability and longer card life. OG-X-FR offers more power and cooling for the most demanding UltraHD, 12G SDI & IP workloads.

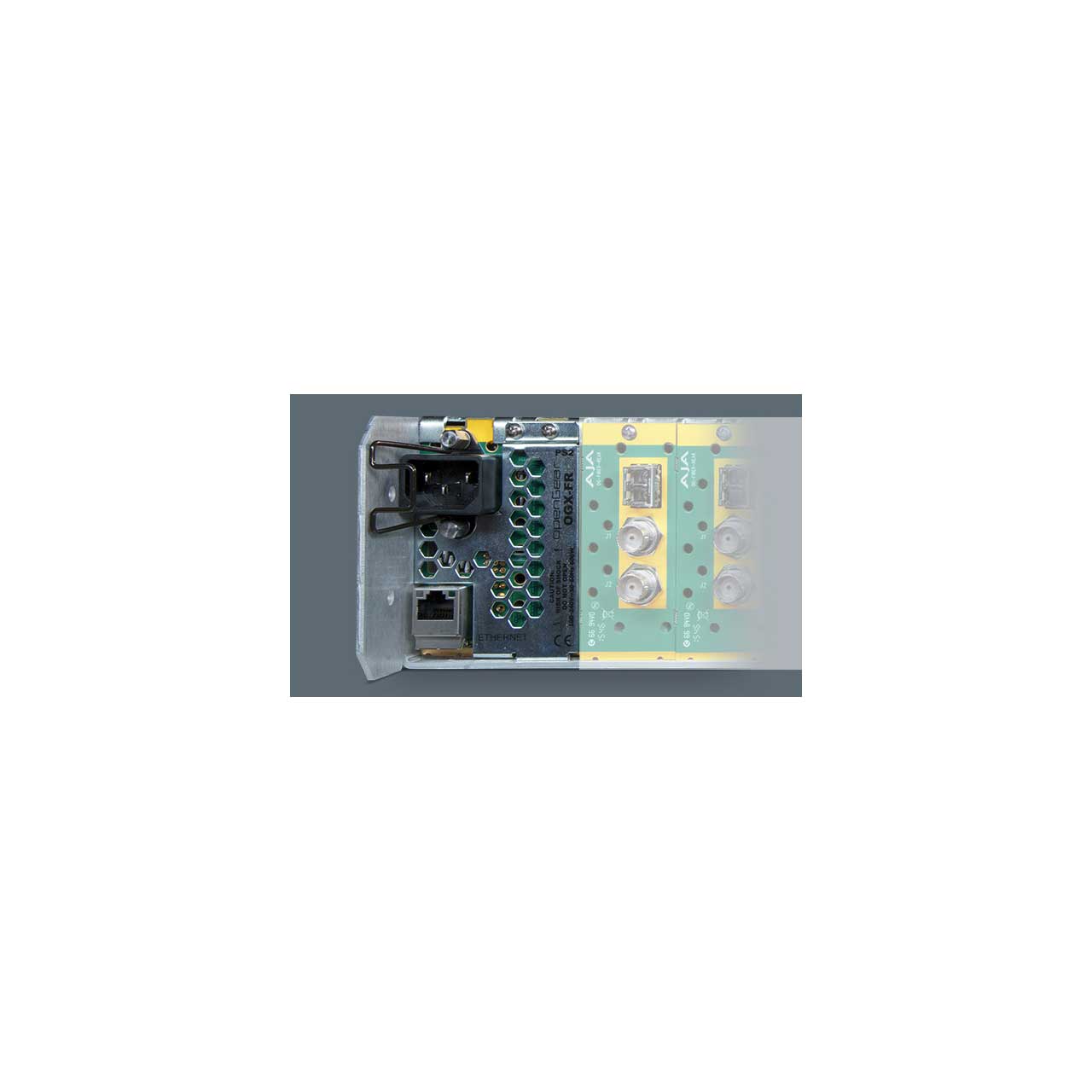

    OG-X-FR accommodates 2 front-loaded, hot-swappable power supplies. Each power supply contains an independent cooling fan, status LED, and a front mounted power switch. OG-X-FR ships with a power supply included, and an optional redundant power supply is available. A fold-down front panel provides you quick access to any of the installed cards for easy maintenance or replacement without having to remove the rack frame or climb behind the rack.

    • Features:

      • 2RU frame with capacity for up to 20 openGear cards
      • 600 watt power supply with integral cooling, optional 2nd power supply
      • Front LCD display for name, IP address and fault identification
      • FrameGlow customized identification and alarming
      • Support for analog, digital, video, audio, SDI and IP modules in the same frame
      • Removable front door and air filter for easy fan servicing and maintenance
      • Standard DashBoard control system for setup, control and monitoring
      • Includes preinstalled standard network card (MFC-8322-S)

    • Specifications:

      • Frame Controller and Fans
      • Total Power: 50W maximum
      • Max. Power: +12V Rail 4A, 48W
      • Max. Power: -7.5V Rail 0.2A (1.5W)

        GFC-8322
      • Total Power: 3.9W maximum
      • Max. Power: +12V Rail 0.2A (2.4W)
      • Max. Power: -7.5V Rail 0.2A (1.5W)

        Reference Inputs
      • Number of Inputs: 2 looping
      • Level: 1Vpp nominal
      • Signal: Analog video sync (Blackburst or tri-level), or AES/EBU DARS
      • Impedance: 75 ohms terminating
      • Return Loss: >30 dB to 30 MHz
      • Maximum DC on REF Input: ±1V

        Card Slots
      • Number of Slots: 20
      • Total Power Available: 500W
      • High Density (Split) Rear Module: 15W per card, accommodates two openGear cards and requires two slots in the frame chassis
      • Standard Rear Module Accommodates one openGear card and requires two slots in the frame chassis: 30W per card, or 45W if the openGear card has integrated cooling.
      • Double Wide Rear Module: 60W per card, or 75W for a single card with integrated cooling, or 90W for a multi-slot assembly with integrated cooling and receiving power from two or more midplane connectors.

        Physical
      • Dimensions (WxDxH): 2RU 3.5 x 19 x 17.7"
      • Power Input: 6.3A (650W)
      • Power Output: 1: 12V 41.6A, 500W maximum; 2: -7.5V 5A, 37.5W maximum (Sum of both outputs not to exceed 500W)
      • Safe Operating Temperature: 0° to 40°C (32° to 104°F)
      • Operating Relative Humidity: <90% non-condensing

    • GTIN:

      0812321031423
