    CONVMSDIDA4K - Overview

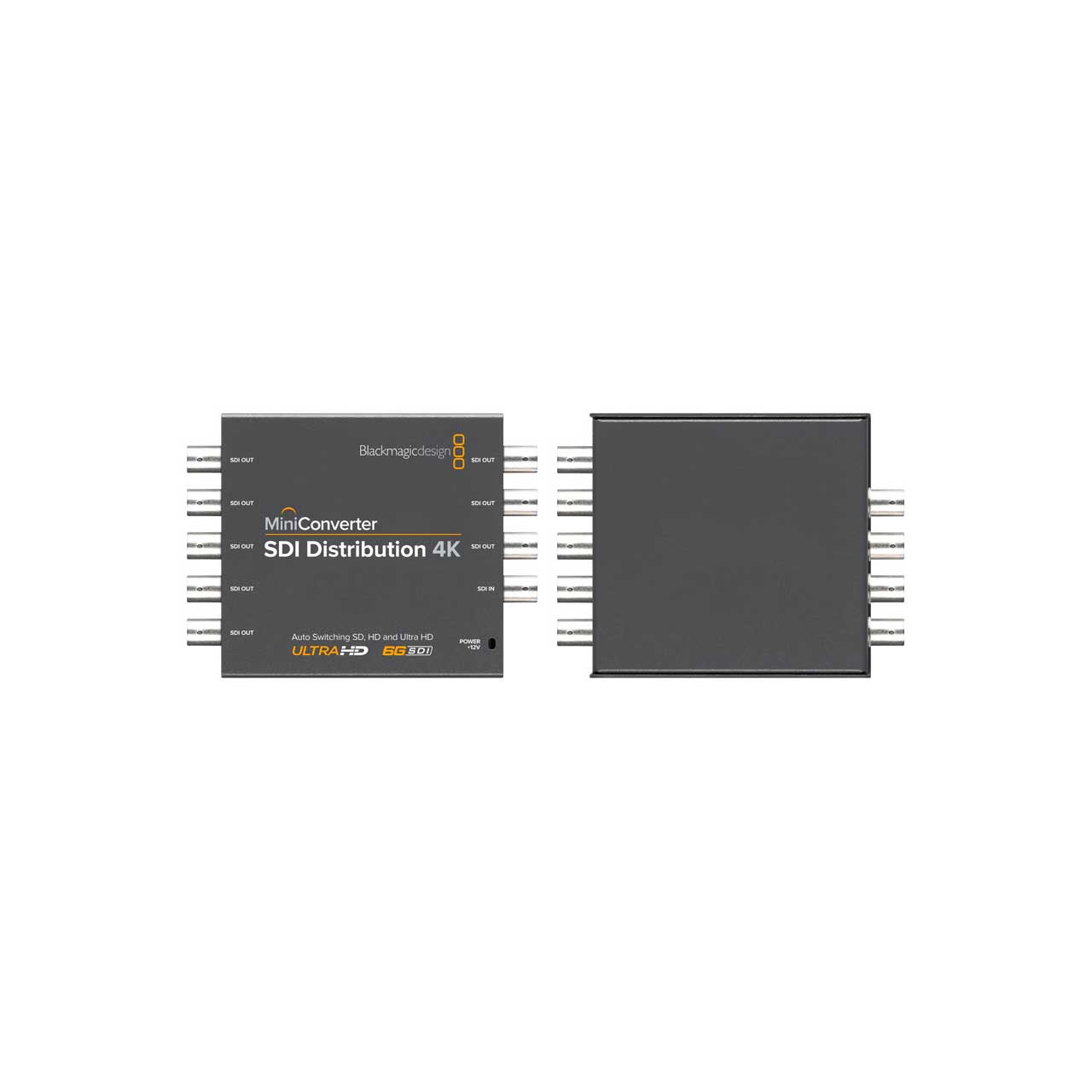

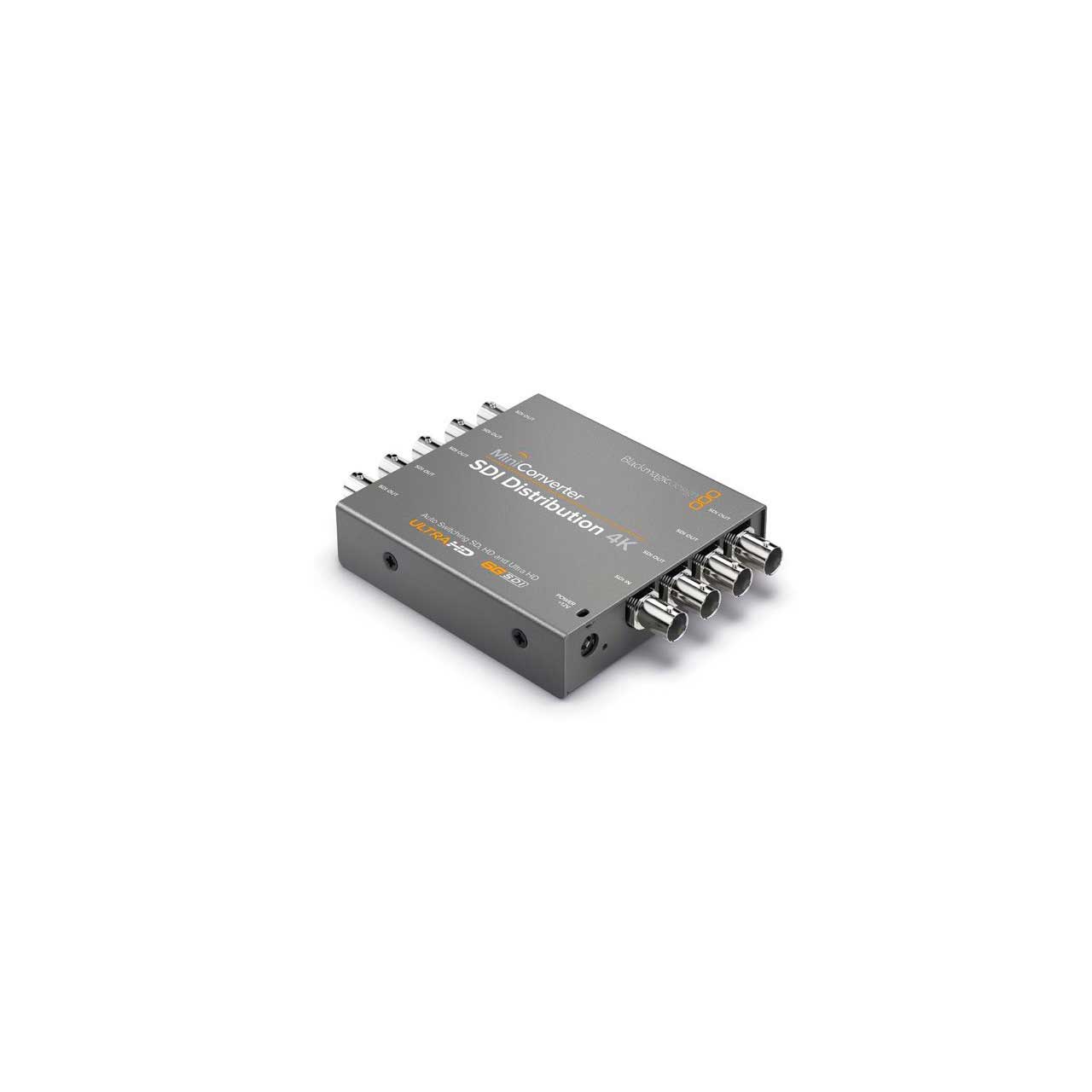

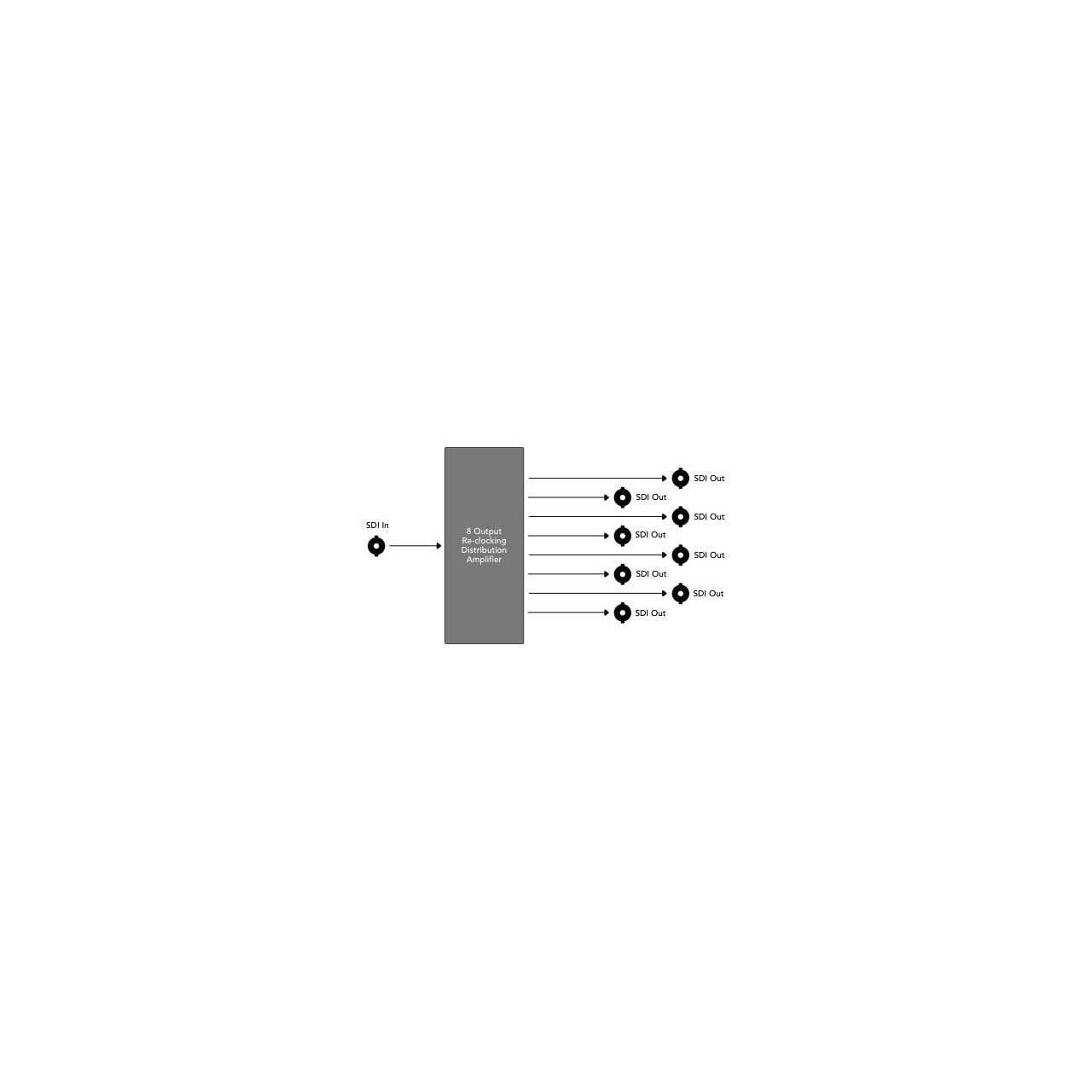

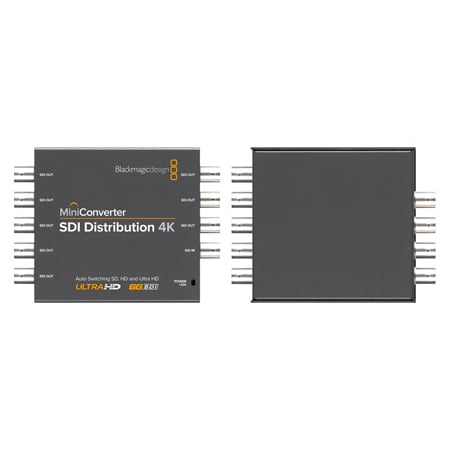

    The Blackmagic SDI Distribution 4K Mini Converter allows you to distribute a Single Link SD/HD/3G/6G-SDI signal to eight SDI devices simultaneously. It automatically detects the input signal type, re-clocks it, and its eight outputs automatically match the SDI input video format. With a compact form factor and easy-to-use controls, the Mini Converter is ideal for a variety of broadcast, post production, and professional AV applications.

    Using 6G-SDI technology, the Mini Converter supports resolutions up to Ultra HD 4K (3840 x 2160) at up to 30 fps and DCI 4K (4096 x 2160) at 24 fps, as well as SD, HD, and 3G-SDI signals. It supports all SDI-related transmission features, including embedded audio, ancillary data, and even handles ASI signals - asynchronous signals that carry multiple compressed programs that can be at varying transmission speeds. The Mini Converter's settings are controlled using the built-in DIP switches or via USB using the included software for Max OS X or Windows computers. The USB port also enables the firmware to be updated. For powering the device, a 12V power supply is included with international socket adapters.

    • Features:

      • Single Link SD/HD/3G/6G6G-SDI Input
      • 8 Single Link SD/HD/3G/6G-SDI Outputs
      • Re-Clocked Outputs
      • Supports SD, HD, UHD 4K & DCI 4K Signals
      • Automatic Input Signal Detection
      • Ancillary Data & Embedded Audio
      • Supports ASI Signals
      • Control via DIP Switches or Software
      • USB 2.0 Port for Firmware Updates
      • 12V Universal Power Supply Included
      • 4:2:2 and 4:4:4 sampling and color precision
      • 24-bit, 48 kHz audio sampling
      • Compliant with SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, and SMPTE 425M standards
    • Specifications:

      • SDI Video Input: Switchable between SD, HD and 6G-SDISDI.
      • SDI Video Output: 8 outputs automatically match the SDI video input.
      • Multi Rate Support: Auto detection of 6G-SDI, HD or standard definition inputs.
      • Reclocking: Yes
      • SD Format Support: 525/29.97 NTSC, 625/25 PAL
      • HD Format Support: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080p50, 1080p59.94, 1080p60
      • 2K Format Support: 2048x1080PsF23.98, 2048x1080p23.98, 2048x1080PsF24, 2048x1080p24, 2048x1080PsF25, 2048x1080p25
      • 4K Format Support: 3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p29.97, 3840x2160p30, 4096x2160p24
      • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M and SMPTE 425M
      • SDI Video Rates: SDI video connections are switchable between 6G-SDI, HD and SD-SDI
      • SDI Video Sampling: 4:2:2 and 4:4:4
      • SDI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.
      • SDI Color Precision: 4:2:2 and 4:4:4
      • SDI Color Space: YUV and RGB
      • SDI Auto Switching: Automatically selects between SD SDI, HD-SDI and 3G- SDI.
      • ASI Support: Yes
      • Power Supply : +12V universal power supply included with international socket adapters for all countries. Cable tie point.
      • Power Consumption: 4.80 Watts
      • Operational Voltage Range: 12V - 30V
      • Operating temperature: 0deg. to 40deg. C (32deg. to 104deg. F)
      • Storage temperature: -20deg. to 45deg. C (-4deg. to 113deg. F)
      • Relative Humidity: 0% to 90% non-condensing
      • Dimensions: 4.80 x 3.63 x 0.90 inches (12.19 x 9.22 x 2.29 cm)
      • Weight: 11.88 ounces
    • Item Includes:

      • Mini Converter SDI Distribution
      • Software CD
      • 12V universal power supply with international socket adapters
    • GTIN:
