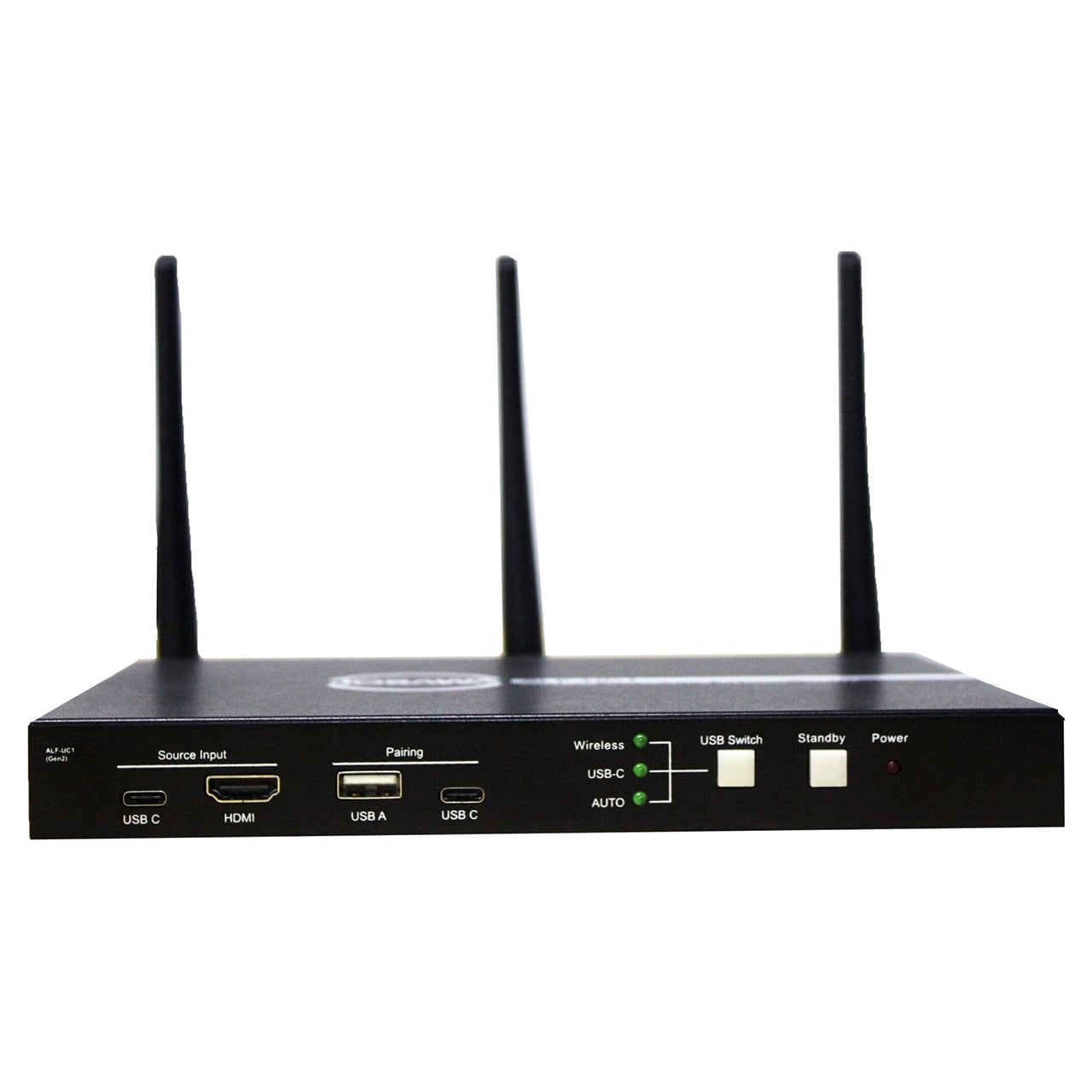

Alfatron ALF-UC1 GEN2 4K Seamless Wireless Conferencing Switcher - 5 Inputs / HDMI & HDBaseT Outputs - Includes Receiver

ITEM #: ALF-UC1-GEN2 MFG #: ALF-UC1 GEN2

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$899.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


ALF-UC1 GEN2 - Overview

The Alfatron ALF-UC1 Gen2 is a 4K wireless conferencing system with two HDMI outputs and 4K optional dongles which makes connecting or participating within a meeting simple, with the touch of a button. Presenters (or even a series of presenters) can link your display with full-HD video and audio without the need for cables, converters or the need to be mindful of where connection plates may be in the room.

Switching between presenters is simple and logical; you can even split your screen and connect two presenters at once! (Up to 4 images on 1 Display and a 5th on another display) The UC-1 system allows either direct connection or by using an external "dongle" (to manage who can and cannot connect at any given time) from Android, Airplay for IOS, Miracast (Windows) and MAC OS over the local network.

The UC-1 Generation 2 now features a secondary HDMI output which can connect to an additional display device, a recorder, a confidence-monitor or remote display in another location. The UC1 Gen 2 has a wireless software application as well which provides a simple way to connect wirelessly to the unit from any Windows, Mac OS platform. This application has an intuitive interface and allows for ease of use for the features built in the application such as sharing screen, making your share full screen or not, freeze screen, local share and a whole host of setting such as audio selection on the USB connections and quality of the latency.

  • Features:

    • Output 1 Resolutions up to 4K60
    • Output 2 Resolutions up to 1080p60
    • HDMI 1.4 and 2.0 compliant
    • HDMI, UBC-C input resolutions up to 4k30
    • ALF-HDMI-D (Gen2) and ALF-USBC-D (Gen2) Dongle input resolutions 4k30
    • Airplay, Miracast and Chromecast resolutions 1080p60
    • Unit supports up to 3x USB-A 3.0, 1x Type USB C (2.0 Pairing), 3x USB-A 2.0 (touch and pairing)
    • Audio outputs HDMI, Phoenix connector, USB.
    • Supports all major operating systems Windows, MacOS, Android, IOS.
    • Plug-and-Play solution with Wireless USB drivers required
    • WIFI Data rate is WIFI IEEE 802.11 b/g/n/ac
    • WIFI 2.4GHz and 5GHz supported
    • Lan port is a 1Gbs speed
    • Latency <100ms, Minimum 20s
    • Control method is Web GUI, Telnet, RS232, Front buttons.

  • Specifications:

    • Video Output: 2x HDMI type A 19-pin female connector
    • Video Output Resolution:
      • HDMI Main: 3840x2160@60Hz, 3840x2160@30Hz, 1920x1080@60Hz, 1280x720@60Hz
      • HDMI Sub: 1920x1080@60Hz, 1280x720@60Hz
    • Video Output Capabilities:
      • HDMI Main: HDMI 1.4/HDMI 2.0
      • HDMI Sub: HDMI 1.4
    • Video Output HDCP:
      • HDMI Main: HDCP 1.4/HDCP 2.2
      • HDMI Sub: HDCP 1.4
    • Video Input: 1x HDMI type A 19-pin female connector
    • Video Input Resolution: 3840x2160@30Hz, 1920x1080@60Hz, 1280x720@60Hz
    • Video Input Capability: HDMI 1.4
    • Video Input HDCP: HDCP 1.4
    • Analog Audio Output: 1x Phoenix connector
    • LAN Interface: RJ45; 1000Mbps
    • USB Interface:
      • USB 3.0:
       - 3x Type A
       - 1x Type C
      • USB 2.0:
       - 3x Type A
       - 1x Type C
    • Audio Input: AirPlay, Miracast, Chromecast, Windows/MAC App, WMH, WMC
    • Control Interface: Phoenix terminal 3.5mm RS232 interface
    • Maximum Display Window: ≥4+14 (4 main screens + 14 preview control windows)
    • Maximum Connected Transmitter: ≥16
    • Wireless Data Rate: Up to 1200Mbps
    • Video Play Frame Rate: 20fps - 60fps
    • Transmission Delay: 80ms/min
    • Wireless Transmission Protocol: WIFI IEEE 802.11 a/g/n/ac/ax
    • Frequency Band: 2.4GHz & 5GHz
    • WIFI Antenna: MIMO 2x2, MIMO 1x1
    • Dimensions (LxWxH): 13" x 8" x 3" (330.2mm x 203.2mm x 76.2mm)
    • Weight: 4lbs (1.8kg)
    • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
    • Humidity: 20% - 90% (non-condensing)
    • Power Supply: DC 12V or POE
    • POE Standard: IEEE802.3at
    • Power Consumption: 30W(MAX)

  • Item Includes:

    • 1x ALF-UC1 (Gen2)
    • 3x Antenna (Not pre-mounted to avoid damage)
    • 1x Power adapter with 3x plug type adapters
    • 1x Phoenix connectors

  • Warranty:

    • 7 Year Limited Warranty
