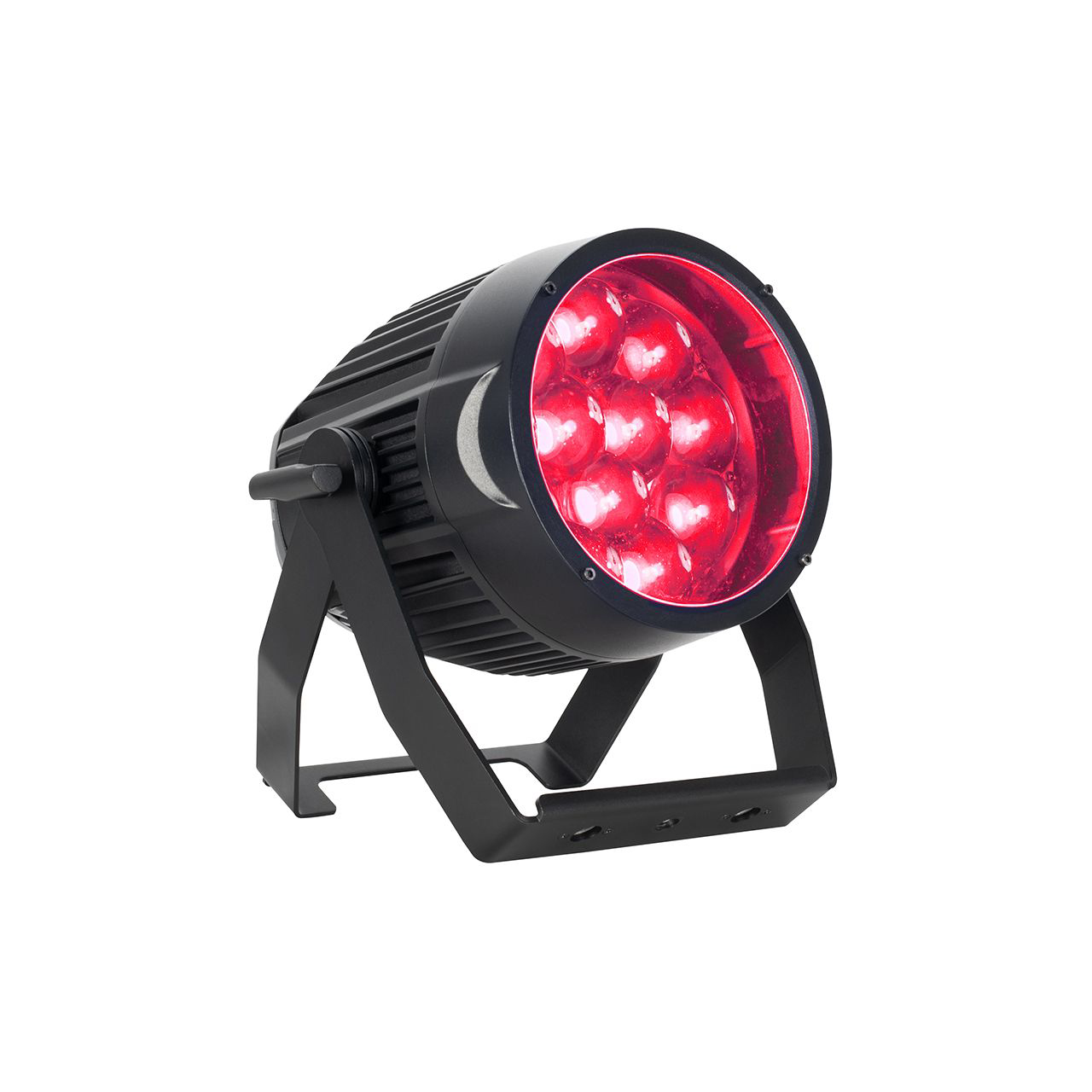

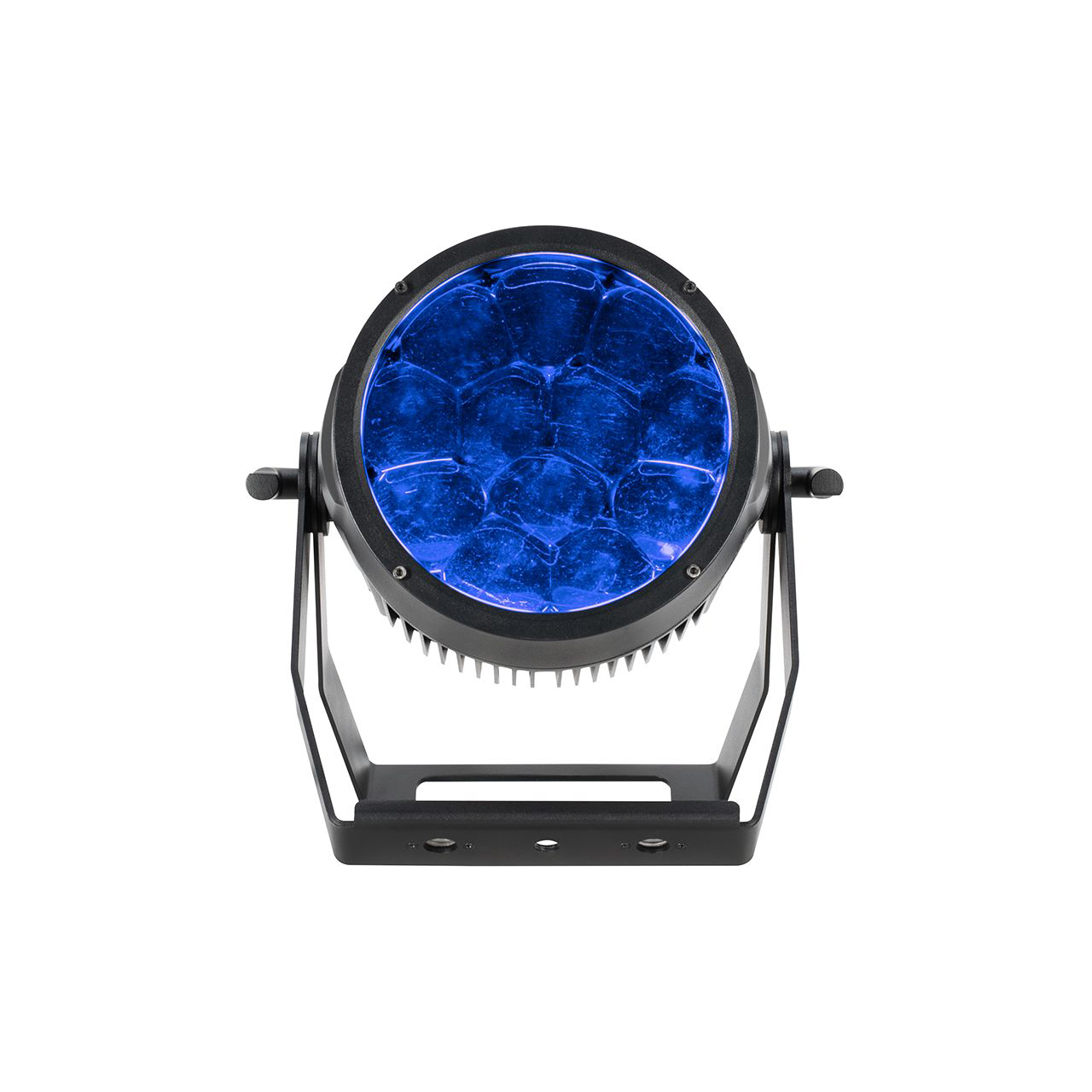

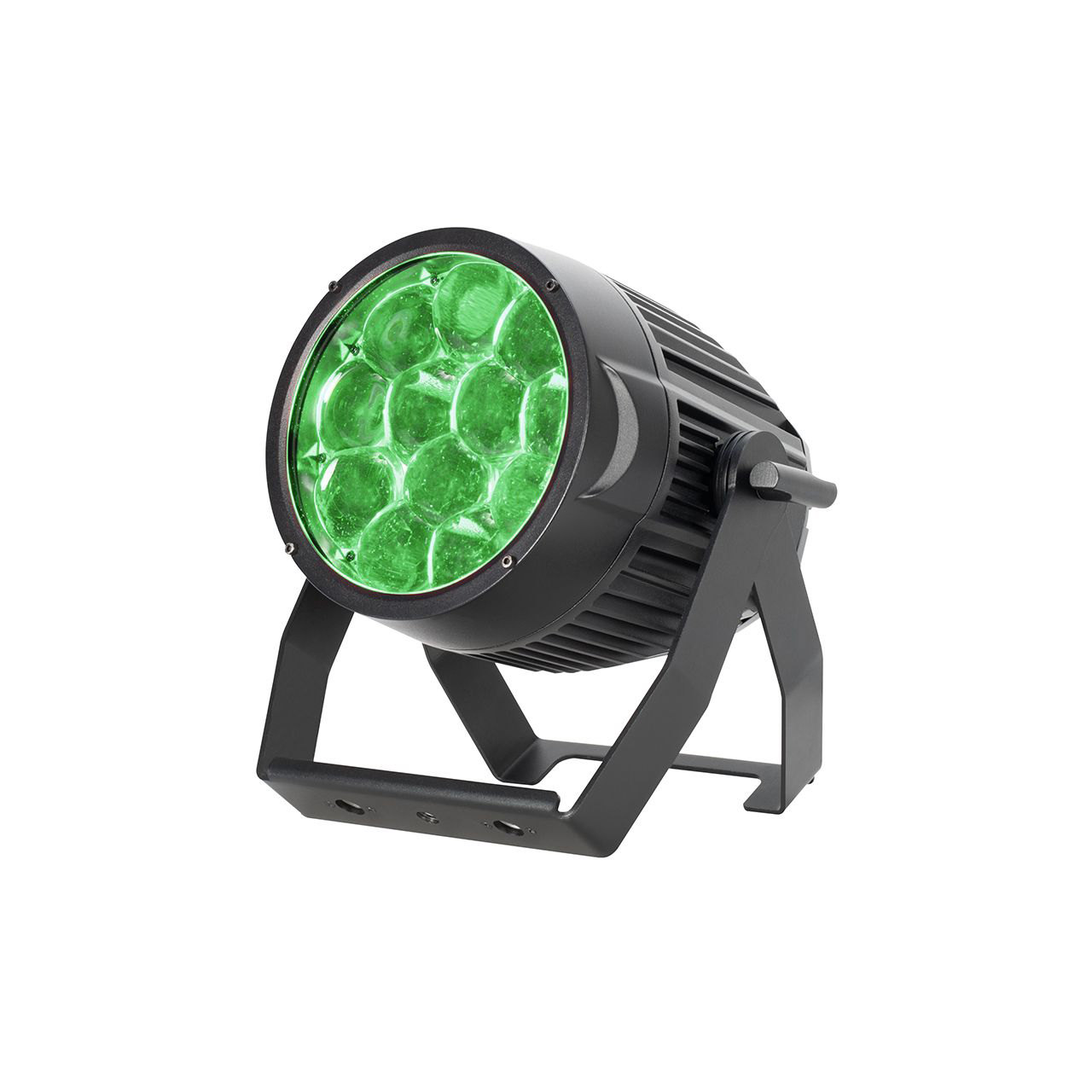

ADJ ENC395 Encore LP12Z RGBL Light Par Fixture with 12x 20W Quad LEDs and Motorized Zoom - IP65 Rated

ITEM #: AMDJ-ENC395 MFG #: ENC395

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$1,473.95

Our Price:

$1,099.99

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


ENC395 - Overview

Part of ADJ's Encore Series of stage lighting, the ADJ Encore LP12Z IP, is a professional LED Par wash fixture for temporary outdoor and indoor events. This IP65-rated fixture comes equipped with 12 Quad RGBL (Red, Green, Blue, and Lime) LEDs, each with a power of 20 watts, offering a massive palette of colors to choose from, including 64 built-in color macros and tunable white control.

The Encore LP12Z IP has a motorized zoom feature with a beam angle of 5° to 30° and a field angle of 9° to 50°, giving you the ability to control the lighting coverage of your event. Additionally, the fixture has tunable white color control, allowing you to choose a color temperature from 2700K to 6500K. You can also select from five preset color temperatures for a quick and easy setup.

With wireless DMX onboard, you can control the Encore LP12Z IP from a distance of up to 2500 ft. (700M) line of sight. It also supports RDM (Remote Device Management) and is compatible with a wired digital communication network. The fixture offers 6 selectable dimming modes and 4 selectable dim curves, as well as adjustable refresh rates and flicker-free operation, ensuring a smooth and seamless lighting experience.

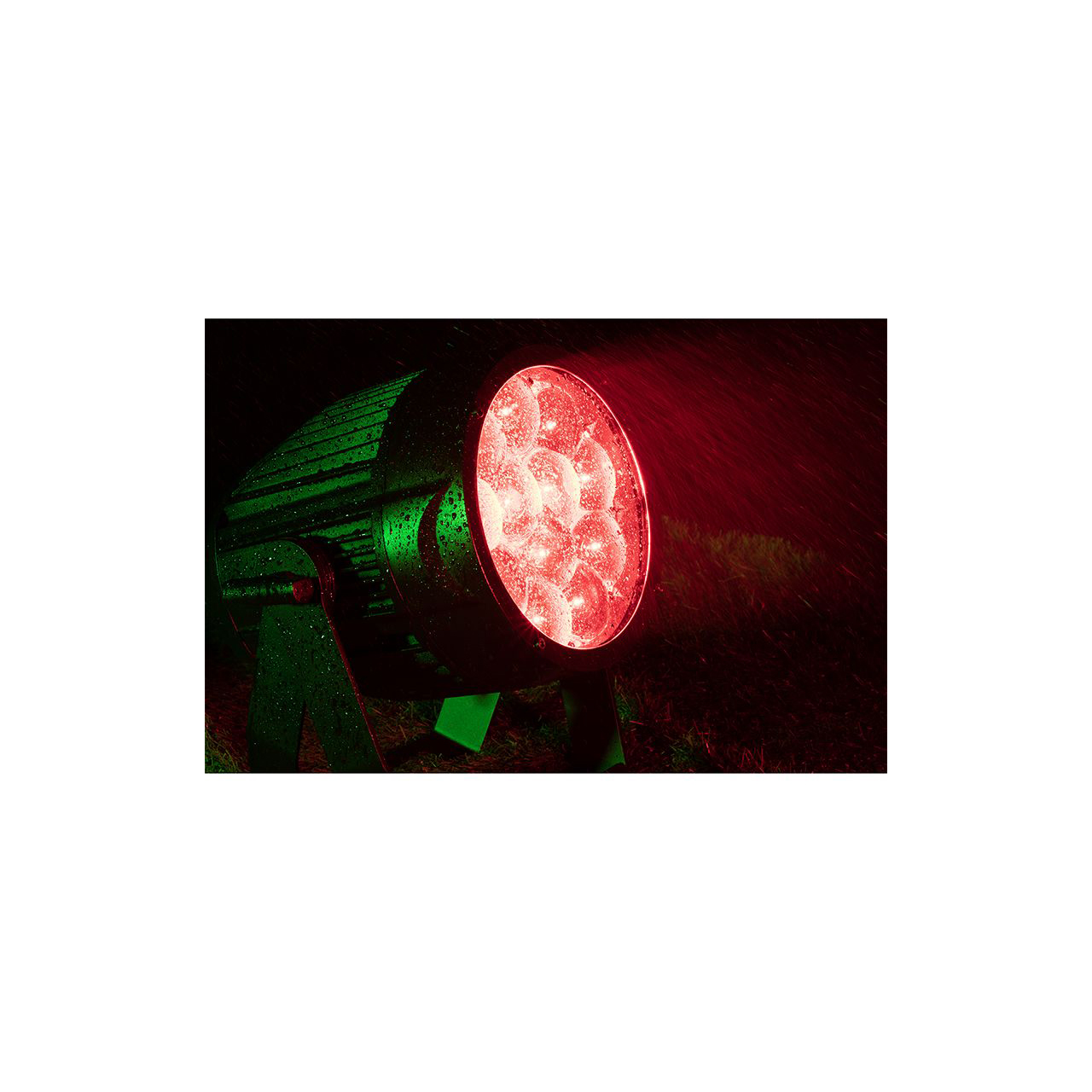

Constructed with all-metal and IP65-rated rubber covers, the Encore LP12Z IP is built to withstand the toughest outdoor conditions. The fixture also features IP65-rated 5-pin sockets and locking, outdoor in/out power connectors for added security. The IP65-rating provides Ingress Protection against liquid, snow, dust and sand. The scissor yoke and safety eye provide easy and safe mounting options.

The Encore LP12Z IP has a dimension of 8.75" x 12.45" x 14.45" (222x316x367mm) and weighs only 16.6 lbs. (7.5 kg) making it a compact and lighter weight fixtures compared to other IP65-Rated zoom pars in its class.

Overall, the ADJ Encore LP12Z IP is a very versatile wash fixture for any event, with its motorized zoom, wireless DMX control, and rugged construction, making it the ideal choice for outdoor festivals, concerts, indoor stages and other performances.

  • Features:

    • IP65 Rated
    • 5° - 30° Motorized Zoom
    • 12x 20W Quad LED's
    • 2700K - 6500K White Color Temperature Control

  • Specifications:

      Source
    • Light Source: 7 x 20-Watt Quad RGBL LEDs (4-IN-1: Red, Green, Blue & Lime)
    • Rated Life: 50,000 Hours

      Photmetric Data
    • Beam Angle: 5° - 30°
    • Field Angle: 9° - 50°
    • CRI: 84.4
    • CRI R9: 77
    • Lumens: 4400

      Effects
    • Motorized Zoom (5° - 30° Beam Angle, 9° - 50° Field Angle)
    • Linear Color Temperature Control (2700K - 6500K)
    • Preset Color Temperatures (2700K, 3200K, 4000K, 5600K and 6500K)
    • 16-Bit Fine Color Control (Red, Green, Blue & Lime)
    • 64 built-in Color Macros

      Control/Connections
    • 4-button, DMX digital display on rear panel
    • Operational modes: Static Color Mode, RGBL Dimmer Mode, Program Mode and DMX Controlled
    • Wireless DMX on-board
    • Supports RDM (Remote Device Management)
    • With Wired Digital Communication Network
    • 6x selectable Dimming Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)
    • 4x selectable Dim Curves (Linear, Square Inv. Squa, S-Curve)
    • Adjustable Refresh Rate (14 presets from 900Hz - 25,000Hz)
    • Flicker Free operation (No flickering on camera)
    • LED pulse and strobe effect
    • Electronic Dimming: 0 - 100%
    • 6x DMX Modes: 6, 9, 10, 12, 15 & 18-channel
    • Quiet fan mode

      Construction
    • IP65 Rated: Ingress Protection against liquid, snow, dust and sand
    • All aluminum construction
    • Anti-Corrosion Coating: C3
    • IP Rated rubber covers protect In/Out Locking Power connectors and IP rated 5-pin sockets
    • Locking, Outdoor In/Out Power connectors
    • Data linkable via 5-pin XLR DMX connections
    • Scissor Yoke & safety eye

      Electrical/Thermal
    • Multi-Voltage Operation: AC 100V - 240V, 47/63Hz
    • Daisy Chain: 6 @ 120V, 12 @ 220V
    • Max Power: 227W
    • Min/Max Ambient Temperature: -4°F - 113°F (-20°C - 45°C)

      Dimensions/Weight
    • Dimensions (LxWxH): 14.6" x 12.4" x 13.6" (371mm x 316mm x 346mm)
    • Weight: 16.6lbs (7.5kg)

      Approvals/Ratings
    • cETLus (Control # 4010765)
    • CE
    • FCC
    • UKCA
    • IP65

      Source
    • Light Source: 7 x 20-Watt Quad RGBL LEDs (4-IN-1: Red, Green, Blue & Lime)
    • Rated Life: 50,000 Hours

      Photmetric Data
    • Beam angle: 5° to 30°
    • Field angle: 9° to 50°
    • CRI: 84.4
    • CRI R9: 77
    • Lumens: 4400

      Effects
    • Motorized Zoom (5° to 30° Beam Angle, 9° to 50° Field Angle)
    • Linear Color Temperature Control (2700K to 6500K)
    • Preset Color Temperatures (2700K, 3200K, 4000K, 5600K and 6500K)
    • 16-Bit Fine Color Control (Red, Green, Blue & Lime)
    • 64 built-in Color Macros

      Control / Connections
    • 4-button, DMX digital display on rear panel
    • Operational modes: Static Color Mode, RGBL Dimmer Mode, Program Mode and DMX Controlled
    • Wireless DMX on-board
    • Supports RDM (Remote Device Management)
    • With Wired Digital Communication Network
    • 6 selectable Dimming Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)
    • 4 selectable Dim Curves (Linear, Square Inv. Squa, S-Curve)
    • Adjustable Refresh Rate (14 presets from 900 - 25,000Hz)
    • Flicker Free operation (No flickering on camera)
    • LED pulse and strobe effect
    • Electronic Dimming: 0 - 100%
    • 6 DMX Modes: 6, 9, 10, 12, 15 & 18-channel
    • Quiet fan mode

      Construction
    • IP65 Rated: Ingress Protection against liquid, snow, dust and sand
    • All aluminum construction
    • Anti-corrosion coating: C3
    • IP Rated rubber covers protect In/Out Locking Power connectors and IP rated 5-pin sockets
    • Locking, outdoor In/Out Power connectors
    • Data linkable via 5-pin XLR DMX connections
    • Scissor Yoke & safety eye

      Electrical / Thermal
    • Multi-voltage operation: AC 100-240V, 47/63Hz
    • Daisy chain: 6 @ 120V, 12 @ 220V
    • Max power: 227W
    • Min/Max Ambient Temperature: -4°F - 113°F / -20°C - 45°C

      Dimensions / Weight
    • Dimensions (LxWxH): 14.6" x 12.4" x 13.6" / 371 x 316 x 346mm
    • Weight: 16.6 lbs. / 7.5 kg.

      Approvals / Ratings
    • cETLus (Control # 4010765)
    • CE
    • FCC
    • UKCA
    • IP65

  • Item Includes:

    • 1x ENC395 Light Fixture
    • 1x Power Cable

  • Warranty:

    • 2 Year Warranty

  • GTIN:

    0810087371586
